Lan system INFINITI FX35 2004 Service Manual

LAN-136
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
TKWM0752E

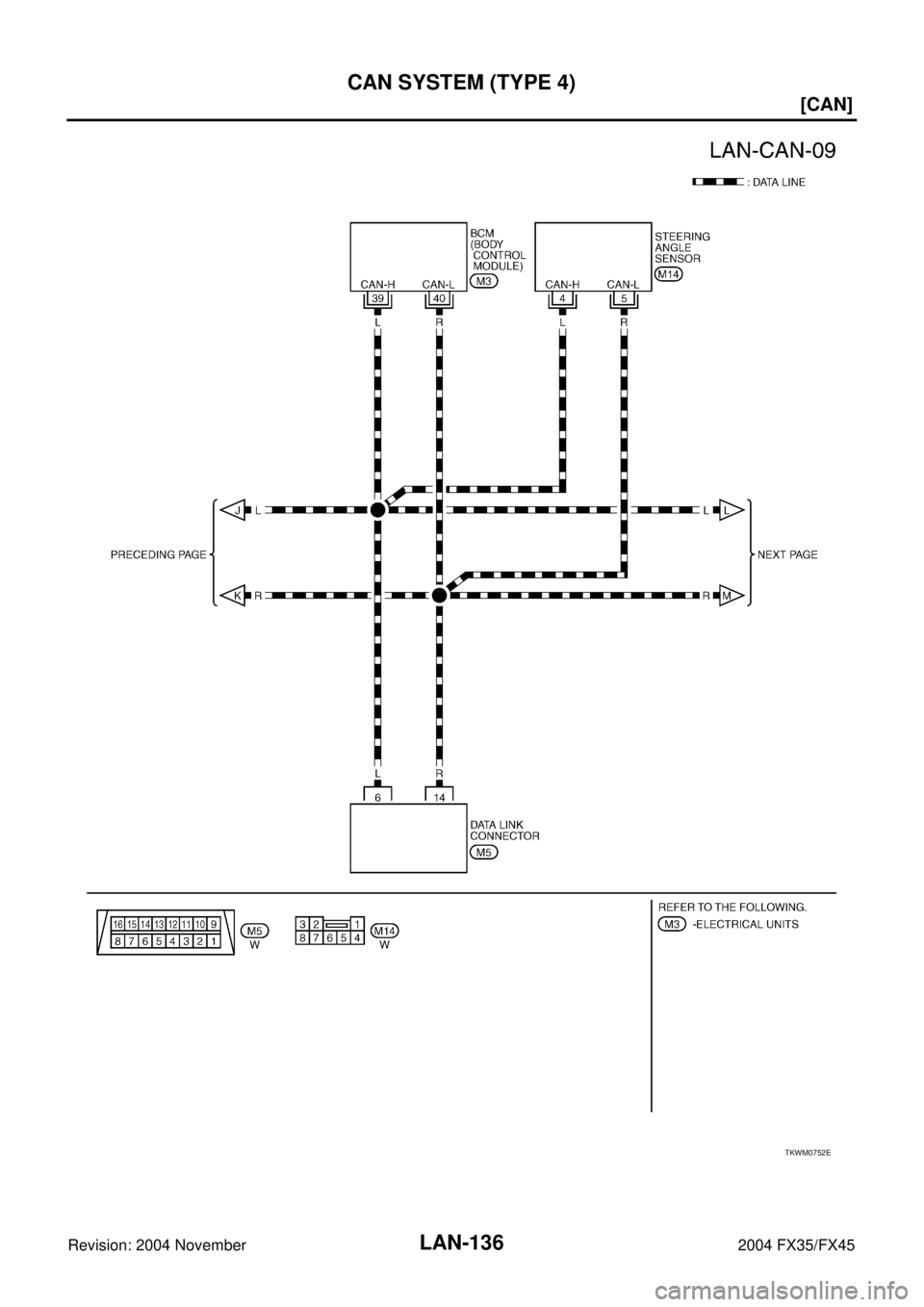

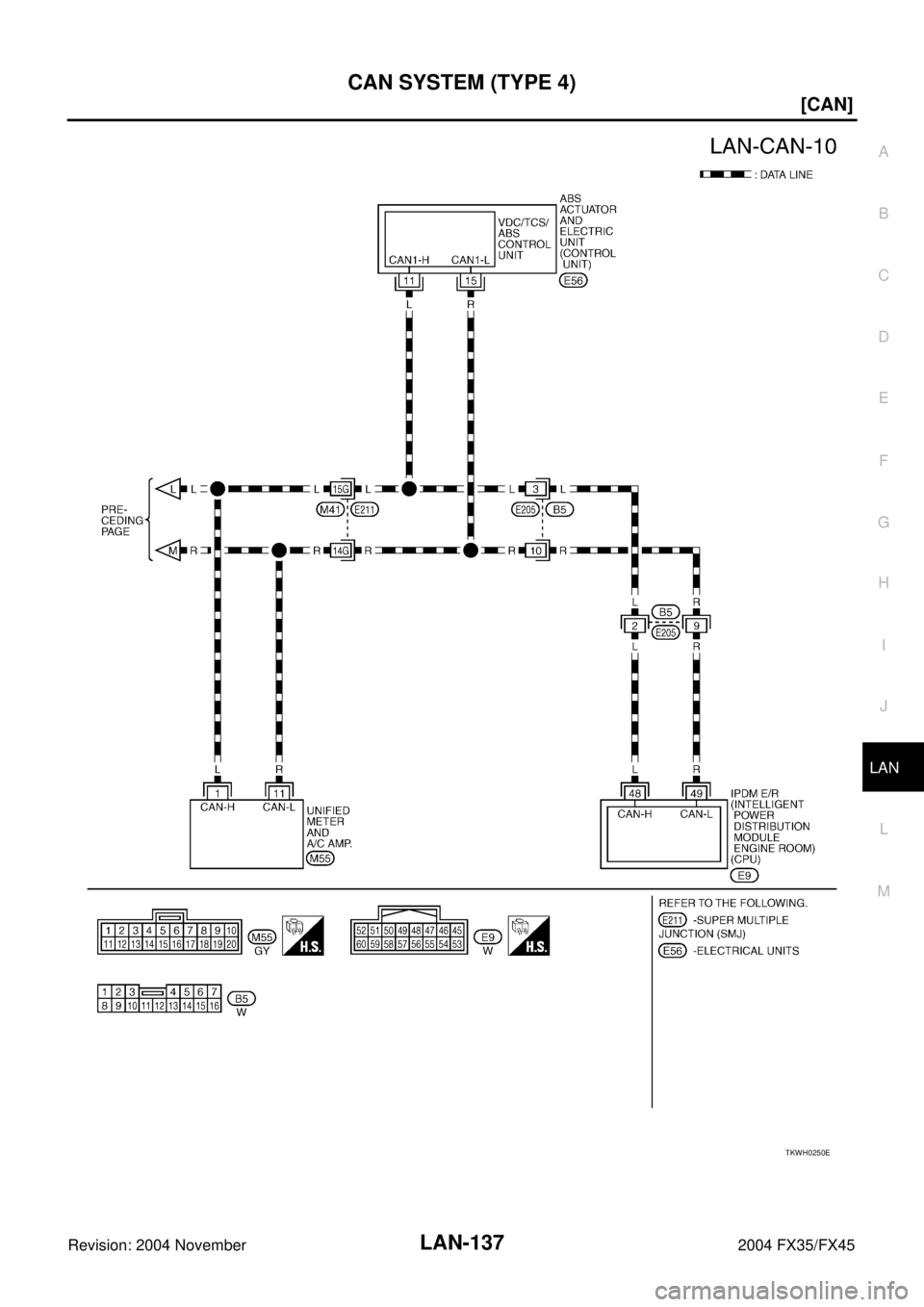

CAN SYSTEM (TYPE 4)
LAN-137
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
TKWH0250E

LAN-138
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00C15
1. When there are no indications of “BCM”, “METER A/C AMP” or “IPDM E/R” on “SELECT SYSTEM” dis-
play of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ALL MODE AWD/4WD”, “BCM”,
“METER A/C AMP”, “ABS”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ALL MODE AWD/4WD”, “BCM”,
“METER A/C AMP”, “ABS”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-140, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
140, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the integrated display system. Refer to AV- 8 5 , "
CAN Communication
Line Inspection" .
7. Attach the CAN DIAG MONITOR check sheet onto the check sheet. Refer to LAN-140, "
CHECK SHEET"
.
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 4)
LAN-139
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG MONITOR
check sheet. Refer to LAN-140, "
CHECK SHEET" .
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG MNTR” for the diagnosed control unit, replace the
control unit. Refer to AV- 8 5 , "
CAN Communication Line Inspection" .
9. According to the check sheet results (example), start inspection. Refer to LAN-142, "
CHECK SHEET
RESULTS (EXAMPLE)" .

LAN-140
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIA7985E

CAN SYSTEM (TYPE 4)
LAN-141
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

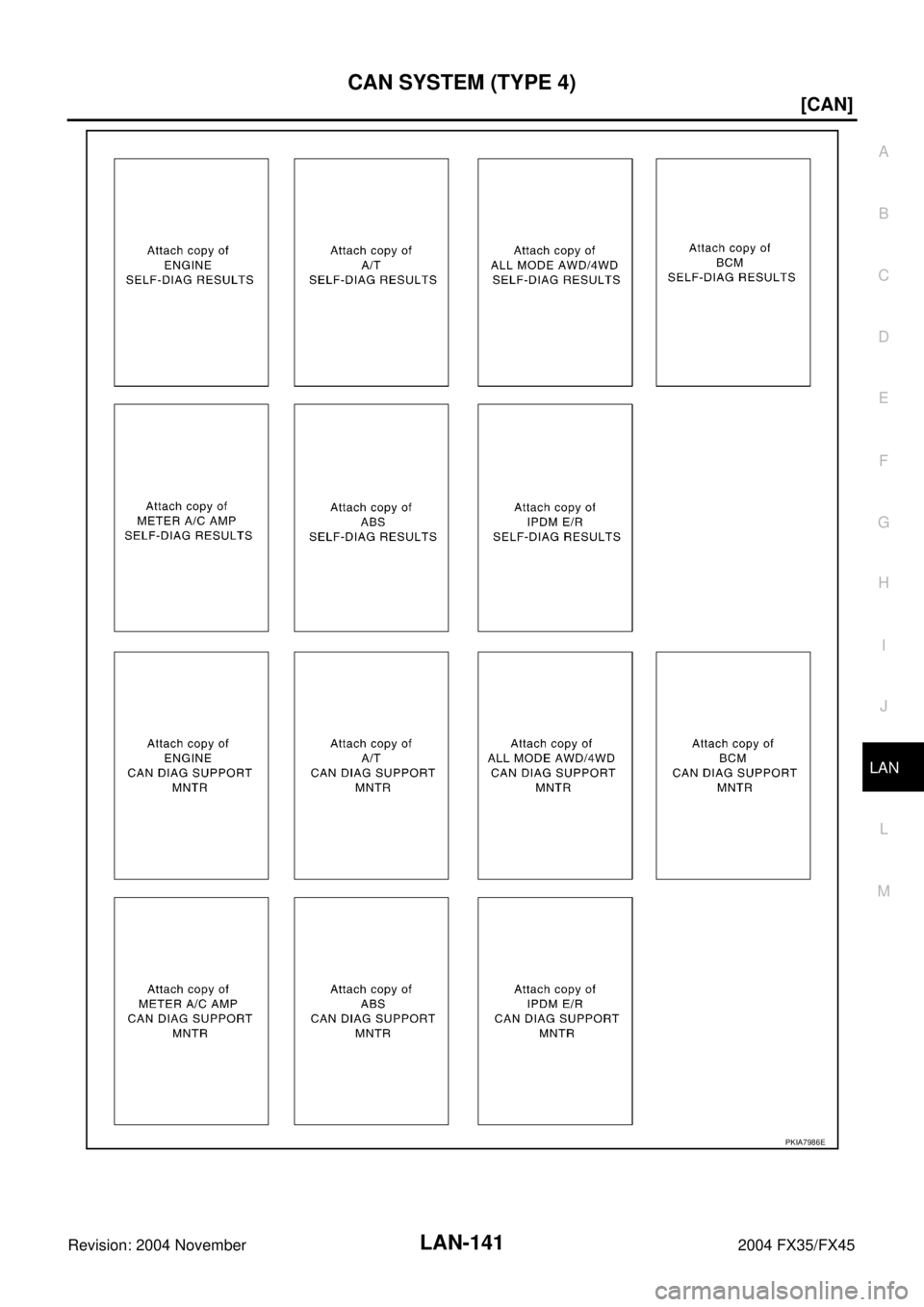

Revision: 2004 November 2004 FX35/FX45
PKIA7986E

LAN-142
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-156, "Circuit Check Between TCM and
Data Link Connector" .
PKIA7987E
SKIA6602E

CAN SYSTEM (TYPE 4)
LAN-143
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

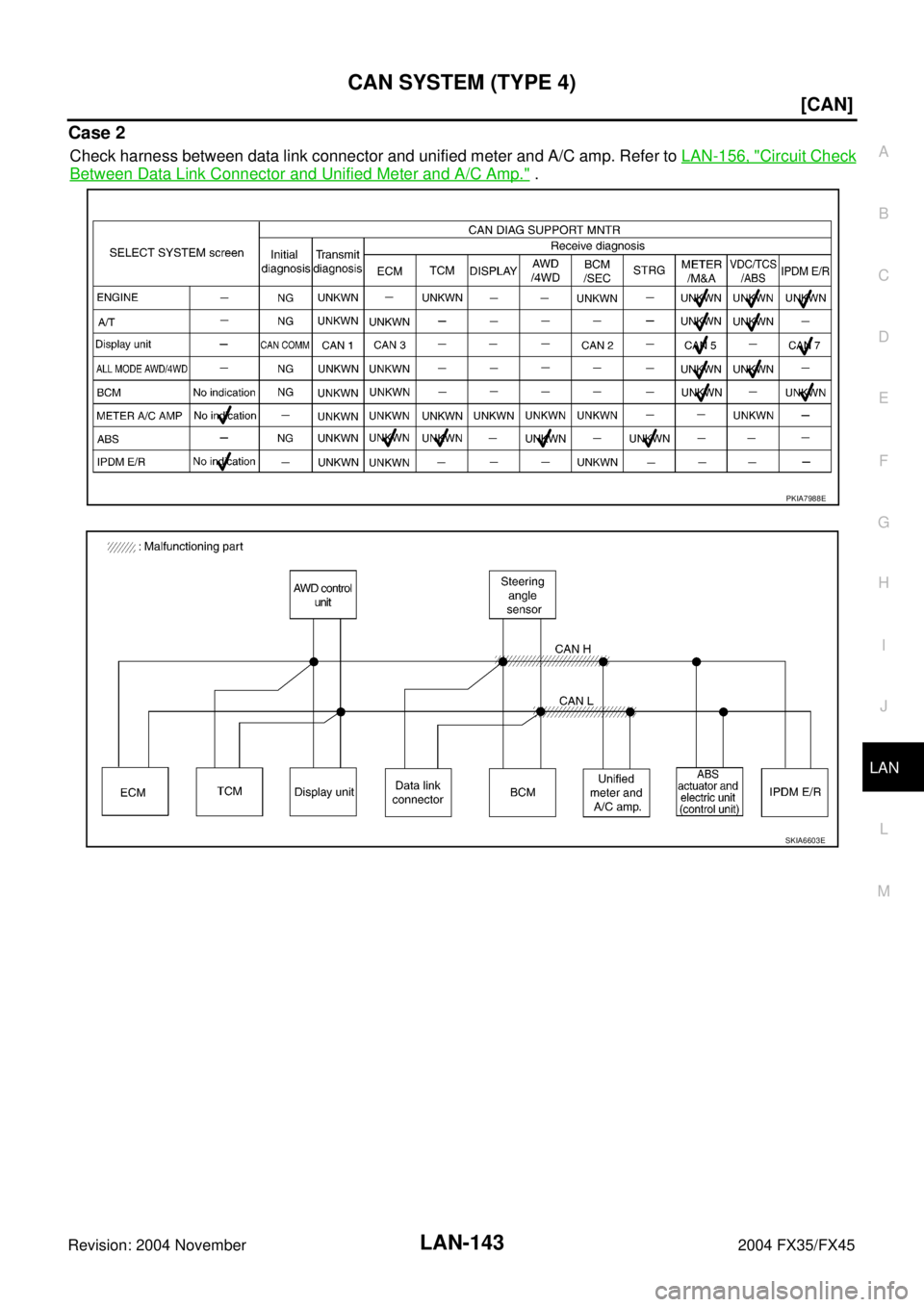

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-156, "Circuit Check
Between Data Link Connector and Unified Meter and A/C Amp." .
PKIA7988E
SKIA6603E

LAN-144
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-157, "
Circuit Check Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control
Unit)" .
PKIA7989E
SKIA6604E

CAN SYSTEM (TYPE 4)
LAN-145
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

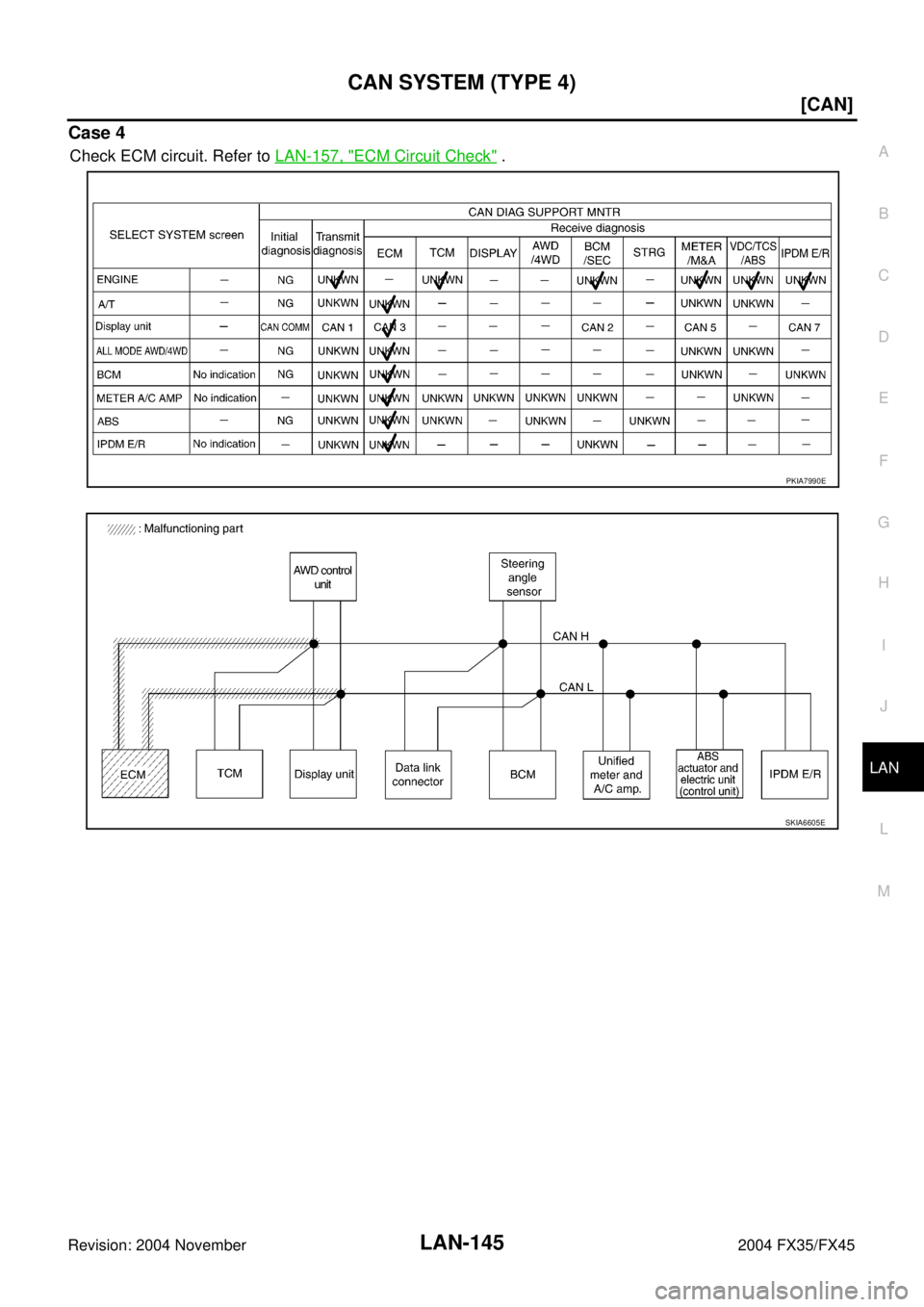

Case 4
Check ECM circuit. Refer to LAN-157, "ECM Circuit Check" .
PKIA7990E
SKIA6605E
