center console INFINITI FX35 2004 Service Manual

AT-234
SHIFT CONTROL SYSTEM
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Disconnect lower lever of control device and control rod.
2. Remove knob cover below selector lever downward.
3. Pull lock pin out of selector lever knob.
4. Remove selector lever knob.
5. Remove console finisher.

Refer to IP-10, "Component Parts Drawing" .
6. Remove center console.

Refer to IP-10, "Component Parts Drawing" .
7. Remove key interlock cable from control device.

Refer to AT- 2 4 0 , "Removal and Installation" .
8. Disconnect A/T device harness connector.
9. Remove control device assembly.
INSTALLATION
Install in reverse order of removal. Be careful of the following:

After installation is completed, adjust and check A/T position.
Adjustment of A/T PositionACS002RR
1. Loosen nut of control rod.
2. Place PNP switch and selector lever in “P” position.
3. While pressing lower lever toward rear of vehicle (in P position
direction), tighten nut to specified torque.
CAUTION:
Do not push the bracket.
Checking of A/T PositionACS002RS
1. Place selector lever in “P” position, and turn ignition switch ON (Do not start engine).
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move the selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm the selector lever stops at each position with the feel of engagement when it is moved through all
the positions. Check whether or not the actual position the selector lever is in matches the position shown
by the shift position indicator and the transmission body.
5. The method of operating the lever to individual positions cor-
rectly should be as shown in the figure.
6. When selector button is pressed in “P”, “R”, or “N” position with-
out applying forward/backward force to selector lever, check but-
ton operation for sticking.
7. Confirm the back-up lamps illuminate only when lever is placed
in the “R” position. Confirm the back-up lamps does not illumi-
nate when selector lever is pushed against “R” position in the
“P” or “N” position.
8. Confirm the engine can only be started with the selector lever in
the “P” and “N” positions.
9. Make sure transmission is locked completely in “P” position.
10. When selector lever is set to manual shift gate, make sure manual mode is displayed on combination
meter.
Shift selector lever to “+” and “-” sides, and make sure set shift position changes.
SCIA4954E
:26 N·m (2.7 kg-m, 19 ft-lb)
SCIA2119E
SCIA3906E

DUCTS AND GRILLES
ATC-135
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
Removal of Rear Ventilator Ducts
1. Remove center console. Refer to IP-11, "Removal and Installation" .
2. Slide rear ventilator duct 2 toward vehicle front, and then remove it.
3. Remove floor carpet. Refer to EI-40, "
Removal and Installation" .
4. Remove rear ventilator duct 3 mounting clips, and then remove rear ventilator duct 3.
5. Remove instrument panel assembly. Refer to IP-11, "
Removal and Installation" .
6. Remove rear ventilator duct 1 with center floor duct attached.
7. Remove rear ventilator duct 1 from center floor duct.
RJIA2052E
RJIA2053E
RJIA2054E

AV-198
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player connector and audio unit connector.

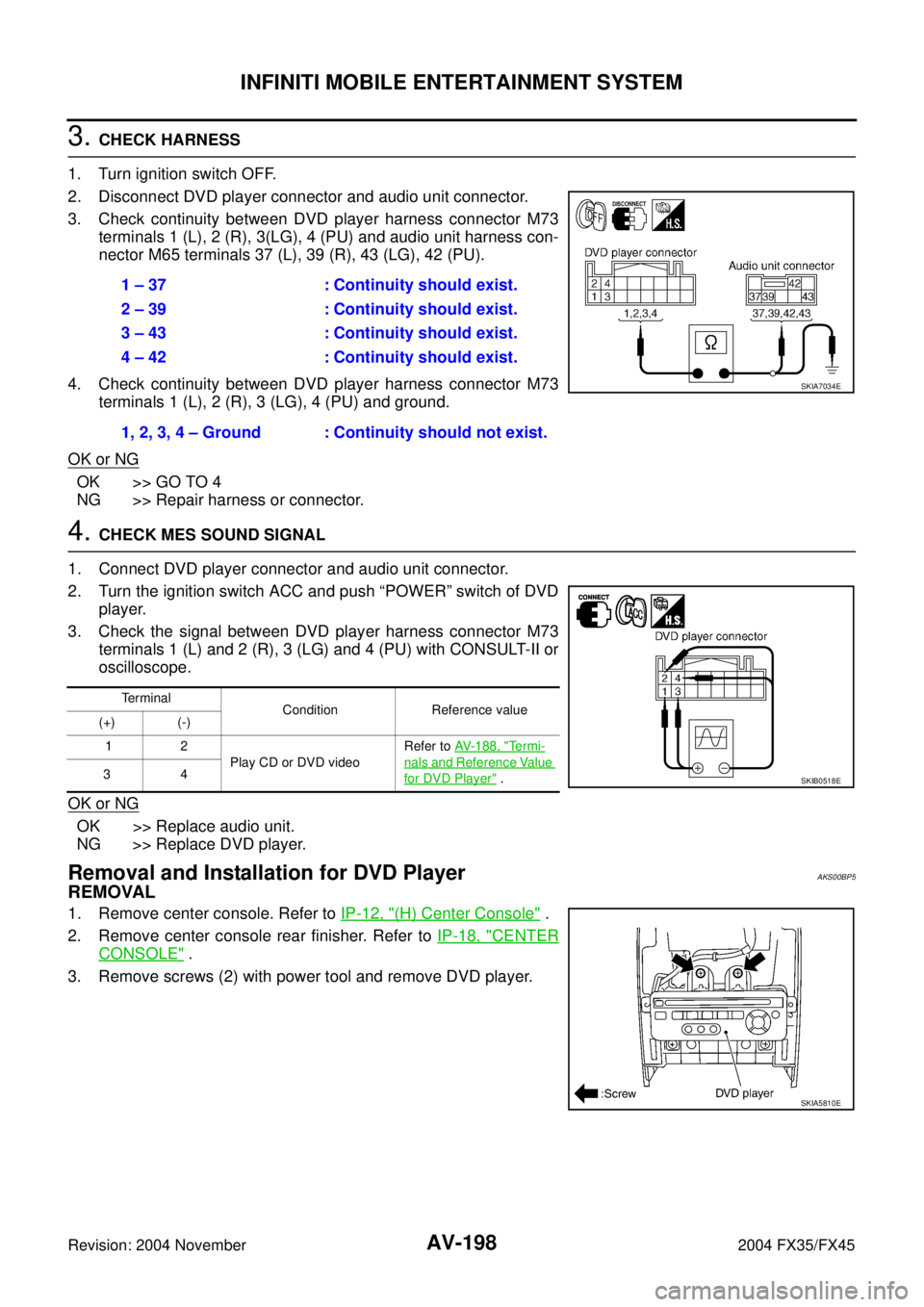

3. Check continuity between DVD player harness connector M73
terminals 1 (L), 2 (R), 3(LG), 4 (PU) and audio unit harness con-
nector M65 terminals 37 (L), 39 (R), 43 (LG), 42 (PU).
4. Check continuity between DVD player harness connector M73
terminals 1 (L), 2 (R), 3 (LG), 4 (PU) and ground.
OK or NG
OK >> GO TO 4
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player connector and audio unit connector.
2. Turn the ignition switch ACC and push “POWER” switch of DVD
player.
3. Check the signal between DVD player harness connector M73
terminals 1 (L) and 2 (R), 3 (LG) and 4 (PU) with CONSULT-II or
oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace DVD player.
Removal and Installation for DVD PlayerAKS00BP5
REMOVAL
1. Remove center console. Refer to IP-12, "(H) Center Console" .
2. Remove center console rear finisher. Refer to IP-18, "
CENTER
CONSOLE" .
3. Remove screws (2) with power tool and remove DVD player.1 – 37 : Continuity should exist.
2 – 39 : Continuity should exist.
3 – 43 : Continuity should exist.
4 – 42 : Continuity should exist.
1, 2, 3, 4 – Ground : Continuity should not exist.
SKIA7034E
Te r m i n a l
Condition Reference value
(+) (-)
12
Play CD or DVD videoRefer to AV- 1 8 8 , "
Te r m i -
nals and Reference Value
for DVD Player" . 34SKIB0518E
SKIA5810E

BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION BL
A
B
BL
Revision: 2004 November 2004 FX35/FX45
BODY, LOCK & SECURITY SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 5
OPERATION PROCEDURE ................................. 5
Precautions for Work ................................................ 5
Wiring Diagnosis and Trouble Diagnosis ................. 6
PREPARATION ........................................................... 7
Special Service Tools ............................................... 7
Commercial Service Tools ........................................ 7
SQUEAK AND RATTLE TROUBLE DIAGNOSIS ...... 8
Work Flow ................................................................ 8
CUSTOMER INTERVIEW ..................................... 8
DUPLICATE THE NOISE AND TEST DRIVE ....... 9
CHECK RELATED SERVICE BULLETINS ........... 9
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 9
REPAIR THE CAUSE ........................................... 9
CONFIRM THE REPAIR ..................................... 10
Generic Squeak and Rattle Troubleshooting ......... 10
INSTRUMENT PANEL ........................................ 10
CENTER CONSOLE ........................................... 10
DOORS ............................................................... 10
TRUNK ................................................................. 11
SUNROOF/HEADLINING .................................... 11
SEATS .................................................................. 11
UNDERHOOD ...................................................... 11
Diagnostic Worksheet ............................................ 12
HOOD ....................................................................... 14
Fitting Adjustment .................................................. 14
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT .................................................... 14
FRONT END HEIGHT ADJUSTMENT ............... 14
SURFACE HEIGHT ADJUSTMENT ................... 14
Removal and Installation of Hood Assembly .......... 15
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
Removal and Installation of Hood Lock Control ..... 16REMOVAL ........................................................... 16
INSTALLATION ................................................... 17
Hood Lock Control Inspection ................................ 17
RADIATOR CORE SUPPORT .................................. 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 20
FRONT FENDER ...................................................... 21
Removal and Installation ........................................ 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
POWER DOOR LOCK SYSTEM .............................. 22
Component Parts and Harness Connector Location ... 22
Component Parts and Harness Connector Location ... 23
System Description ................................................. 23
OUTLINE ............................................................. 24
CAN Communication System Description .............. 25
CAN Communication Unit ....................................... 25
Schematic (With Intelligent Key) ............................. 26
Wiring Diagram -D/LOCK- (With Intelligent Key) .... 27
FIG. 1 ................................................................... 27
FIG. 2 ................................................................... 28
FIG. 3 ................................................................... 29
FIG. 4 ................................................................... 30
FIG. 5 ................................................................... 31
Schematic (Without Intelligent Key) ........................ 32
Wiring Diagram -D/LOCK- (Without Intelligent Key) ... 33
FIG. 6 ................................................................... 33
FIG. 7 ................................................................... 34
FIG. 8 ................................................................... 35
FIG. 9 ................................................................... 36
Terminals and Reference Value for BCM ............... 37
Terminals and Reference Value for Intelligent Key
Unit (With Intelligent Key System) .......................... 37
Work Flow ............................................................... 37
Preliminary Check .................................................. 38
FUSE AND FUSIBLE LINK CHECK .................... 38
CONSULT-II Function ............................................. 39
CONSULT-II INSPECTION PROCEDURE .......... 39
CONSULT-II APPLICATION ITEMS .................... 40

BL-10
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18×1.97 in)
FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll The following
materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingAIS004LF
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.

BL-90
INTELLIGENT KEY SYSTEM
Revision: 2004 November 2004 FX35/FX45
Warning Procedure
Warning for take out of Intelligent
Key to outside the car (when door
open/closed)
When Any of the Following Conditions Are Met

When the ignition knob is pressed in so that it can be rotated (or has been rotated), if any
of the doors has been opened, when all the doors are closed, the Intelligent Key unit
compares the key-ID with that of the Intelligent Key using the inside key antenna, if the
results of the comparison are NG (the Intelligent Key is not found)

When the ignition knob is pressed in so that it can be rotated (or has been rotated), if any
of the doors is open, the Intelligent Key unit compares the key-ID with that of the Intelli-
gent Key every 5 seconds using the inside key antenna (center console), if the results of
the comparison are NG (the Intelligent Key is not found)
NOTE:
However, this warning is not issued if the mechanical key is inserted in the ignition knob.
Warning for take out of Intelligent
Key to outside the car (from win-
dow)When the ignition knob is pressed in so that it can be rotated (or has been rotated), if the
vehicle speed is no greater than 5 km per hour, the Intelligent Key unit compares the key-ID
with that of the Intelligent Key every 30 seconds using the inside key antenna, if the results
of the comparison are NG (the Intelligent Key is not found)
Note: The factory setting for this function is OFF.
Door lock non-operation warningWhen any of the following conditions are met
Intelligent Key Lock-in Prevention Warning

When the Intelligent Key is inside the car and the ignition knob is not pressed, when an
attempt is made to lock a door lock with a door request switch
NOTE:
This warning is issued even if the Intelligent Key is not in the out side key antenna detec-
tion area corresponding to the door request switch was operated.
Knob Return Forgotten Warning

When the ignition knob is pressed, when an attempt is made to lock a door lock with a
door request switch
NOTE:
This warning is only issued if the Intelligent Key is in the out side key antenna detection
area corresponding to the door request switch was operated.
Door Ajar Alarm

When any of the doors is open, when an attempt is made to lock a door lock with a door
request switch
NOTE:
This warning is only issued if the Intelligent Key is in the out side key antenna detection
area corresponding to the door request switch was operated.
Intelligent Key low battery pre-
warningThis warning is issued when it is detected that the battery in the Intelligent Key has been
used up. Warning and alarm names Operating conditions (when all the conditions below are met)
Warning and alarm namesBuzzer Warning lamp
Inside car Outside car “KEY” “P” shift
Ignition switch return forgotten
warningBuzzer: Continuous — — —
Selector lever return for gotten
warning— — — Illuminate
Ignition key warning
(When mechanical key used)Buzzer: Continuous — — —
Ignition switch OFF position
warning (for inside car: when
door closed)Buzzer: Continuous — — —
Ignition switch OFF position
warning (for outside car: when
door opened/closed)Buzzer: ContinuousBuzzer (10 sec-
onds)——

BRC-62
[VDC/TCS/ABS]
G SENSOR
Revision: 2004 November 2004 FX35/FX45
G SENSORPFP:47930
Removal and InstallationAFS001TG
REMOVAL
1. Remove center console. Refer to IP-12, "(H) Center Console" .
2. Disconnect G-sensor harness connector.
3. Remove G-sensor mounting bolts. Then remove G-sensor from
vehicle.
CAUTION:

Do not drop or strike G-sensor, because it has little endur-
ance to impact.

Do not use power tool etc., because G-sensor is weak for
the impact.
INSTALLATION
To install, follow procedure for removal in reverse order.
CAUTION:

Do not drop or strike G-sensor, because it has little endurance to impact.
NOTE:

After performing above works, calibrate decel G-sensor (AWD model). Refer to BRC-6, "Calibration of
Decel G-sensor (AWD Model)" .
PFIA0602E

EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION EI
A
B
EI
Revision: 2004 November 2004 FX35/FX45
EXTERIOR & INTERIOR
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Work ................................................ 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
CLIP AND FASTENER ..............................................11
Clip and Fastener .................................................... 11
FRONT BUMPER ..................................................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
FRONT FILLET MOLDING ASSEMBLY ............. 17REAR BUMPER ........................................................ 18
Removal and Installation ........................................ 18
REMOVAL ........................................................... 20
INSTALLATION ................................................... 21
REAR BUMPER FASCIA .................................... 21
REAR BUMPER CLOSING ................................. 22
DRAFTER GUARD ............................................. 22
REAR FILLET MOLDING ASSEMBLY ................ 22
FRONT GRILLE ........................................................ 23
Removal and Installation ........................................ 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
COWL TOP ............................................................... 24
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
FENDER PROTECTOR ............................................ 25
Removal and Installation ........................................ 25
REMOVAL ........................................................... 25
INSTALLATION ................................................... 25
DOOR OUTSIDE MOLDING ..................................... 26
Removal and Installation ........................................ 26
FRONT DOOR OUTSIDE MOLDING .................. 26
REAR DOOR OUTSIDE MOLDING .................... 26
DOOR OUTSIDE LOWER MOLDING ...................... 27
Removal and Installation ........................................ 27
FRONT AND REAR DOOR OUTSIDE LOWER
MOLDING ............................................................ 27
DOOR PARTING SEAL ............................................ 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
CENTER MUD GUARD ............................................ 29
Removal and Installation ........................................ 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 29
WINDSHIELD MOLDING .......................................... 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30

SQUEAK AND RATTLE TROUBLE DIAGNOSES
EI-7
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)
FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll The following
materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingAIS00376
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.

EI-40
FLOOR TRIM
Revision: 2004 November 2004 FX35/FX45
FLOOR TRIMPFP:74902
Removal and InstallationAIS0037O
REMOVAL
1. Remove front seat and rear seat cushion. Refer to SE-101, "Removal and Installation" and SE-107,
"Removal and Installation" .
2. Remove center console assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Remove front and rear kicking plate. Refer to EI-37, "
Removal and Installation" .
4. Remove front and rear body side welt. Refer to EI-37, "
Removal and Installation" .
5. Remove center pillar lower garnish. Refer to EI-37, "
Removal and Installation" .
6. Remove footrest screw, cover and foot-rest.
7. Remove dash side finisher. Refer to EI-37, "
Removal and Instal-
lation" .
8. Remove foot-grille.
9. Remove NAVI control unit. Refer to AV- 1 8 2 , "
Removal and
Installation of NAVI control Unit" .
10. Remove carpet hook.
PIIA4956E

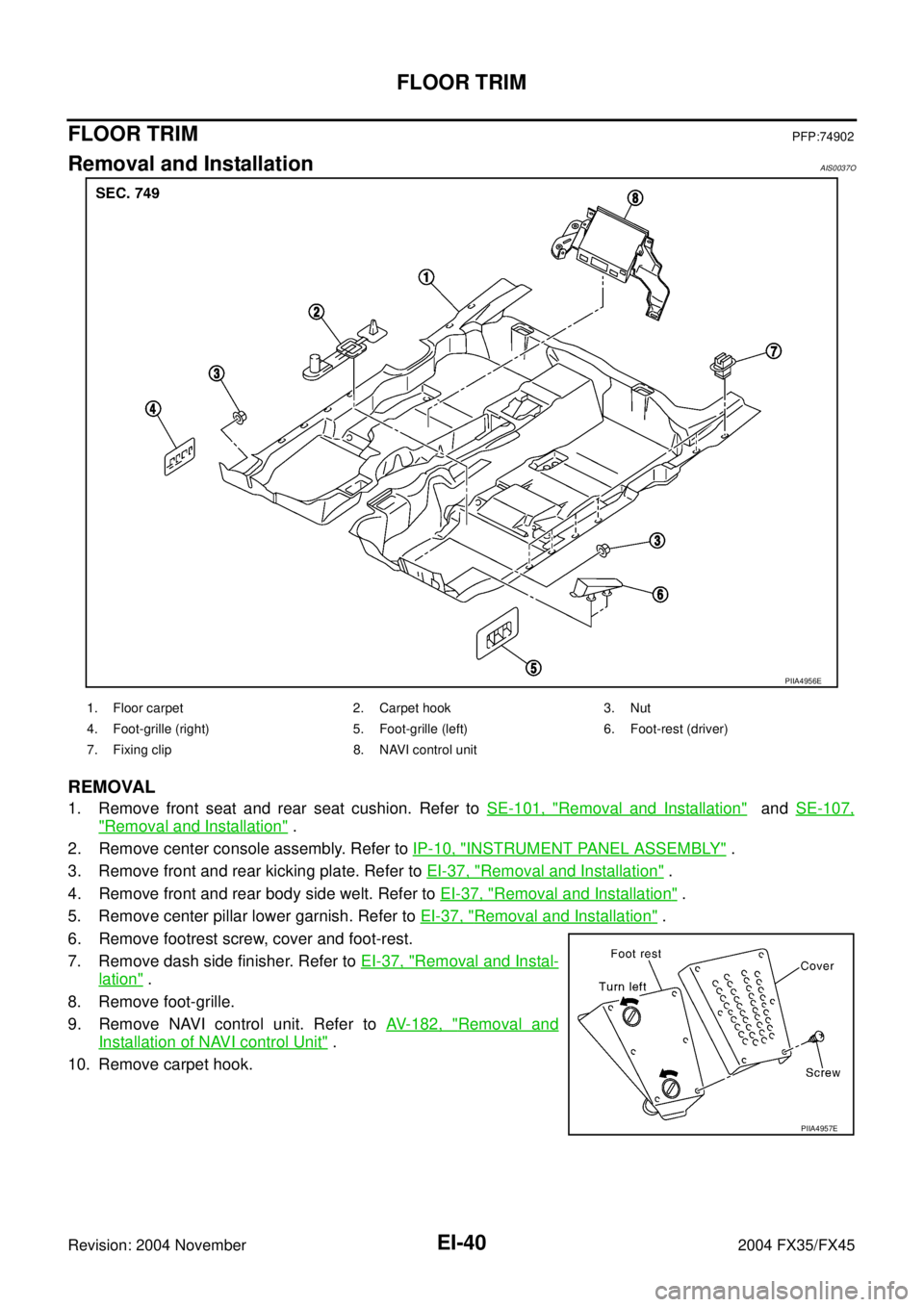

1. Floor carpet 2. Carpet hook 3. Nut
4. Foot-grille (right) 5. Foot-grille (left) 6. Foot-rest (driver)
7. Fixing clip 8. NAVI control unit
PIIA4957E
