AV-1
AUDIO VISUAL, NAVIGATION & TELEPHONE SYS-
TEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION AV
A
B
AV
Revision: 2004 November 2004 FX35/FX45
AUDIO VISUAL, NAVIGATION & TELEPHONE SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Wiring Diagrams and Trouble Diagnosis .................. 5
PREPARATION ........................................................... 6
Commercial Service Tools ........................................ 6
AUDIO ......................................................................... 7
System Description .................................................. 7
BASE SYSTEM ..................................................... 7
BOSE SYSTEM .................................................... 7
SPEED SENSITIVE VOLUME SYSTEM .............. 8
Component Parts and Harness Connector Location ..... 9
Schematic -Base System- ...................................... 10
WITH NAVIGATION SYSTEM ............................. 10
WITHOUT NAVIGATION SYSTEM ...................... 11
Wiring Diagram -AUDIO- / Base System ............... 12
Schematic -BOSE System- .................................... 19
WITH NAVIGATION SYSTEM ............................. 19
WITHOUT NAVIGATION SYSTEM ..................... 20
Wiring Diagram -AUDIO- / BOSE System .............. 21
Terminals and Reference Value for Audio Unit ....... 30
Terminals and Reference Value for BOSE Speaker
Amp. ....................................................................... 31
Terminals and Reference Value for A/C and AV
Switch ..................................................................... 33
Terminals and Reference Value for Woofer ............ 34
A/C and AV Switch Self-Diagnosis Function .......... 35
STARTING THE SELF-DIAGNOSIS MODE ....... 35
DIAGNOSIS FUNCTION ..................................... 35
EXITING THE SELF-DIAGNOSIS MODE ........... 35
Trouble Diagnosis .................................................. 35
MALFUNCTION WITH RADIO, TAPE AND CD
(BASE SYSTEM) ................................................ 35
MALFUNCTION WITH RADIO, TAPE AND CD
(BOSE SYSTEM) ................................................ 36
FOR RADIO ONLY .............................................. 37
FOR CASSETTE PLAYER ONLY ....................... 37
FOR CD ONLY .................................................... 37
Noise Inspection ..................................................... 38TYPE OF NOISE AND POSSIBLE CAUSE ........ 38
Power Supply Circuit Inspection ............................. 39
Audio Steering Wheel Switch Inspection ................ 40
A/C and AV Switch Inspection ................................ 41
BOSE Speaker Amp. Inspection ............................ 42
Vehicle Speed Signal Inspection ............................ 42
Locking CD Auto-changer Mechanism ................... 44
DAMPER LOCK PROCEDURE .......................... 44
Removal and Installation of Audio Unit ................... 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 44
Disassembly and Assembly for Audio Unit ............. 45
DISASSEMBLY ................................................... 45
ASSEMBLY ......................................................... 45
Removal and Installation for A/C and AV Switch .... 45
REMOVAL ........................................................... 45
INSTALLATION ................................................... 46
Removal and Installation for Front Door Speaker ... 46
REMOVAL ........................................................... 46
INSTALLATION ................................................... 46
Removal and Installation for Rear Door Speaker ... 46
REMOVAL ........................................................... 46
INSTALLATION ................................................... 46
Removal and Installation for Instrument Speaker ... 47
REMOVAL ........................................................... 47
INSTALLATION ................................................... 47
Removal and Installation for Tweeter ..................... 47
REMOVAL ........................................................... 47
INSTALLATION ................................................... 47
Removal and Installation for Woofer (BOSE Sys-
tem) ........................................................................ 47
REMOVAL ........................................................... 47
INSTALLATION ................................................... 47
Removal and Installation for BOSE Speaker Amp. ... 48
REMOVAL ........................................................... 48
INSTALLATION ................................................... 48
AUDIO ANTENNA .................................................... 49
System Description ................................................. 49
Wiring Diagram — M/ANT — ................................. 50
Terminals and Reference Value for Audio Unit ....... 51
Page 598 of 4449
AUDIO
AV-7
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
AUDIOPFP:28111
System DescriptionAKS00BMM
BASE SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
through 15A fuse (No. 32, located in the fuse and fusible link block)
to audio unit terminal 6
to A/C and AV switch terminal 1 and
to display control unit terminal 1 (with navigation system) or display unit terminal 1 (without navigation sys-
tem).
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 6, located in the fuse block (J/B)]
to audio unit terminal 10
to A/C and AV switch terminal 2 and
to display control unit terminal 10 (with navigation system) or display unit terminal 2 (without navigation
system).
Ground is supplied through the case of the audio unit.
Ground is also supplied
to A/C and AV switch terminal 5
to display control unit terminal 3 and 13 (with navigation system)
to display terminal 1 (with navigation system)
to display unit terminal 6 and 15 (without navigation system)
through body ground M35, M45 and M85
to option connector for satellite radio receiver terminal 10
through body ground B210 and B203.
Audio unit, A/C and audio controller are connected by FPC (Flexible Print Circuit).
A/C and audio controller integrates A/C switches and audio switches.
When A/C and audio controller is pushed to audio switch, it sends audio signal to audio unit.
Then audio signals are supplied
through audio unit terminals 1, 2, 3, 4, 13, 14, 15, and 16
to terminals 1 and 2 of front door speaker LH and RH
to terminals 1 and 2 of rear door speaker LH and RH
to terminals 1 and 2 of instrument speaker LH and RH.
When one of audio steering wheel switch is pushed to volume up, seek up, or mode ON, resistance in steering
switch circuit changes depending on which button is pushed.
When one of audio steering wheel switch is pushed to volume down, seek down, or power ON, resistance in
audio steering wheel switch circuit changes depending on which button is pushed.
BOSE SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
through 15A fuse (No. 32, located in the fuse and fusible link block)
to audio unit terminal 6
to woofer terminal 1
to A/C and AV switch terminal 1 and
to display control unit terminal 1 (with navigation system) or display unit terminal 1 (without navigation sys-
tem),
through 20A fuse [No.17, located in the fuse block (J/B)]
to BOSE speaker amp. terminal 1.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 6, located in the fuse block (J/B)]
to audio unit terminal 10
Page 599 of 4449
AV-8
AUDIO
Revision: 2004 November 2004 FX35/FX45
to A/C and AV switch terminal 2 and
to display control unit terminal 10 (with navigation system) or display unit terminal 2 (without navigation
system).
Ground is supplied through the case of the audio unit.
Ground is also supplied
to BOSE speaker amp. terminal 17
to woofer terminal 2
to option connector for satellite radio receiver terminal 10
through body ground B203 and B210,
to A/C and AV switch terminal 5
to display control unit terminal 3 and 13 (with navigation system)
to display terminal 1 (with navigation system)
to display unit terminal 6 and 15 (without navigation system)
through body ground M35, M45 and M85,
Audio unit, A/C and audio controller are connected by FPC (Flexible Print Circuit).
A/C and audio controller integrates A/C switches and audio switches.
When A/C and audio controller is pushed to audio switch, it send audio signal to audio unit.
Then audio signals are supplied
through audio unit terminals 1, 2, 3, 4, 13, 14, 15, and 16
to BOSE speaker amp. terminals 23, 24, 25, 26, 27, 28, 29, and 30.
Audio signals are amplified by the BOSE speaker amp.
The amplified audio signals are supplied
through BOSE speaker amp. terminals 2, 3, 4, 9,10,11,12, 13, 14, 15, 16, 18, 19 and 20
to terminals 1 and 2 of front door speaker LH and RH
to terminals 1 and 2 of rear door speaker LH and RH
to terminals 1 and 2 of tweeter LH and RH.
to terminals 1 and 2 of instrument speaker LH, RH, and CENTER,
to terminals 7 and 8 of woofer.
When one of audio steering wheel switch is pushed to volume up, seek up, or mode ON, resistance in audio
steering wheel switch circuit changes depending on which button is pushed.
When one of audio steering wheel switch is pushed to volume down, seek down, or power ON, resistance in
audio steering wheel switch circuit changes depending on which button is pushed.
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system gone up and down automatically in proportion to the vehicle speed. And the con-
trol level can be selected by the customer.
Page 626 of 4449
AUDIO
AV-35
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
A/C and AV Switch Self-Diagnosis FunctionAKS00BMP
It can check ON/OFF operation of each switch in the A/C and AV switch and diagnose the input signals to the
audio steering wheel switch.
STARTING THE SELF-DIAGNOSIS MODE
1. Turn ignition switch from OFF to ACC.
2. Within 10 seconds press and hold the switches “MUTE/II ” and
“PREV ” simultaneously for 3 seconds.
DIAGNOSIS FUNCTION
The following are checked:
All the indicators (LED) in the A/C and AV switch.
Continuity of the switches by sounding the buzzer when the A/C and AV switch is pressed.
Continuity of harness between A/C and AV switch and audio steering wheel switch.
EXITING THE SELF-DIAGNOSIS MODE
Turn ignition switch OFF.
Trouble DiagnosisAKS00BMQ
The majority of the audio malfunctions are the result of outside causes (bad CD/cassette, electromagnetic
interference, etc.). Check the symptoms below to diagnose the malfunction.
MALFUNCTION WITH RADIO, TAPE AND CD (BASE SYSTEM)
Make sure that operation excepting audio system can be done with A/C and AV switch. If not, refer AV- 8 4 , "A/
C and AV Switch Does Not Operate" to repair malfunctioning parts.
SKIA4972E
Symptom Check item
Inoperative
Audio unit power supply circuit. Refer to AV- 3 9 , "Power Supply Circuit
Inspection" .
Audio communication line (With out navigation system). Refer to , AV- 8 2 ,
"Audio Communication Line Inspection" .
Audio communication line (With navigation system). Refer to AV-131, "Self-
Diagnosis Mode (DCU)" .
A/C and AV switch. Refer to AV-41, "A/C and AV Switch Inspection" .
Audio unit
Audio steering wheel switch dose not operate
Audio steering wheel switch. Refer to AV- 4 0 , "Audio Steering Wheel Switch
Inspection" .
A/C and AV switch. Refer to AV-41, "A/C and AV Switch Inspection" .
One or several speaker does not sound
Front door speaker
Rear door speaker
Audio unit
Poor sound
Audio unit
Speaker
Noisy
Audio unit
Each electrical equipment
Page 627 of 4449
AV-36
AUDIO
Revision: 2004 November 2004 FX35/FX45
MALFUNCTION WITH RADIO, TAPE AND CD (BOSE SYSTEM)
Make sure that operation excepting audio system can be done with A/C and AV switch. If not, refer AV- 8 4 , "A/
C and AV Switch Does Not Operate" (without navigation system), AV- 1 3 1 , "Self-Diagnosis Mode (DCU)" (with
navigation system) to repair malfunctioning parts.
Symptom Check item
Inoperative
Audio unit power supply circuit. Refer to AV- 3 9 , "Power Supply Circuit
Inspection" .
Audio communication line (Without navigation system). Refer to AV- 8 2 ,
"Audio Communication Line Inspection" .
Audio communication line (With navigation system). Refer to AV-131, "Self-
Diagnosis Mode (DCU)" .
A/C and AV switch. Refer to AV- 4 1 , "A/C and AV Switch Inspection" .
Audio unit
Audio steering wheel switch dose not operate
Audio steering wheel switch. Refer to AV-40, "Audio Steering Wheel Switch
Inspection" .
A/C and AV switch. Refer to AV- 4 1 , "A/C and AV Switch Inspection" .
One or several speaker does not sound
BOSE speaker amp. power supply and ground circuit. Refer to AV- 3 9 ,
"Power Supply Circuit Inspection" .
Front door speaker
Rear door speaker
BOSE speaker amp.AV- 4 2 , "BOSE Speaker Amp. Inspection" .
Audio unit
Woofer does not sound
Woofer
BOSE speaker amp
Speed sensitive volume system dose not work
Vehicle speed signal. Refer to AV- 4 2 , "Vehicle Speed Signal Inspection" .
Audio unit
Poor sound
Audio unit
BOSE speaker amp
Speaker
Woofer
Noisy
Audio unit
BOSE speaker amp
Each electrical equipment
Page 628 of 4449
AUDIO
AV-37
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
FOR RADIO ONLY
NOTE:
This is noise resulting from variations in field strength, such as fading noise and multi-path noise, or external
noise from trains and other sources. It is not a malfunction.
Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal.
Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the
antenna at a different time from the waves which reflect off of mountains or buildings.
FOR CASSETTE PLAYER ONLY
FOR CD ONLY
Symptom Check item
No sound
Audio unit
Antenna feeder
Antenna amp.
Noisy
Audio unit
Antenna feeder
Antenna amp.
Noise prevention parts
Each electrical equipment
Wire harness of each piece of electrical equipment
Selected radio stations stored in memory are deleted Audio unit
Symptom Check item
Cassette tape cannot be inserted
Cassette tape
Audio unit Cassette tape cannot be ejected
Auto reverse does not work, or the tape direction changes in
the middle of play
There is much noise
The sound is not clear
Sound fluctuates/tape speed not correct
No sound
Symptom Check item
CD cannot be inserted
CD
Audio unit CD cannot be ejected
The CD cannot be played
The sound skips, stops suddenly, or is distorted
Page 629 of 4449
AV-38
AUDIO
Revision: 2004 November 2004 FX35/FX45
Noise InspectionAKS00BMR
The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunction.
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-
tion of each piece of electrical equipment, and determine the cause.
NOTE:
The source of the noise can be found easily by listening to the noise while removing the fuses of electrical
components, one by one.
TYPE OF NOISE AND POSSIBLE CAUSE
Occurrence condition Possible cause
Occurs only when engine is
ON.A continuous growling noise occurs. The speed
of the noise varies with changes in the engine
speed.
Ignition condenser
A whistling noise occurs while the engine speed
is high. A booming noise occurs while the engine
is running and the lighting switch is ON.
Alternator
The occurrence of the noise is linked with the operation of the fuel pump.
Fuel pump condenser
Noise only occurs when various
electrical components are oper-
ating.A cracking or snapping sound occurs with the
operation of various switches.
Relay malfunction, radio malfunction
The noise occurs when various motors are oper-
ating.
Motor case ground
Motor
The noise occurs constantly, not just under certain conditions.
Rear window defogger coil malfunction
Open circuit in printed heater
Poor ground of antenna amplifier or
antenna feeder line
Mirror type film is attached on the rear win-
dow glass
After-market TV antenna and/or electrical
accessories such as radio are attached on
the rear window glass.
A cracking or snapping sound occurs while the vehicle is being driven, especially
when it is vibrating excessively.
Ground wire of body parts.
Ground due to incorrectinstallation of
parts.
Wiring connections or ashort circuit.
Page 640 of 4449
AUDIO ANTENNA
AV-49
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
AUDIO ANTENNAPFP:28200
System DescriptionAKS007WE
With the ignition switch in ACC or ON, power is supplied
through 10A fuse [No. 6, located in the fuse block (J/B)]
to audio unit terminal 10.
Ground is supplied through the case of the antenna amp.
When the radio switch is turned ON, antenna signal is supplied
through audio unit terminal 5
to the antenna amp.
Then the antenna amp. is activated.
The amplified radio signals are supplied to the audio unit through the antenna amp.
Page 642 of 4449
AUDIO ANTENNA
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Audio UnitAKS007WW
Antenna Amp. InspectionAKS007WX
1. CHECK ANTENNA FEEDER
Check with visual observation if antenna feeder between audio unit and antenna amp. has disconnection or
malfunction on the mounting part (engagement, looseness of shield earth, etc.).
OK or NG
OK >> GO TO 2
NG >> Replace antenna feeder.
2. CHECK ANTENNA SIGNAL
1. Turn the ignition switch ACC.
2. Check voltage between audio unit harness connector M58 ter-
minal 5 (R/W) and ground.
OK or NG
OK >> INSPECTION END (System is OK)
NG >> Replace audio unit.
Terminal
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of symp-
tom
+–Ignition
switchOperation
5 (R/
W)GroundAntenna sig-
nalOutput ACC – Approx. 12VReceiving status of
radio broadcast
becomes bad.
10
(LG/R)GroundACC power
supplyInput ACC – Battery voltageSystem does not
work properly
5 – Ground : Approx. 12V
SKIA6854E
Page 666 of 4449
INTEGRATED DISPLAY SYSTEM
AV-75
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45

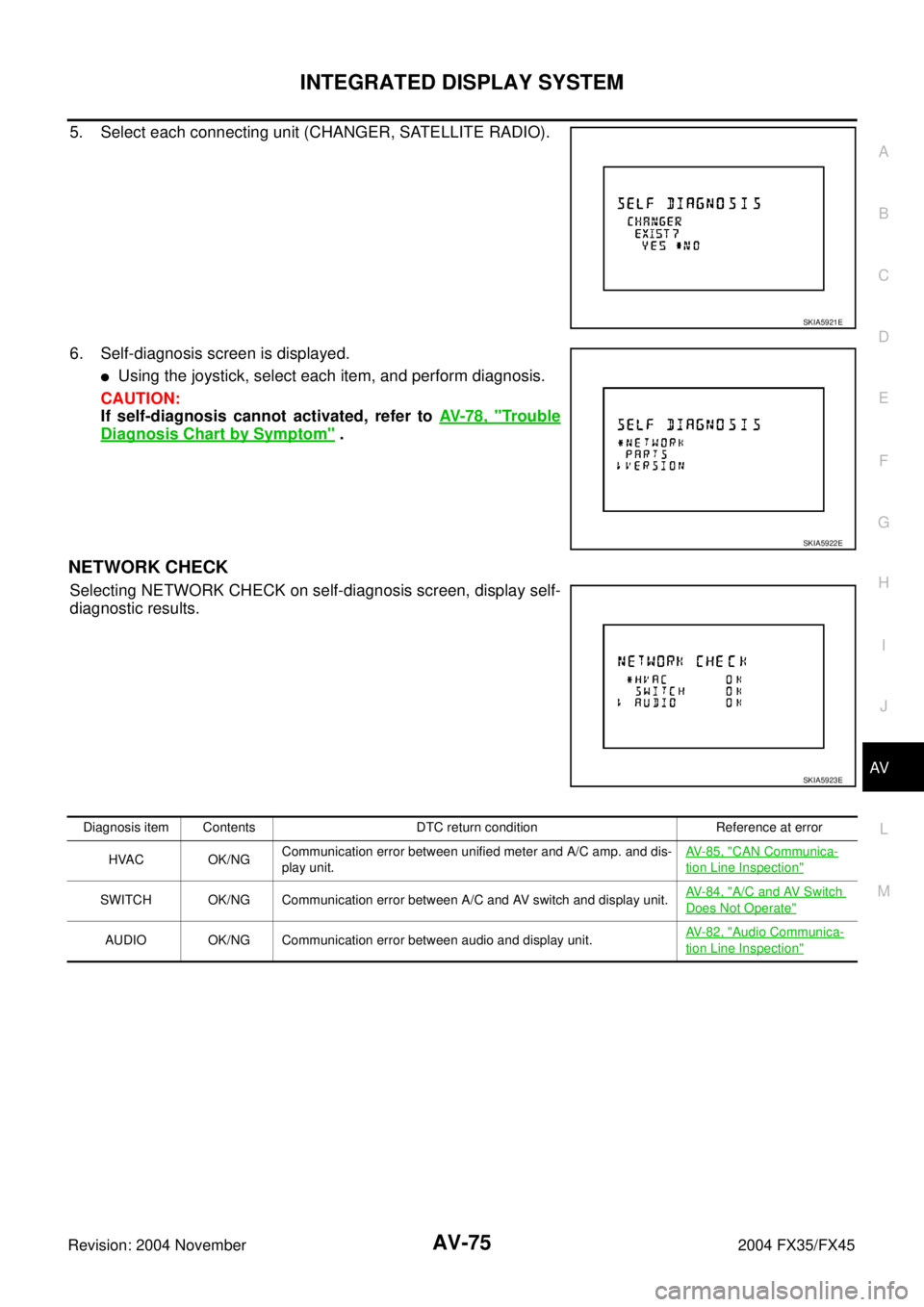

5. Select each connecting unit (CHANGER, SATELLITE RADIO).
6. Self-diagnosis screen is displayed.
Using the joystick, select each item, and perform diagnosis.
CAUTION:
If self-diagnosis cannot activated, refer to AV- 7 8 , "
Trouble
Diagnosis Chart by Symptom" .
NETWORK CHECK
Selecting NETWORK CHECK on self-diagnosis screen, display self-
diagnostic results.
SKIA5921E
SKIA5922E
SKIA5923E
Diagnosis item Contents DTC return condition Reference at error
HVAC OK/NGCommunication error between unified meter and A/C amp. and dis-
play unit.AV-85, "
CAN Communica-
tion Line Inspection"
SWITCH OK/NG Communication error between A/C and AV switch and display unit.AV-84, "A/C and AV Switch
Does Not Operate"
AUDIO OK/NG Communication error between audio and display unit.AV-82, "Audio Communica-
tion Line Inspection"
