QUICK REFERENCE CHART FX35/FX45
ENGINE TUNE-UP DATA (VK45DE)
FRONT WHEEL ALIGNMENT (Unladen* )
ELS0003X
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.Engine modelVK45DE
Firing order1-8-7-3-6-5-4-2
Idle speed
A/T (In “P” or “N” position) rpm650±50
Ignition timing
(BTDC at idle speed)12°±5°
CO% at idle 0.7 - 9.9 % and engine runs smoothly
Tensions of drive belts Auto adjustment by auto tensioner
Radiater cap relief pressure
kPa (kg/cm
2 , psi)
Standard 78 - 98 (0.8 - 1.0 , 11 - 14 )
Limit 59 (0.6, 9)
Cooling system leakage testing pressure
157(1.6, 23)
kPa (kg/cm
2 , psi)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
Standard 1,320 (13.5, 191) /300
Minimum 1,130 (11.5, 164)/300
Spark plug Standard type PLFR5A - 11
Hot type PLFR4A - 11
Cold type PLFR6A - 11
Camber Degree minute (Decimal degree) Minimum – 1° 29′ ( – 1.48° )
Nominal – 0° 44′ ( – 0.73° )
Maximum 0° 01′ ( 0.02° )
Left and right difference 45′ ( 0.75° ) or less
Caster Degree minute (Decimal degree) Minimum 3° 02′ ( 3.03° )
Nominal 3° 47′ ( 3.78° )
Maximum 4° 32′ ( 4.53° )
Left and right difference 45′ ( 0.75° ) or less
Kingpin inclination Degree minute (Decimal degree) Minimum 12° 20′ ( 12.33° )
Nominal 13° 05′ ( 13.08° )
Maximum 13 50′ ( 13.83° )
Total toe-in Distance (A – B) Minimum 0.6 mm ( 0.024 in )
Nominal 1.6 mm ( 0.063 in )
Maximum 2.6 mm ( 0.102 in )
Angle (left plus right)
Degree minute (Degree)Minimum –
Nominal 6′ ( 0.1° )
Maximum –
Wheel turning angle (Full turn) Inside MInimum 32° 00′ ( 32.0° )
Degree minute (Decimal degree) Nominal 35° 00′ ( 35.0° )
Maximum 36° 00′ ( 36.0° )
Outside
Nominal 30° 00′ ( 30.0° )
Degree minute (Decimal degree)
2004

AV-88
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
NAVIGATION SYSTEMPFP:25915
System DescriptionAKS00BMX
The navigation system periodically calculates the vehicle's current
position according to the following three signals: Travel distance of
the vehicle as determined by the vehicle speed sensor, turning angle
of the vehicle as determined by the gyroscope (angular velocity sen-
sor), and the direction of vehicle travel as determined by the GPS
antenna (GPS information).
The current position of the vehicle is then identified by comparing the
calculated vehicle position with map data read from the map DVD-
ROM, which is stored in the DVD-ROM drive (map-matching), and
indicated on the screen with a current-location mark.
By comparing the vehicle position detection results found by the
GPS and by map-matching, more accurate vehicle position data can
be used.
The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.
TRAVEL DISTANCE
Travel distance calculations are based on the vehicle speed sensor input signal. Therefore, the calculation
may become incorrect as the tires wear down. To prevent this, an automatic distance fine adjustment function
has been adopted.
TRAVEL DIRECTION
Change in the travel direction of the vehicle is calculated by a gyroscope (angular velocity sensor) and a GPS
antenna (GPS information). As the gyroscope and GPS antenna have both merit and demerit, input signals
from them are prioritized in each situation. However, this order of priority may change in accordance with more
detailed travel conditions so that the travel direction is detected more accurately.
MAP-MATCHING
Map-matching is a function that repositions the vehicle on the road
map when a new location is judged to be the most accurate. This is
done by comparing the current vehicle position, calculated by the
method described in the position detection principle, with the road
map data around the vehicle, read from the map DVD-ROM stored in
the DVD-ROM drive.
Therefore, the vehicle position may not be corrected after the vehicle
is driven over a certain distance or time in which GPS information is
hard to receive. In this case, the current location mark on the display
must be corrected manually.
CAUTION:
The road map data is based on data stored in the map DVD-
ROM.
SKIA6215E
SEL684V
Type Advantage Disadvantage
Gyroscope (angular velocity sensor)

Can detect the vehicle's turning angle
quite accurately.
Direction errors may accumulate when the
vehicle is driven for long distances without
stopping.
GPS antenna (GPS information)

Can detect the vehicle's travel direction
(North/South/East/West).
Correct direction cannot be detected when
the vehicle speed is low.
SEL685V

PRECAUTIONS
BRC-3
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AFS00289
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemAFS001S3

Recommended fluid is brake fluid “DOT 3”.

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.

When installing brake piping, be sure to check torque.
Precautions for Brake ControlAFS001S4

During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating noise may
be heard from engine room. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfunction or error.
SBR686C

FSU-16
STABILIZER BAR
Revision: 2004 November 2004 FX35/FX45
STABILIZER BARPFP:54611
Removal and InstallationAES000NA
REMOVAL
1. Remove tire from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove stabilizer connecting rod lower nut with power tool, sep-
arate stabilizer bar and stabilizer connecting rod.
4. Remove stabilizer clamp mounting bolts and nuts with power
tool.
5. Remove stabilizer bar, stabilizer clamp, stabilizer bushing from
vehicle.
6. Remove stabilizer connecting rod upper nut with power tool,
separate stabilizer connecting rod and strut.
INSPECTION AFTER REMOVAL
Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp deformation, cracks and
damage, and replace if necessary.
INSTALLATION

Refer to FSU-8, "Components" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing suspension components, check wheel alignment. Refer to FSU-6,
"Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

Stabilizer bar uses pillow ball type connecting rod. Position ball
joint with case on pillow ball head parallel to stabilizer bar.
SEIA0335E
SEIA0330E
SFA449BB

LAN-2Revision: 2004 November 2004 FX35/FX45Schematic ............................................................... 88
Wiring Diagram - CAN - .......................................... 89
Work Flow ............................................................... 92
CHECK SHEET ................................................... 94
CHECK SHEET RESULTS (EXAMPLE) ............. 97
Circuit Check Between TCM and Data Link Con-
nector ....................................................................116
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................117
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .117
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ...118
ECM Circuit Check ...............................................119
TCM Circuit Check ...............................................119
Display Control Unit Circuit Check ........................120
Low Tire Pressure Warning Control Unit Circuit
Check ...................................................................120
ICC Unit Circuit Check ..........................................121
Intelligent Key Unit Circuit Check .........................121
Data Link Connector Circuit Check .......................122
BCM Circuit Check ...............................................122
Steering Angle Sensor Circuit Check ...................123
Unified Meter and A/C Amp. Circuit Check ...........123
ICC Sensor Circuit Check .....................................124
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ...................................................................124
Driver Seat Control Unit Circuit Check .................125
IPDM E/R Circuit Check .......................................126
CAN Communication Circuit Check ......................127
IPDM E/R Ignition Relay Circuit Check .................132
Component Inspection ..........................................132
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................132
CAN SYSTEM (TYPE 4) .........................................133
System Description ...............................................133
Component Parts and Harness Connector Location .133
Schematic .............................................................134
Wiring Diagram - CAN - ........................................135
Work Flow .............................................................138
CHECK SHEET .................................................140
CHECK SHEET RESULTS (EXAMPLE) ...........142
Circuit Check Between TCM and Data Link Con-
nector ....................................................................156
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................156
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .157
ECM Circuit Check ...............................................157
TCM Circuit Check ...............................................158
Display Unit Circuit Check ....................................158
AWD Control Unit Circuit Check ...........................159
Data Link Connector Circuit Check .......................159
BCM Circuit Check ...............................................160
Steering Angle Sensor Circuit Check ...................160
Unified Meter and A/C Amp. Circuit Check ...........161
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ...................................................................161
IPDM E/R Circuit Check .......................................162CAN Communication Circuit Check ......................163
IPDM E/R Ignition Relay Circuit Check .................166
Component Inspection ..........................................166
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................166
CAN SYSTEM (TYPE 5) ..........................................167
System Description ...............................................167
Component Parts and Harness Connector Location .167
Schematic .............................................................168
Wiring Diagram - CAN - ........................................169
Work Flow .............................................................172
CHECK SHEET .................................................174
CHECK SHEET RESULTS (EXAMPLE) ............176
Circuit Check Between TCM and Data Link Con-
nector ....................................................................192
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................192
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .193
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ...194
ECM Circuit Check ................................................194
TCM Circuit Check ................................................195
Display Unit Circuit Check ....................................195
AWD Control Unit Circuit Check ...........................196
Data Link Connector Circuit Check .......................196
BCM Circuit Check ................................................197
Steering Angle Sensor Circuit Check ....................197
Unified Meter and A/C Amp. Circuit Check ...........198
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ....................................................................198
Driver Seat Control Unit Circuit Check ..................199
IPDM E/R Circuit Check ........................................200
CAN Communication Circuit Check ......................200
IPDM E/R Ignition Relay Circuit Check .................205
Component Inspection ..........................................205
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................205
CAN SYSTEM (TYPE 6) ..........................................206
System Description ...............................................206
Component Parts and Harness Connector Location .206
Schematic .............................................................207
Wiring Diagram - CAN - ........................................208
Work Flow .............................................................211
CHECK SHEET .................................................213
CHECK SHEET RESULTS (EXAMPLE) ............216
Circuit Check Between TCM and Data Link Con-
nector ....................................................................237
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................238
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .238
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ...239
ECM Circuit Check ................................................240
TCM Circuit Check ................................................240
Display Control Unit Circuit Check ........................241
Low Tire Pressure Warning Control Unit Circuit
Check ....................................................................241

LAN-6
[CAN]
CAN COMMUNICATION
Revision: 2004 November 2004 FX35/FX45
CAN COMMUNICATIONPFP:23710
System DescriptionAKS00BZ5
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS00BZ6
Go to CAN system, when selecting your CAN system type from the following table.
×: Applicable
TYPE 1/TYPE2
System diagram

Ty p e 1
Body typeWagon
Axle 2WD AWD
Engine VQ35DE VQ35DE/VK45DE
TransmissionA/T
Brake controlVDC
Navigation system××
Low tire pressure warning system××
ICC system××
Intelligent Key system××
Automatic drive positioner×× ××
CAN system type 1 2 3 4 5 6
CAN system trouble diagnosisLAN-21
LAN-52LAN-87LAN-133LAN-167LAN-206
SKIA6171E

CAN COMMUNICATION
LAN-9
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
TYPE 3
System diagram

Ty pe 3
Input/output signal chart
T: Transmit R: Receive A/T position indicator lamp signal T R
A/T shift schedule change demand signal R T
Manual mode signal R T
Not manual mode signal R T
Manual mode shift up signal R T
Manual mode shift down signal R T
Manual mode indicator signal T R
Distance to empty signal R T
Parking brake switch signal R T
Snow mode switch signal R TSignals ECM TCMDis-
play
unitBCMSte er-
ing
angle
sensorUnified
meter
and
A/C
amp.ABS
actua-
tor and
electric
unit
(con-
trol
unit)Driver
seat
control
unitIPDM
E/R
SKIA6173E
Signals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitICC
unitIntelli-
gent
Key
unitBCMSteer-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R
Engine speed signal T R R R R R
Engine status signal T R
Engine coolant tempera-
ture signalTR R

CAN COMMUNICATION
LAN-13
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
TYPE 4/TYPE5
System diagram

Ty pe 4

Ty pe 5
Manual mode shift up
signalRT
Manual mode shift down
signalRT
Manual mode indicator
signalTR R
Ignition knob switch sig-
nalTR
Snow mode switch signal R TSignals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitICC
unitIntelli-
gent
Key
unitBCMSteer-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R
SKIA6174E
SKIA6175E

LAN-16
[CAN]
CAN COMMUNICATION
Revision: 2004 November 2004 FX35/FX45
*: VK45DE engine model only
TYPE 6
System diagram

Ty p e 6
Input/output signal chart
T: Transmit R: Receive Next gear position signal* R T
Shift change signal* R T
Shift pattern signal* R TSignals ECM TCMDis-
play
unitAWD
con-
trol
unitBCMSt e e r-
ing
angle
sensorUni-
fied
meter
and
A/C
amp.ABS
actua-
tor
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R
SKIA6176E
Signals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitAWD
con-
trol
unitICC
unitIntel-
ligent
Key
unitBCMStee r-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R
A/T self-diagnosis
signalRT
ABS operation signal R T
TCS operation signal R T
VDC operation signal R R T
Stop lamp switch sig-
nalRR T
Battery voltage sig-
nalTR
Key switch signal T R

LAN-104
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45

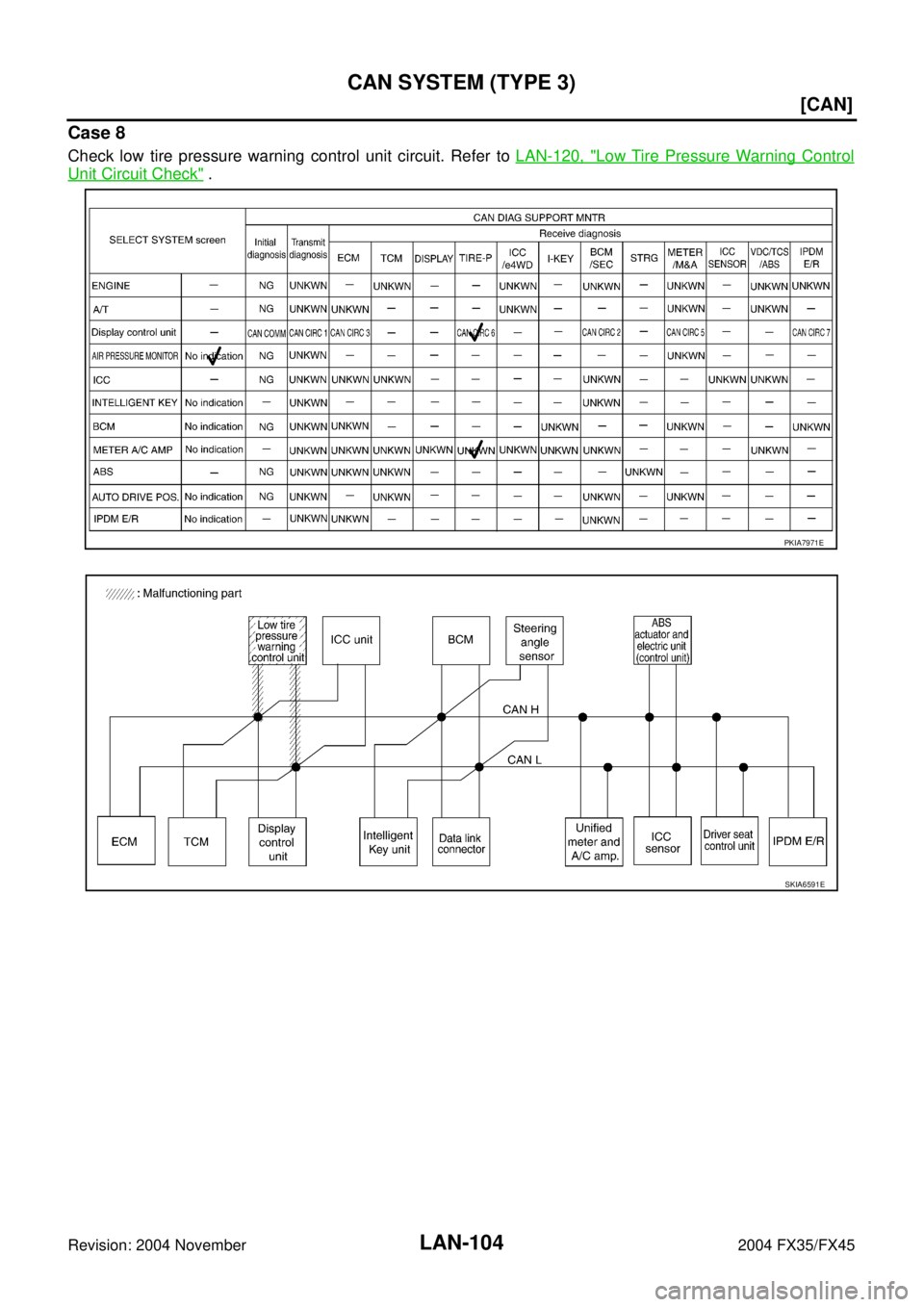

Case 8
Check low tire pressure warning control unit circuit. Refer to LAN-120, "Low Tire Pressure Warning Control
Unit Circuit Check" .
PKIA7971E
SKIA6591E
