INFINITI FX35 2005 Service Manual

BL-246
BODY REPAIR
Revision: 2005 July2005 FX
STONE GUARD COAT
To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.
SIIA2253E

BODY REPAIR
BL-247
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2005 July2005 FX
Body SealingAIS0034T
DESCRIPTION
The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.
SIIA2254E

BL-248
BODY REPAIR
Revision: 2005 July2005 FX
SIIA2255E

BODY REPAIR
BL-249
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2005 July2005 FX
SIIA2256E

BL-250
BODY REPAIR
Revision: 2005 July2005 FX

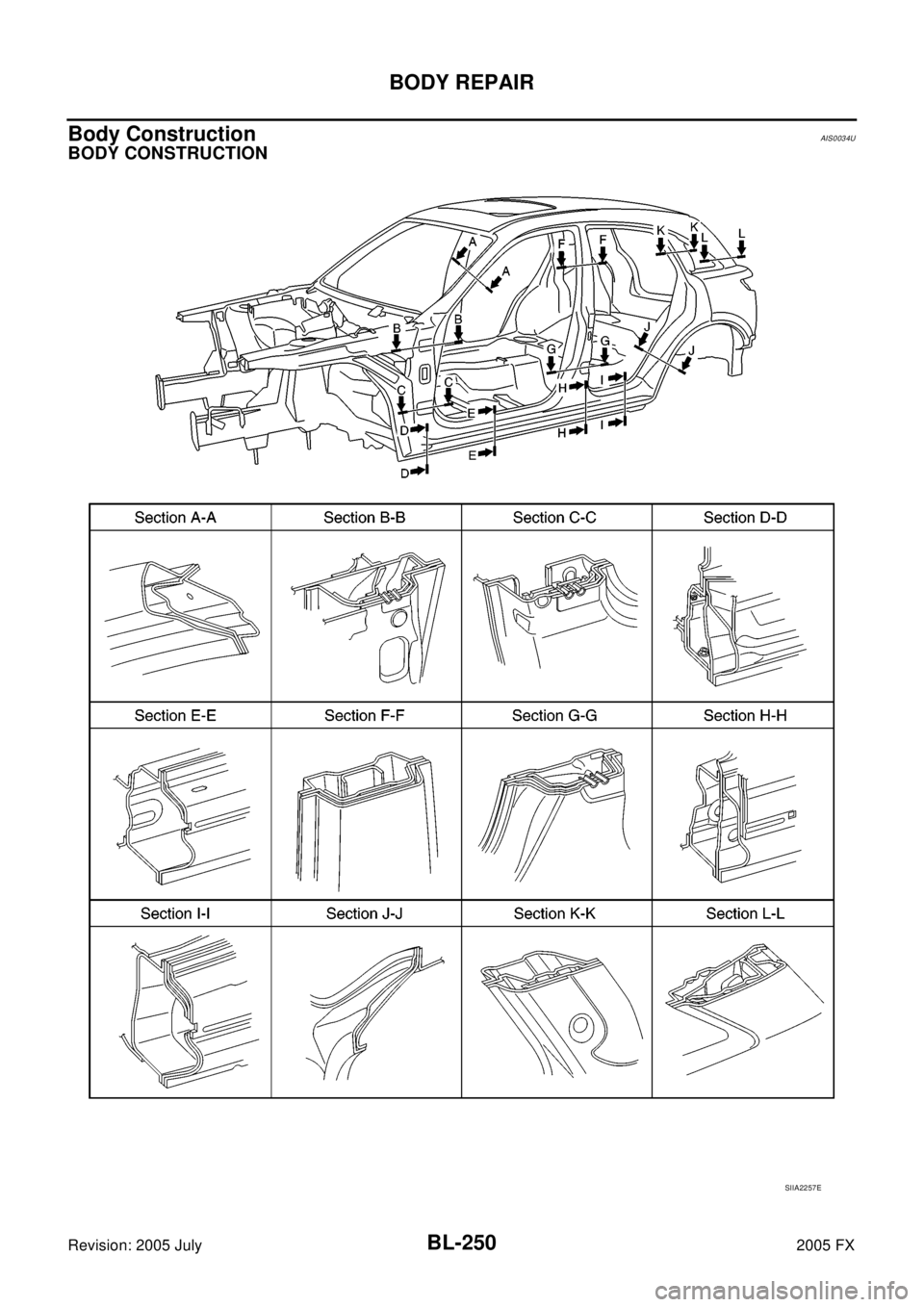

Body ConstructionAIS0034U
BODY CONSTRUCTION
SIIA2257E

BODY REPAIR
BL-251
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2005 July2005 FX
Body AlignmentAIS0034V
BODY CENTER MARKS
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
SIIA2258E

BL-252
BODY REPAIR
Revision: 2005 July2005 FX
PANEL PARTS MATCHING MARKS
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
SIIA2259E

BODY REPAIR
BL-253
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2005 July2005 FX
DESCRIPTION
lAll dimensions indicated in the figures are actual.
lWhen using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
lWhen a measuring tape is used, check to be sure there is no elongation, twisting or bending.
lMeasurements should be taken at the center of the mounting holes.
lAn asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
lThe coordinates of the measurement points are the distances measured from the standard line of²X²,²Y²
and²Z².
PIIA0104E

BL-254
BODY REPAIR
Revision: 2005 July2005 FX
ENGINE COMPARTMENT
Measurement
SIIA2260E

BODY REPAIR
BL-255
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2005 July2005 FX
Measurement Points
SIIA2261E
