DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS- FIRE
Revision: 2005 July 2005 FX
8. CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
OK or NG
OK >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-190
.
NG >> 1. Repair or clean spark plug.
2. GO TO 9.
9. CHECK FUNCTION OF IGNITION COIL-III
1. Reconnect the initial spark plugs.
2. Crank engine for about three seconds, and recheck whether spark is generated between the spark plug and the grounded portion.
OK or NG
OK >> INSPECTION END
NG >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-190
.
10. CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-229, "
CHECKING COMPRESSION PRESSURE" ,.
OK or NG
OK >> GO TO 11.
NG >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
11 . CHECK FUEL PRESSURE
1. Install all removed parts.
2. Release fuel pressure to zero. Refer to EC-789, "
FUEL PRESSURE RELEASE" .
3. Install fuel pressure gauge and check fuel pressure. Refer to EC-789, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
SEF156I
Spark should be generated.
Standard: 1,320 kPa (13.5 kg/cm
2 , 191 psi)/300 rpm
Minimum: 1,130 kPa (11.5 kg/cm
2 , 164 psi)/300 rpm
Difference between each
cylinder: 98 kPa (1.0 kg/cm
2 , 14 psi)/300 rpm
At idle: Approx. 350 kPa (3.57 kg/cm
2 , 51 psi)

DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS- FIRE
EC-1029
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
12. DETECT MALFUNCTIONING PART
Check the following.

Fuel pump and circuit (Refer to EC-1358, "FUEL PUMP CIRCUIT" .)

Fuel pressure regulator (Refer to EC-789, "FUEL PRESSURE CHECK" .)

Fuel lines (Refer to FL-3, "Checking Fuel Lines" .)

Fuel filter for clogging
>> Repair or replace.
13. CHECK IGNITION TIMING
Check the following items. Refer to EC-769, "
Basic Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Follow the Basic Inspection.
14. CHECK HEATED OXYGEN SENSOR 1 BANK 1/BANK 2
Refer to EC-942, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace malfunctioning heated oxygen sensor 1.
15. CHECK MASS AIR FLOW SENSOR
With CONSULT-II
Check mass air flow sensor signal in “DATA MONITOR” mode with CONSULT-II.
With GST
Check mass air flow sensor signal in “Service $01” with GST.
OK or NG
OK >> GO TO 16.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or grounds. Refer to EC-902, "
DTC P0102, P0103 MAF SENSOR" .
16. CHECK SYMPTOM MATRIX CHART
Check items on the rough idle symptom in EC-800, "
Symptom Matrix Chart" .
OK or NG
OK >> GO TO 17.
NG >> Repair or replace.
Items Specifications
Target idle speed 650 ± 50 rpm (in P or N position)
Ignition timing 12 ± 5 ° BTDC (in P or N position)
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm

EC-1030
[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS- FIRE
Revision: 2005 July 2005 FX
17. ERASE THE 1ST TRIP DTC
Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memory after performing the tests. Refer to EC-758, "
HOW TO ERASE
EMISSION-RELATED DIAGNOSTIC INFORMATION" .
>> GO TO 18.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END

DTC P0327, P0328, P0332, P0333 KS EC-1031
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P0327, P0328, P0332, P0333 KSPFP:22060
Component DescriptionABS007YK
The knock sensor is attached to the cylinder block. It senses engine
knocking using a piezoelectric element. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.
On Board Diagnosis LogicABS007YL
The MIL will not light up for these diagnoses.
DTC Confirmation ProcedureABS007YM
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.
2. Start engine and run it for at least 5 seconds at idle speed.
3. If 1st trip DTC is detected, go to EC-1033, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0021E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0327
0327
(bank 1) Knock sensor circuit low
input An excessively low voltage from the sensor
is sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Knock sensor
P0332
0332
(bank 2)
P0328
0328
(bank 1) Knock sensor circuit high
input An excessively high voltage from the sensor
is sent to ECM.
P0333
0333
(bank 2)
SEF058Y

EC-1032
[VK45DE]
DTC P0327, P0328, P0332, P0333 KS
Revision: 2005 July 2005 FX

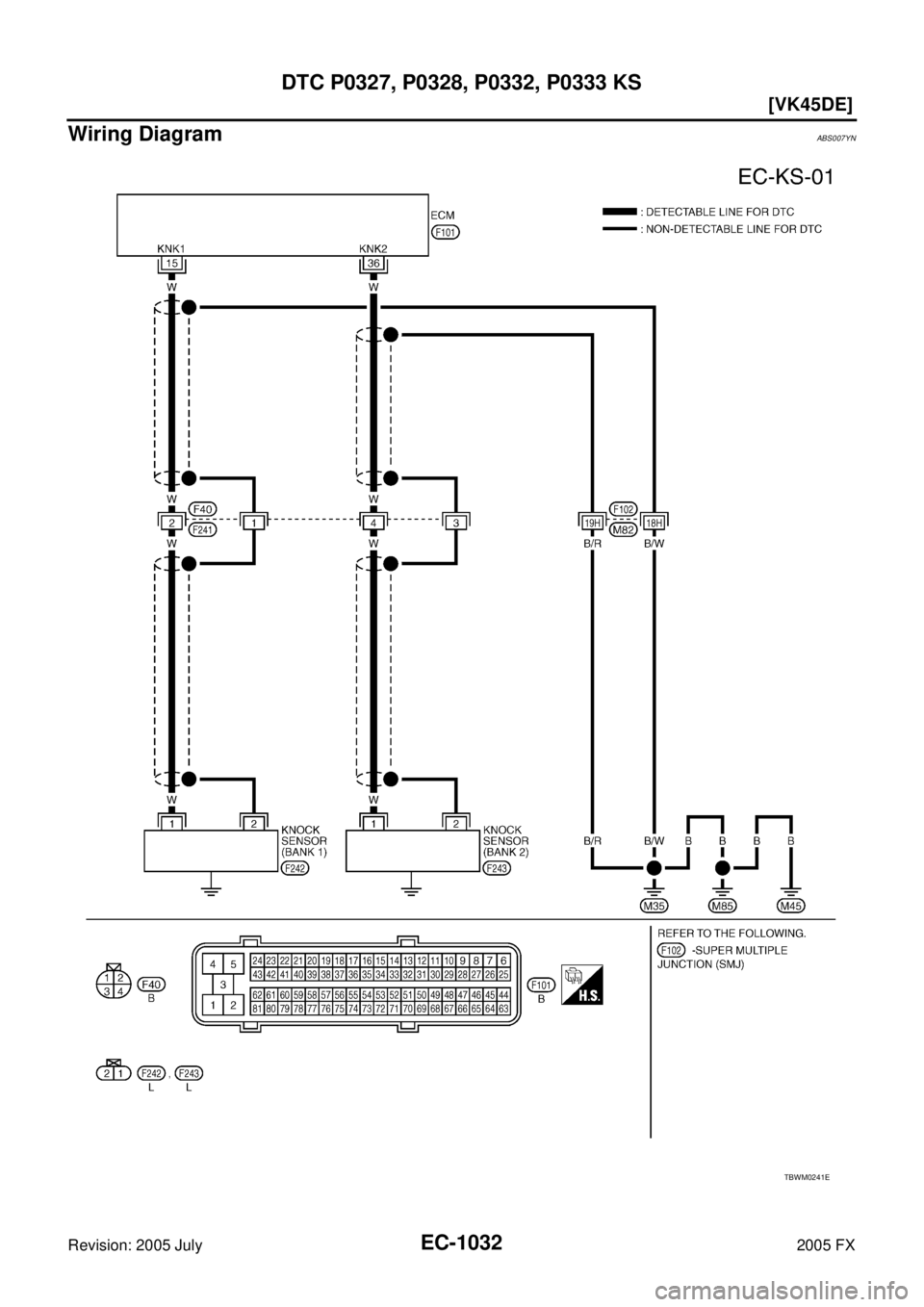

Wiring DiagramABS007YN
TBWM0241E

DTC P0327, P0328, P0332, P0333 KS EC-1033
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS007YO
1. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check resistance between ECM terminals 15, 36 and ground. Refer to Wiring Diagram. NOTE:
It is necessary to use an ohmmeter which can measure more than 10 M Ω.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect knock sensor harness connector.
2. Check harness continuity between the following; ECM terminal 15 and knock sensor (bank1) terminal 1,
ECM terminal 36 and knock sensor (bank 2) terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F40, F241

Harness for open or short between ECM and knock sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK KNOCK SENSOR
Refer to EC-1035, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace knock sensor.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
15
36 W
W Knock sensor (bank 1)
Knock sensor (bank 2) [Engine is running]

Idle speed
Approximately 2.5V
Resistance: Approximately 532 - 588 k
Ω [at 20 °C (68 °F)]
Continuity should exist.
PBIB0021E

EC-1034
[VK45DE]
DTC P0327, P0328, P0332, P0333 KS
Revision: 2005 July 2005 FX
5. CHECK GROUND CONNECTIONS
Loosen and retighten three ground screws on the body.
Refer to EC-861, "
Ground Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace ground connections.
6. CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT
1. Disconnect knock sensor harness connector.
2. Check harness continuity between knock sensor terminal 2 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F40, F241

Harness connectors F102, M82

Harness for open or short between knock sensor terminal 2 and ground
>> Repair open circuit or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
PBIB2195E
Continuity should exist.

DTC P0327, P0328, P0332, P0333 KS EC-1035
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS007YP
KNOCK SENSOR
Check resistance between knock sensor terminal 1 and ground.
NOTE:
It is necessary to use an ohmmeter which can measure more
than 10 M Ω.
CAUTION:
Do not use any knock sensors that have been dropped or phys-
ically damaged. Use only new ones.
Removal and InstallationABS007YQ
KNOCK SENSOR
Refer to EM-245, "CYLINDER BLOCK" .
Resistance: Approximately 532 - 588 k
Ω [at 20 °C (68 °F)]
SEF111Y

EC-1036
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2005 July 2005 FX
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionABS007N7
The crankshaft position sensor (POS) is located on the A/T assem-
bly facing the gear teeth (cogs) of the signal plate. It detects the fluc-
tuation of the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor ModeABS007N8
Specification data are reference values.
On Board Diagnosis LogicABS007N9
PBIB0562E
PBIB2448E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indication. Almost the same speed as
the tachometer indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335 Crankshaft position
sensor (POS) circuit

The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.

The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.

The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.

Harness or connectors
(The sensor circuit is open or shorted)

Crankshaft position sensor (POS)

Signal plate

DTC P0335 CKP SENSOR (POS) EC-1037
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS007NA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Crank engine for at least 2 seconds and run it for at least 5 sec- onds at idle speed.
3. If 1st trip DTC is detected, go to EC-1039, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
