vq35de INFINITI FX35 2005 Service Manual

DTC P0127 IAT SENSOR EC-225
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS006NK
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between intake air temperature sensor termi-
nals 5 and 6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature sensor).
Removal and InstallationABS006NL
MASS AIR FLOW SENSOR
Refer to EM-17, "AIR CLEANER AND AIR DUCT" .
Intake air temperature °C ( °F) Resistance k Ω
25 (77) 1.94 - 2.06
PBIB1604E
SEF012P

EC-226
[VQ35DE]
DTC P0128 THERMOSTAT FUNCTION
Revision: 2005 July 2005 FX
DTC P0128 THERMOSTAT FUNCTIONPFP:21200
On Board Diagnosis LogicABS006NM
Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long
enough.
This is due to a leak in the seal or the thermostat stuck open.
DTC Confirmation ProcedureABS006NN
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:

For best results, perform at ambient temperature of –10 °C (14 °F) or higher.

For best results, perform at engine coolant temperature of –10 °C (14 °F) to 60 °C (140 °F).
WITH CONSULT-II
1. Replace thermostat with new one. Refer to CO-26, "WATER INLET AND THERMOSTAT ASSEMBLY" .
Use only a genuine NISSAN thermostat as a replacement. If an incorrect thermostat is used, the MIL may
come on.
2. Turn ignition switch ON.
3. Select “COOLAN TEMP/S” in “DATA MONITOR” mode with CONSULT-II.
4. Check that the “COOLAN TEMP/S” is above 60 °C (140 °F).
If it is below 60 °C (140 °F), go to following step.
If it is above 60 °C (140 °F), cool down the engine to less than
60 °C (140 °F), then retry from step 1.
5. Drive vehicle for 10 consecutive minutes under the following conditions.
If 1st trip DTC is detected, go to EC-226, "
Diagnostic Procedure"
.
WITH GST
1. Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS006NO
1. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-227, "
Component Inspection" .
OK or NG
OK >> INSPECTION END
NG >> Replace engine coolant temperature sensor.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0128
0128 Thermostat function The engine coolant temperature does not
reach to specified temperature even though
the engine has run long enough.

Thermostat

Leakage from sealing portion of thermo-
stat

Engine coolant temperature sensor
VHCL SPEED SE 80 - 120 km/h (50 - 75 MPH)
SEF176Y

DTC P0128 THERMOSTAT FUNCTION EC-227
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS006NP
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

2. If NG, replace engine coolant temperature sensor.
Removal and InstallationABS006NQ
ENGINE COOLANT TEMPERATURE SENSOR
Refer to CO-26, "WATER INLET AND THERMOSTAT ASSEMBLY" .
PBIB2005E
Engine coolant temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P

EC-228
[VQ35DE]
DTC P0138, P0158 HO2S2
Revision: 2005 July 2005 FX
DTC P0138, P0158 HO2S2PFP:226A0
Component DescriptionABS006OH
The heated oxygen sensor 2, after three way catalyst 1, monitors the
oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air-fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.
CONSULT-II Reference Value in Data Monitor ModeABS006OI
Specification data are reference values.
On Board Diagnosis LogicABS006OJ
The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the air fuel ratio (A/F) sensor 1. The oxy-
gen storage capacity of the three way catalyst 1 causes the longer
switching time. To judge the malfunctions of heated oxygen sensor
2, ECM monitors whether the voltage is unusually high during the
various driving condition such as fuel-cut.
SEF327R
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 (B1)
HO2S2 (B2)

Warm-up condition

After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load. Revving engine from idle to 3,000 rpm
quickly. 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2) LEAN
←→ RICH
PBIB1848E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0138
0138
(Bank 1) Heated oxygen sensor
2 circuit high voltage An excessively high voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted)

Heated oxygen sensor 2
P0158
0158
(Bank 2)

DTC P0138, P0158 HO2S2 EC-229
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS006OK
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera- ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 2 minutes.
6. If 1st trip DTC is detected, go to EC-233, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF174Y

EC-230
[VQ35DE]
DTC P0138, P0158 HO2S2
Revision: 2005 July 2005 FX
Wiring DiagramABS006OL
BANK 1
TBWM0292E

DTC P0138, P0158 HO2S2 EC-231
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
74 LG/B Heated oxygen sensor 2
(bank 1) [Engine is running]

Warm-up condition

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met
–After keeping the engine speed between
3,500 and 4,000 rpm for 1 minute and at idle
for 1 minute under no load 0 - Approximately 1.0V
78 B/R Sensor ground
(Heated oxygen sensor) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V

EC-232
[VQ35DE]
DTC P0138, P0158 HO2S2
Revision: 2005 July 2005 FX

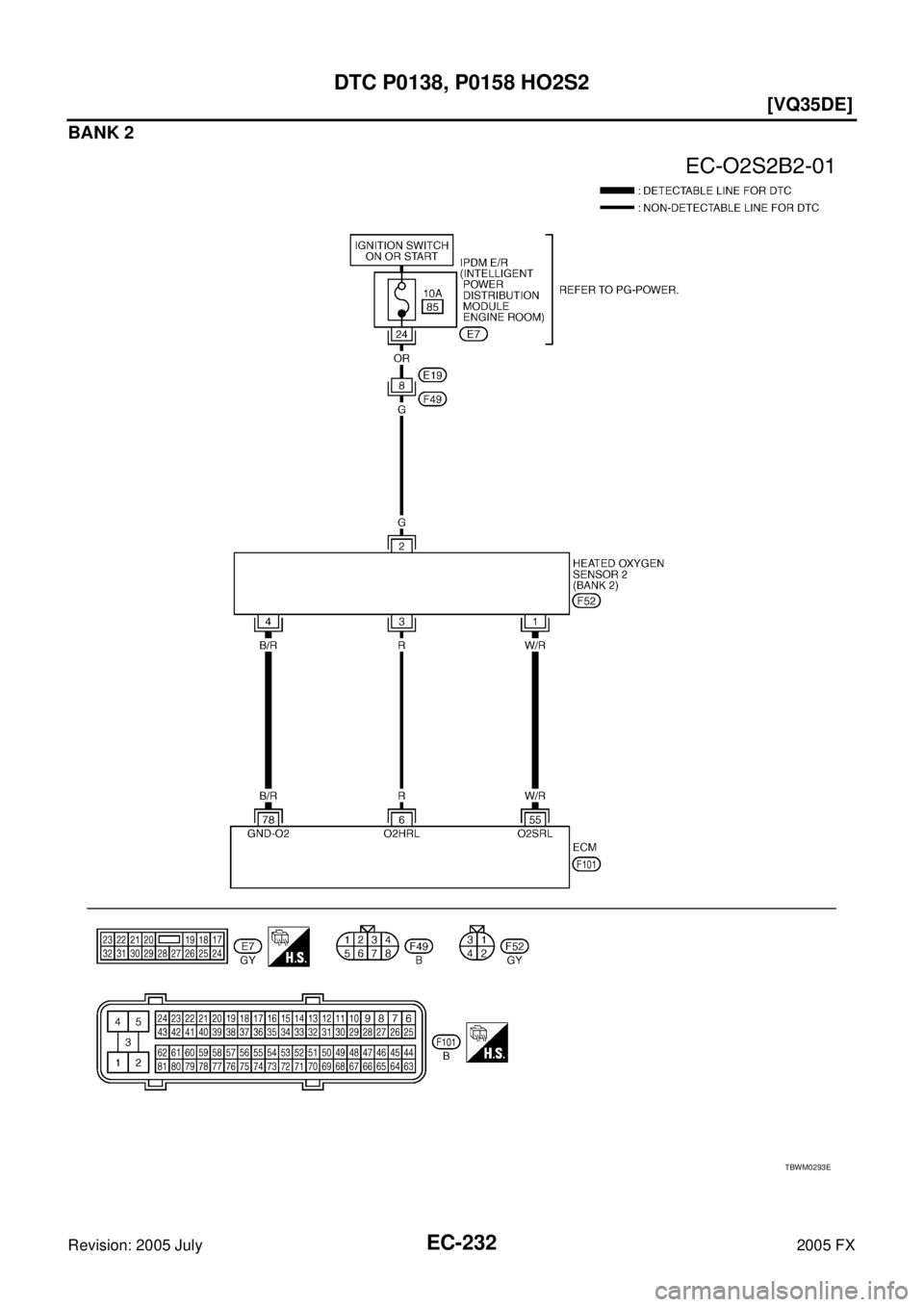

BANK 2
TBWM0293E

DTC P0138, P0158 HO2S2 EC-233
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS006OM
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-170, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between HO2S2 terminal 4 and ECM terminal 78.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to ground or short to power in harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
55 W/R Heated oxygen sensor 2
(bank 2) [Engine is running]

Warm-up condition

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met
–After keeping the engine speed between
3,500 and 4,000 rpm for 1 minute and at idle
for 1 minute under no load 0 - Approximately 1.0V
78 B/R Sensor ground
(Heated oxygen sensor) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
PBIB2625E
Continuity should exist.
PBIB1576E

EC-234
[VQ35DE]
DTC P0138, P0158 HO2S2
Revision: 2005 July 2005 FX
3. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows. Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S2 CONNECTOR FOR WATER
Check connectors for water.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness or connectors.
5. CHECK HEATED OXYGEN SENSOR 2
Refer to EC-235, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning heated oxygen sensor 2.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
DTC Terminals
Bank
ECM Sensor
P0138 74 1 1
P0158 55 1 2
Continuity should exist.
DTC Terminals
Bank
ECM Sensor
P0138 74 1 1
P0158 55 1 2
Continuity should not exist.
Water should not exist.
