CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
Wiring Diagram - CAN -AKS00CCH
TKWM2368E

CAN SYSTEM (TYPE 6) LAN-263
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
TKWM2369E

LAN-264
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
TKWM2370E

CAN SYSTEM (TYPE 6) LAN-265
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Check SheetAKS00CCI
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB4344E

LAN-266
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
PKIB5984E

CAN SYSTEM (TYPE 6) LAN-267
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
PKIB4345E

LAN-268
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
PKIB4346E

CAN SYSTEM (TYPE 6) LAN-269
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-287, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB5946E
PKIB4224E

LAN-270
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-288, "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIB5947E
PKIB4225E

CAN SYSTEM (TYPE 6) LAN-271
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 3

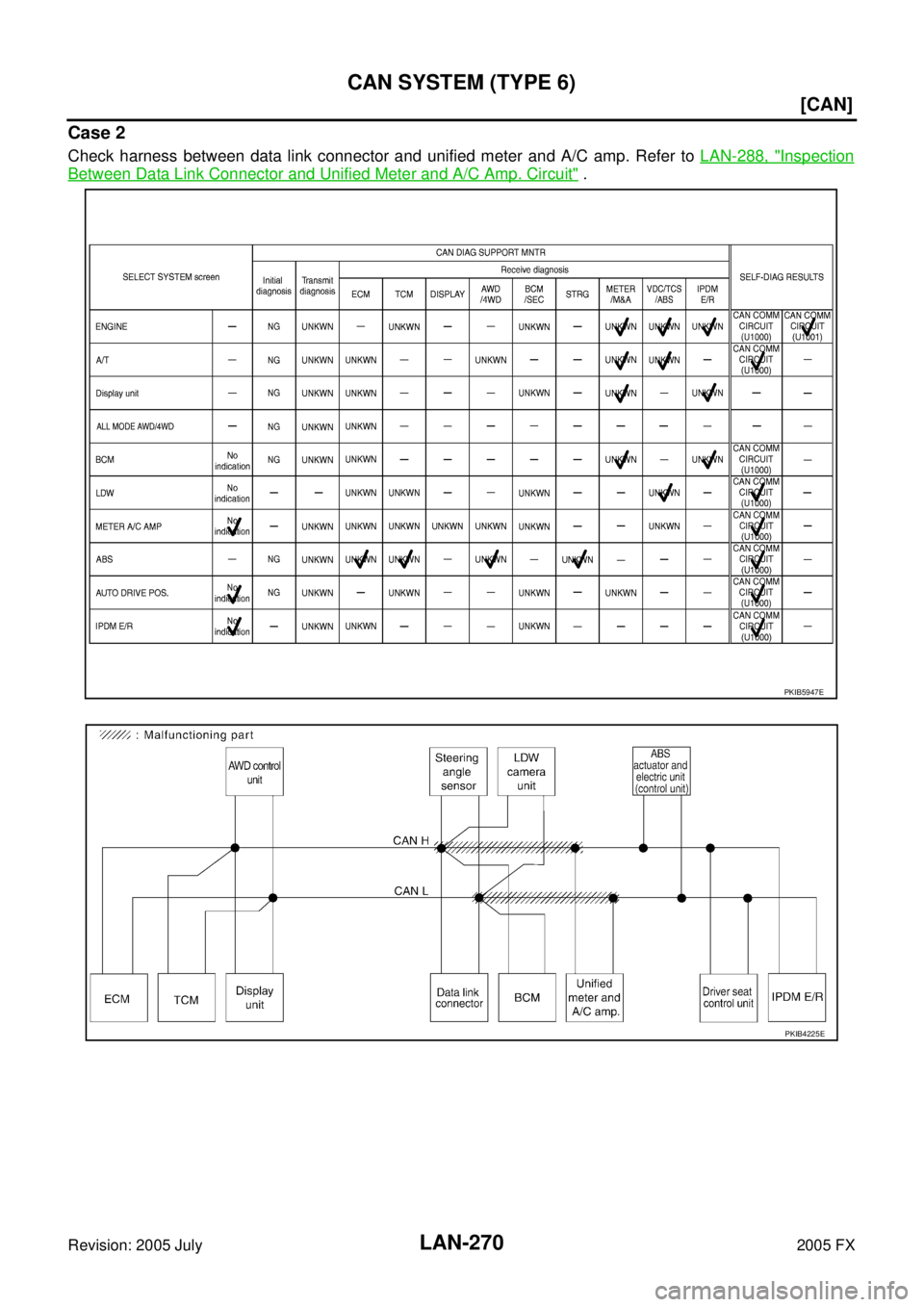

Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-288, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
SKIB7297E
PKIB4226E
