Page 3641 of 4731

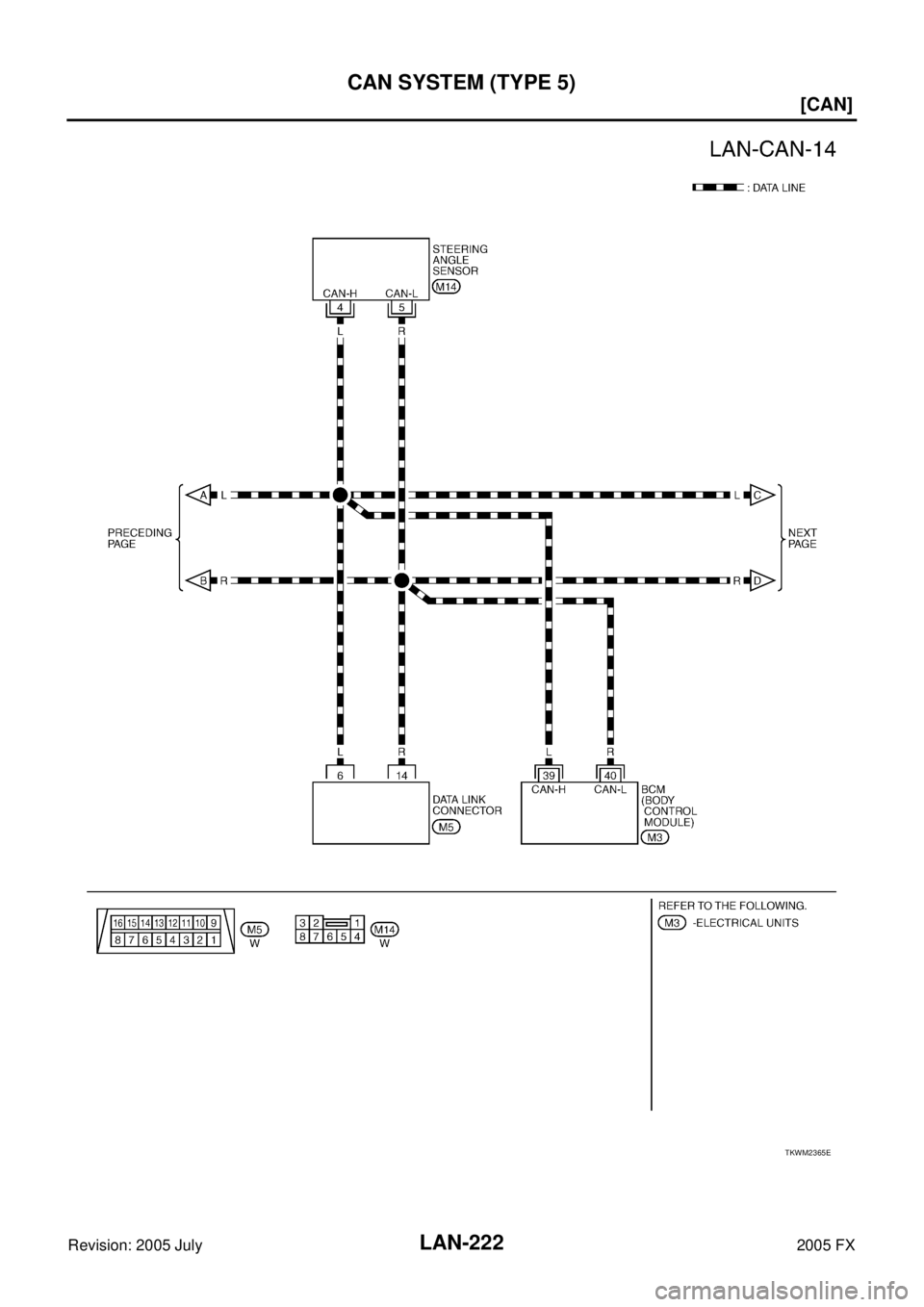

LAN-222
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2005 July 2005 FX
TKWM2365E
Page 3642 of 4731

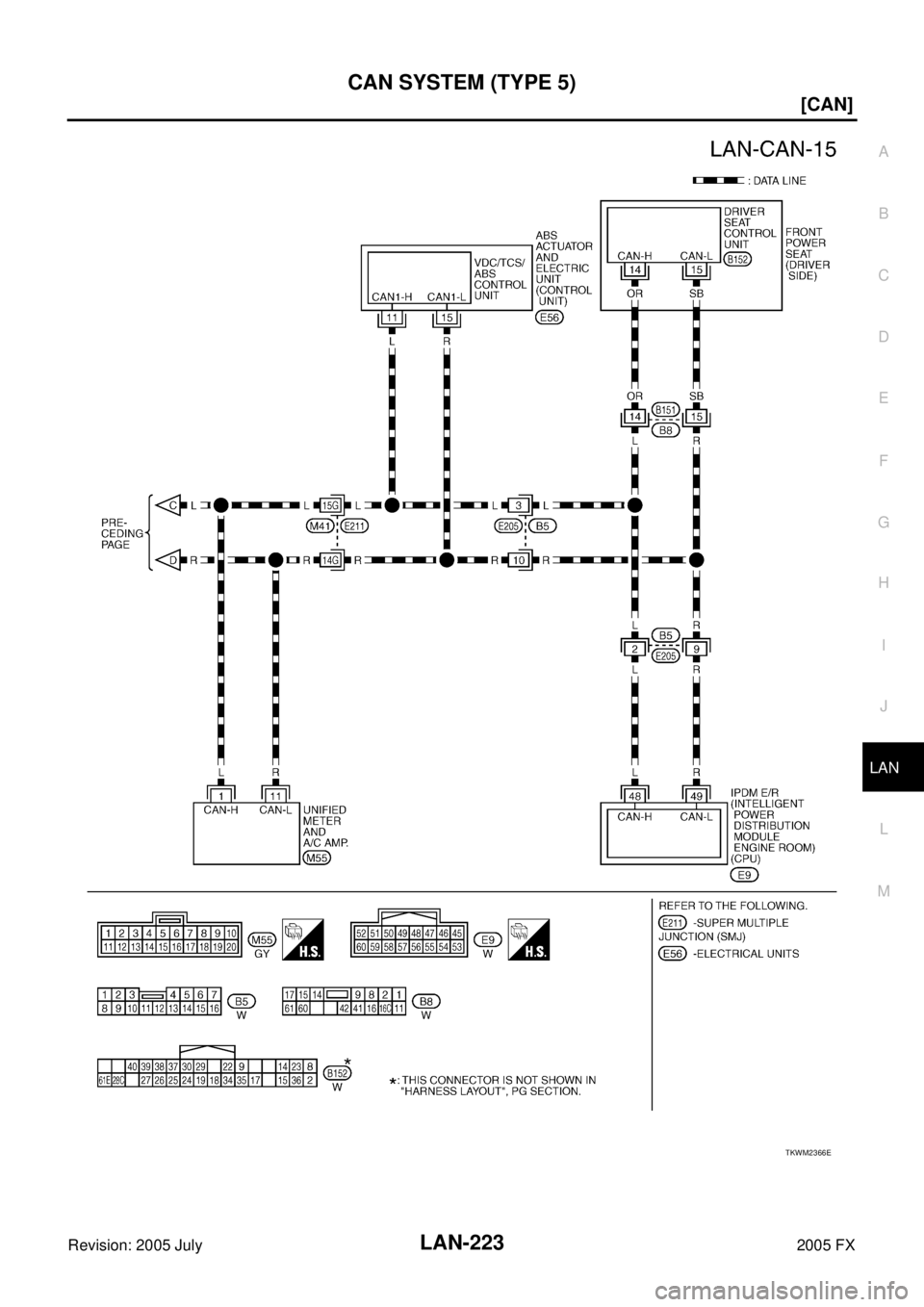

CAN SYSTEM (TYPE 5) LAN-223
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
TKWM2366E
Page 3643 of 4731
LAN-224
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2005 July 2005 FX

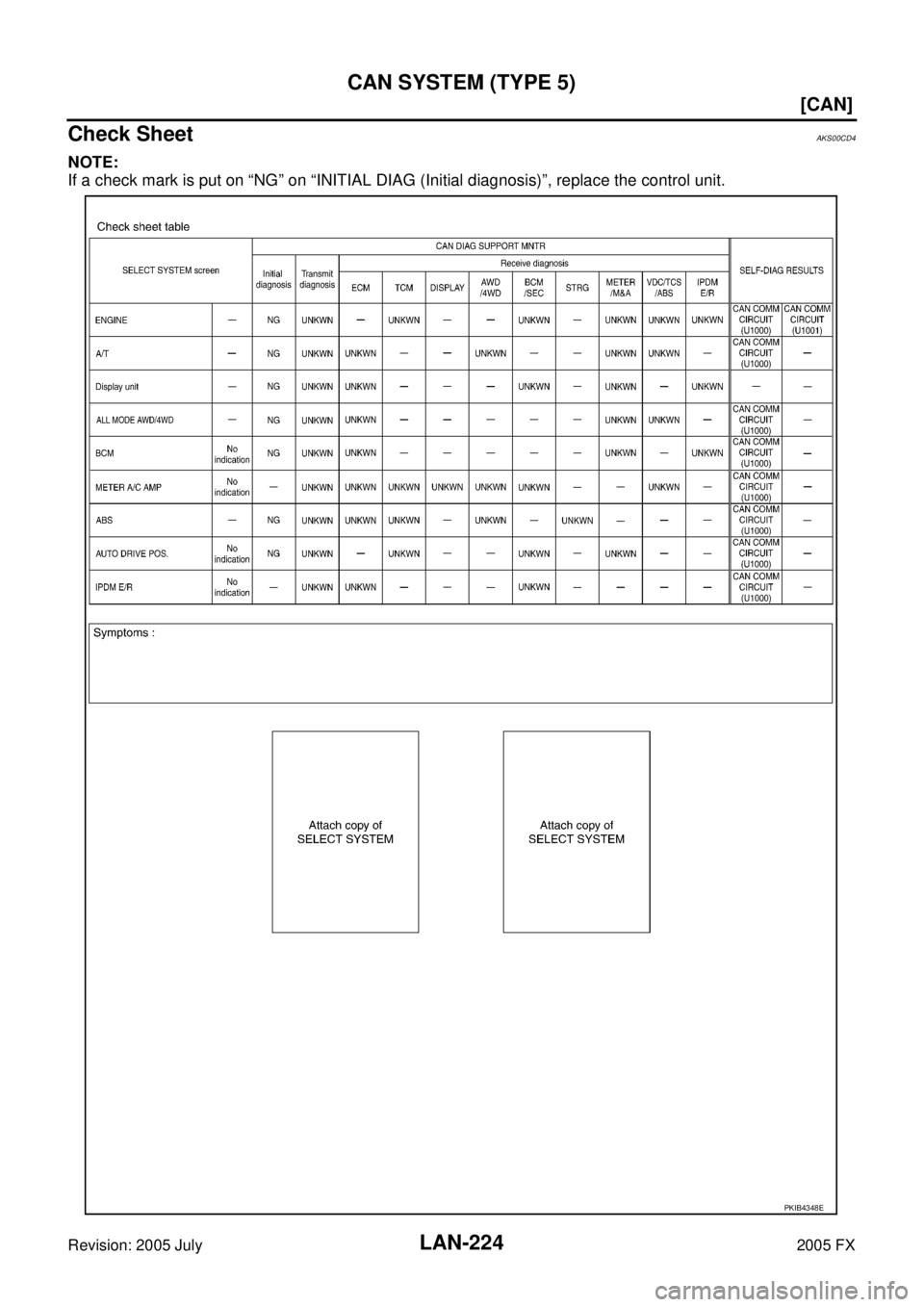

Check SheetAKS00CD4
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB4348E
Page 3644 of 4731

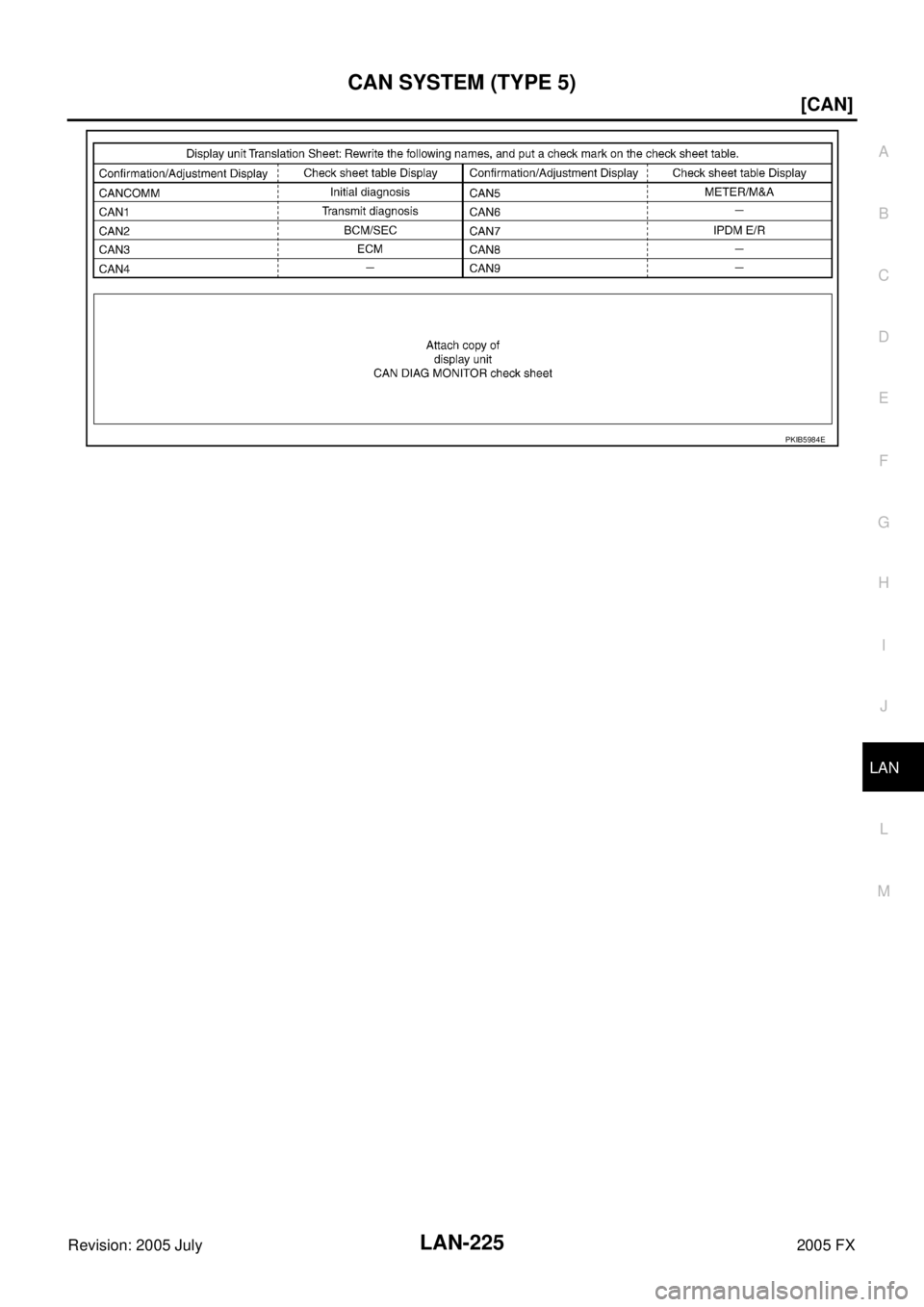

CAN SYSTEM (TYPE 5) LAN-225
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
PKIB5984E
Page 3645 of 4731

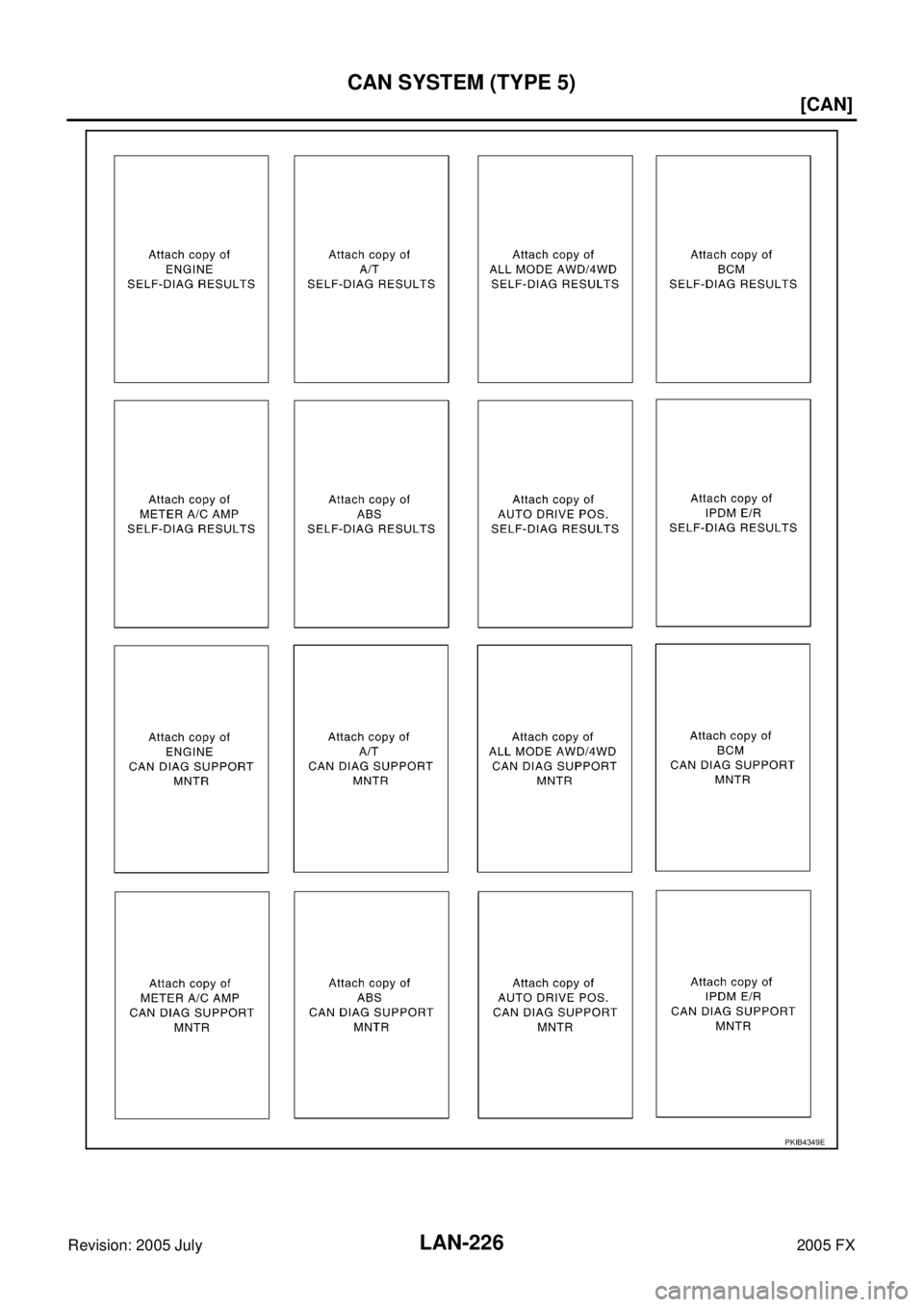

LAN-226
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2005 July 2005 FX
PKIB4349E
Page 3646 of 4731
CAN SYSTEM (TYPE 5) LAN-227
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

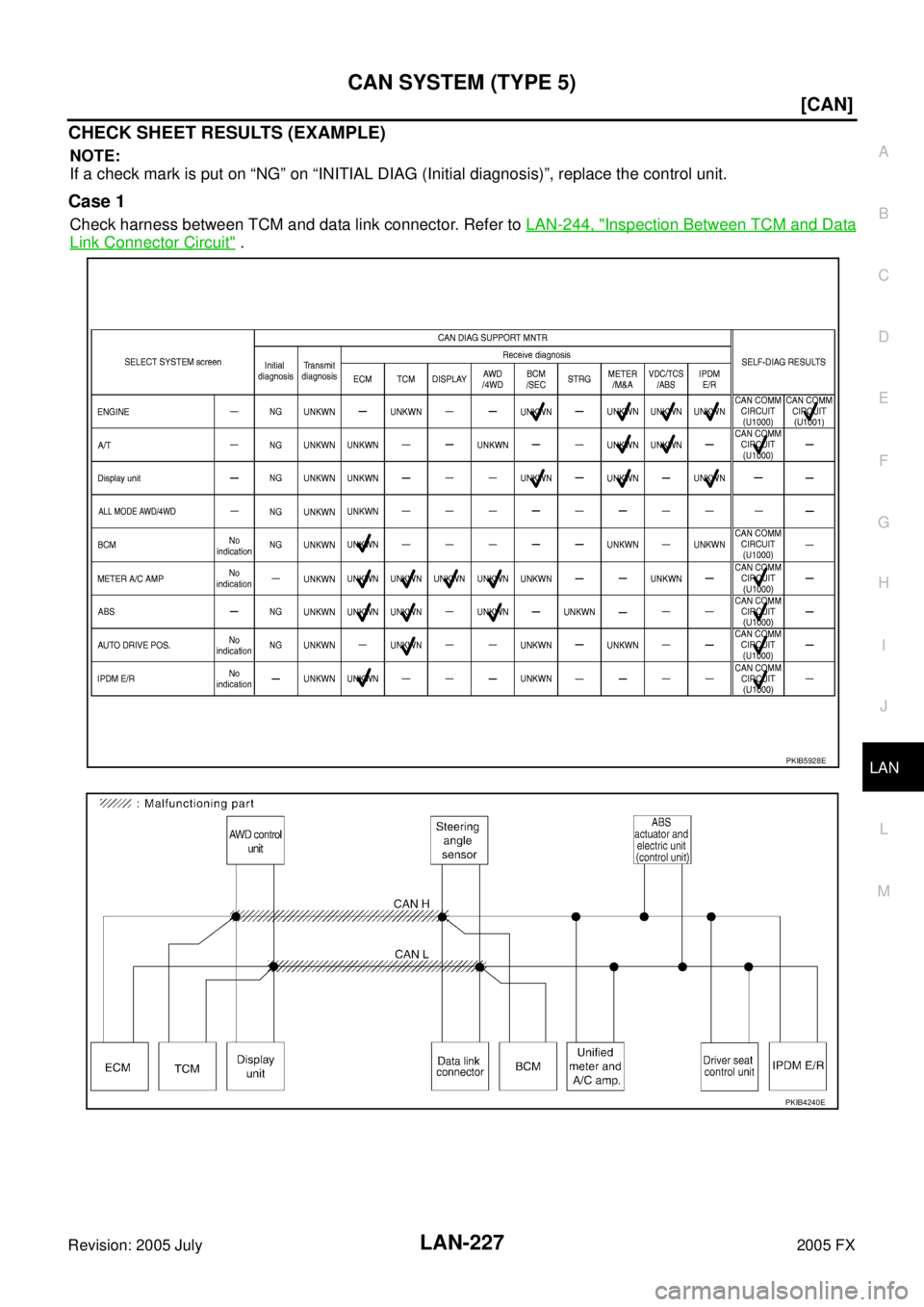

Case 1
Check harness between TCM and data link connector. Refer to LAN-244, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB5928E
PKIB4240E
Page 3647 of 4731
LAN-228
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2005 July 2005 FX

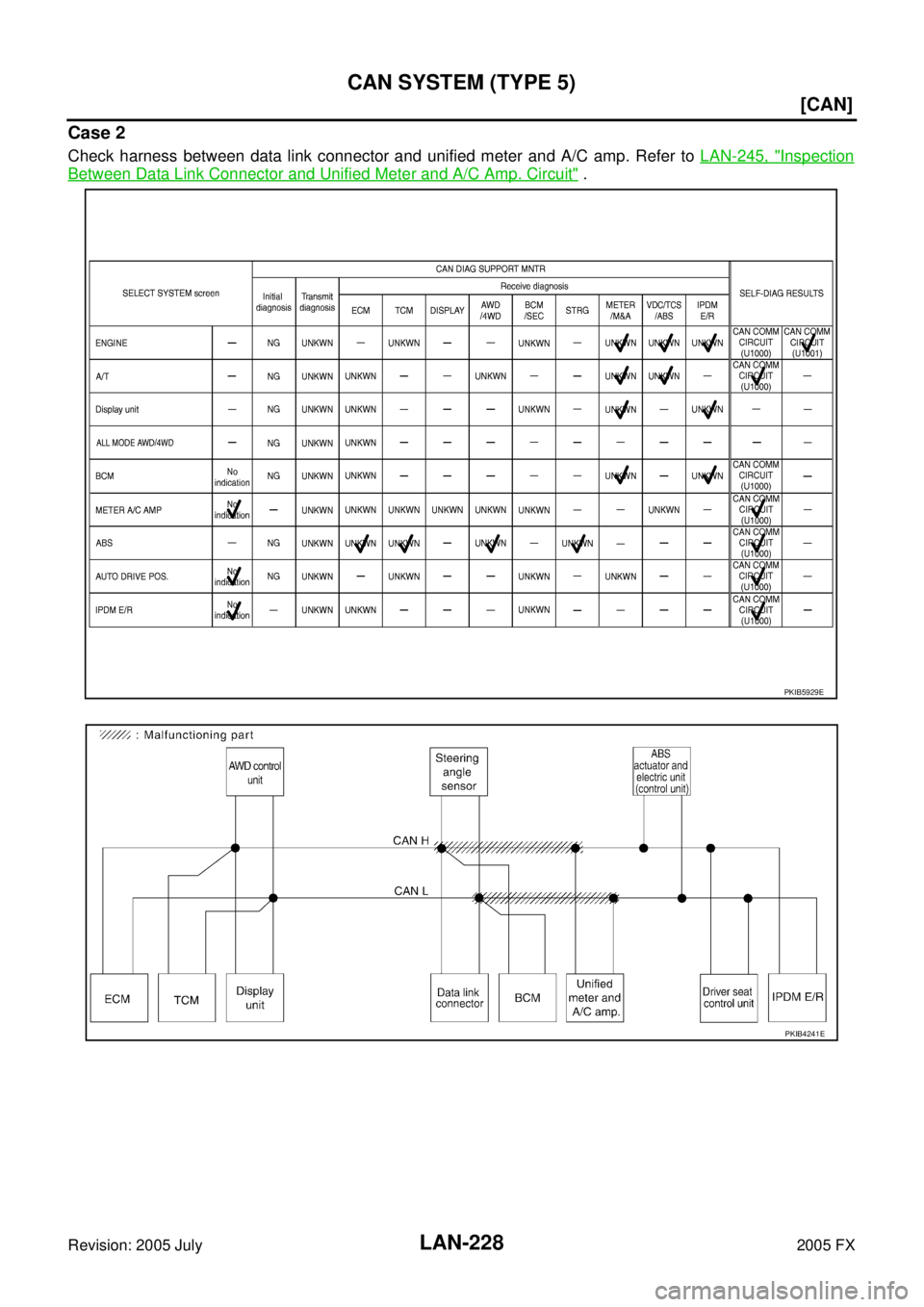

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-245, "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIB5929E
PKIB4241E
Page 3648 of 4731
CAN SYSTEM (TYPE 5) LAN-229
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

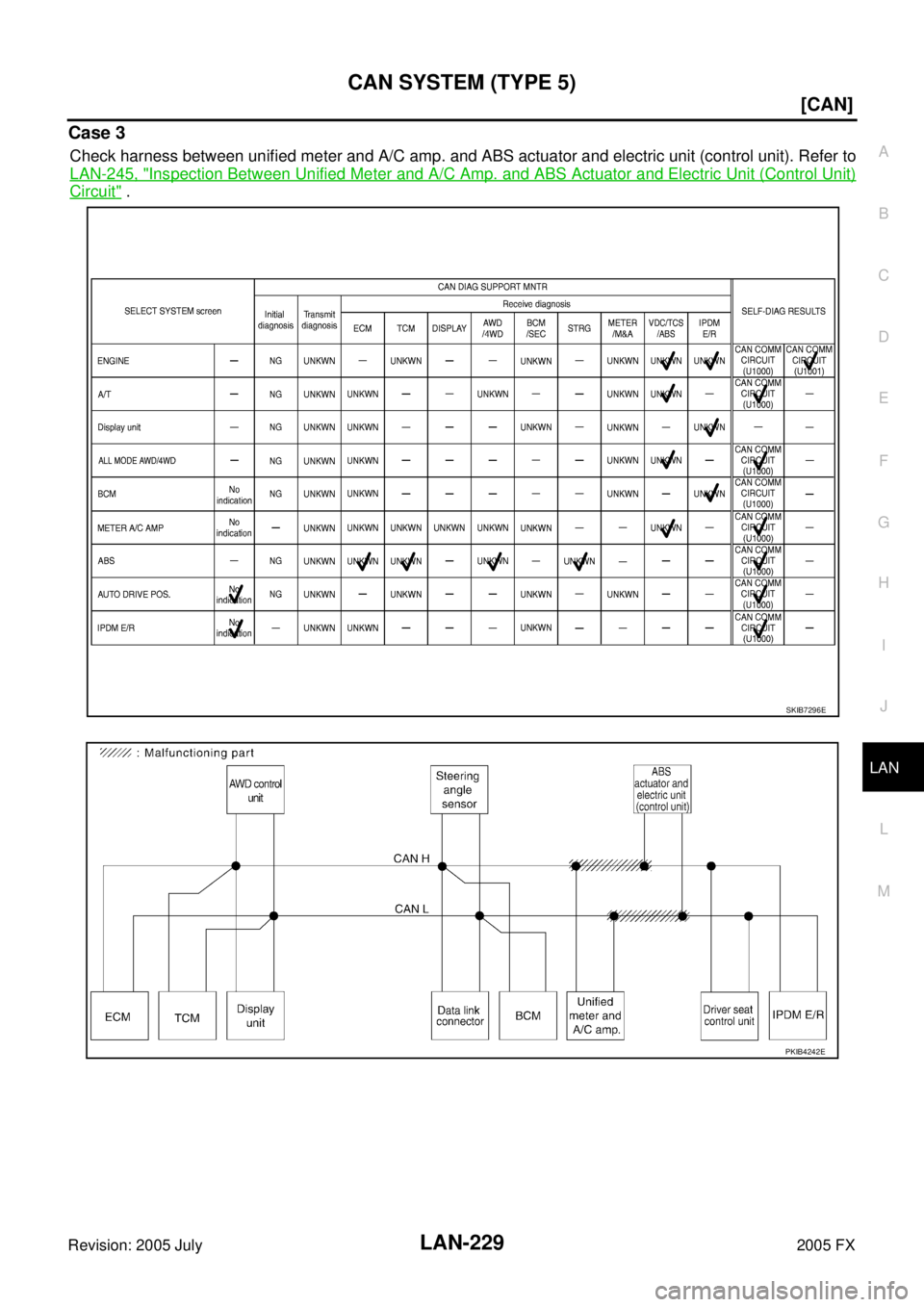

Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-245, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
SKIB7296E
PKIB4242E
Page 3649 of 4731
LAN-230
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2005 July 2005 FX

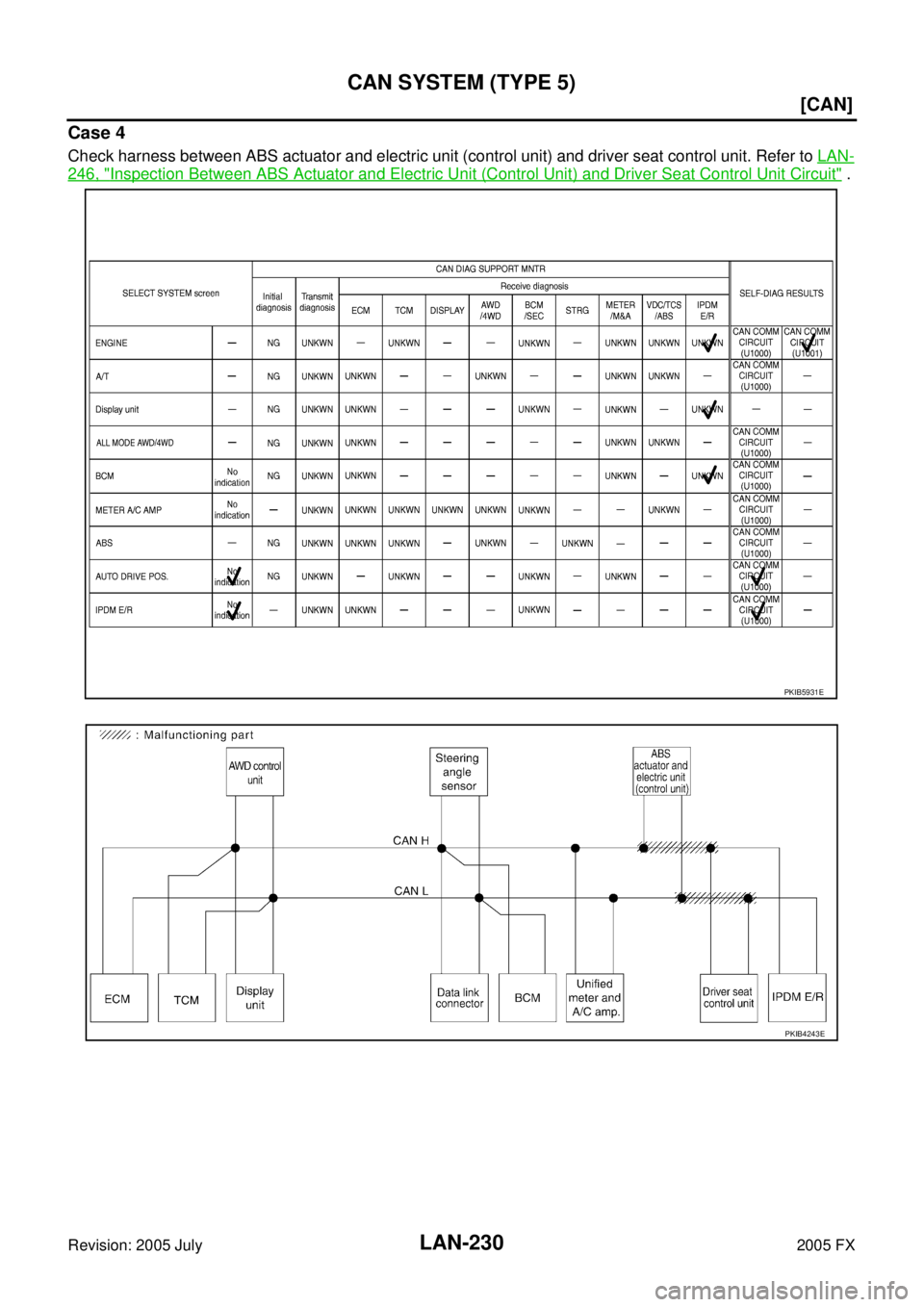

Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
246, "Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit Circuit" .
PKIB5931E
PKIB4243E
Page 3650 of 4731
CAN SYSTEM (TYPE 5) LAN-231
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

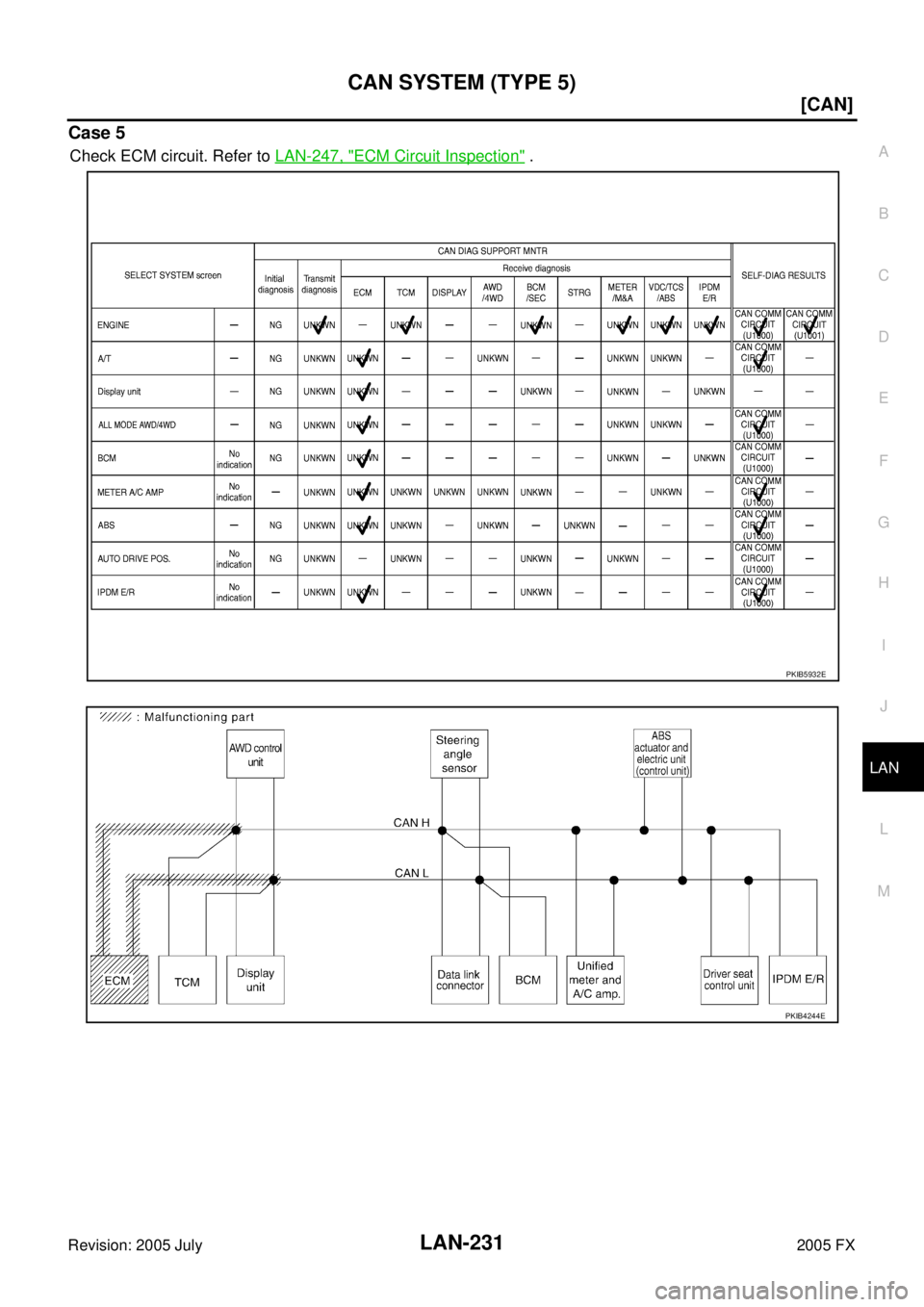

Case 5
Check ECM circuit. Refer to LAN-247, "ECM Circuit Inspection" .
PKIB5932E
PKIB4244E
