INFINITI FX35 2005 Service Manual

LAN-412
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2005 July 2005 FX
Case 6
Check display unit circuit. Refer to LAN-424, "Display Unit Circuit Inspection" .
PKIC3688E
PKIC3703E

CAN SYSTEM (TYPE 9) LAN-413
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 7
Check data link connector circuit. Refer to LAN-424, "Data Link Connector Circuit Inspection" .
PKIC3689E
PKIC3704E

LAN-414
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2005 July 2005 FX
Case 8
Check BCM circuit. Refer to LAN-425, "BCM Circuit Inspection" .
PKIC3690E
PKIC3705E

CAN SYSTEM (TYPE 9) LAN-415
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 9
Check steering angle sensor circuit. Refer to LAN-425, "Steering Angle Sensor Circuit Inspection" .
PKIC3691E
PKIC3706E

LAN-416
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2005 July 2005 FX
Case 10
Check unified meter and A/C amp. circuit. Refer to LAN-426, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC3692E
PKIC3707E

CAN SYSTEM (TYPE 9) LAN-417
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

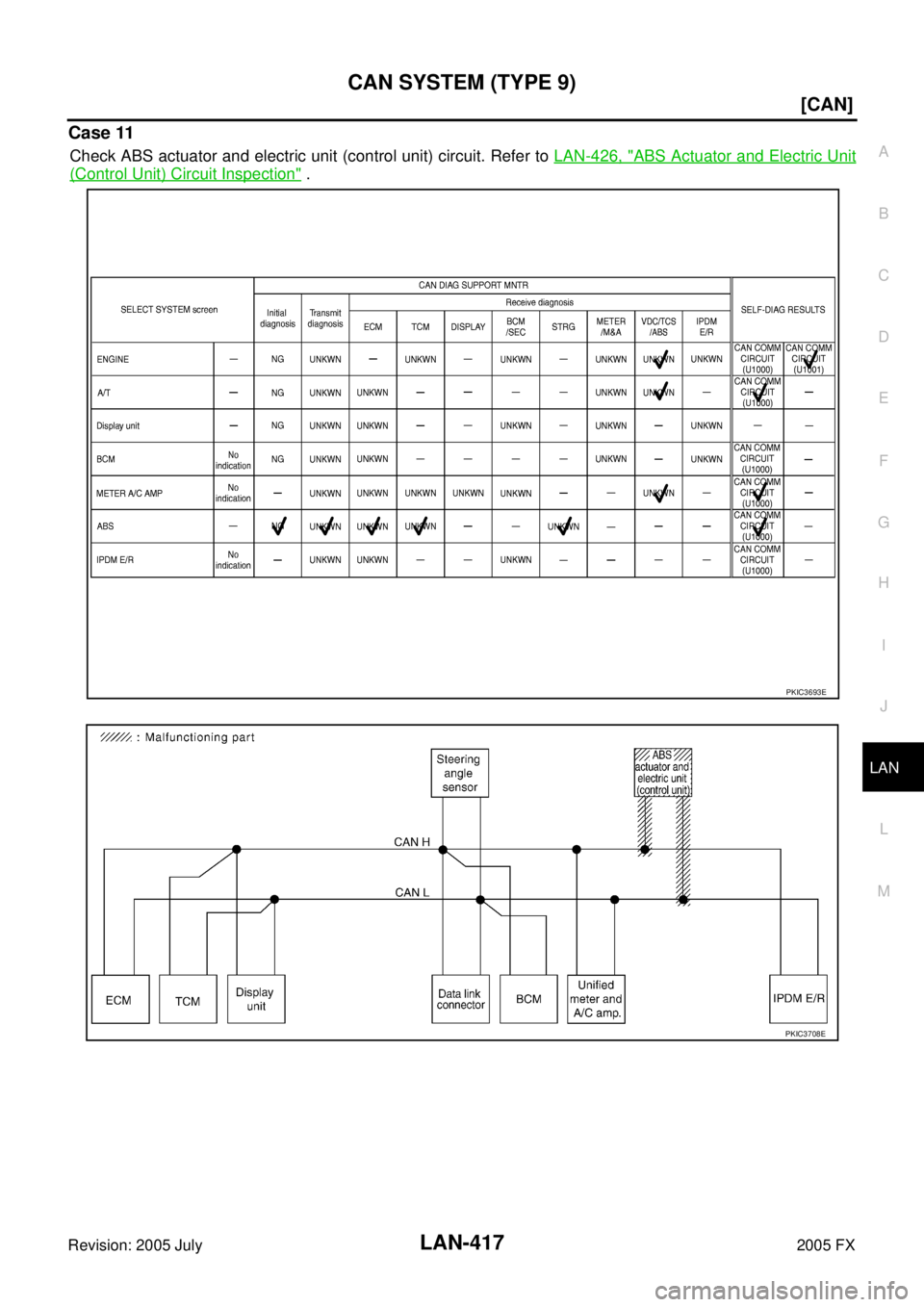

Case 11
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-426, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC3693E
PKIC3708E

LAN-418
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2005 July 2005 FX
Case 12
Check IPDM E/R circuit. Refer to LAN-427, "IPDM E/R Circuit Inspection" .
PKIC3694E
PKIC3709E

CAN SYSTEM (TYPE 9) LAN-419
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 13
Check CAN communication circuit. Refer to LAN-428, "CAN Communication Circuit Inspection" .
PKIC3695E

LAN-420
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2005 July 2005 FX
Case 14
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-433, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3696E

CAN SYSTEM (TYPE 9) LAN-421
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-433, "IPDM E/R Ignition Relay
Circuit Inspection" .
Inspection Between TCM and Data Link Connector CircuitAKS00FDG
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals 14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
PKIC3697E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
