AT-276
TRANSMISSION ASSEMBLY
Revision: 2005 July 2005 FX
24. Remove transmission assembly with transfer from vehicle.

Secure torque converter to prevent it from dropping.

Secure transmission assembly to a jack.
25. Remove transfer from transmission assembly. Refer to TF-44,
"Removal and Installation" .
INSPECTION
Installation and Inspection of Torque Converter

After inserting a torque converter to a transmission, be sure to
check distance “A” to ensure it is within the reference value limit.
INSTALLATION
Install the removed parts in the reverse order of the removal, while paying attention to the following work.

When installing transmission assembly to the engine assembly, attach the fixing bolts in accordance with
the following standard.
For VQ35DE models
For VK45DE models
*: No.2 bolt also secures A/T fluid charging pipe.
SCIA2203E
Distance “A”
VQ35DE models: 25.0 mm (0.98 in) or more
VK45DE models: 22.0 mm (0.87 in) or more
SAT017B
Bolt No. 1 2 3 4
Number of bolts 1 5 2 1
Bolt length
“ ”mm (in) 55 (2.17) 65 (2.56) 35 (1.38) 40 (1.57)
Tightening torque
N·m (kg-m, ft-lb) 75
(7.7, 55) 47
(4.8, 35) 34
(3.5, 25)
SCIA4600E
Bolt No. 1 2* 3
Number of bolts 5 1 4
Bolt length
“ ”mm (in) 70 (2.76) 70 (2.76) 65 (2.56)
Tightening torque
N·m (kg-m, ft-lb) 11 3
(12, 83) 74.0
(7.5, 55)
SCIA4601E

TRANSMISSION ASSEMBLY AT-277
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX

Align the positions of tightening bolts for drive plate with those of
the torque converter, and temporarily tighten the bolts. Then,
tighten the bolts with the specified torque. Refer to AT- 2 7 3 ,
"COMPONENTS (FOR VQ35DE)" or AT- 2 7 4 , "COMPONENTS
(FOR VK45DE)" .
CAUTION:

When turning crankshaft, turn it clockwise as viewed from
the front of the engine.

When tightening the tightening bolts for the torque con-
verter after fixing the crankshaft pulley bolts, be sure to
confirm the tightening torque of the crankshaft pulley
mounting bolts.

After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that
transmission rotates freely without binding.

Install crankshaft position sensor (POS). Refer to EM-30, "Removal and Installation (2WD Model)" , EM-
185, "Removal and Installation" .

After completing installation, check A/T fluid leakage, A/T fluid level, and the positions of A/T. Refer to AT-
12, "Changing A/T Fluid" , AT- 2 3 5 , "Adjustment of A/T Position" , AT- 2 3 5 , "Checking of A/T Position" .
SCIA2010E

REPAIR FOR COMPONENT PARTS AT-323
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
High and Low Reverse ClutchACS0081Q
COMPONENTS
VQ35DE models
VK45DE models
SCIA5223E
1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Bearing race
SCIA5224E
1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Bearing race

AT-326
REPAIR FOR COMPONENT PARTS
Revision: 2005 July 2005 FX
Direct ClutchACS0081R
COMPONENTS
VQ35DE models
VK45DE models
SCIA5046E
1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate
SCIA5226E
1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate

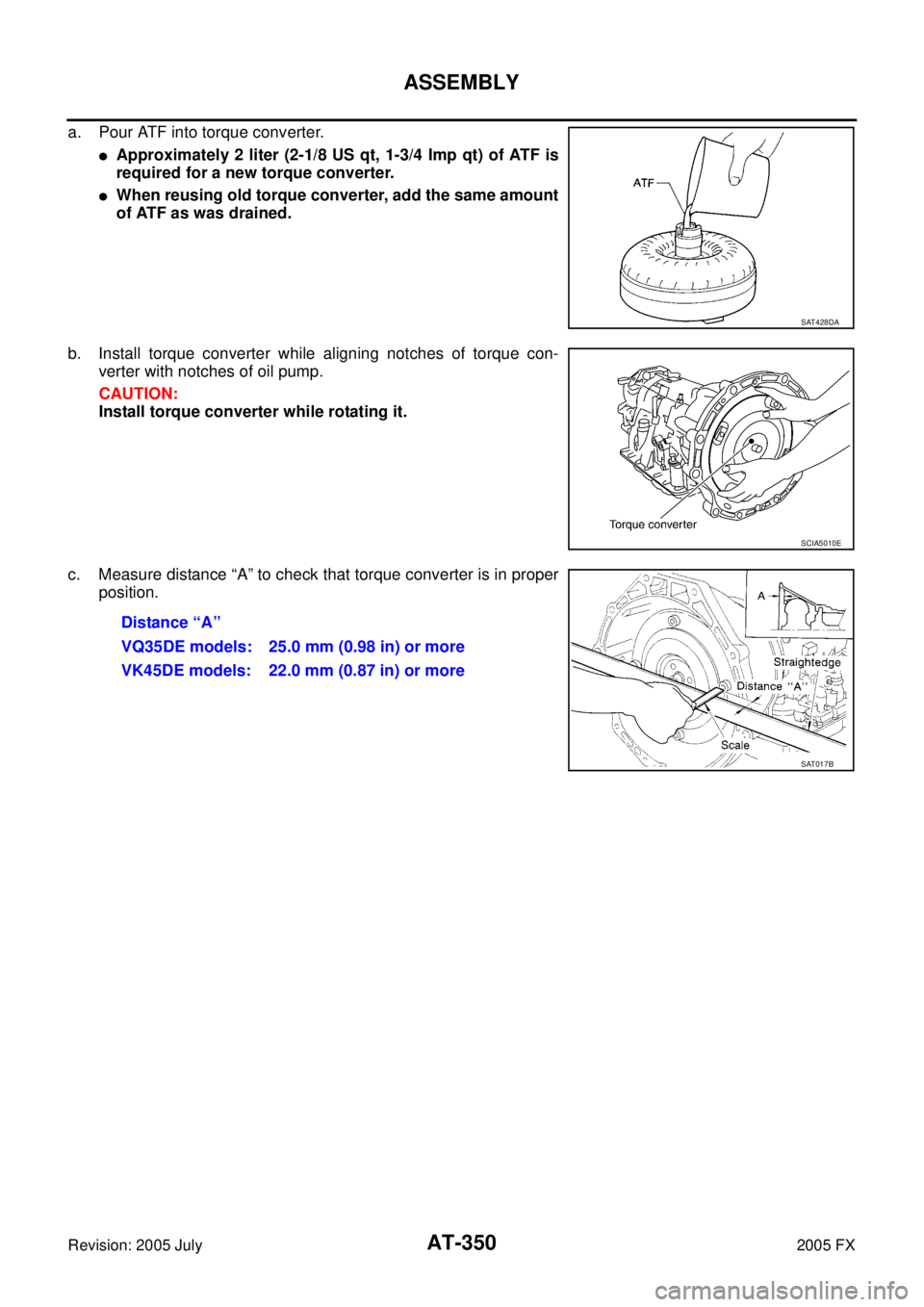

AT-350
ASSEMBLY
Revision: 2005 July 2005 FX
a. Pour ATF into torque converter.

Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is
required for a new torque converter.

When reusing old torque converter, add the same amount
of ATF as was drained.
b. Install torque converter while aligning notches of torque con- verter with notches of oil pump.
CAUTION:
Install torque converter while rotating it.
c. Measure distance “A” to check that torque converter is in proper position.
SAT428DA
SCIA5010E
Distance “A”
VQ35DE models: 25.0 mm (0.98 in) or more
VK45DE models: 22.0 mm (0.87 in) or more
SAT017B

SERVICE DATA AND SPECIFICATIONS (SDS) AT-351
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsACS002S2
*1: Refer to MA-12, "Fluids and Lubricants" .
Vehicle Speed at Which Gear Shifting OccursACS002S3
2WD MODELS

At half throttle, the accelerator opening is 4/8 of the full opening.
AWD MODELS

At half throttle, the accelerator opening is 4/8 of the full opening.

At half throttle, the accelerator opening is 4/8 of the full opening.
Applied model
VQ35DE engine VK45DE engine
2WD AWD
Automatic transmission model RE5R05A
Transmission model code number 92X20, 90X3C 92X21, 90X3D 92X22, 90X3E
Stall torque ratio 2.0: 1
Transmission gear ratio 1st 3.540
2nd 2.264
3rd 1.471
4th 1.000
5th 0.834
Reverse 2.370
Recommended fluid Genuine NISSAN Matic J ATF*1
Fluid capacity 10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)
CAUTION:

Use only Genuine NISSAN Matic J ATF. Do not mix with other fluid.

Using A/T fluid other than Genuine NISSAN Matic J ATF will deteriorate in driveability and automatic transmission durabil-
ity, and may damage the automatic transmission, which is not covered by the warranty.
Engine model VQ35DE
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D5D5 → D4D4 → D3D3 → D2D2 → D1
Full throttle 66 - 74
(41 - 46) 106 - 114
(66 - 71) 165 - 173
(103 - 108) 236 - 244
(147 - 152) 232 - 240
(144 - 149) 145- 153
(90 - 95) 89 - 97
(55 - 60) 41 - 49
(25 - 30)
Half throttle 52 - 60
(32 - 37) 83 - 91
(52 - 57) 127 - 135
(79 - 84) 159 - 167
(99 - 104) 104 - 112
(65 - 70) 75 - 83
(47 - 52) 34 - 42
(21 - 26) 9 - 17
(6 - 11)
Engine model VQ35DE
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D5D5 → D4D4 → D3D3 → D2D2 → D1
Full throttle 60 - 68
(37 - 42) 96 - 104
(60 - 65) 150 - 158
(93 - 98) 214 - 222
(133 - 138) 210 - 218
(130 - 135) 132 - 140
(82 - 87) 81 - 89
(50 - 55) 37 - 45
(23 - 28)
Half throttle 47 - 55
(29 - 34) 75 - 83
(47 - 52) 115 - 123
(71 - 76) 144 - 152
(89 - 94) 95 - 103
(59 - 64) 68 - 76
(42 - 47) 31 - 39
(19 - 24) 9 - 17
(6 -11)
Engine model VK45DE
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D5D5 → D4D4 → D3D3 → D2D2 → D1
Full throttle 62 - 70
(39 - 43) 98 - 106
(61 - 66) 153 - 161
(95 - 100) 220 - 228
(137 - 142) 216 - 224
(134 - 139) 137 - 145
(85 - 90) 85 - 93
(53 - 58) 39 - 47
(24 - 29)
Half throttle 29 - 37
(18 - 23) 59 - 67
(37 - 42) 101 - 109
(63 - 68) 161 - 169
(100 - 105) 108 - 116
(67 - 72) 66 - 74
(41 - 46) 38 - 46
(24 - 29) 22 - 30
(14 - 19)

AT-352
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX
Vehicle Speed at Which Lock-up Occurs/ReleasesACS002S4
2WD MODELS

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

At half throttle, the accelerator opening is 4/8 of the full opening.
AW D M OD E LS

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

At half throttle, the accelerator opening is 4/8 of the full opening.

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

At half throttle, the accelerator opening is 4/8 of the full opening.
Stall SpeedACS002S6
Line PressureACS002S7
A/T Fluid Temperature SensorACS00858
Engine model VQ35DE
Throttle position Vehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 65 - 73 (40 - 45) 62 - 70 (39 - 43)
Half throttle 196 - 204 (122 - 127) 153 - 161 (95 - 100)
Engine model VQ35DE
Throttle position Vehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 59 - 67 (37 - 42) 56 - 64 (35 - 40)
Half throttle 178 - 186 (111 - 116) 139 - 147 (86 - 91)
Engine model VK45DE
Throttle position Vehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 66 - 74 (41 - 46) 53 - 61 (33 - 38)
Half throttle 191 - 199 (119 - 124) 136 - 144 (85 - 89)
Engine model VQ35DE
Stall speed 2,200 - 2,400 rpm
Engine model VK45DE
Stall speed 1,950 - 2,250 rpm
Engine speed Line pressure [kPa (kg/cm2 , psi)]
R position D and M positions
At idle speed 425 - 465 (4.3 - 4.8, 62 - 67) 379 - 428 (3.9 - 4.4, 55 - 62)
At stall speed 1,605 - 1,950 (16.4 - 19.9, 233 - 283) 1,310 - 1,500 (13.4 - 15.3, 190 - 218)
Name Condition CONSULT-II “DATA MONITOR” (Approx.) (V) Resistance (Approx.) (k Ω)
A/T fluid temperature sensor 1 0
°C (32 °F) 3.3 15
20 °C (68 °F) 2.7 6.5
80 °C (176 °F) 0.9 0.9
A/T fluid temperature sensor 2 0
°C (32 °F) 3.3 10
20 °C (68 °F) 2.5 4
80 °C (176 °F) 0.7 0.5

ATC-3
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
COMPONENT INSPECTION ...........................
.. 112
Intake Sensor Circuit ........................................... .. 113
COMPONENT DESCRIPTION ........................ .. 113
DIAGNOSIS PROCEDURE FOR INTAKE SEN-
SOR ................................................................. .. 113
COMPONENT INSPECTION ........................... .. 114
CONTROLLER ...................................................... ..115
Removal and Installation of A/C and AV Switch .. .. 115
REMOVAL ........................................................ .. 115
INSTALLATION ................................................ .. 115
AUTO AMP ............................................................ ..116
Removal and Installation of Unified Meter and A/C
Amp. .................................................................... .. 116
REMOVAL ........................................................ .. 116
INSTALLATION ................................................ .. 116
AMBIENT SENSOR ............................................... ..117
Removal and Installation ..................................... .. 117
REMOVAL ........................................................ .. 117
INSTALLATION ................................................ .. 117
IN-VEHICLE SENSOR ........................................... ..118
Removal and Installation ..................................... .. 118
REMOVAL ........................................................ .. 118
INSTALLATION ................................................ .. 118
SUNLOAD SENSOR ............................................. ..119
Removal and Installation ..................................... .. 119
REMOVAL ........................................................ .. 119
INSTALLATION ................................................ .. 119
INTAKE SENSOR .................................................. . 120
Removal and Installation ..................................... . 120
REMOVAL ........................................................ . 120
INSTALLATION ................................................ . 120
BLOWER UNIT ...................................................... . 121
Removal and Installation ..................................... . 121
REMOVAL ........................................................ . 121
INSTALLATION ................................................ . 121
Disassembly and Assembly ................................ . 122
BLOWER MOTOR ................................................. . 123
Removal and Installation ..................................... . 123
REMOVAL ........................................................ . 123
INSTALLATION ................................................ . 123
INTAKE DOOR MOTOR ........................................ . 124
Removal and Installation ..................................... . 124
REMOVAL ........................................................ . 124
INSTALLATION ................................................ . 124
IN-CABIN MICROFILTER ...................................... . 125
Removal and Installation ..................................... . 125
FUNCTION ....................................................... . 125
REPLACEMENT TIMING ................................. . 125
REPLACEMENT PROCEDURES .................... . 125
HEATER & COOLING UNIT ASSEMBLY ............. . 126
Removal and Installation ..................................... . 126
REMOVAL ........................................................ . 126
INSTALLATION ................................................ . 127
Disassembly and Assembly ................................ . 129
MODE DOOR MOTOR .......................................... . 131
Removal and Installation ..................................... . 131
REMOVAL ........................................................ . 131
INSTALLATION ................................................ . 131 AIR MIX DOOR MOTOR ........................................
.132
Removal and Installation ..................................... .132
REMOVAL ........................................................ .132
INSTALLATION ................................................ .132
HEATER CORE ...................................................... .133
Removal and Installation ..................................... .133
REMOVAL ........................................................ .133
INSTALLATION ................................................ .133
DUCTS AND GRILLES .......................................... .134
Removal and Installation ..................................... .134
REMOVAL ........................................................ .134
INSTALLATION ................................................ .137
REFRIGERANT LINES .......................................... .138
HFC-134a (R-134a) Service Procedure .............. .138
SETTING OF SERVICE TOOLS AND EQUIP-
MENT ............................................................... .138
Components ........................................................ .140
VQ35DE ........................................................... .140
VK45DE ............................................................ .141
Removal and Installation of Compressor ............. .141
REMOVAL ........................................................ .141
INSTALLATION ................................................ .143
Removal and Installation of Compressor Clutch . .144
REMOVAL ........................................................ .144
INSTALLATION ................................................ .146
Removal and Installation of Low-Pressure Flexible
Hose .................................................................... .148
REMOVAL ........................................................ .148
INSTALLATION ................................................ .149
Removal and Installation of High-Pressure Flexible
Hose .................................................................... .149
REMOVAL ........................................................ .149
INSTALLATION ................................................ .150
Removal and Installation of Low-Pressure Pipe 1
(Engine Compartment) ........................................ .150
REMOVAL ........................................................ .150
INSTALLATION ................................................ .151
Removal and Installation of High-Pressure Pipe 1
and 2 (Engine Compartment) .............................. .151
REMOVAL ........................................................ .151
INSTALLATION ................................................ .152
Removal and Installation of Low-Pressure Pipe 2
and High-Pressure Pipe 3 ................................... .152
REMOVAL ........................................................ .152
INSTALLATION ................................................ .153
Removal and Installation of Liquid Tank .............. .154
REMOVAL ........................................................ .154
INSTALLATION ................................................ .154
Removal and Installation of Condenser ............... .155
REMOVAL ........................................................ .155
INSTALLATION ................................................ .155
Removal and Installation of Refrigerant Pressure
Sensor ................................................................. .156
REMOVAL ........................................................ .156
INSTALLATION ................................................ .156
Removal and Installation of Evaporator ............... .156
REMOVAL ........................................................ .156
INSTALLATION ................................................ .156
Removal and Installation of Expansion Valve ...... .157

PRECAUTIONS ATC-11
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
O-RING AND REFRIGERANT CONNECTION
VQ35DE
VK45DE
RJIA1955E
RJIA1954E

TROUBLE DIAGNOSIS ATC-79
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2005 July 2005 FX
Blower Motor CircuitAJS0014X
SYMPTOM: Blower motor operation is malfunctioning.
INSPECTION FLOW
*1ATC-61, "Operational Check"*2AT C - 11 3 , "Intake Sensor Circuit"*3ATC-54, "FUNCTION CONFIRMA-
TION PROCEDURE", see No.4.
*4 ATC-54, "
FUNCTION CONFIRMA-
TION PROCEDURE", see No.6. *5
AT C - 5 4 , "
FUNCTION CONFIRMA-
TION PROCEDURE", see No.13. *6
ATC-81, "
DIAGNOSIS PROCE-
DURE FOR BLOWER MOTOR"
*7 ATC-42, "SYMPTOM TABLE"*8ATC-104, "Ambient Sensor Circuit"*9ATC-107, "In-vehicle Sensor Circuit"
*10 ATC-110, "Sunload Sensor Circuit"*11EC-208, "DTC P0117, P0118 ECT
SENSOR" (VQ35DE) or EC-914,
"DTC P0117, P0118 ECT SEN-
SOR" (VK45DE)
RJIA1994E
