PREPARATIONPFP:00002
Special Service ToolsABS004T4
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool name Description
EG17650301
(J33984-A)
Radiator cap tester adapter Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
(—)
Radiator plate pliers A Installing radiator upper and lower tanks
KV99103520
(—)
Radiator plate pliers B Removing radiator upper and lower tanks
KV10111100
(J37228)
Seal cutter Removing chain tensioner cover and water
pump cover
WS39930000
(—)
Tube presser Pressing the tube of liquid gasket
S-NT564
S-NT224
S-NT225
NT046
S-NT052

CO-6
[VQ35DE]
PREPARATION
Revision: 2005 July 2005 FX
Commercial Service ToolsABS004T5
Tool nameDescription
Power tool Loosening nuts and bolts
Radiator cap tester Checking radiator and radiator cap
PBIC0190E
PBIC1982E

OVERHEATING CAUSE ANALYSIS CO-7
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartABS004UZ
Symptom Check items
Cooling sys-
tem parts
malfunction Poor heat transfer
Water pump malfunction Worn or loose drive belt
—
Thermostat stuck closed —
Damaged fins Dust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tube Excess foreign material
(rust, dirt, sand, etc.)
Reduced air flow Cooling fan does not oper-
ate
Fan assembly —
High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio —— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolant Engine coolant leaks Cooling hose
Loose clamp
Cracked hose
Water pump Poor sealing
Radiator cap Loose
Poor sealing
Radiator O-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tank Exhaust gas leaks into
cooling system Cylinder head deterioration
Cylinder head gasket dete-
rioration

CO-8
[VQ35DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2005 July 2005 FX
Except cool-
ing system
parts mal-
function — Overload on engine
Abusive driving
High engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
Powertrain system mal-
function
—
Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flow Blocked bumper —
—
Blocked radiator grille
Installed car brassiere
Mud contamination or
paper clogging
Blocked radiator —
Blocked condenser Blocked air flow
Installed large fog lamp
Symptom Check items

COOLING SYSTEM CO-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
COOLING SYSTEMPFP:21020

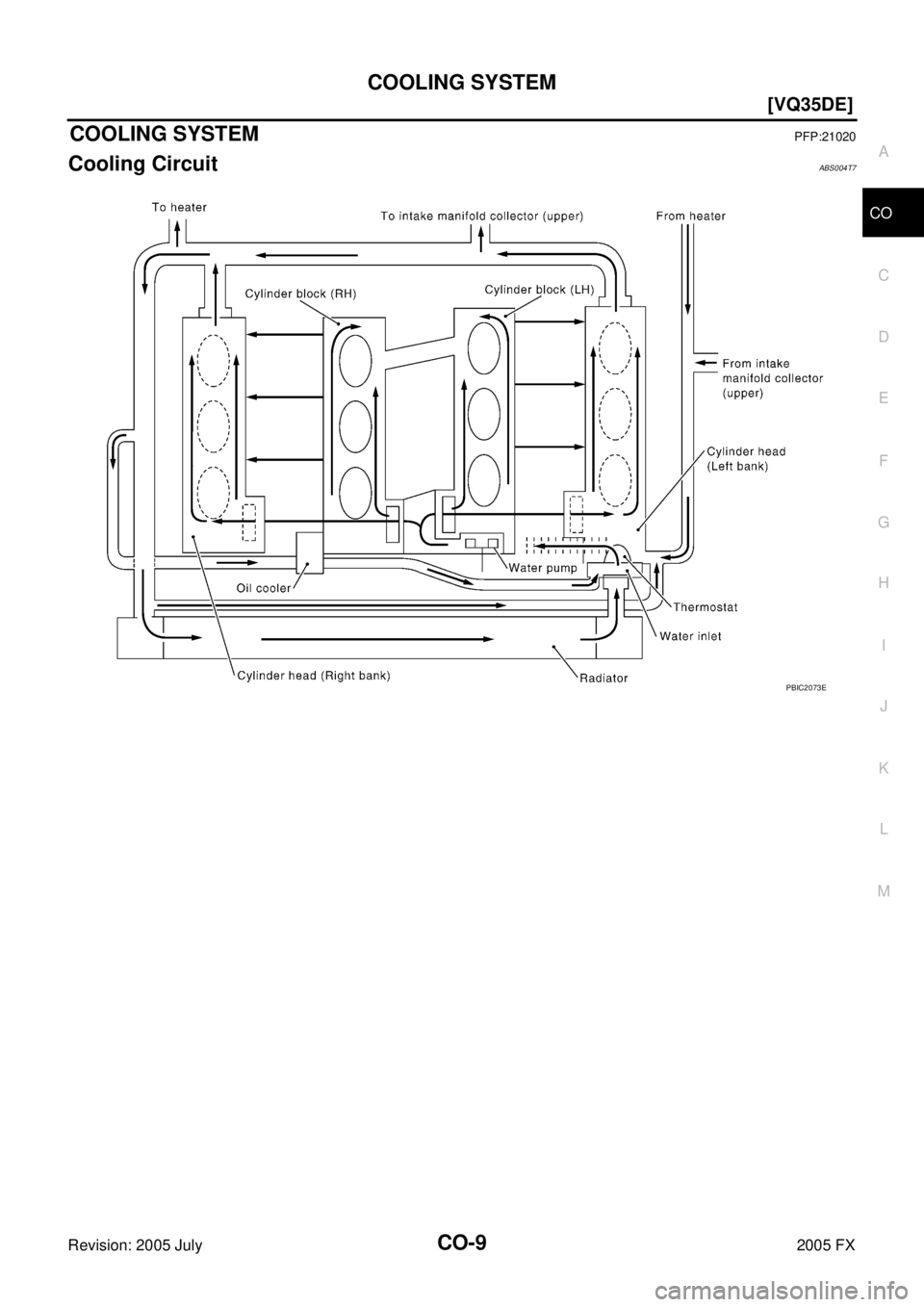

Cooling CircuitABS004T7
PBIC2073E

CO-10
[VQ35DE]
COOLING SYSTEM
Revision: 2005 July 2005 FX

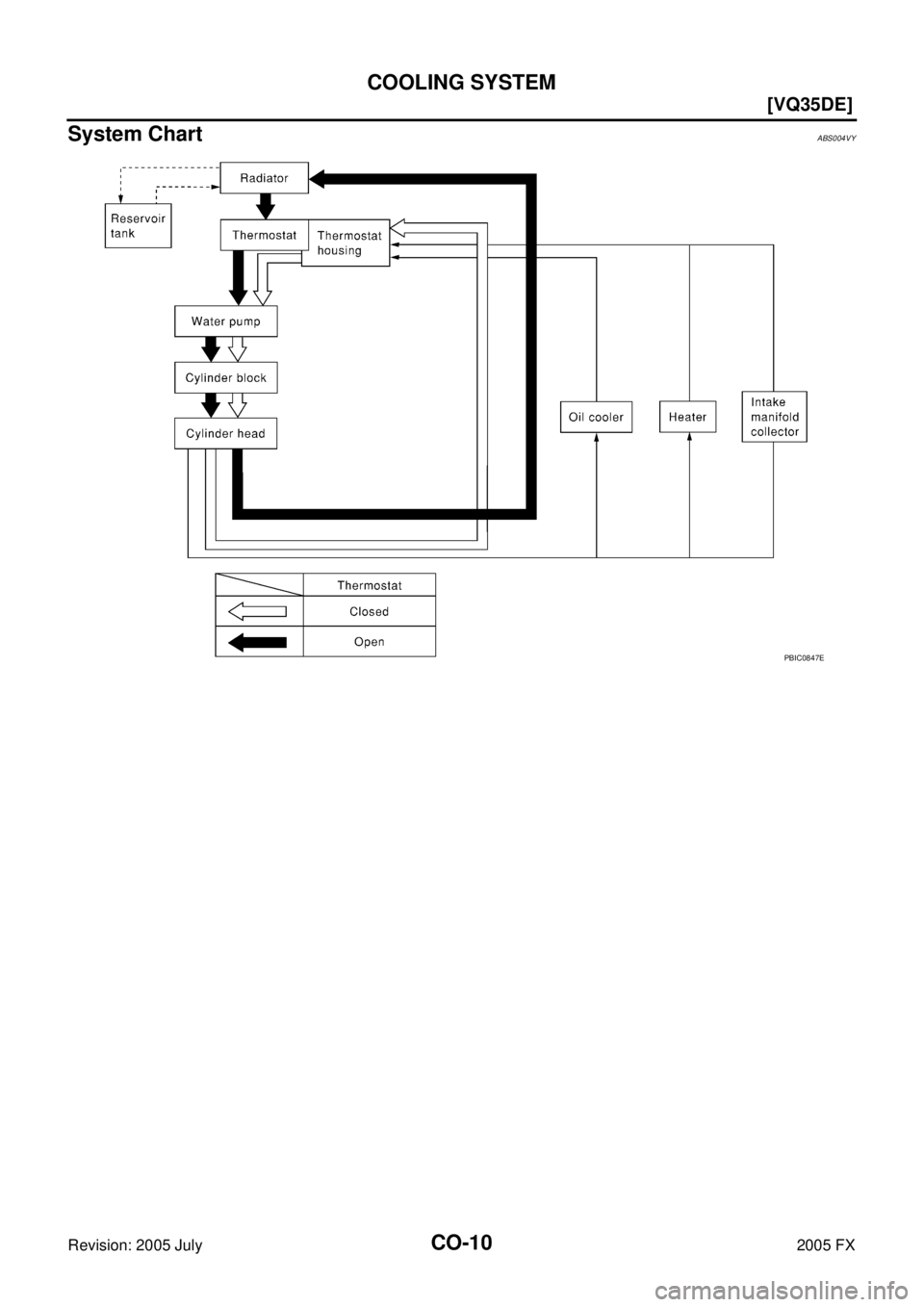

System ChartABS004VY
PBIC0847E

ENGINE COOLANT CO-11
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX
ENGINE COOLANTPFP:KQ100
InspectionABS004T8
LEVEL CHECK

Check if the reservoir tank engine coolant level is within the
“MIN” to “MAX” when the engine is cool.

Adjust the engine coolant level as necessary.
LEAK CHECK

To check for leaks, apply pressure to the cooling system with the
radiator cap tester (commercial service tool) and radiator cap
tester adapter [SST].
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high-pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantABS004T9
WARNING:

To avoid being scalded, do not change engine coolant when the engine is hot.

Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn radiator cap a
quarter of a turn to release built-up pressure. Then turn radiator cap all the way.
DRAINING ENGINE COOLANT
1. Remove front engine undercover with power tool.
2. Open radiator drain plug at the bottom of radiator, and then remove radiator cap.
When draining all of engine coolant in the system, open water drain plugs on cylinder block. Refer
to EM-123, "
DISASSEMBLY" .
3. Remove reservoir tank as necessary, and drain engine coolant and clean reservoir tank before installing.
SMA412B
Testing pressure : 157 kPa (1.6 kg/cm
2 , 23
psi)
SLC756A
SBIA0444E

CO-12
[VQ35DE]
ENGINE COOLANT
Revision: 2005 July 2005 FX
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to CO-13, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.
If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM-128,
"ASSEMBLY" .
2. Make sure that each hose clamp has been firmly tightened.
3. Remove air relief plug on heater hose.
4. Fill radiator, and reservoir tank if removed, to specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (2-1/8 US qt, 1-3/4 lmp qt) a minute
to allow air in system to escape.

Use Genuine Nissan Long Life Antifreeze/Coolant or
equivalent mixed with water (distilled or demineralized).
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS" .

When engine coolant overflows air relief hole on heater hose,
install air relief plug with new O-ring.
5. Install radiator cap.
6. Warm up until opening thermostat. Standard for warming-up time is approximately 10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
7. Stop the engine and cool down to less than approximately 50 °C (122 °F).

Cool down using fan to reduce the time. Radiator drain plug:
: 1.18 N·m (0.12 kg-m, 10 in-lb)
SBIA0445E
Engine coolant capacity
(With reservoir tank at “MAX” level)
: Approximately 8.6 (9-1/8 US qt, 7-5/8 lmp qt)
SMA182B
Reservoir tank engine coolant capacity
(At “MAX” level)
: 0.8 (7/8 US qt, 3/4 lmp qt)
Air relief plug: : 1.19 N·m (0.12 kg-m, 11 in-lb)
SMA412B

ENGINE COOLANT CO-13
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2005 July 2005 FX

If necessary, refill radiator up to filler neck with engine coolant.
8. Refill reservoir tank to “MAX” level line with engine coolant.
9. Repeat steps 4 through 7 two or more times with radiator cap installed until engine coolant level no longer drops.
10. Check cooling system for leaks with engine running.
11. Warm up the engine, and check for sound of engine coolant flow while running engine from idle up to 3,000 rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
12. Repeat step 11 three times.
13. If sound is heard, bleed air from cooling system by repeating step 4 through 7 until engine coolant level no longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.
If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM-128,
"ASSEMBLY" .
2. Remove air relief plug on heater hose.
3. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and reservoir tank with water and reinstall radiator cap.
4. Run the engine and warm it up to normal operating temperature.
5. Rev the engine two or three times under no-load.
6. Stop the engine and wait until it cools down.
7. Drain water from the system. Refer to CO-11, "
DRAINING ENGINE COOLANT" .
8. Repeat steps 1 through 7 until clear water begins to drain from radiator. Radiator drain plug:
: 1.18 N·m (0.12 kg-m, 10 in-lb)
SBIA0445E
Air relief plug: : 1.19 N·m (0.12 kg-m, 11 in-lb)

CO-14
[VQ35DE]
RADIATOR
Revision: 2005 July 2005 FX
RADIATORPFP:21400
ComponentsABS00E7X
Removal and InstallationABS004WE
REMOVAL
WARNING:
Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine
coolant escaping from radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter of a turn to
release built-up pressure. Carefully remove radiator cap by turning it all the way.
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
3. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT"
.
4. Remove reservoir tank and reservoir tank bracket.
5. Disconnect A/T fluid cooler hoses from radiator.
1. Radiator 2. Radiator upper mount bracket 3. Mounting rubber (upper)
4. Radiator cap 5. Mounting rubber (lower) 6. O-ring
7. Drain plug 8. Clamp (radiator hose) 9. Radiator hose (lower)
10. Radiator hose (upper) 11. Clamp (A/T fluid cooler hose) 12. A/T fluid cooler hose
13. Clamp (reservoir tank hose) 14. Reservoir tank hose 15. Reservoir tank cap
16. Reservoir tank 17. Reservoir tank bracket 18. Radiator cooling fan assembly
SBIA0446E
