INFINITI FX35 2005 Service Manual

PG-14

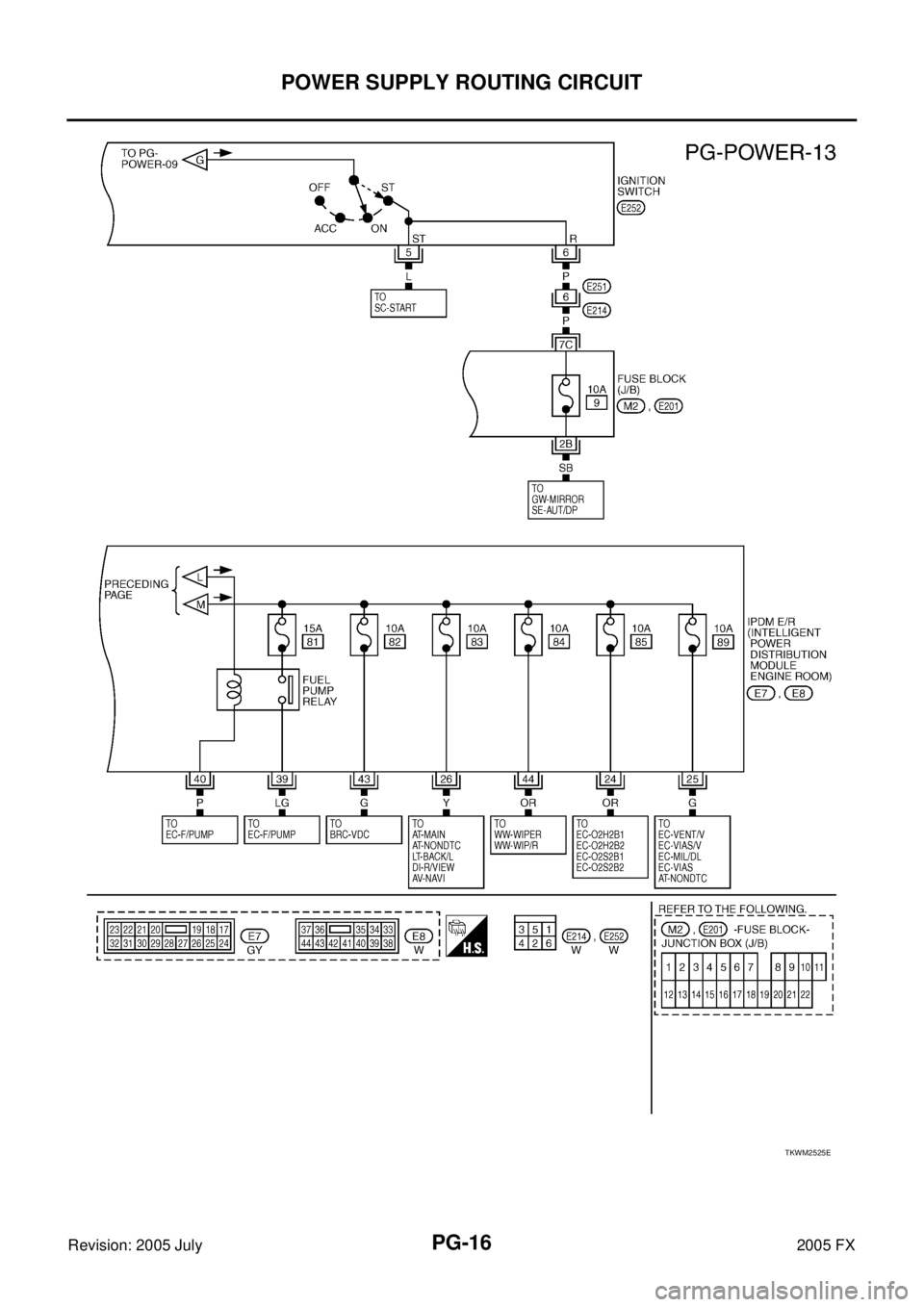

POWER SUPPLY ROUTING CIRCUIT
Revision: 2005 July 2005 FX
TKWM1096E

POWER SUPPLY ROUTING CIRCUIT PG-15
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
TKWM0719E

PG-16
POWER SUPPLY ROUTING CIRCUIT
Revision: 2005 July 2005 FX
TKWM2525E

POWER SUPPLY ROUTING CIRCUIT PG-17
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
Fuse AKS007VW

If fuse is blown, be sure to eliminate cause of malfunction before
installing new fuse.

Use fuse of specified rating. Never use fuse of more than speci-
fied rating.

Do not partially install fuse; always insert it into fuse holder prop-
erly.

Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not
used for a long period of time.
Fusible LinkAKS007VX
A melted fusible link can be detected either by visual inspection or by
feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.
CAUTION:

If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of mal-
function.

Never wrap outside of fusible link with vinyl tape. Important:
Never let fusible link touch any other wiring harness, vinyl
or rubber parts.
Circuit Breaker AKS007VY
The PTC thermistor generates heat in response to current flow. The
temperature (and resistance) of the thermistor element varies with
current flow. Excessive current flow will cause the element's temper-
ature to rise. When the temperature reaches a specified level, the
electrical resistance will rise sharply to control the circuit current.
Reduced current flow will cause the element to cool. Resistance falls
accordingly and normal circuit current flow is allowed to resume.
CEL083
CKIM0195E
SEL109W

PG-18
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2005 July 2005 FX
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PFP:284B7
System DescriptionAKS005S9

IPDM E/R (Intelligent Power Distribution Module Engine Room) integrates the relay box and fuse block
which were originally placed in engine compartment. It controls integrated relay via IPDM E/R control cir-
cuit.

IPDM E/R-integrated control circuit performs ON-OFF operation of relay, CAN communication control, oil
pressure switch signal, and hood switch signal reception, etc.

It controls operation of each electrical part via ECM, BCM and CAN communication lines.
CAUTION:
None of the IPDM E/R-integrated relays can be removed.
SYSTEMS CONTROLLED BY IPDM E/R
1. Lamp control
Using CAN communication line, it receives signal from BCM and controls the following lamps:

Headlamps (Hi, Lo)

Parking, license plate and tail lamps

Tail lamps

Front fog lamps
2. Wiper control Using CAN communication line, it receives signals from BCM and controls the front wipers.
3. Rear window defogger relay control Using CAN communication line, it receives signals from BCM and controls the rear window defogger
relay.
4. A/C compressor control Using CAN communication line, it receives signals from ECM and controls the A/C compressor.
5. Cooling fan control Using CAN communication line, it receives signals from ECM and controls cooling fan .
6. Horn control Using CAN communication line, it receives signals from BCM and controls horn relay.
CAN COMMUNICATION LINE CONTROL
With CAN communication, by connecting each control unit using two communication lines (CAN L line, CAN H
line), it is possible to transmit maximum amount of information with minimum wiring. Each control unit can
transmit and receive data, and reads necessary information only.
1. Fail-safe control

When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control.
After CAN communication recovers normally, it also returns to normal control.

Operation of control parts by IPDM E/R during fail-safe mode is as follows:
Controlled system Fail-safe mode
Headlamp

With the ignition switch ON, the headlamp (low) is ON.

With the ignition switch OFF, the headlamp (low) is OFF.
Parking, license plate and tail lamps

With the ignition switch ON, the parking, license plate and tail lamps is ON.

With the ignition switch OFF, the parking, license plate and tail lamps is OFF.
Cooling fan

With the ignition switch ON, the cooling fan HI operates.

With the ignition switch OFF, the cooling fan stops.
Front wiper Until the ignition switch is turned off, the front wiper LO and HI remains in the same status it
was in just before fail-safe control was initiated.
Rear window defogger Rear window defogger relay is OFF
A/C compressor A/C compressor is OFF
Front fog lamps Front fog lamp is OFF

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-19
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
IPDM E/R STATUS CONTROL
In order to save power, IPDM E/R switches status by itself based on each operating condition.
1. CAN communication status

CAN communication is normally performed with other control units.

Individual unit control by IPDM E/R is normally performed.

When sleep request signal is received from BCM, mode is switched to sleep waiting status.
2. Sleep waiting status

Process to stop CAN communication is activated.

All systems controlled by IPDM E/R are stopped. When 3 seconds have elapsed after CAN communi-
cation with other control units is stopped, mode switches to sleep status.
3. Sleep status

IPDM E/R operates in low power mode.

CAN communication is stopped.

When a change in CAN communication line is detected, mode switches to CAN communication status.

When a change hood switch or ignition switch signal is detected, mode switches to CAN communica-
tion status.
CAN Communication System DescriptionAKS005SA
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicles are equipped with many electronic control units and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS00AOF
Refer to LAN-30, "CAN Communication Unit" .
Function of Detecting Ignition Relay MalfunctionAKS005SB

When contact point of integrated ignition relay is stuck and cannot be turned OFF, IPDM E/R turns ON tail
and parking lamps for 10 minutes to indicate ignition relay malfunction.

When a state of ignition relay having built-in does not agree with a state of Ignition switch signal input by a
CAN communication from BCM, IPDM E/R lets tail lamp relay operate.
NOTE:
When the ignition switch is turned ON, the tail lamps are OFF. Ignition switch signal Ignition relay status Tail lamp relay
ON ON —
OFF OFF — ON OFF —
OFF ON ON (10 minutes)

PG-20
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2005 July 2005 FX
CONSULT-II Function (IPDM E/R)AKS005SC
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON- SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “IPDM E/R” on “SELECT SYSTEM” screen. If “IPDM E/R” is not indicated, refer to GI-39, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
Inspection Item, Diagnosis Mode Description
SELF-DIAG RESULTS The IPDM E/R performs diagnosis of the CAN communication and self-diagnosis.
DATA MONITOR The input/output data of the IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST The IPDM E/R sends a drive signal to electronic components to check their operation.
PBIB1503E
BCIA0029E
BCIA0030E

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-21
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
4. Select the desired part to be diagnosed on the “SELECT DIAG
MODE” screen.
SELF-DIAG RESULTS
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
2. Check display content in self-diagnostic results.
Display Item List
NOTE:
The details for display of the period are as follows:

CRNT: Error currently detected with IPDM E/R.

PAST: Error detected in the past and memorized with IPDM E/R.
BCIA0031E
Display Items CONSULT-II
display code Malfunction detecting condition TIME
Possible causes
CRNT PAST
NO DTC IS
DETECTED.FURTHER
TESTING MAY BE
REQUIRED. —————
CAN COMM CIRC U1000

If CAN communication reception/transmis-
sion data has a malfunction, or if any of the
control units malfunction, data reception/
transmission cannot be confirmed.

When the data in CAN communication is not
received before the specified time ××
Any of or several items
below have errors.

TRANSMIT DIAG

ECM

BCM/SEC

PG-22
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2005 July 2005 FX
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT MONITOR ITEM ” screen.
2. Touch “ALL SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. Touch the required monitoring item on “SELECTION FROM MENU”. In “ALL SIGNALS”, all items are monitored. In “MAIN SIGNALS”, predetermined items are monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording, touch “STOP”.
All Signals, Main Signals, Selection From Menu
NOTE:

Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be cor -
rect.

*1: The vehicle without the Intelligent Key system displays only ON without change.

*2:The cornering lamp item is displayed, but it cannot be monitored.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested.
ALL SIGNALS All items will be monitored.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Select any item for monitoring.
Item name CONSULT-II
screen display Display or unit SELECT MONITOR ITEM
Description
ALL
SIGNALS MAIN
SIGNALS SELECTION
FROM
MENU
Motor fan request MOTOR FAN
REQ 1/2/3/4
×× × Signal status input from ECM
Compressor request AC COMP REQ ON/OFF ×× ×Signal status input from ECM
Tail & clear request TAIL&CLR REQ ON/OFF ×× ×Signal status input from BCM
H/L LO request HL LO REQ ON/OFF ×× ×Signal status input from BCM
H/L HI request HL HI REQ ON/OFF ×× ×Signal status input from BCM
FR fog request FR FOG REQ ON/OFF ×× ×Signal status input from BCM
FR wiper request FR WIP REQ STOP/LO/HI ×× ×Signal status input from BCM
Wiper auto stop WIP AUTO STOP ACT P/STOP P ×× ×Output status of IPDM E/R
Wiper protection WIP PROT OFF/BLOCK ×× ×Control status of IPDM E/R
Starter request ST RLY REQ
*1ON/OFF ×× Status of input signal
Ignition relay status IGN RLY ON/OFF ×× × Ignition relay status monitored
with IPDM E/R
Rear window defog-
ger request RR DEF REQ ON/OFF
×× ×Signal status input from BCM
Oil pressure switch OIL P SW OPEN/CLOSE ××Signal status input in IPDM E/R
Hood switch HOOD SW ON/OFF ××Input signal status
Theft warning horn
request THFT HRN REQ ON/OFF
××Signal status input from BCM
Horn chirp HORN CHIRP ON/OFF ××Output status of IPDM E/R
Cornering lamp
request CRNRNG LMP
REQ
*2OFF/LEFT/
RIGHT ××
Signal status input from BCM

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-23
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
3. Touch “START”, and confirm its operation.
4. Touch “STOP” while testing to stop the operation.
NOTE:
This item is displayed, but cannot be tested. Test item CONSULT-II screen display Description
Tail lamp operation TAIL LAMP With a certain ON-OFF operation, the tail lamp relay can be operated.
Rear window defogger opera-
tion REAR DEFOGGER
With a certain ON-OFF operation, the rear window defogger relay can
be operated.
Front wiper (HI, LO) operation FRONT WIPER With a certain operation (OFF, HI ON, LO ON), the front wiper relay
(Lo, Hi) can be operated.
Cooling fan operation MOTOR FAN With a certain operation (1, 2, 3, 4), the cooling fan can be operated.
Lamp (HI, LO, FOG) opera-
tion LAMPSWith a certain operation (OFF, HI ON, LO ON, FOG ON), the lamp
relay (Lo, Hi, Fog) can be operated.
Cornering lamp operation CORNERING LAMP
NOTE—
Horn operation HORN With a certain ON-OFF operation, the horn relay can be operated.
