DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionABS006V0
The malfunction information related to TCS is transferred through the CAN communication line from “ABS
actuator and electric unit (control unit)” to ECM.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicABS006V1
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureABS006V2
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 60 seconds.
4. If 1st trip DTC is detected, go to EC-465, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS00E9C
Go to BRC-12, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1211
1211 TCS control unit ECM receives a malfunction information from
“ABS actuator and electric unit (Control unit)”.

ABS actuator and electric unit (control
unit)

TCS related parts
SEF058Y

EC-466
[VQ35DE]
DTC P1212 TCS COMMUNICATION LINE
Revision: 2005 July 2005 FX
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionABS006V4
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-171
.
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicABS006V5
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureABS006V6
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 10 seconds.
4. If a 1st trip DTC is detected, go to EC-466, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS00E9D
Go to BRC-12, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212 TCS communication
line ECM can not receive the information
from “ABS actuator and electric unit (con-
trol unit)”.

Harness or connectors
(The CAN communication line is open or
shorted.)

ABS actuator and electric unit (control unit)

Dead (Weak) battery
SEF058Y

DTC P1217 ENGINE OVER TEMPERATURE EC-467
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionABS00B4M
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-171
.
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 4-step control [HIGH/MIDDLE/LOW/OFF].
Cooling Fan Operation
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
control IPDM E/R
(Cooling fan relay)
Battery
Battery voltage*
1
Wheel sensor*2Vehicle speed
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch*
2Air conditioner ON signal
Refrigerant pressure sensor Refrigerant pressure
PBIB2215E

EC-468
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.
The cooling fan operates at low (LOW) speed when cooling fan motors-1 and -2 are circuited in series under
middle speed condition.
Cooling fan speed Cooling fan relay
123
Stop (OFF) OFF OFF OFF
Low (LOW) OFF ON OFF
Middle (MID) OFF OFF ON
High (HI) ON OFF ON
Cooling fan speed Cooling fan motor terminals
(+) ( −)
Middle (MID) 1 3 and 4
2 3 and 4
1 and 2 3
1 and 2 4
High (HI) 1 and 2 3 and 4

DTC P1217 ENGINE OVER TEMPERATURE EC-469
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CONSULT-II Reference Value in Data Monitor ModeABS006V9
Specification data are reference values.
On Board Diagnosis LogicABS006VA
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-11, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-9, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-13, "
Anti-Freeze Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckABS006VB
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG

Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.) ON
COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less OFF
Engine coolant temperature is
between 95 °C (203 °F) and 99 °C
(210 °F) LOW
Engine coolant temperature is
between 100 °C (212 °F) and 104 °C
(219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217 Engine over tempera-
ture (Overheat)

Cooling fan does not operate properly (Over-
heat).

Cooling fan system does not operate prop-
erly (Overheat).

Engine coolant level was not added to the
system using the proper filling method.

Engine coolant is not within the specified
range.

Harness or connectors
(The cooling fan circuit is open or
shorted.)

IPDM E/R

Cooling fan

Radiator hose

Radiator

Radiator cap

Water pump

Thermostat
For more information, refer to EC-478,
"Main 12 Causes of Overheating" .

EC-470
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-473,
"PROCEDURE A" .
2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to EC-473,
"PROCEDURE A" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON- SULT-II.
5. If the results are NG, go to EC-473, "
PROCEDURE A" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-473,
"PROCEDURE A" .
2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to EC-473,
"PROCEDURE A" .
3. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to PG-24, "
Auto Active Test"
4. If NG, go to EC-473, "PROCEDURE A" .
SEF621W
SEF646X
SEF621W

DTC P1217 ENGINE OVER TEMPERATURE EC-471
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS006VC
TBWM0306E

EC-472
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX

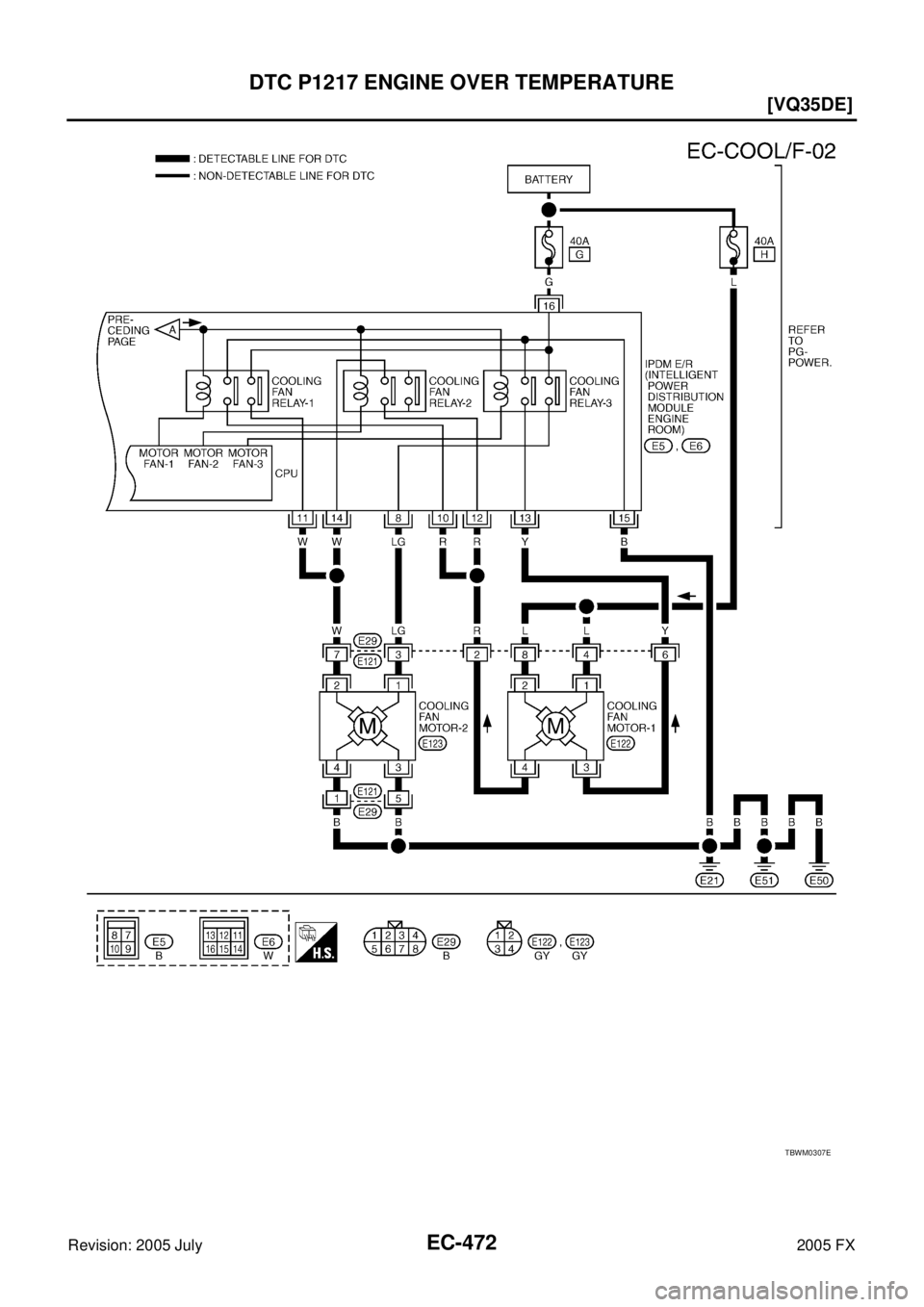

TBWM0307E

DTC P1217 ENGINE OVER TEMPERATURE EC-473
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006VD
PROCEDURE A
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 3.
2. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Start engine and let it idle.
2. Select “COOLING FAN” in “ACTIVE TEST” mode with CON- SULT-II.
3. Make sure that cooling fans-1 and -2 operate at each speed (LOW/MID/HI).
OK or NG
OK >> GO TO 4.
NG >> Check cooling fan control circuit. (Go to EC-475, "
PRO-
CEDURE B" .)
3. CHECK COOLING FAN OPERATION
Without CONSULT-II
1. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to PG-24, "
Auto Active
Te s t" .
2. Make sure that cooling fans-1 and -2 operate at each speed (Low/Middle/High).
OK or NG
OK >> GO TO 4.
NG >> Check cooling fan control circuit. (Go to EC-475, "
PROCEDURE B" .)
4. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 5.
NG >> Check the following for leak. Refer to CO-11, "
LEVEL
CHECK" .

Hose

Radiator

Water pump
SEF784Z
Testing pressure: 157 kPa (1.6 kg/cm2 , 23 psi)
SLC754A

EC-474
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2005 July 2005 FX
5. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 6.
NG >> Replace radiator cap.
6. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures. It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5 °C (9 °F) below valve opening tem-
perature.
For details, refer to CO-26, "
WATER INLET AND THERMO-
STAT ASSEMBLY" .
OK or NG
OK >> GO TO 7.
NG >> Replace thermostat
7. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-212, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace engine coolant temperature sensor.
8. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-478, "
Main 12 Causes of Overheating" .
>> INSPECTION END
Radiator cap relief pressure:
59 - 98 kPa (0.6 - 1.0 kg/cm
2
, 9 - 14 psi)
SLC755A
Valve opening temperature: 76.5 °C (170 °F) [standard]
Valve lift: More than 8.6 mm/90 °C
(0.339 in/194 °F)
SLC343
