BL-96
INTELLIGENT KEY SYSTEM
Revision: 2005 July 2005 FX
Ignition switch OFF position
warning (for inside car: when
door closed) Buzzer: Continuous — — —
Ignition switch OFF position
warning (for outside car: when
door opened/closed) Buzzer: Continuous
Buzzer (10 sec-
onds) ——
Warning for removal of Intelli-
gent Key to outside the car
(when door open/closed) —
Buzzer (3 sec-
onds) Red illuminate —
Warning for removal of Intelli-
gent Key to outside the car
(from window) Buzzer (3 seconds) — Red illuminate —
Door lock non-operation warn-
ing — Buzzer (2 sec-
onds) ——
Intelligent Key low battery pre-
warning —— Green illuminate
(30 seconds after igni-
tion switch comes ON) —
Warning and alarm names
Buzzer Warning lamp
Inside car Outside car “KEY” “P” shift
INTELLIGENT KEY SYSTEM BL-97
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
CHANGE SETTINGS FUNCTION
The settings for each function can be changed with the CONSULT-II or Intelligent Key operation.
Changing Settings With the Intelligent Key

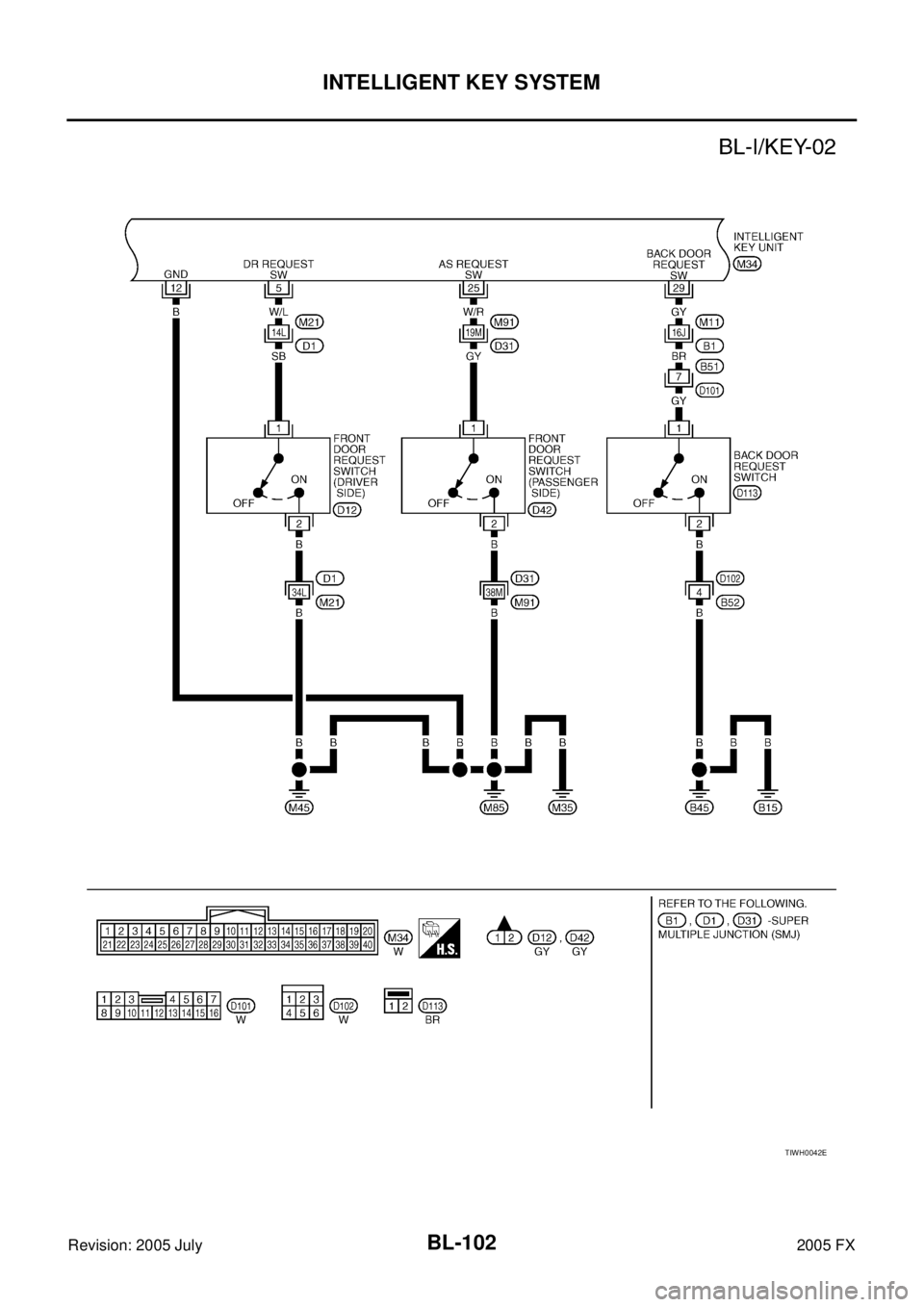

Intelligent Key remote controller button and door request switch operations change the engine startup function
settings (startup enabled/disabled) for each Intelligent Key independently.
Settings Change Procedure
1. With the ignition switch is in the LOCK position (ignition knob not pressed), hold down both the LOCK and UNLOCK remote control buttons on the Intelligent Key at the same time for at least 10 seconds (The yard-
stick is that the Intelligent Key LED flashes 20 times.)
2. Within 5 seconds of releasing the Intelligent Key remote controller buttons, press the driver door request switch.
3. The KEY warning lamp in combination meter lights up for 3 seconds (engine starting enabled → starting
disabled: lights up red, engine starting disabled → flashes green). This completes the settings change.
Changing Settings Using CONSULT-II
The settings for the Intelligent Key system functions can be changed using CONSULT-II (WORK SUPPORT).
Refer to BL-120, "
WORK SUPPORT" .
NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.
Changing Settings Using Display Unit
The settings of the Intelligent Key system can be changed, using CONSULT-II, display unit, Intelligent Key and
door request switch in the center of the instrument panel. Refer to AV- 9 4 , "
Vehicle Electronic Systems" .
×: Applicable –: Not applicable
NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.
INTELLIGENT KEY REGISTRATION
Intelligent Key-ID registration is executed using the CONSULT-II. Up to 4 can be registered.
CAUTION:
After a new Intelligent Key-ID is registered, be sure to check the function.
When registering an additional Intelligent Key-ID, take any Intelligent Keys already registered and
Intelligent Keys for any other vehicles out of the vehicle before starting.
CONSULT-II can be used to check and delete Intelligent Key-IDs.
For future information, see the CONSULT-II Operation Manual NATS.
STEERING LOCK UNIT REGISTRATION
Steering Lock Unit ID Registration
CAUTION:
The method for registering a steering lock unit ID depends on the status of the steering lock unit
and Intelligent Key unit (new or old unit).
After registration is completed, press ignition knob with a portable unit in the vehicle so that it can
be rotated, and confirm that it cannot be rotated even when ignition switch is pressed without a
portable unit in the vehicle.
For further information, see the CONSULT-II Operation Manual NATS.
Setting item Description
Intelligent Key Lock Response-Sound The sound pattern of the Intelligent Key operation can be set as desired. (Setting value:
OFF, Beeper or Horn chirp)
Intelligent Key Unlock Response-Beep
Sound The beep sound when unlocking door with the Intelligent Key operation can be turned ON
or OFF.
Intelligent Key Engine Start Function This function can be performed to ON or OFF.
Intelligent Key Lock/Unlock Function The door handle request switch lock/unlock operation with the Intelligent Key can be can-
celed or activated.
Return All Settings to Default The all settings made by VEHICLE ELECTRONICS will return to default.
BL-98
INTELLIGENT KEY SYSTEM
Revision: 2005 July 2005 FX
CAN Communication System DescriptionAIS004MX
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAIS004RN
Refer to LAN-30, "CAN COMMUNICATION" .
