diagnostic menu INFINITI FX35 2005 Service Manual

ACS-32
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
SELF-DIAGNOSTIC RESULTS
For details, refer to ACS-41, "Diagnostic Trouble Code (DTC) Chart" .
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen. Refer to ACS-30, "
CONSULT-II BASIC OPERATION" .
2. Touch any of “ECU INPUT SIGNALS”, “MAIN SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Monitored Item
× : Applicable
PKIB0112E
Monitored Item
[unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM MENU Description
VHCL SPEED SE
[km/h] or [mph] ××× Indicates vehicle speed calculated from ICC unit through CAN
communication [ABS actuator and electric unit (control unit)
transmits wheel speed sensor signal through CAN communica-
tion].
SET VHCL SPD
[km/h] or [mph] ×× Indicates set vehicle speed memorized in ICC unit.
THRTL OPENING
[%] ××× Indicates throttle angle read from ICC unit through CAN commu-
nication (ECM transmits throttle angle through CAN communi-
cation).
ENGINE RPM
[rpm] ×× Indicates engine speed read from ICC unit through CAN com-
munication (ECM transmits engine speed through CAN commu-
nication).
DISTANCE ADJ
[SHOR/MID/LONG] ×××
Indicates set distance memorized in ICC unit.
WIPER SW
[OFF/LOW/HIGH] ×× Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front
wiper request signal through CAN communication).
MAIN SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
SET/COAST SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CANCEL SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
RESUME/ACC SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CRUISE OPE
[ON/OFF] ×× Indicates whether controlling or not (ON means “controlling”).
BRAKE SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC brake switch sig-
nal.
STOP LAMP SW
[ON/OFF] ×××
Indicates [ON/OFF] status as judged from stop lamp switch sig-
nal.

AT-96
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
*3: For VQ35DE engine.
How to Erase Self-Diagnostic Results
1. Perform “CONSULT-II SETTING PROCEDURE”. Refer to AT- 9 2 , "CONSULT-II SETTING PROCEDURE"
.
2. Touch “SELF-DIAG RESULTS”.
3. Touch ”ERASE”. (The self-diagnostic results will be erased.)
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II SETTING PROCEDURE”. Refer to AT- 9 2 , "CONSULT-II SETTING PROCEDURE"
.
2. Touch “DATA MONITOR”. NOTE:
When malfunctions detected, CONSULT-II performs “REAL-
TIME DIAGNOSIS”. Also, any malfunction detected while in
this mode will be displayed at real time.
Display Items List
X: Standard, —: Not applicable, : Option
BCIA0031E
PCIA0061E
BCIA0031E
Monitored item (Unit) Select Monitor Item
Remarks
ECU
INPUT
SIGNALS MAIN SIG-
NALS SELEC-
TION
FROM
MENU
VHCL/S SE·A/T (km/h) X X Revolution sensor
VHCL/S SE·MTR (km/h) X —
ACCELE POSI (0.0/8) X — Accelerator pedal position signal

AT-100
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
CAN DIAGNOSTIC SUPPORT MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II SETTING PROCEDURE” Refer to AT- 9 2 , "CONSULT-II SETTING PROCEDURE" .
2. Touch “CAN DAIG SUPPORT MNTR”. Refer to LAN-18, "
CAN
Diagnostic Support Monitor" .
DTC WORK SUPPORT MODE
Operation Procedure
1. Perform “CONSULT-II SETTING PROCEDURE”. Refer to AT- 9 2 , "CONSULT-II SETTING PROCEDURE"
.
2. Touch “DTC WORK SUPPORT”.
3. Touch select item menu.
4. Touch “START”.
BCIA0031E
BCIA0031E
SCIA0512E
SCIA5159E

DTC P0615 START SIGNAL CIRCUIT AT-109
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
DTC P0615 START SIGNAL CIRCUITPFP:25230
DescriptionACS003LO

TCM prohibits cranking other than at “P” or “N” position.
CONSULT-II Reference ValueACS003K2
On Board Diagnosis LogicACS002MH

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II or 14th judgement flicker
without CONSULT-II is detected when starter relay is switched ON other than at “P” or “N” position. (Or
when switched OFF at “P” or “N” position).
Possible CauseACS003LP

Harness or connectors
[Starter relay and TCM circuit is open or shorted.]

Starter relay circuit
DTC Confirmation ProcedureACS002MJ
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.
3. Start engine.
4. Drive vehicle for at least 2 consecutive seconds.
5. If DTC is detected, go to AT- 111 , "
Diagnostic Procedure" .
Item name Condition Display value
STARTER RELAY Selector lever in “N” and “P” positions. ON
Selector lever in other positions. OFF
BCIA0031E

DTC P0615 START SIGNAL CIRCUIT AT-111
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
TCM terminals and data are reference value. Measured between each terminal and ground.
Diagnostic ProcedureACS002MK
1. CHECK STARTER RELAY
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between the IPDM E/R connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK HARNESS BETWEEN A/T ASSEMBLY HARNESS CONNECTOR AND IPDM E/R CONNEC-
TOR
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector and IPDM E/R connector.
3. Check continuity between A/T assembly harness connector and IPDM E/R connector.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Terminal Wire
color Item Condition Data (Approx.)
9GYStarter relay Selector lever in “N” and “ P” positions. Battery voltage
Selector lever in other positions. 0V
Item name Condition Display value
STARTER RELAY Selector lever in “N” and “P” positions. ON
Selector lever in other positions. OFF
Item Connector Terminal
(Wirer color) Shift position Voltage (Approx.)
Sta rter
relay E953
(GY) Ground “N” and “P” Battery voltage
“R” and “D” 0V
PCIA0056E
SCIA2103E
Item Connector Te r m i n a l
(Wire color) Continuity
A/T assembly harness con-
nector F44 9 (GY)
Ye s
IPDM E/R connector E9 53 (GY)
SCIA5439E

AT-116
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: 2005 July 2005 FX
Diagnostic ProcedureACS002MP
1. CHECK PNP SW CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Check if correct selector lever position (N/P, R or D) is displayed as selector lever is moved into each position.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 3 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item name Condition Display value
SLCT LVR POSI Selector lever in N and P positions. N/P
Selector lever in R position. R
Selector lever in D position. D
PCIA0034E

DTC P1731 A/T 1ST ENGINE BRAKING AT-149
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
Diagnostic ProcedureACS002OV
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start the engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “M” position (1st gear), and confirm the ON/ OFF actuation of “ATF PRES SW 2” and “ON OFF SOL”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 3 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 3 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 4 8 , "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
ON OFF SOL Low coast brake engaged. Refer to
AT- 2 1
.ON
Low coast brake disengaged. Refer to AT- 2 1
.OFF
ATF PRES
SW 2 Low coast brake engaged. Refer to
AT- 2 1
.ON
Low coast brake disengaged. Refer to AT- 2 1
.OFF
SCIA4670E

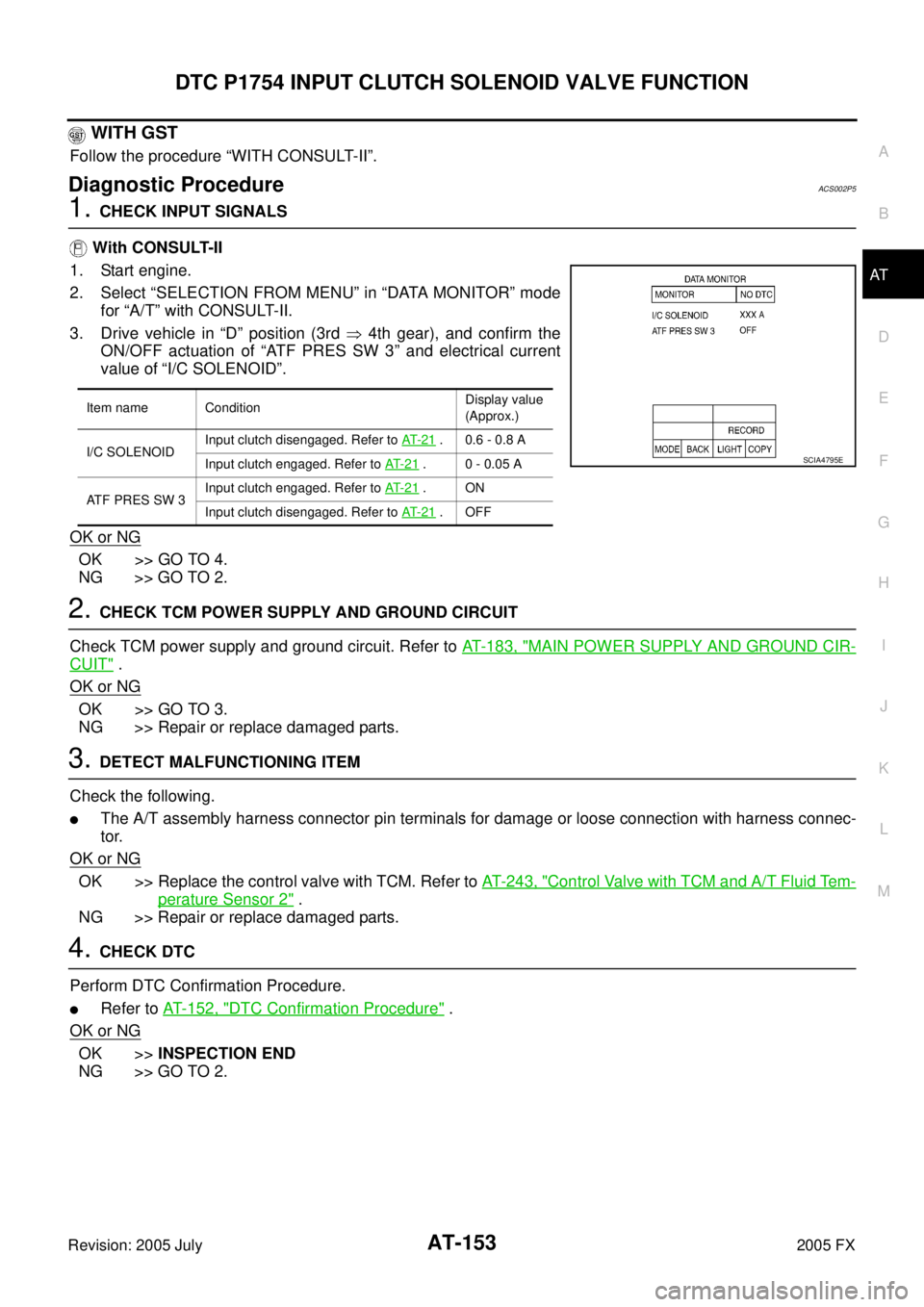

DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION AT-153
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureACS002P5
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in “D” position (3rd
4th gear), and confirm the
ON/OFF actuation of “ATF PRES SW 3” and electrical current
value of “I/C SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 3 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 3 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform DTC Confirmation Procedure.

Refer to AT- 1 5 2 , "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
I/C SOLENOID Input clutch disengaged. Refer to
AT- 2 1
. 0.6 - 0.8 A
Input clutch engaged. Refer to AT- 2 1
. 0 - 0.05 A
ATF PRES SW 3 Input clutch engaged. Refer to
AT- 2 1
.ON
Input clutch disengaged. Refer to AT- 2 1
.OFF
SCIA4795E

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION AT-157
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureACS002PF
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (3rd
4th gear), and confirm
the ON/OFF actuation of the “ATF PRES SW 1” and electrical
current value of “FR/B SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 3 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 3 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 5 6 , "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 1
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 1
. 0 - 0.05 A
ATF PRES SW 1 Front brake engaged. Refer to
AT- 2 1
.ON
Front brake disengaged. Refer to AT- 2 1
.OFF
SCIA4796E

DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION AT-161
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
Diagnostic ProcedureACS002PP
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (1st
2nd gear), and confirm
the display actuation of the “ATF PRES SW 5” and electrical cur-
rent value of “D/C SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 3 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 4 3 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT- 1 6 0 , "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
D/C SOLENOID Direct clutch disengaged. Refer to
AT- 2 1
. 0.6 - 0.8 A
Direct clutch engaged. Refer to AT- 2 1
. 0 - 0.05 A
ATF PRES SW 5 Direct clutch engaged. Refer to
AT- 2 1
.ON
Direct clutch disengaged. Refer to AT- 2 1
.OFF
SCIA4797E
