RELEASE SW NO
[ON/OFF] ×× Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is depressed.
OFF when brake is not depressed.
RELEASE SW NC
[ON/OFF] ×× Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is not depressed.
OFF when brake is depressed.
IDLE SW
[ON/OFF] ×× Indicates [ON/OFF] status of idle switch read from ICC unit
through CAN communication (ECM transmits ON/OFF status
through CAN communication).
GEAR
[1, 2, 3, 4, 5] ×× Indicates AT gear position read from ICC unit through CAN com-
munication (TCM transmits gear position through CAN commu-
nication).
BUZZER O/P
[ON/OFF] ×
Indicates [ON/OFF] status of ICC warning chime output.
ICC WARNING × NOTE:
This item is displayed, but cannot monitor.
VHCL SPD AT
[km/h] or [mph] × Indicates vehicle speed calculated from AT vehicle speed sen-
sor read from ICC unit through CAN communication (TCM
transmits AT vehicle speed sensor signal through CAN commu-
nication).
PRESS SENS
[bar] ××× Indicates brake fluid pressure value calculated from signal volt-
age of pressure sensor.
PRESS SENS 2 ×× NOTE:
This item is displayed, but cannot monitor.
D RANGE SW
[ON/OFF] ×× Indicates [ON/OFF] status of “D” position read from ICC unit
through CAN communication (TCM transmits ON/OFF condition
of “D” position through CAN communication).
AT OD OFF
[ON/OFF] ×
Indicates [ON/OFF] status of OD cancel output under control.
NP RANGE SW
[ON/OFF] ×× Indicates PNP switch signal read from ICC unit through CAN
communication (TCM transmits PNP switch signal through CAN
communication).
DISTANCE × NOTE:
This item is displayed, but cannot monitor.
RELATIVE SPD × NOTE:
This item is displayed, but cannot monitor.
STP LMP DRIVE
[ON/OFF] ××Indicates [ON/OFF] status of brake hold relay drive output.
Monitored Item
[unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM MENU Description

ACS-42
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
DTC 11 CONTROL UNITAKS00C8O
1. CHECK ICC UNIT SELF-DIAGNOSIS
1. Perform self-diagnosis.
2. Check if any item other than “DTC 11 CONTROL UNIT” is indicated on self-diagnosis display.
Is any indicated?
YES >> 1. Repair or replace applicable item. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NO >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
90 STOP LAMP RLY FIX ×× ×
Normally open terminal of stop
lamp relay is stuck. ACS-53
92 ECM CIRCUIT
××××

ECM malfunction

Accelerator pedal position sensor
malfunction

ICC unit malfunction ACS-59
96 NP RANGE
×××

Park/neutral position switch har-
ness is open or shorted.

Park/neutral position switch mal-
function.

TCM malfunction ACS-60
97 AT CIRCUIT
×××
TCM malfunctionACS-61
98 GEAR POSITION ×××

TCM malfunction

AT turbine revolution sensor mal-
function

AT vehicle speed sensor malfunc-
tion ACS-61
102 RADAR STAIN
×× ×
ICC sensor body window has con-
tamination. ACS-62
103 LASER SENSOR FAIL
×× ×
ICC sensor internal malfunctionACS-63
104 LASER AIMING INCMP ×× ×
Laser beam aiming of ICC sensor
is not adjusted. ACS-63
107 LASER COMM FAIL
×× ×

CAN data received by ICC sensor
is strange (from ICC unit, combi-
nation meter or ECM). ACS-63
109 LASER HIGH TEMP
×× ×
Temperature around ICC sensor
is excessively high. ACS-64
DTC
No. CONSULT-II
screen terms ICC
system
warning
lamp Fail-safe
Malfunctions detected where... Refer-
ence
page
Vehicle-
to-
vehicle
distance control
mode Conven-
tional
(fixed
speed)
cruise
control mode Brake
assist (with
preview
function)

ACS-46
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
3. BRAKE SWITCH INSTALLATION AND ADJUSTMENT INSPECTION
Check brake switch for proper installation, and adjust the switch if necessary. Refer to BR-6, "
BRAKE PEDAL"
.
OK or NG
OK >> GO TO 4.
NG >> After adjustment, erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
4. CHECK ICC BRAKE SWITCH
Check ICC brake switch. Refer to ACS-71, "
ICC Brake Switch and Stop Lamp Switch" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Replace ICC brake switch. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
5. CHECK STOP LAMP ILLUMINATION
Check stop lamp illumination.
OK or NG
OK >> GO TO 6.
NG >> 1. Check stop lamp circuit.
2. After repairing, erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
6. CHECK ICC BRAKE HOLD RELAY
1. Turn ignition switch OFF.
2. Remove ICC brake hold relay.
3. Check continuity of ICC brake hold relay.
OK or NG
OK >> GO TO 7.
NG >> 1. Replace brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
6 – 7 : Continuity should not exist.
3 – 4 : Continuity should exist.
SKIA6651E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-47
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
7. CHECK ICC BRAKE HOLD RELAY CIRCUIT
1. Disconnect ICC unit connector and stop lamp switch connector.
2. Check continuity between ICC unit harness connector M89 ter- minal 38 (P/B) and ICC brake hold relay harness connector E14
terminal 7 (P).
3. Check continuity between ICC unit harness connector M89 ter- minal 38 (P/B) and ground.
OK or NG
OK >> GO TO 8.
NG >> 1. Repair harness between ICC unit and ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
8. CHECK STOP LAMP SWITCH CIRCUIT
Check continuity between ICC unit harness connector M89 terminal
38 (P/B) and stop lamp switch harness connector E210 terminal 2
(P).
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Repair harness between ICC unit and stop lamp switch.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 46 OPERATION SW CIRCAKS007I0
1. CHECK CONNECTOR FOR ECM
1. Turn ignition switch OFF.
2. Disconnect ECM connector, and connect it securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
2. CHECK ICC STEERING SWITCH
Check ICC steering switch. Refer to ACS-71, "
ICC Steering Switch" .
OK or NG
OK >> GO TO 3.
NG >> 1. Replace ICC steering switch.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
38 (P/B) – 7 (P) : Continuity should exist.
38 (P/B) – Ground : Continuity should not exist.
PKIA9907E
38 (P/B) – 2 (P) : Continuity should exist.
PKIB4163E

ACS-54
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
2. CHECK STOP LAMP SWITCH AND ICC BRAKE SWITCH
With CONSULT-II
With “DATA MONITOR”, check that “STOP LAMP SW” and “BRAKE SW” operate normally. Refer to ACS-32,
"DATA MONITOR" .
OK or NG
OK >> GO TO 12.
NG >>

BRAKE SW: GO TO 3.

STOP LAMP SW: GO TO 9.
3. BRAKE SWITCH INSTALLATION AND ADJUSTMENT INSPECTION
Check brake switch for proper installation, and adjust the switch if necessary. Refer to BR-6, "
BRAKE PEDAL"
.
OK or NG
OK >> GO TO 4.
NG >> After adjustment, erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
4. CHECK ICC BRAKE SWITCH AND STOP LAMP SWITCH
Check ICC brake switch and stop lamp switch. Refer to ACS-71, "
ICC Brake Switch and Stop Lamp Switch" .
OK or NG
OK >> GO TO 5.
NG >> 1. Replace ICC brake switch.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.

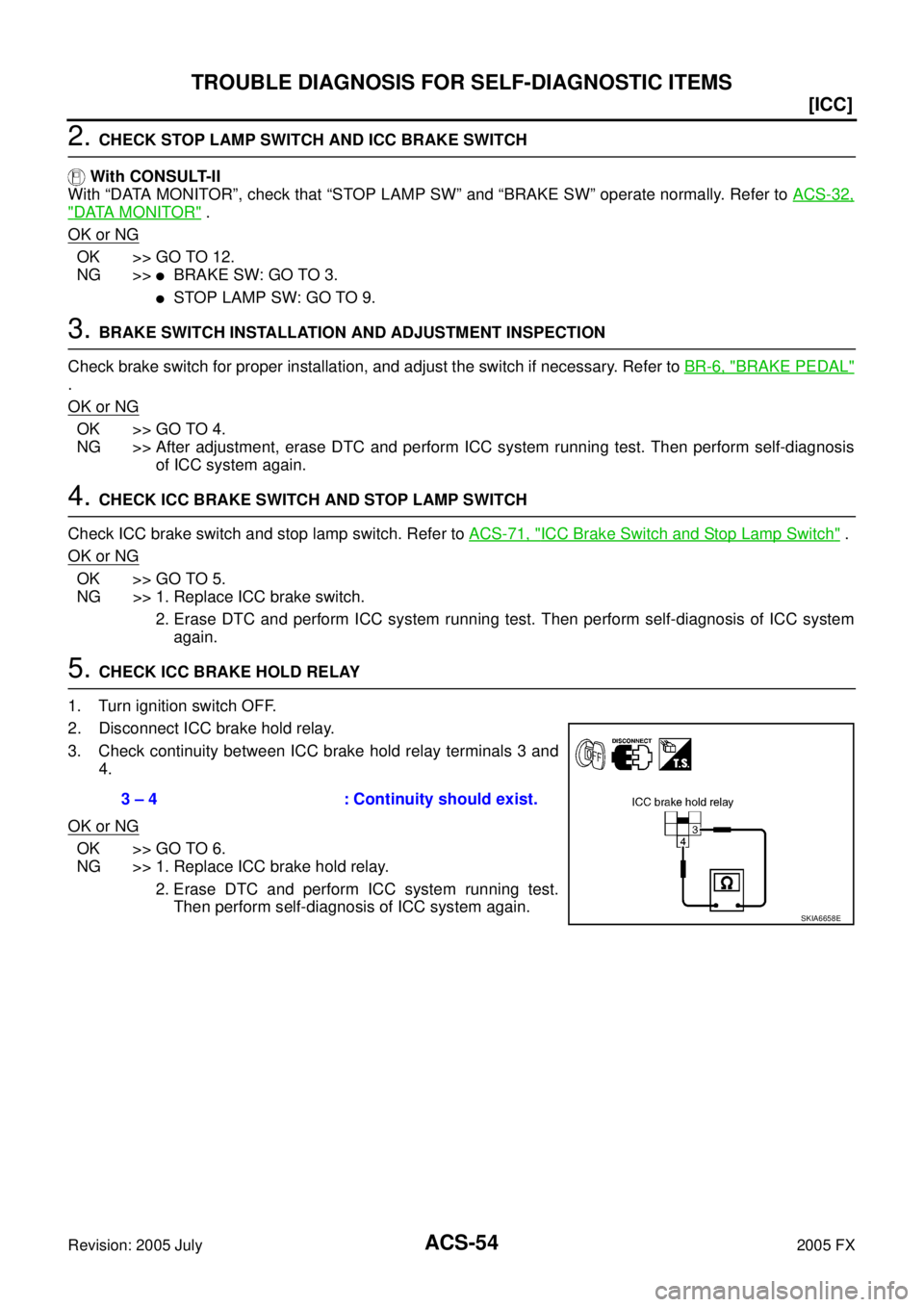

5. CHECK ICC BRAKE HOLD RELAY
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Check continuity between ICC brake hold relay terminals 3 and 4.
OK or NG
OK >> GO TO 6.
NG >> 1. Replace ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
3 – 4 : Continuity should exist.
SKIA6658E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-55
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
6. CHECK HARNESS BETWEEN ICC UNIT AND ICC BRAKE HOLD RELAY
1. Disconnect ICC brake switch connector, ECM connector and ICC unit connector.
2. Check continuity between ICC unit harness connector M89 ter- minal 29 (SB) and ICC brake hold relay harness connector E14
terminal 4 (SB).
3. Check continuity between ICC unit harness connector M89 ter- minal 29 (SB) and ground.
OK or NG
OK >> GO TO 7.
NG >> 1. Repair harness between ICC unit and ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
7. CHECK HARNESS BETWEEN ICC BRAKE HOLD RELAY AND ICC BRAKE SWITCH
1. Check continuity between ICC brake hold relay harness connec- tor E14 terminal 3 (L) and ICC brake switch harness connector
E209 terminal 2 (L).
2. Check continuity between ICC brake hold relay harness connec- tor E14 terminal 3 (L) and ground.
OK or NG
OK >> GO TO 8.
NG >> 1. Repair harness between ICC brake hold relay and ICC brake switch.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
8. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between ICC brake switch harness connector E209 terminal 1 (Y) and ground.
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Repair or replace harness or fuse. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
29 (SB) – 4 (SB) : Continuity should exist.
29 (SB) – Ground : Continuity should not exist.
SKIA5980E
3 (L) – 2 (L) : Continuity should exist.
3 (L) – Ground : Continuity should not exist.
PKIB4167E
1 (Y) – Ground : Battery voltage
PKIB4168E

ACS-56
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
9. CHECK STOP LAMP ILLUMINATION
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Check stop lamp circuit.
OK or NG
OK >> GO TO 10.
NG >> After repairing, erase DTC and perform ICC system running test. Then perform self-diagnosis of
ICC system again.
10. CHECK ICC BRAKE HOLD RELAY CIRCUIT
1. Connect ICC brake hold relay connector.
2. Disconnect stop lamp switch connector.
3. When brake pedal is not depressed, make sure that stop lamp does not illuminate.
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> GO TO 11.
11 . CHECK ICC BRAKE HOLD RELAY
1. Disconnect ICC brake hold relay.
2. Check continuity between ICC brake hold relay terminal 6 and terminal 7.
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Replace ICC brake hold relay. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
6 – 7 : Continuity should not exist.
SKIA6659E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-57
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
12. CHECK HARNESS BETWEEN ICC UNIT ICC BRAKE HOLD RELAY AND GROUND
1. Disconnect ICC unit connector and ICC brake hold relay.
2. Check continuity between ICC unit harness connector M89 ter- minal 47 (W/R) and ICC brake hold relay harness connector E14
terminal 1 (W).
3. Check continuity between ICC unit harness connector M89 ter- minal 47 (W/R) and ground.
4. Check continuity between ICC brake hold relay harness connec- tor E14 terminal 2 (B) and ground.
OK or NG
OK >> GO TO 13.
NG >> 1. Repair harness between ICC unit, ICC brake hold
relay, and ground.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
13. CHECK ICC BRAKE HOLD RELAY
Check continuity between ICC brake hold relay terminal 1 and termi-
nal 2.
OK or NG
OK >> GO TO 14.
NG >> 1. Replace ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
14. CHECK ICC UNIT STANDARD VOLTAGE
With CONSULT-II
1. Connect ICC unit connector and stop lamp switch connector.
2. Active test (“STOP LAMP”:“STP LMP DRIVE ON”) with CON- SULT-II, check voltage between ICC unit harness connector
M89 terminal 47 (W/R) and ground.
OK or NG
OK >> GO TO 15.
NG >> 1. Replace ICC unit.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
47 (W/R) – 1 (W) : Continuity should exist.
47 (W/R) – Ground : Continuity should not exist.
SKIA6660E
2 (B) – Ground : Continuity should exist.
SKIA6661E
1 – 2 : Continuity should exist.
SKIA6662E
47 (W/R) – Ground : Approx. 12 V (during active test)
SKIA3075E

ACS-58
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
15. CHECK ICC BRAKE HOLD RELAY POWER SUPPLY CIRCUIT
Check voltage between ICC brake hold relay harness connector E14
terminal 6 (G/Y) and ground.
OK or NG
OK >> GO TO 16.
NG >> 1. Repair or replace harness or fuse.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
16. CHECK HARNESS BETWEEN ICC UNIT AND ICC BRAKE HOLD RELAY
1. Turn ignition switch OFF.
2. Disconnect ICC unit and ICC brake hold relay connector.
3. Check continuity between ICC unit harness connector M89 ter- minal 38 (P/B) and ICC brake hold relay harness connector E14
terminal 7 (P).
4. Check continuity between ICC unit harness connector M89 ter- minal 38 (P/B) and ground.
OK or NG
OK >> GO TO 17.
NG >> 1. Repair harness between ICC unit and ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then, perform self-diagnosis of ICC system again.
17. CHECK ICC BRAKE HOLD RELAY
With CONSULT-II
1. Connect ICC unit connector and ICC brake hold relay.
2. Disconnect stop lamp switch connector.
3. Perform “ACTIVE TEST” (“STOP LAMP”) with CONSULT-II, and make sure that stop lamp is illuminated.
OK or NG
OK >> GO TO 18.
NG >> 1. Replace ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
6 (G/Y) – Ground : Battery voltage
SKIA1198E
38 (P/B) – 7 (P) : Continuity should exist.
38 (P/B) – Ground : Continuity should not exist.
SKIA6663E

INDEX FOR DTC AT-5
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
INDEX FOR DTCPFP:00024
Alphabetical Index ACS002L1
NOTE:
If DTC U1000 is displayed with other DTCs, first perform the trouble diagnosis for DTC U1000. Refer to
AT- 1 0 6
.
*1: These numbers are prescribed by SAE J2012.
*2: For VQ35DE engine.
*3: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL. Items
(CONSULT-II screen terms) DTC
Reference page
OBD-II Except OBD-II
CONSULT-II GST (*1) CONSULT-II only “A/T”
A/T 1ST E/BRAKING — P1731 AT- 1 4 8
ATF PRES SW 1/CIRC — P1841AT- 1 7 5
ATF PRES SW 3/CIRC — P1843AT- 1 7 7
ATF PRES SW 5/CIRC — P1845AT- 1 7 9
ATF PRES SW 6/CIRC — P1846AT- 1 8 1
A/T INTERLOCK P1730 P1730AT- 1 4 5
A/T TCC S/V FNCTN P0744 P0744 AT- 1 2 7
ATF TEMP SEN/CIRC P0710 P1710AT- 1 3 6
CAN COMM CIRCUIT U1000 U1000AT- 1 0 6
D/C SOLENOID/CIRC P1762 P1762AT- 1 5 8
D/C SOLENOID FNCTN P1764 (*3) P1764 AT- 1 6 0
ENGINE SPEED SIG P0725 (*2) P0725AT- 1 2 3
FR/B SOLENOID/CIRC P1757 P1757AT- 1 5 4
FR/B SOLENOID FNCT P1759 P1759 AT- 1 5 6
HLR/C SOL/CIRC P1767 P1767AT- 1 6 2
HLR/C SOL FNCTN P1769 (*3) P1769 AT- 1 6 4
I/C SOLENOID/CIRC P1752 P1752AT- 1 5 0
I/C SOLENOID FNCTN P1754 (*3) P1754 AT- 1 5 2
L/PRESS SOL/CIRC P0745 P0745AT- 1 2 9
LC/B SOLENOID/CIRC P1772 P1772AT- 1 6 6
LC/B SOLENOID FNCT P1774 P1774 AT- 1 6 8
MANU MODE SW/CIRC — P1815AT- 1 7 0
PNP SW/CIRC P0705 P0705 AT- 11 4
STARTER RELAY/CIRC — P0615AT- 1 0 9
TCC SOLENOID/CIRC P0740 P0740AT- 1 2 5
TCM P0700(*2) P0700 AT- 11 3
TCM·RAM — P1702AT- 1 3 1
TCM·ROM — P1703AT- 1 3 2
TP SEN/CIRC A/T P1705(*2) P1705AT- 1 3 3
TURBINE REV S/CIRC P1716 P1716AT- 1 4 1
VEH SPD SE/CIR·MTR — P1721AT- 1 4 3
VEH SPD SEN/CIR AT P0720 P0720 AT- 11 8
