sensor INFINITI FX35 2006 Service Manual

AT-148
DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION
Revision: 2006 December 2006 FX35/FX45
DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTIONPFP:31940
DescriptionNCS001EV

Input clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehi-
cle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be
shifted to the optimum position.

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.
CONSULT-II Reference ValueNCS001EW
On Board Diagnosis LogicNCS001EX

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1754 I/C SOLENOID FNCTN” with CONSULT-II or 5th judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 3 is irregular during depressing accelerator pedal. (Other than during shift change)
–When TCM detects that relation between gear position and condition of ATF pressure switch 3 is irregular
during releasing accelerator pedal. (Other than during shift change)
Possible CauseNCS001EY

Harness or connectors
(Solenoid and switch circuits are open or shorted.)

Input clutch solenoid valve

ATF pressure switch 3
DTC Confirmation ProcedureNCS001EZ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions. ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”
“4” (I/C ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step “2” again.
4. Turn ignition switch OFF, then perform step “1” to “3” again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT- II. If DTC (P1754) is detected, go to AT- 1 4 9 , "
Diagnostic Procedure" .
If DTC (P1752) is detected, go to AT- 1 4 7 , "
Diagnostic Procedure" .
If DTC (P1843) is detected, go to AT- 1 7 4 , "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
I/C SOLENOID Input clutch disengaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Input clutch engaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 3 Input clutch engaged. Refer to
AT- 2 2
.ON
Input clutch disengaged. Refer to AT- 2 2
.OFF
BCIA0031E

DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION AT-149
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II”.

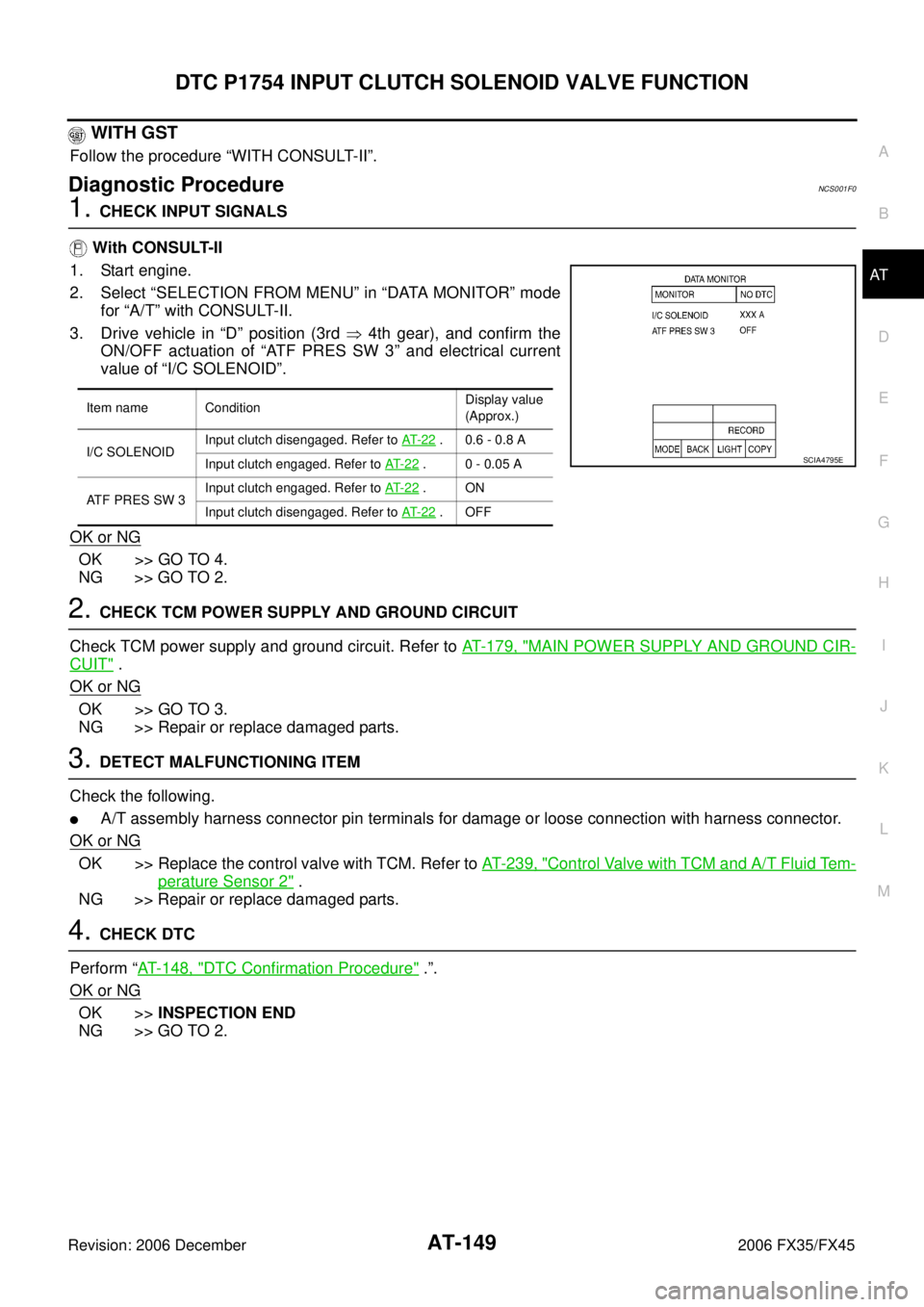

Diagnostic ProcedureNCS001F0
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in “D” position (3rd
4th gear), and confirm the
ON/OFF actuation of “ATF PRES SW 3” and electrical current
value of “I/C SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “ AT- 1 4 8 , "
DTC Confirmation Procedure" .”.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
I/C SOLENOID Input clutch disengaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Input clutch engaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 3 Input clutch engaged. Refer to
AT- 2 2
.ON
Input clutch disengaged. Refer to AT- 2 2
.OFF
SCIA4795E

AT-150
DTC P1757 FRONT BRAKE SOLENOID VALVE
Revision: 2006 December 2006 FX35/FX45
DTC P1757 FRONT BRAKE SOLENOID VALVEPFP:31940
DescriptionNCS001F1
Front brake solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehicle
speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the
optimum position.
CONSULT-II Reference ValueNCS001F2
On Board Diagnosis LogicNCS001F3

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1757 FR/B SOLENOID/CIRC” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseNCS001F4

Harness or connectors
(Solenoid circuit is open or shorted.)

Front brake solenoid valve
DTC Confirmation ProcedureNCS001F5
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “ACCELE POSI”,
“SLCT LVR POSI” and “GEAR”.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”
“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
6. If DTC is detected go to AT- 1 5 1 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 A
BCIA0031E

DTC P1757 FRONT BRAKE SOLENOID VALVE AT-151
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNCS001F6
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Read out the value of “FR/B SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 11 6 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 ASCIA4793E

AT-152
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION
Revision: 2006 December 2006 FX35/FX45
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTIONPFP:31940
DescriptionNCS001F7

Front brake solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehi-
cle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be
shifted to the optimum position.

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.
CONSULT-II Reference ValueNCS001F8
On Board Diagnosis LogicNCS001F9

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1759 FR/B SOLENOID FNCT” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 1 is irregular during depressing accelerator pedal. (Other than during shift change)
–When TCM detects that relation between gear position and condition of ATF pressure switch 1 is irregular
during releasing accelerator pedal. (Other than during shift change)
Possible CauseNCS001FA

Harness or connectors
(Solenoid and switch circuits are open or shorted.)

Front brake solenoid valve

ATF pressure switch 1
DTC Confirmation ProcedureNCS001FB
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions. ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”
“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step “2” again.
4. Turn ignition switch OFF, then perform step “1” to “3” again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT- II. If DTC (P1759) is detected, go to AT- 1 5 3 , "
Diagnostic Procedure" .
If DTC (P1757) is detected, go to AT- 1 5 1 , "
Diagnostic Procedure" .
If DTC (P1841) is detected, go to AT- 1 7 2 , "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 1 Front brake engaged. Refer to
AT- 2 2
.ON
Front brake disengaged. Refer to AT- 2 2
.OFF
BCIA0031E

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION AT-153
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureNCS001FC
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (3rd
4th gear), and confirm
the ON/OFF actuation of the “ATF PRES SW 1” and electrical
current value of “FR/B SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 1 5 2 , "
DTC Confirmation Procedure" .

Refer to .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 1 Front brake engaged. Refer to
AT- 2 2
.ON
Front brake disengaged. Refer to AT- 2 2
.OFF
SCIA4796E

AT-154
DTC P1762 DIRECT CLUTCH SOLENOID VALVE
Revision: 2006 December 2006 FX35/FX45
DTC P1762 DIRECT CLUTCH SOLENOID VALVEPFP:31940
DescriptionNCS001FD
Direct clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehicle
speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the
optimum position.
CONSULT-II Reference ValueNCS001FE
On Board Diagnosis LogicNCS001FF

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1762 D/C SOLENOID/CIRC” with CONSULT-II or 2nd judgement flicker without
CONSULT-II is detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseNCS001FG

Harness or connectors
(Solenoid circuit is open or shorted.)

Direct clutch solenoid valve
DTC Confirmation ProcedureNCS001FH
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “ACCELE POSI”,
“SLCT LVR POSI” and “GEAR”.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “1”
“2” (D/C ON/OFF)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
6. If DTC is detected, go to AT- 1 5 5 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
D/C SOLENOID Direct clutch disengaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Direct clutch engaged. Refer to AT- 2 2
. 0 - 0.05 A
BCIA0031E

DTC P1762 DIRECT CLUTCH SOLENOID VALVE AT-155
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNCS001FI
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start the engine.
4. Read out the value of “D/C SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 1 5 4 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
D/C SOLENOID Direct clutch disengaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Direct clutch engaged. Refer to AT- 2 2
. 0 - 0.05 ASCIA4793E

AT-156
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION
Revision: 2006 December 2006 FX35/FX45
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTIONPFP:31940
DescriptionNCS001FJ

Direct clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP switch,
vehicle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be
shifted to the optimum position.

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.
CONSULT-II Reference ValueNCS001FK
On Board Diagnosis LogicNCS001FL

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1764 D/C SOLENOID FNCTN” with CONSULT-II or 2nd judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 5 is irregular during depressing accelerator pedal. (Other than during shift change)
–When TCM detects that relation between gear position and condition of ATF pressure switch 5 is irregular
during releasing accelerator pedal. (Other than during shift change)
Possible CauseNCS001FM

Harness or connectors
(Solenoid and switch circuits are open or shorted.)

Direct clutch solenoid valve

ATF pressure switch 5
DTC Confirmation ProcedureNCS001FN
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions. ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “1”
“2” (D/C ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step “2” again.
4. Turn ignition switch OFF, then perform step “1” to “3” again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT- II. If DTC (P1764) is detected, go to AT- 1 5 7 , "
Diagnostic Procedure" .
If DTC (P1762) is detected, go to AT- 1 5 5 , "
Diagnostic Procedure" .
If DTC (P1845) is detected, go to AT- 1 7 6 , "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
D/C SOLENOID Direct clutch disengaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Direct clutch engaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 5 Direct clutch engaged. Refer to
AT- 2 2
.ON
Direct clutch disengaged. Refer to AT- 2 2
.OFF
BCIA0031E

DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION AT-157
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureNCS001FO
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (1st
2nd gear), and confirm
the display actuation of the “ATF PRES SW 5” and electrical cur-
rent value of “D/C SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 1 5 6 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
D/C SOLENOID Direct clutch disengaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Direct clutch engaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 5 Direct clutch engaged. Refer to
AT- 2 2
.ON
Direct clutch disengaged. Refer to AT- 2 2
.OFF
SCIA4797E
