DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
45 W EVAP canister purge vol-
ume control solenoid valve [Engine is running]

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More than
100 seconds after starting engine) 11 - 14V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB0050E
PBIB0051E

EC-1162
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
72 BR Intake valve timing control
position sensor (bank 1) [Engine is running]

Warm-up condition

Idle speed
0 - 1.0V
[Engine is running]

Engine speed: 2,000rpm 0 - 1.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB2046E

EC-1164
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS004BE
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-818, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
53 R/L Intake valve timing control
position sensor (bank 2) [Engine is running]

Warm-up condition

Idle speed
0 - 1.0V
[Engine is running]

Engine speed: 2,000 rpm 0 - 1.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB2046E
PBIB2195E

DTC P1217 ENGINE OVER TEMPERATURE EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
DescriptionNBS004CS
SYSTEM DESCRIPTION
NOTE:

If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-819, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1217 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-822, "
DTC U1010 CAN COMMUNICATION" .
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.

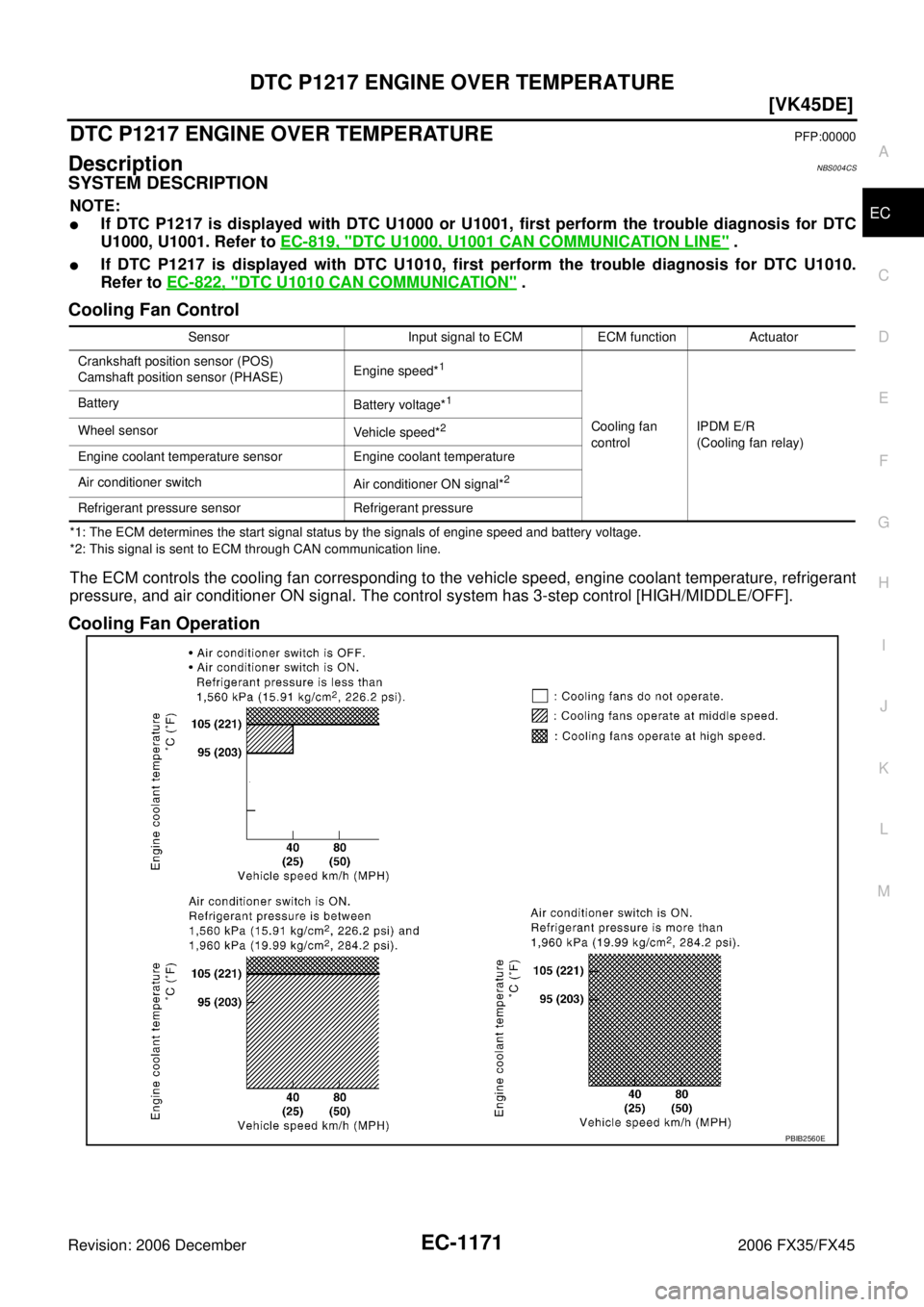

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/MIDDLE/OFF].
Cooling Fan Operation
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
control IPDM E/R
(Cooling fan relay)
Battery
Battery voltage*
1
Wheel sensorVehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner ON signal*
2
Refrigerant pressure sensor Refrigerant pressure
PBIB2560E

EC-1172
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 December 2006 FX35/FX45
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan at each speed when the current flows in the cooling fan motor as follows.
CONSULT-II Reference Value in Data Monitor ModeNBS004CT
Specification data are reference values.
On Board Diagnosis LogicNBS004CU
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-38, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-27, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-13, "
Anti-Freeze Coolant Mixture Ratio" .
Cooling fan speed Cooling fan relay
13
Stop (OFF) OFF OFF
Middle (MID) OFF ON
High (HI) ON ON
Cooling fan speed Cooling fan motor terminals
(+) (-)
Middle 1 3 and 4
2 3 and 4
High 1 and 2 3 and 4
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less OFF
Engine coolant temperature is between
95 °C (203 °F) and 104 °C (219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217 Engine over tempera-
ture (Overheat)

Cooling fan does not operate properly (Over-
heat).

Cooling fan system does not operate prop-
erly (Overheat).

Engine coolant was not added to the system
using the proper filling method.

Engine coolant is not within the specified
range.

Harness or connectors
(The cooling fan circuit is open or
shorted.)

IPDM E/R

Cooling fan

Radiator hose

Radiator

Radiator cap

Water pump

Thermostat
For more information, refer to EC-1181,
"Main 13 Causes of Overheating" .

EC-1202
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS004EA
When the brake pedal is depressed, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS004EB
Specification data are reference values.
On Board Diagnosis LogicNBS004EC
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:

If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1146, "
DTC P0605 ECM" .

This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2558E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)

Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P1572
1572 ICC brake switch A)
When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ICC brake switch are sent
to ECM at the same time.

Harness or connectors
(The stop lamp switch circuit is shorted.)

Harness or connectors
(The ICC brake switch circuit is shorted.)

Stop lamp switch

ICC brake switch

ICC brake hold relay

Incorrect stop lamp switch installation

Incorrect ICC brake switch installation

ECM
B)
ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving

DTC P1572 ICC BRAKE SWITCH EC-1207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
4. CHECK ICC BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Turn ignition switch ON.
4. Check voltage between ICC brake hold relay terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 5.
5. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ICC brake switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB1531E
Voltage: Battery voltage
PBIB1538E
PBIB2558E
Voltage: Battery voltage
PBIB0857E

EC-1208
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E201

10A fuse

Harness for open or short between ICC brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ICC BRAKE SWITCH
Refer to EC-1210, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ICC brake switch.
9. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake hold relay terminal 4 and ECM terminal 108. Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness for open or short between ICC brake hold relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ICC BRAKE HOLD RELAY
Refer to EC-1210, "
Component Inspection" .
OK >> GO TO 17.
NG >> Replace ICC brake hold relay. Continuity should exist.
Continuity should exist.

EC-1210
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 December 2006 FX35/FX45
16. CHECK STOP LAMP SWITCH
Refer to EC-1210, "
Component Inspection"
OK or NG
OK >> GO TO 17.
NG >> Replace stop lamp switch.
17. CHECK INTERMITTENT INCIDENT
Refer to EC-811, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionNBS004EG
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check continuity between ICC brake switch terminals 1 and 2 under the following conditions.
4. If NG, adjust ICC brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Apply 12V direct current between ICC brake hold relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 4, 6 and 7 under the following conditions.
3. If NG, replace ICC brake hold relay.
Condition Continuity
Brake pedal: Fully released Should exist
Brake pedal: Slightly depressed Should not exist
PBIB1536E
Condition Continuity
Brake pedal: Fully released Should not exist
Brake pedal: Slightly depressed Should exist
PBIB1535E
Condition Between terminals Continuity
12V direct current supply
between terminals 1 and 2 3 and 4 Should not exist
6 and 7 Should exist
No current supply 3 and 4 Should exist
6 and 7 Should not exist
MBIB0063E

EC-1234
[VK45DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2006 December 2006 FX35/FX45
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionNBS004AW
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-II Reference Value in Data Monitor ModeNBS004AX
Specification data are reference values.
On Board Diagnosis LogicNBS004AY
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MlL lights up.
DTC Confirmation ProcedureNBS004AZ
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100
With CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR””mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-1237, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY

Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100
2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low.

Harness or connectors
(Throttle control motor relay circuit is
open)

Throttle control motor relay
P2103
2103 Throttle control motor
relay circuit short ECM detect the throttle control motor relay is
stuck ON.

Harness or connectors
(Throttle control motor relay circuit is
shorted)

Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
SEF058Y
