diagram INFINITI FX35 2006 Service Manual

EC-436
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003RW
TBWM1392E

EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2006 December 2006 FX35/FX45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M81, B201

Harness connectors M82, F102

Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M81, B201

Harness connectors M82, F102

Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
Voltage: Approximately 5V
PBIB0138E
Continuity should exist.

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-439
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT 1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M81, B201

Harness connectors M82, F102

Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EVAP canister vent control valve.
2. Check the rubber tube for clogging, vent and kinked.
OK or NG
OK >> GO TO 10.
NG >> Clean the rubber tube using an air blower, repair or replace rubber tube.
10. CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-417, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace EVAP canister vent control valve.
11 . CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace EVAP control system pressure sensor. Continuity should exist.

DTC P0550 PSP SENSOR EC-473
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003T2
TBWM0302E

DTC P0550 PSP SENSOR EC-475
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK POWER STEERING PRESSURE (PSP) SENSOR POWER SUPPLY CIRCUIT
1. Disconnect power steering pressure (PSP) sensor harness con- nector.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK POWER STEERING PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK POWER STEERING PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK POWER STEERING PRESSURE SENSOR
Refer to EC-476, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace power steering pressure sensor.
PBIB1579E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.
Continuity should exist.

EC-478
[VQ35DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003TL
TBWM1393E

DTC P0643 SENSOR POWER SUPPLY EC-485
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC

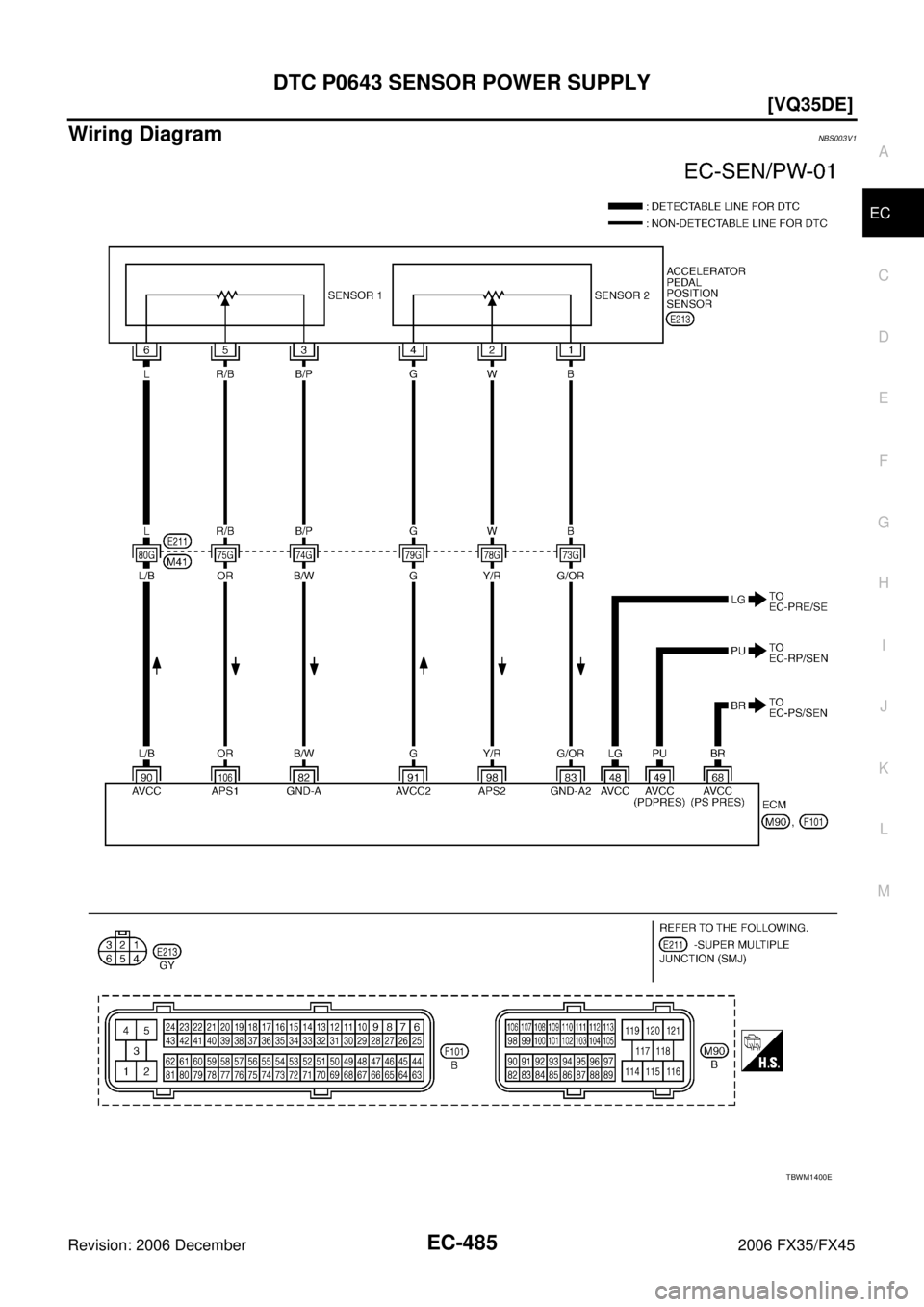

Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003V1
TBWM1400E

DTC P0643 SENSOR POWER SUPPLY EC-487
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS003V2
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-154, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 6 and ECM terminal 90. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
PBIB2625E
PBIB1580E
Voltage: Approximately 5V
PBIB0914E
Continuity should exist.

EC-488
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness for open between ECM and APP sensor
>> Repair open circuit.
5. CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
6. CHECK COMPONENTS
Check the following.

Refrigerant pressure sensor (Refer to AT C - 8 9 , "COMPONENT INSPECTION" .)

Power steering pressure sensor (Refer to EC-476, "Component Inspection" .)

EVAP control system pressure sensor (Refer to EC-427, "Component Inspection" .)
OK or NG
OK >> GO TO 9.
NG >> Replace malfunctioning component.
7. CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-581, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-84, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-84, "
Throttle Valve Closed Position Learning" .
4. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END
9. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6 EC-577
49 Refrigerant pressure sensor terminal 1EC-663
68 PSP sensor terminal 1EC-473
48 EVAP control system pressure sensor terminal 3EC-430

DTC P0850 PNP SWITCH EC-491
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003Y4
TBWM0521E
