Page 1285 of 4462
UNIFIED METER AND A/C AMP DI-35
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
2. CHECK METER/GAUGES VISUALLY
Check the pointer on the meter/gauge fluctuate at the engine start.
Is the fluctuation acceptable?
YES >> GO TO 3.
NO >> GO TO 6.
3. CHECK CONTINUITY COMMUNICATION CIRCUIT (TX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector M20 terminal 13 and unified meter and A/C amp. harness con-
nector M55 terminal 19.
4. Check continuity between combination meter harness connector M20 terminal 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK VOLTAGE OF UNIFIED METER AND A/C AMP.
1. Connect unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage between combination meter harness connector M20 terminal 13 and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace unified meter and A/C amp. Refer to DI-37,
"Removal and Installation of Unified Meter and A/C
Amp."
13 – 19 : Continuity should exist.
13 – Ground : Continuity should not exist.
SKIA4837E
13 – Ground : Approx. 5 V
SKIA4886E
Page 1299 of 4462
WARNING LAMPS DI-49
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
6. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Operate ignition switch with “OIL W/L” of “DATA MONITOR” and check operation status.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 7.
7. CHECK BCM INPUT SIGNAL
1. Select “BCM” on CONSULT-II.
2. Select “DATA MONITOR” of “SIGNAL BUFFER”.
3. Operate ignition switch with “OIL PRESS SW” of “DATA MONI- TOR” and check operate status.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and
Installation of IPDM E/R" .
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)NKS0030F
NOTE:
For oil pressure inspection, refer to LU-8, "
OIL PRESSURE CHECK" (VQ35DE) or LU-25, "OIL PRESSURE
CHECK" (VK45DE)
1. CHECK OIL PRESSURE WARNING LAMP OPERATION
Activate IPDM E/R auto active test. Refer to PG-21, "
Auto Active Test" .
Does oil pressure warning lamp blink?
YES >> GO TO 2.
NO >> GO TO 5. “OIL W/L”
When ignition switch is in ON
position (Engine stopped) : ON
When engine running : OFF
PKIA2064E
“OIL PRESS SW”
When ignition switch is in ON
position (Engine stopped) : ON
When engine running : OFF
SKIA8709E
Page 1301 of 4462
WARNING LAMPS DI-51
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Component InspectionNKS0030G
OIL PRESSURE SWITCH
Check continuity between oil pressure switch and ground.
Condition Oil pressure [kPa (kg/cm2 , psi)] Continuity
Engine stopped Less than 29 (0.3, 4) Yes Engine running More than 29 (0.3, 4) No
ELF0044D
Page 1333 of 4462
LANE DEPARTURE WARNING SYSTEM DI-83
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Action TestNKS00314
LDW SYSTEM RUNNING TEST
WARNING:
Be careful when performing road test.
Understand “Precautions” and “System Description” well before the road test. Refer to DI-80,
"Precautions for Lane Departure Warning (LDW) system" and DI-80, "System Description" .
Function Check
Check the LDW system operation according to the condition that the warning function works. Refer to DI-80,
"LDW SYSTEM OPERATION" .
Camera Aiming AdjustmentNKS00315
OUTLINE
Adjust the camera aiming every time the LDW camera unit is removed or installed.
CAUTION:
Place the vehicle on the level ground when the camera aiming adjustment is operated.
Follow the CONSULT-II when adjusting the camera aiming. (Camera aiming adjustment cannot be
operated without CONSULT-II.)
PREPARATION
Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure value.
There is no-load in vehicle. Check if coolant, engine oil are filled up to correct level and fuel tank is full.
Shift the gear into “P” position and release the parking brake.
Clean the windshield.
NOTE:
Do not place anything reflective on the upper surface of instrument panel.
TARGET SETTING
Preparation Aiming Adjustment Jig
For aiming adjustment, prepare the following jigs and targets.
PKIB4693E
Page 1336 of 4462
DI-86
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
7. Mark point at the center of the point “E” and “F”, on the line “FW”.
CAUTION:
Make sure that “E” through “X” is equal to “F” through “X”.
8. Position the center of the right target to the point of “X”.
VEHICLE HEIGHT CHECK
Measure the wheel arch height. And calculate “Dh”.
NOTE:
“Dh” may be calculated as a minus value.
AIMING ADJUSTMENT
Operation Procedure
CAUTION:
Perform the adjustment under unloaded vehicle condition.
LDW indicator is turned off after the removal/installation, and blinks after replacement.
1. With the ignition switch OFF, connect CONSULT-II and CON- SULT-II CONVERTER to the data link connector, and then turn
ignition switch ON.
2. Start the engine, wait for at least 10 seconds, and touch “START (NISSAN BASED VHCL)”.
PKIB5331E
Dh [mm] = (Hfl + Hfr) ÷ 2 − 840
where, Hfl: Front left wheel arch height [mm]
Hfr: Front right wheel arch height [mm]
SKIB3164E
PBIB1503E
BCIA0029E
Page 1385 of 4462
EC-1
ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D E
F
G H
I
J
K L
M
SECTION EC
A
EC
Revision: 2006 December 2006 FX35/FX45
ENGINE CONTROL SYSTEM
VQ35DE
INDEX FOR DTC ................................................... ... 15
DTC No. Index .................................................... ... 15
Alphabetical Index ............................................... ... 19
PRECAUTIONS ..................................................... ... 23
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ... 23
On Board Diagnostic (OBD) System of Engine and
A/T ....................................................................... ... 23
Precaution ........................................................... ... 23
PREPARATION ...................................................... ... 27

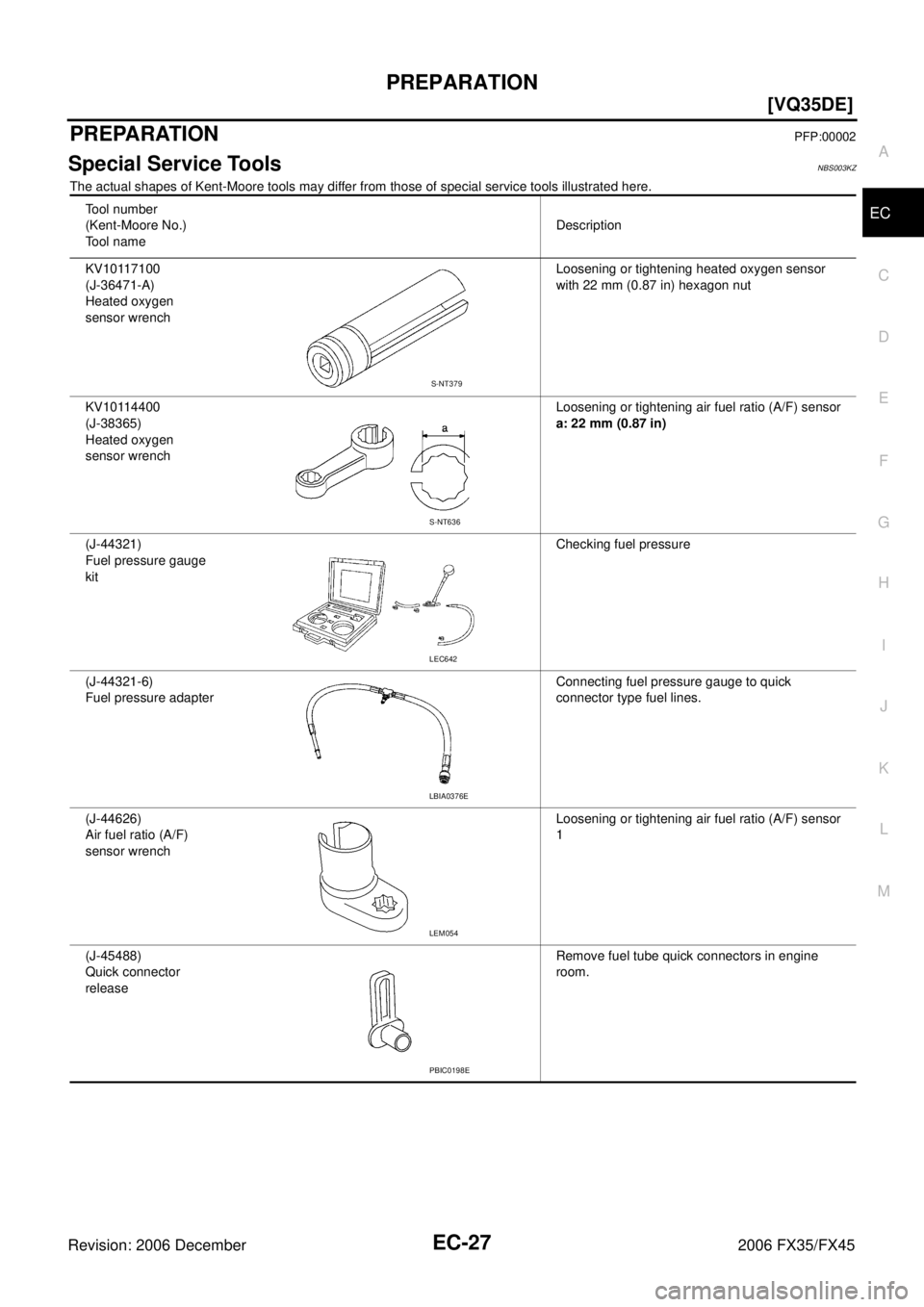

Special Service Tools .......................................... ... 27
Commercial Service Tools ................................... ... 29
ENGINE CONTROL SYSTEM ............................... ... 30
System Diagram .................................................. ... 30
Multiport Fuel Injection (MFI) System ................. ... 31
Electronic Ignition (EI) System ............................ ... 33
Fuel Cut Control (at No Load and High Engine
Speed) ................................................................. ... 34
AIR CONDITIONING CUT CONTROL .................. ... 35
Input/Output Signal Chart .................................... ... 35
System Description ............................................. ... 35
AUTOMATIC SPEED CONTROL DEVICE (ASCD) ... 36
System Description ............................................. ... 36
Component Description ....................................... ... 37
CAN COMMUNICATION ....................................... ... 38
System Description ............................................. ... 38
EVAPORATIVE EMISSION SYSTEM .................... ... 39
Description .......................................................... ... 39
Component Inspection ........................................ ... 42
Removal and Installation ..................................... ... 43
How to Detect Fuel Vapor Leakage .................... ... 43
ON BOARD REFUELING VAPOR RECOVERY
(ORVR) ................................................................... ... 46
System Description ............................................. ... 46
Diagnostic Procedure .......................................... ... 47
Component Inspection ........................................ ... 49 POSITIVE CRANKCASE VENTILATION ..............
... 51
Description ........................................................... ... 51
Component Inspection ......................................... ... 51
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-
NATS) ..................................................................... ... 53
Description ........................................................... ... 53
ON BOARD DIAGNOSTIC (OBD) SYSTEM ......... ... 54
Introduction .......................................................... ... 54
Two Trip Detection Logic ..................................... ... 54
Emission-Related Diagnostic Information ............ ... 55
Malfunction Indicator Lamp (MIL) ........................ ... 68
OBD System Operation Chart ............................. ... 72
BASIC SERVICE PROCEDURE ............................ ... 77
Basic Inspection .................................................. ... 77
Idle Speed and Ignition Timing Check ................. ... 82
VIN Registration .................................................. ... 83
Accelerator Pedal Released Position Learning ... ... 84
Throttle Valve Closed Position Learning .............. ... 84
Idle Air Volume Learning ..................................... ... 84
Fuel Pressure Check ........................................... ... 86
TROUBLE DIAGNOSIS ......................................... ... 88
Trouble Diagnosis Introduction ............................ ... 88
DTC Inspection Priority Chart .............................. ... 94
Fail-Safe Chart .................................................... ... 96
Symptom Matrix Chart ......................................... ... 97
Engine Control Component Parts Location ......... .101
Vacuum Hose Drawing ........................................ .107
Circuit Diagram .................................................... .108
ECM Harness Connector Terminal Layout .......... .110
ECM Terminals and Reference Value .................. .110
CONSULT-II Function (ENGINE) ......................... .119
Generic Scan Tool (GST) Function ...................... .130
CONSULT-II Reference Value in Data Monitor .... .133
Major Sensor Reference Graph in Data Monitor
Mode .................................................................... .136
TROUBLE DIAGNOSIS - SPECIFICATION VALUE .138
Description ........................................................... .138
Testing Condition ................................................. .138
Inspection Procedure ........................................... .138
Diagnostic Procedure .......................................... .139
Page 1389 of 4462
EC-5
C
D E
F
G H
I
J
K L
M
EC A
Revision: 2006 December 2006 FX35/FX45 DTC Confirmation Procedure ..............................
. 435
Wiring Diagram ................................................... . 436
Diagnostic Procedure .......................................... . 437
Component Inspection ........................................ . 441
DTC P0455 EVAP CONTROL SYSTEM ............... . 442
On Board Diagnosis Logic .................................. . 442
DTC Confirmation Procedure .............................. . 443
Diagnostic Procedure .......................................... . 444
DTC P0456 EVAP CONTROL SYSTEM ............... . 450
On Board Diagnosis Logic .................................. . 450
DTC Confirmation Procedure .............................. . 451
Overall Function Check ....................................... . 452
Diagnostic Procedure .......................................... . 453
DTC P0460 FUEL LEVEL SENSOR ..................... . 460
Component Description ....................................... . 460
On Board Diagnosis Logic .................................. . 460
DTC Confirmation Procedure .............................. . 460
Diagnostic Procedure .......................................... . 461
Removal and Installation ..................................... . 461
DTC P0461 FUEL LEVEL SENSOR ..................... . 462
Component Description ....................................... . 462
On Board Diagnosis Logic .................................. . 462
Overall Function Check ....................................... . 462
Diagnostic Procedure .......................................... . 463
Removal and Installation ..................................... . 463
DTC P0462, P0463 FUEL LEVEL SENSOR ......... . 464
Component Description ....................................... . 464
On Board Diagnosis Logic .................................. . 464
DTC Confirmation Procedure .............................. . 464
Diagnostic Procedure .......................................... . 465
Removal and Installation ..................................... . 465
DTC P0500 VSS .................................................... . 466
Description .......................................................... . 466
On Board Diagnosis Logic .................................. . 466
DTC Confirmation Procedure .............................. . 466
Overall Function Check ....................................... . 466
Diagnostic Procedure .......................................... . 467
DTC P0506 ISC SYSTEM ...................................... . 468
Description .......................................................... . 468
On Board Diagnosis Logic .................................. . 468
DTC Confirmation Procedure .............................. . 468
Diagnostic Procedure .......................................... . 469
DTC P0507 ISC SYSTEM ...................................... . 470
Description .......................................................... . 470
On Board Diagnosis Logic .................................. . 470
DTC Confirmation Procedure .............................. . 470
Diagnostic Procedure .......................................... . 471
DTC P0550 PSP SENSOR .................................... . 472
Component Description ....................................... . 472
CONSULT-II Reference Value in Data Monitor Mode . 472
On Board Diagnosis Logic .................................. . 472
DTC Confirmation Procedure .............................. . 472
Wiring Diagram ................................................... . 473
Diagnostic Procedure .......................................... . 474
Component Inspection ........................................ . 476
Removal and Installation ..................................... . 476
DTC P0603 ECM POWER SUPPLY ...................... . 477
Component Description ....................................... . 477 On Board Diagnosis Logic ...................................
.477
DTC Confirmation Procedure .............................. .477
Wiring Diagram .................................................... .478
Diagnostic Procedure .......................................... .479
DTC P0605 ECM .................................................... .481
Component Description ....................................... .481
On Board Diagnosis Logic ................................... .481
DTC Confirmation Procedure .............................. .481
Diagnostic Procedure .......................................... .482
DTC P0643 SENSOR POWER SUPPLY ............... .484
On Board Diagnosis Logic ................................... .484
DTC Confirmation Procedure .............................. .484
Wiring Diagram .................................................... .485
Diagnostic Procedure .......................................... .487
DTC P0850 PNP SWITCH ..................................... .489
Component Description ....................................... .489
CONSULT-II Reference Value in Data Monitor Mode .489
On Board Diagnosis Logic ................................... .489
DTC Confirmation Procedure .............................. .489
Overall Function Check ....................................... .490
Wiring Diagram .................................................... .491
Diagnostic Procedure .......................................... .492
DTC P1148, P1168 CLOSED LOOP CONTROL ... .494
On Board Diagnosis Logic ................................... .494
DTC P1211 TCS CONTROL UNIT ......................... .495
Description ........................................................... .495
On Board Diagnosis Logic ................................... .495
DTC Confirmation Procedure .............................. .495
Diagnostic Procedure .......................................... .495
DTC P1212 TCS COMMUNICATION LINE ........... .496
Description ........................................................... .496
On Board Diagnosis Logic ................................... .496
DTC Confirmation Procedure .............................. .496
Diagnostic Procedure .......................................... .496
DTC P1217 ENGINE OVER TEMPERATURE ....... .497
Description ........................................................... .497
CONSULT-II Reference Value in Data Monitor Mode .498
On Board Diagnosis Logic ................................... .498
Overall Function Check ....................................... .499
Wiring Diagram .................................................... .501
Diagnostic Procedure .......................................... .503
Main 12 Causes of Overheating .......................... .508
Component Inspection ......................................... .508
DTC P1225 TP SENSOR ....................................... .510
Component Description ....................................... .510
On Board Diagnosis Logic ................................... .510
DTC Confirmation Procedure .............................. .510
Diagnostic Procedure .......................................... .511
Removal and Installation ..................................... .511
DTC P1226 TP SENSOR ....................................... .512
Component Description ....................................... .512
On Board Diagnosis Logic ................................... .512
DTC Confirmation Procedure .............................. .512
Diagnostic Procedure .......................................... .513
Removal and Installation ..................................... .513
DTC P1564 ICC STEERING SWITCH ................... .514
Component Description ....................................... .514
Page 1392 of 4462
EC-8Revision: 2006 December 2006 FX35/FX45
PREPARATION ......................................................
.688
Special Service Tools .......................................... .688
Commercial Service Tools ................................... .689
ENGINE CONTROL SYSTEM ............................... .690
System Diagram .................................................. .690
Multiport Fuel Injection (MFI) System .................. .691
Electronic Ignition (EI) System ............................ .693
Fuel Cut Control (at No Load and High Engine
Speed) ................................................................. .694
AIR CONDITIONING CUT CONTROL ................... .695
Input/Output Signal Chart .................................... .695
System Description .............................................. .695
AUTOMATIC SPEED CONTROL DEVICE (ASCD) .696
System Description .............................................. .696
Component Description ....................................... .697
CAN COMMUNICATION ........................................ .698
System Description .............................................. .698
EVAPORATIVE EMISSION SYSTEM .................... .699
Description ........................................................... .699
Component Inspection ......................................... .702
Removal and Installation ..................................... .703
How to Detect Fuel Vapor Leakage ..................... .703
ON BOARD REFUELING VAPOR RECOVERY
(ORVR) ................................................................... .706
System Description .............................................. .706
Diagnostic Procedure .......................................... .707
Component Inspection ......................................... .709
POSITIVE CRANKCASE VENTILATION .............. .711
Description ........................................................... .711
Component Inspection ......................................... .711
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-
NATS) ..................................................................... .713
Description ........................................................... .713
ON BOARD DIAGNOSTIC (OBD) SYSTEM ......... .714
Introduction .......................................................... .714
Two Trip Detection Logic ..................................... .714
Emission-related Diagnostic Information ............. .715
Malfunction Indicator Lamp (MIL) ........................ .729
OBD System Operation Chart ............................. .731
BASIC SERVICE PROCEDURE ............................ .737
Basic Inspection .................................................. .737
Idle Speed and Ignition Timing Check ................. .742
VIN Registration .................................................. .743
Accelerator Pedal Released Position Learning ... .743
Throttle Valve Closed Position Learning .............. .744
Idle Air Volume Learning ..................................... .744
Fuel Pressure Check ........................................... .746
TROUBLE DIAGNOSIS ......................................... .748
Trouble Diagnosis Introduction ............................ .748
DTC Inspection Priority Chart .............................. .754
Fail-Safe Chart .................................................... .756
Symptom Matrix Chart ......................................... .757
Engine Control Component Parts Location ......... .761
Vacuum Hose Drawing ........................................ .768
Circuit Diagram .................................................... .769
ECM Harness Connector Terminal Layout .......... .771
ECM Terminals and Reference Value .................. .771
CONSULT-II Function (ENGINE) ......................... .780
Generic Scan Tool (GST) Function ...................... .792 CONSULT-II Reference Value in Data Monitor ....
.795
Major Sensor Reference Graph in Data Monitor
Mode .................................................................... .799
TROUBLE DIAGNOSIS - SPECIFICATION VALUE .801
Description ........................................................... .801
Testing Condition ................................................. .801
Inspection Procedure ........................................... .801
Diagnostic Procedure ........................................... .802
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT ...................................................................... .811
Description ........................................................... .811
Diagnostic Procedure ........................................... .811
POWER SUPPLY AND GROUND CIRCUIT .......... .812
Wiring Diagram .................................................... .812
Diagnostic Procedure ........................................... .813
Ground Inspection ................................................ .818
DTC U1000, U1001 CAN COMMUNICATION LINE .819
Description ........................................................... .819
On Board Diagnosis Logic ................................... .819
DTC Confirmation Procedure ............................... .819
Wiring Diagram .................................................... .820
Diagnostic Procedure ........................................... .821
DTC U1010 CAN COMMUNICATION .................... .822
Description ........................................................... .822
On Board Diagnosis Logic ................................... .822
DTC Confirmation Procedure ............................... .822
Diagnostic Procedure ........................................... .823
DTC P0011, P0021 IVT CONTROL ........................ .824
Description ........................................................... .824
CONSULT-II Reference Value in Data Monitor Mode .825
On Board Diagnosis Logic ................................... .825
DTC Confirmation Procedure ............................... .826
Wiring Diagram .................................................... .827
Diagnostic Procedure ........................................... .830
Component Inspection ......................................... .834
Removal and Installation ...................................... .835
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1
HEATER .................................................................. .836
Description ........................................................... .836
CONSULT-II Reference Value in Data Monitor Mode .836
On Board Diagnosis Logic ................................... .836
DTC Confirmation Procedure ............................... .836
Wiring Diagram .................................................... .837
Diagnostic Procedure ........................................... .840
Component Inspection ......................................... .842
Removal and Installation ...................................... .842
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER .843
Description ........................................................... .843
CONSULT-II Reference Value in Data Monitor Mode .843
On Board Diagnosis Logic ................................... .843
DTC Confirmation Procedure ............................... .844
Wiring Diagram .................................................... .845
Diagnostic Procedure ........................................... .848
Component Inspection ......................................... .850
Removal and Installation ...................................... .850
DTC P0075, P0081 IVT CONTROL SOLENOID
Page 1396 of 4462
EC-12Revision: 2006 December 2006 FX35/FX45 On Board Diagnosis Logic ...................................
11 3 7
DTC Confirmation Procedure .............................. 11 3 7
Wiring Diagram .................................................... 11 3 8
Diagnostic Procedure .......................................... 11 3 9
Component Inspection ......................................... 11 4 1
Removal and Installation ..................................... 11 4 1
DTC P0603 ECM POWER SUPPLY ...................... 114 2
Component Description ....................................... 11 4 2
On Board Diagnosis Logic ................................... 11 4 2
DTC Confirmation Procedure .............................. 11 4 2
Wiring Diagram .................................................... 11 4 3
Diagnostic Procedure .......................................... 11 4 4
DTC P0605 ECM .................................................... 114 6
Component Description ....................................... 11 4 6
On Board Diagnosis Logic ................................... 11 4 6
DTC Confirmation Procedure .............................. 11 4 6
Diagnostic Procedure .......................................... 11 4 7
DTC P0643 SENSOR POWER SUPPLY ............... 114 9
On Board Diagnosis Logic ................................... 11 4 9
DTC Confirmation Procedure .............................. 11 4 9
Wiring Diagram .................................................... 11 5 0
Diagnostic Procedure .......................................... 11 5 2
DTC P0850 PNP SWITCH ..................................... 115 4
Component Description ....................................... 11 5 4
CONSULT-II Reference Value in Data Monitor Mode 11 5 4
On Board Diagnosis Logic ................................... 11 5 4
DTC Confirmation Procedure .............................. 11 5 4
Overall Function Check ....................................... 11 5 5
Wiring Diagram .................................................... 11 5 6
Diagnostic Procedure .......................................... 11 5 7
DTC P1140, P1145 IVT CONTROL POSITION SEN-
SOR ........................................................................ 115 9
Component Description ....................................... 11 5 9
CONSULT-II Reference Value in Data Monitor Mode 11 5 9
On Board Diagnosis Logic ................................... 11 5 9
DTC Confirmation Procedure .............................. 11 5 9
Wiring Diagram .................................................... 11 6 1
Diagnostic Procedure .......................................... 11 6 4
Component Inspection ......................................... 11 6 7
Removal and Installation ..................................... 11 6 7
DTC P1148, P1168 CLOSED LOOP CONTROL ... 116 8
On Board Diagnosis Logic ................................... 11 6 8
DTC P1211 TCS CONTROL UNIT ......................... 116 9
Description ........................................................... 11 6 9
On Board Diagnosis Logic ................................... 11 6 9
DTC Confirmation Procedure .............................. 11 6 9
Diagnostic Procedure .......................................... 11 6 9
DTC P1212 TCS COMMUNICATION LINE ........... 117 0
Description ........................................................... 11 7 0
On Board Diagnosis Logic ................................... 11 7 0
DTC Confirmation Procedure .............................. 11 7 0
Diagnostic Procedure .......................................... 11 7 0
DTC P1217 ENGINE OVER TEMPERATURE ....... 117 1
Description ........................................................... 11 7 1
CONSULT-II Reference Value in Data Monitor Mode 11 7 2
On Board Diagnosis Logic ................................... 11 7 2 Overall Function Check ........................................
11 7 3
Wiring Diagram .................................................... 11 7 5
Diagnostic Procedure ........................................... 11 7 7
Main 13 Causes of Overheating .......................... 11 8 1
Component Inspection ......................................... 11 8 2
DTC P1225 TP SENSOR ....................................... 11 83
Component Description ....................................... 11 8 3
On Board Diagnosis Logic ................................... 11 8 3
DTC Confirmation Procedure ............................... 11 8 3
Diagnostic Procedure ........................................... 11 8 4
Removal and Installation ...................................... 11 8 4
DTC P1226 TP SENSOR ....................................... 11 85
Component Description ....................................... 11 8 5
On Board Diagnosis Logic ................................... 11 8 5
DTC Confirmation Procedure ............................... 11 8 5
Diagnostic Procedure ........................................... 11 8 6
Removal and Installation ...................................... 11 8 6
DTC P1564 ICC STEERING SWITCH ................... 11 87
Component Description ....................................... 11 8 7
CONSULT-II Reference Value in Data Monitor Mode 11 8 7
On Board Diagnosis Logic ................................... 11 8 7
DTC Confirmation Procedure ............................... 11 8 8
Wiring Diagram .................................................... 11 8 9
Diagnostic Procedure ........................................... 11 9 0
Component Inspection ......................................... 11 9 3
DTC P1564 ASCD STEERING SWITCH ............... 11 94
Component Description ....................................... 11 9 4
CONSULT-II Reference Value in Data Monitor Mode 11 9 4
On Board Diagnosis Logic ................................... 11 9 4
DTC Confirmation Procedure ............................... 11 9 5
Wiring Diagram .................................................... 11 9 6
Diagnostic Procedure ........................................... 11 9 7
Component Inspection ......................................... 1200
DTC P1568 ICC FUNCTION .................................. 1201
On Board Diagnosis Logic ................................... 1201
DTC Confirmation Procedure ............................... 1201
Diagnostic Procedure ........................................... 1201
DTC P1572 ICC BRAKE SWITCH ......................... 1202
Component Description ....................................... 1202
CONSULT-II Reference Value in Data Monitor Mode 1202
On Board Diagnosis Logic ................................... 1202
DTC Confirmation Procedure ............................... 1203
Wiring Diagram .................................................... 1204
Diagnostic Procedure ........................................... 1205
Component Inspection ......................................... 1210
DTC P1572 ASCD BRAKE SWITCH ..................... 1211
Component Description ....................................... 1211
CONSULT-II Reference Value in Data Monitor Mode 1211
On Board Diagnosis Logic ................................... 1211
DTC Confirmation Procedure ............................... 1212
Wiring Diagram .................................................... 1213
Diagnostic Procedure ........................................... 1214
Component Inspection ......................................... 1218
DTC P1574 ICC VEHICLE SPEED SENSOR ........ 1219
Component Description ....................................... 1219
Page 1411 of 4462
![INFINITI FX35 2006 Service Manual PREPARATION EC-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003KZ
The actual shapes of Kent-Moore tools may di](/img/42/57019/w960_57019-1410.png "INFINITI FX35 2006 Service Manual PREPARATION EC-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003KZ
The actual shapes of Kent-Moore tools may di")
PREPARATION EC-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003KZ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here. Tool number
(Kent-Moore No.)
Tool name Description
KV10117100
(J-36471-A)
Heated oxygen
sensor wrench Loosening or tightening heated oxygen sensor
with 22 mm (0.87 in) hexagon nut
KV10114400
(J-38365)
Heated oxygen
sensor wrench Loosening or tightening air fuel ratio (A/F) sensor
a: 22 mm (0.87 in)
(J-44321)
Fuel pressure gauge
kit Checking fuel pressure
(J-44321-6)
Fuel pressure adapter Connecting fuel pressure gauge to quick
connector type fuel lines.
(J-44626)
Air fuel ratio (A/F)
sensor wrench Loosening or tightening air fuel ratio (A/F) sensor
1
(J-45488)
Quick connector
release Remove fuel tube quick connectors in engine
room.
S-NT379
S-NT636
LEC642
LBIA0376E
LEM054
PBIC0198E
