WINDSHIELD GLASSPFP:72712
Removal and InstallationNIS001QN
REMOVAL
1. Remove the front pillar garnish. Refer to EI-37, "BODY SIDE TRIM" .
2. Partially remove the headlining (front edge). Refer to EI-42, "
HEADLINING" .
3. Remove the front wiper arms. Refer to WW-33, "
Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location" .
4. Remove the cowl top cover. Refer to EI-23, "
COWL TOP" .
5. Pull the molding using the pliers.
6. Apply a protective tape around the windshield glass to protect the painted surface from damage.
After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.
PIIA9190E

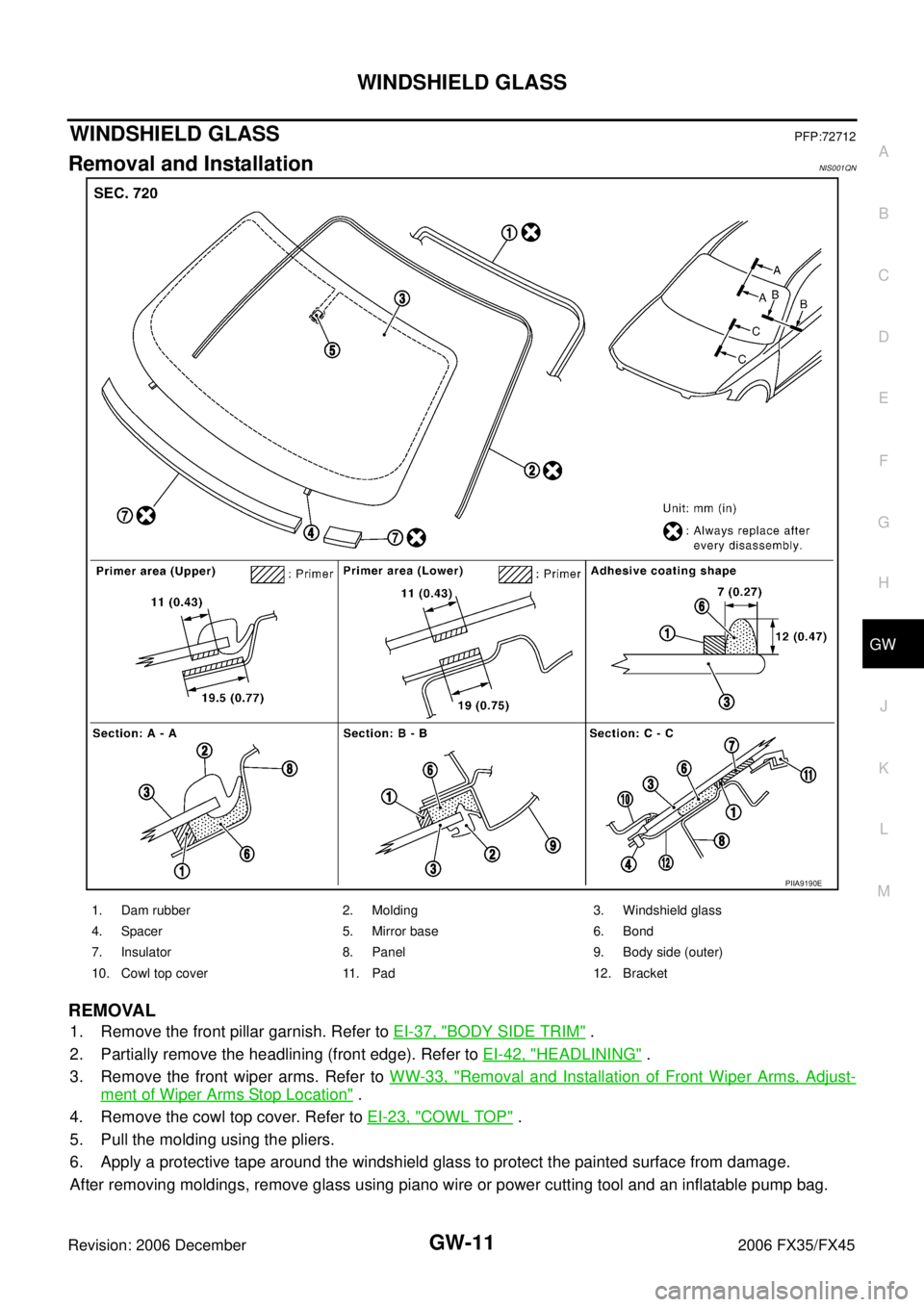

1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket
Page 3252 of 4462
GW-12
WINDSHIELD GLASS
Revision: 2006 December 2006 FX35/FX45
NOTE:
If a windshield glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:
When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.
Be careful not to scratch the glass when removing.
Do not set or stand the glass on its edge. Small chips may develop into cracks.
7. Remove the windshield glass, using suction.
INSTALLATION
Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.
While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger room air pressure when a door is closed.
The molding must be installed securely so that it is in position and leaves no gap.
Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:
Keep heat and open flames away as primers and adhesive are flammable.
The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.
Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.
Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.
CAUTION:
Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.
Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
Do not leave primers or adhesive cartridge unattended with their caps open or off.
The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidities. The curing time will
increase under lower temperature and lower humidity.
Repairing Water Leaks for Windshield
Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.
PIIA0186E
Page 3253 of 4462
BACK DOOR WINDOW GLASS GW-13
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
BACK DOOR WINDOW GLASSPFP:90300
Removal and InstallationNIS001QO
REMOVAL
1. Remove the back door finisher. Refer to EI-46, "BACK DOOR TRIM" .
2. Remove the rear wiper arm. Refer to WW-51, "
Removal and Installation of Rear Wiper Arm, Adjustment of
Wiper Arms Stop Location" .
3. Remove the connectors and grounds for the rear window defogger.
After removing molding, remove glass using cutting knife or power cutting tool and an inflatable pump
bag.
If a back door window glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.

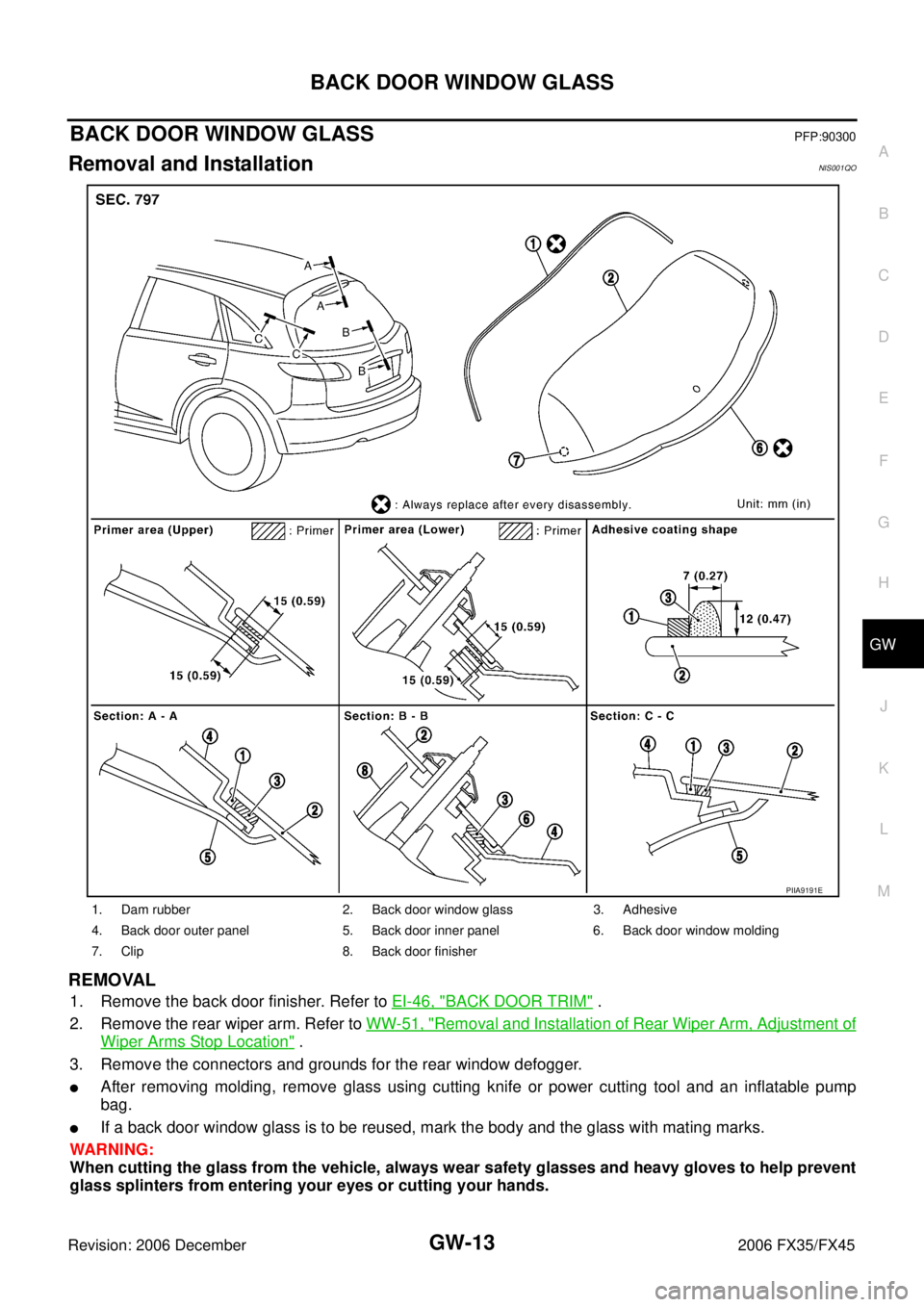

1. Dam rubber 2. Back door window glass 3. Adhesive
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door finisher
PIIA9191E
Page 3254 of 4462
GW-14
BACK DOOR WINDOW GLASS
Revision: 2006 December 2006 FX35/FX45
CAUTION:
Be careful not to scratch the glass when removing.
Do not set or stand the glass on its edge. Small chips may develop into cracks.
4. Remove the back door window glass, using suction liter.
INSTALLATION
Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.
While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger room air pressure when a door is closed.
The molding must be installed securely so that it is in position and leaves no gap.
Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:
Keep heat and open flames away as primers and adhesive are flammable.
The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.
Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.
Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the back door window glass in case of an accident.
CAUTION:
Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.
Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
Do not leave primers or adhesive cartridge unattended with their caps open or off.
The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidity. The curing time will
increase under lower temperature and lower humidity.
PIIB0908E
Page 3255 of 4462
POWER WINDOW SYSTEM GW-15
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
POWER WINDOW SYSTEMPFP:25401
Component Parts and Harness Connector LocationNIS001QP

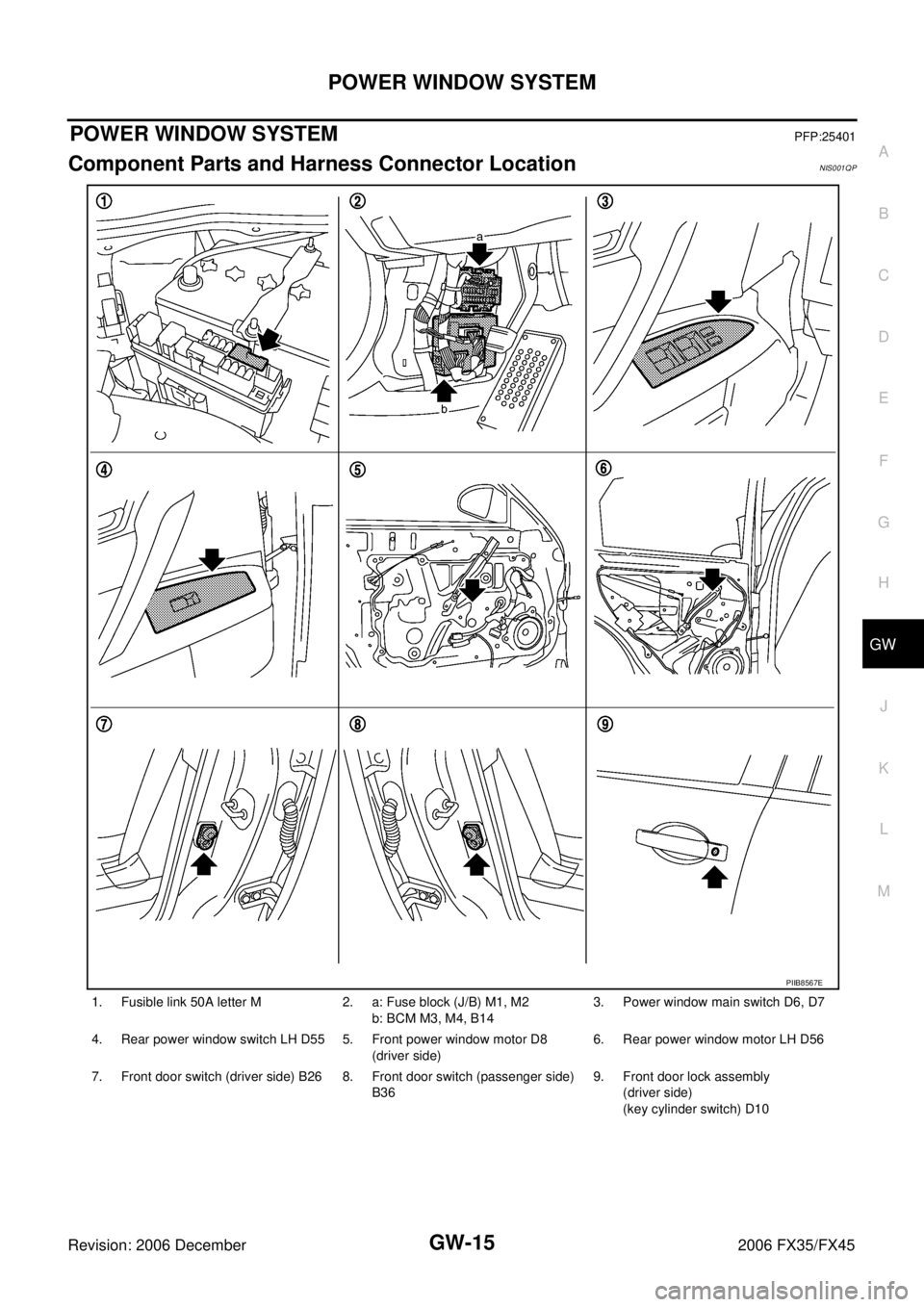

1. Fusible link 50A letter M 2. a: Fuse block (J/B) M1, M2 b: BCM M3, M4, B14 3. Power window main switch D6, D7
4. Rear power window switch LH D55 5. Front power window motor D8 (driver side) 6. Rear power window motor LH D56
7. Front door switch (driver side) B26 8. Front door switch (passenger side) B36 9. Front door lock assembly
(driver side)
(key cylinder switch) D10
PIIB8567E
Page 3256 of 4462
GW-16
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
System DescriptionNIS001QQ
Power is supplied at all time
through 50A fusible link (letter M , located in the fuse and fusible link box)
to BCM terminal 55, and
through BCM terminal 54
to power window main switch terminal 19
to front power window switch (passenger side) terminal 10.
through 15A fuse [No. 22, located in the fuse block (J/B)]
to BCM terminal 42.
With ignition switch in ON or START position,
Power is supplied
through 15A fuse [No. 1 , located in the fuse block (J/B)]
to BCM terminal 38, and
trough BCM terminal 53
to power window main switch terminal 10
to rear power window switch (LH and RH) terminal 1.
Ground supplied
to BCM terminal 49 and 52
through body grounds M35, M45 and M85.
to power window main switch terminal 17
through body grounds M35, M45 and M85.
to front power window switch (passenger side) terminal 11
through body grounds M35, M45 and M85.
MANUAL OPERATION
Front Driver Side Door
WINDOW UP
When the front LH switch in the power window main switch is pressed in the up position,
Power is supplied
through power window main switch terminal 8
to front power window motor (driver side) terminal 2.
Ground is supplied
to front power window motor (driver side) terminal 1
through power window main switch terminal 11.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front LH switch in the power window main switch is pressed in the down position
Power is supplied
through power window main switch terminal 11
to front power window motor (driver side) terminal 1.
Ground is supplied
to front power window motor (driver side) terminal 2
through power window main switch terminal 8.
Then, the motor lowers the window until the switch is released.
Front Passenger Side Door
FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OPERATION
WINDOW UP
When the front power window switch (passenger side) is pressed in the up position
Power is supplied
through front power window switch (passenger side) terminal 8
to front power window motor (passenger side) terminal 2.
Page 3257 of 4462
POWER WINDOW SYSTEM GW-17
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
Ground is supplied
to front power window motor (passenger side) terminal 1
through front power window switch (passenger side) terminal 9.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front power window switch (passenger side) is pressed in the down position
Power is supplied
through front power window switch (passenger side) terminal 9
to front power window motor (passenger side) terminal 1.
Ground is supplied
to front power window motor (passenger side) terminal 2
through front power window switch (passenger side) terminal 8.
Then, the motor lowers the window until the switch is released.
POWER WINDOW MAIN SWITCH OPERATION
Signal is sent
though power window main switch terminal 14.
to front power window switch (passenger side) terminal 16
The operation of power window after receive the signal is as same as operate the power window with front
power window switch (passenger side).
Rear Door (LH or RH)
REAR POWER WINDOW SWITCH (LH OR RH) OPERATION
WINDOW UP
When the rear power window switch (LH or RH) is pressed in the up position
Power is supplied
through rear power window switch (LH or RH) terminal 5
to rear power window motor (LH or RH) terminal 2.
Ground is supplied
to rear power window motor (LH or RH) terminal 1
through rear power window switch (LH or RH) terminal 4
through rear power window switch (LH or RH) terminal 3
through power window main switch terminal 3 (LH) or 5 (RH).
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch (LH or RH) is pressed in the down position
Power is supplied
through rear power window switch (LH or RH) terminal 4
to rear power window motor (LH or RH) terminal 1.
Ground is supplied
to rear power window motor (LH or RH) terminal 2
through rear power window switch (LH or RH) terminal 5
through rear power window switch (LH or RH) terminal 2
through power window main switch terminal 1 (LH) or 7 (RH).
Then, the motor lowers the window until the switch is released.
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the rear LH or RH switch in the power window main switch is pressed in the up position
Power is supplied
through power window main switch terminal 1 (LH) or 7 (RH)
to rear power window switch (LH or RH) terminal 2
to rear power window switch (LH or RH) terminal 5
to rear power window motor (LH or RH) terminal 2.
Ground is supplied
Page 3258 of 4462
GW-18
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
to rear power window motor (LH or RH) terminal 1
through rear power window switch (LH or RH) terminal 4
through rear power window switch (LH or RH) terminal 3
through power window main switch terminal 3 (LH) or 5 (RH)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear LH or RH switch in the power window main switch is pressed in the down position
Power is supplied
through power window main switch terminal 3 (LH) or 5 (RH)
through rear power window switch (LH or RH) terminal 3
through rear power window switch (LH or RH) terminal 4
to rear power window motor (LH or RH) terminal 1.
Ground is supplied
to rear power window motor (LH or RH) terminal 2
through rear power window switch (LH or RH) terminal 5
through rear power window switch (LH or RH) terminal 2
to power window main switch terminal 1 (LH) or 7 (RH)
Then, the motor raises the window until the switch is released.
AUTO OPERATION
The power window AUTO feature enables the driver to open or close the window without holding the window
switch in the down or up position.
Two types of auto operation system are applied to model S50.
The one is applied only for front doors and the other is for all doors.
Page 3259 of 4462
POWER WINDOW SYSTEM GW-19
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
POWER WINDOW SERIAL LINK
Power window main switch, front power window switch (passenger side), and BCM transmit and receive the
signal by power window serial link.
The under mentioned signal is transmitted from BCM to power window main switch and front power window
switch (passenger side)
Keyless power window down signal.
The under mentioned signal is transmitted from power window main switch to front power window switch (pas-
senger side)
Front passenger side door window operation signal.
Power window control by key cylinder switch signal.
Power window lock signal.
Retained power operation signal.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver side door window.
When the lock position, ground of the rear power window switches in the power window main switch is discon-
nected. The power window lock signal is transmitted to front power window switch (passenger side) by power
window serial link. This prevents the power window motors from operating.
RETAINED POWER OPERATION
When the ignition switch is turned to the OFF position from ON or START position.
Power is supplied for 45 seconds
through BCM terminal 53
to power window main switch terminal 10
to rear power window switch (LH and RH) terminals 1.
When power and ground are supplied, the BCM continues to be energized, and the power window can be
operated.
The retained power operation is canceled when the driver or passenger side door is opened.
RAP signal period can be changed by CONSULT-II. Refer to GW-29, "
CONSULT-II Function (BCM)" .
ANTI-PINCH SYSTEM
Power window main switch and front power window switch (passenger side) monitors the power window motor
operation and the power window position (full closed or other) for driver side and passenger side power win-
dow by the signals from encoder and limit switch in front power window motor (driver side and passenger
side).
When power window main switch detects interruption during the following close operation,
automatic close operation when ignition switch is in the “ON” position
automatic close operation during retained power operation
manual close operation during retained power operation
power window main switch or front power window switch (passenger side) controls each power window motor
for open and the power window will be lowered about 150 mm (5.91 in).
POWER WINDOW CONTROL BY THE KEY CYLINDER SWITCH
When ignition key switch is OFF, front power window can be opened or closed by turning the key cylinder
switch UNLOCK / LOCK position more than 1.5 second over condition.
Power window can be opened as the door key cylinder is kept fully turning to the UNLOCK position.
Power window can be closed as the door key cylinder is kept fully turning to the LOCK position.
The power window DOWN stops when the following operations are carried out.
While performing open / close the window, power window is stopped at the position as the door key cylin-
der is placed on NEUTRAL.
When the ignition switch is turned ON while the power window DOWN is operated.
Page 3260 of 4462
GW-20
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
CAN Communication System DescriptionNIS001QR
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS001QS
Refer to LAN-32, "CAN Communication Unit" .
