INFINITI FX35 2006 Service Manual

POWER WINDOW SYSTEM GW-21
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45

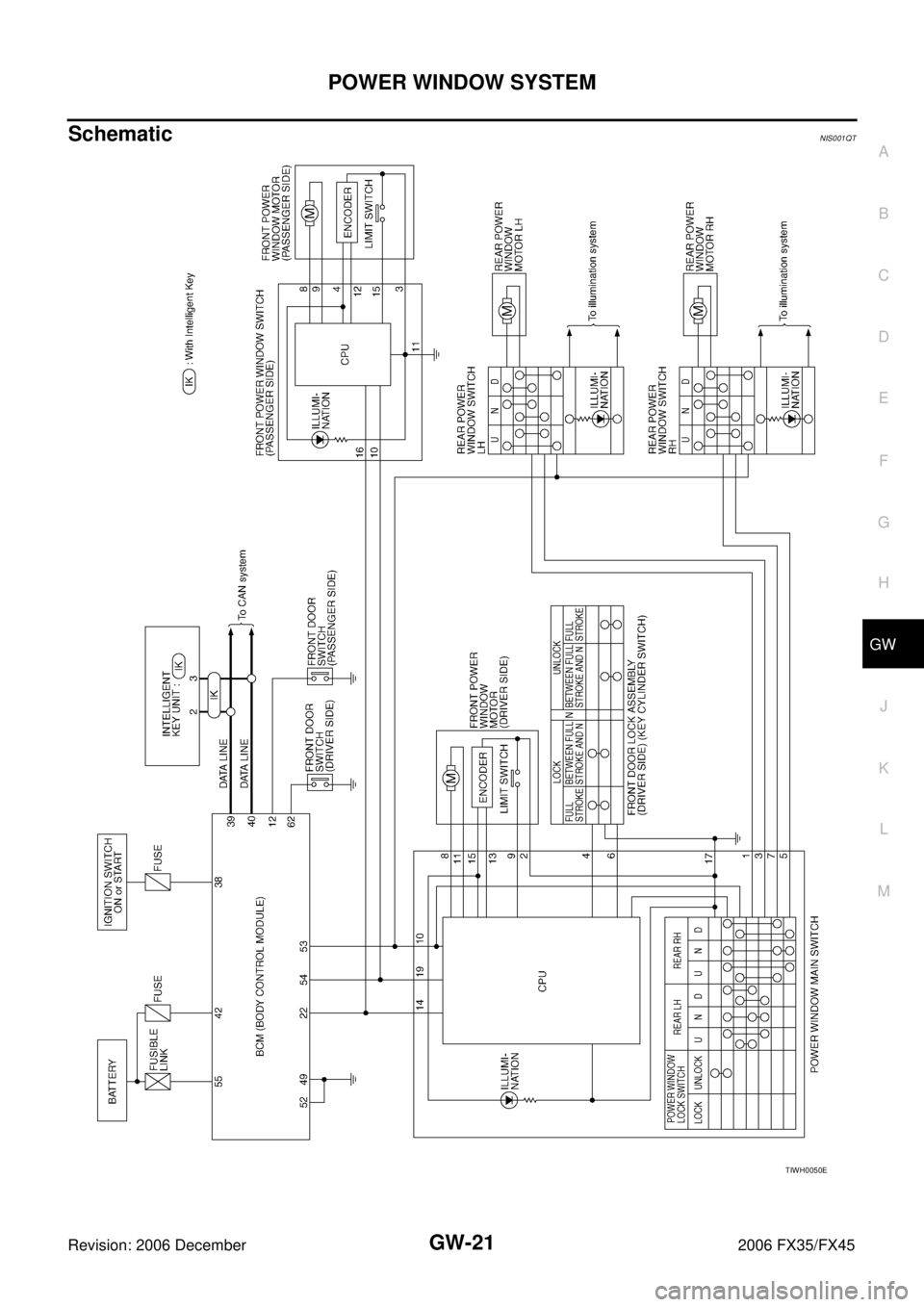

SchematicNIS001QT
TIWH0050E

GW-22
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — WINDOW —NIS001QU
TIWM1681E

POWER WINDOW SYSTEM GW-23
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45

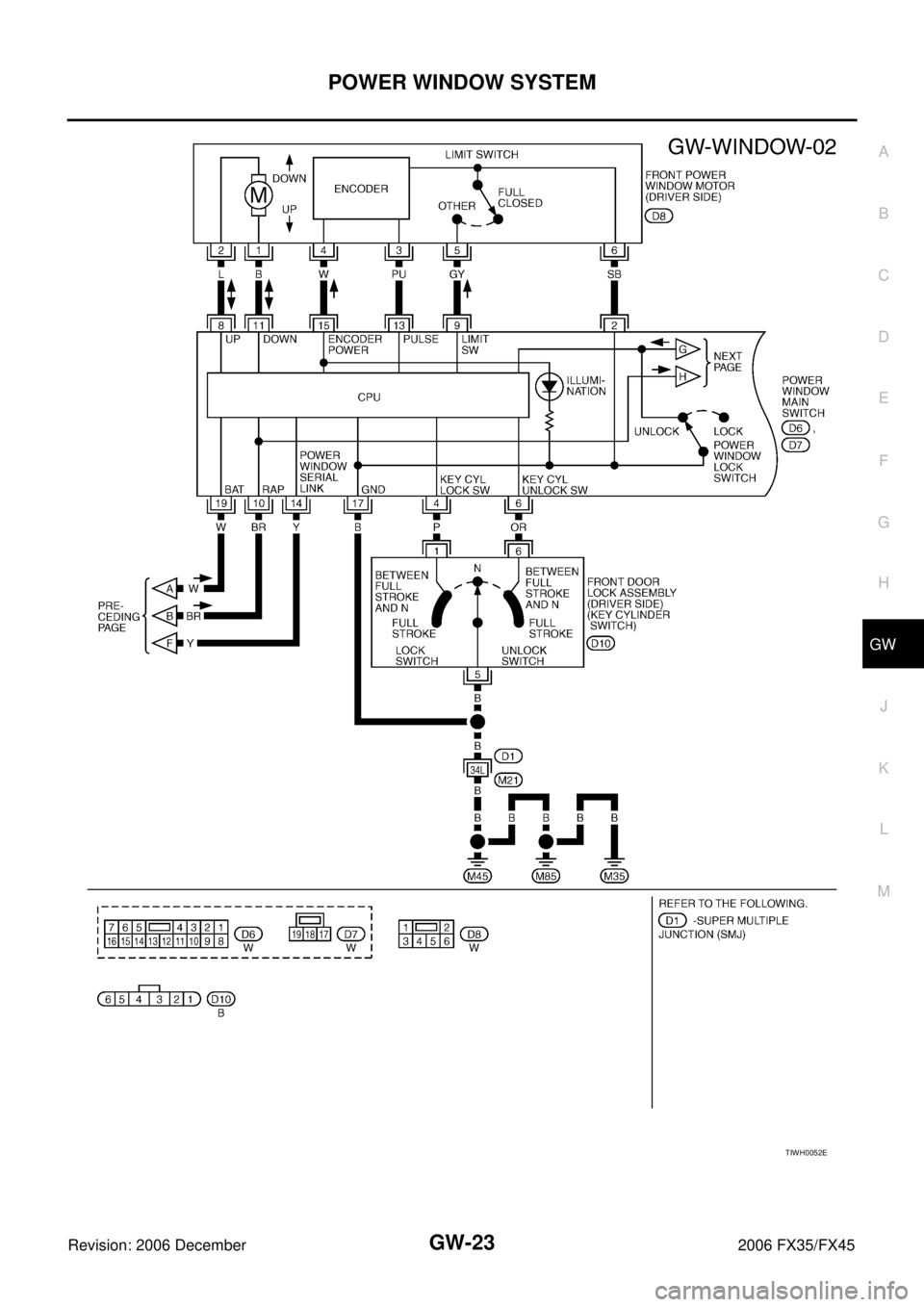

TIWH0052E

GW-24
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45

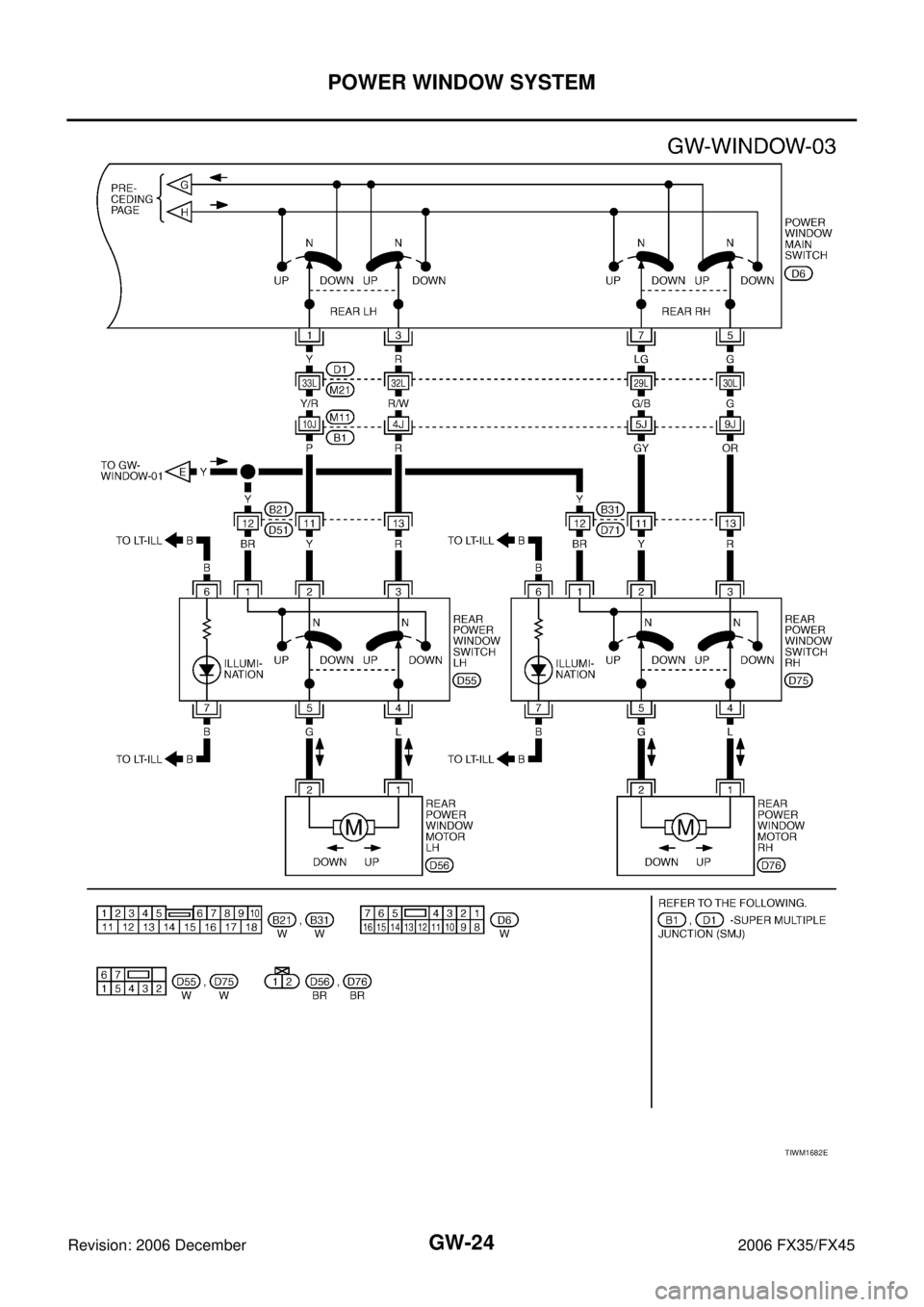

TIWM1682E

POWER WINDOW SYSTEM GW-25
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45

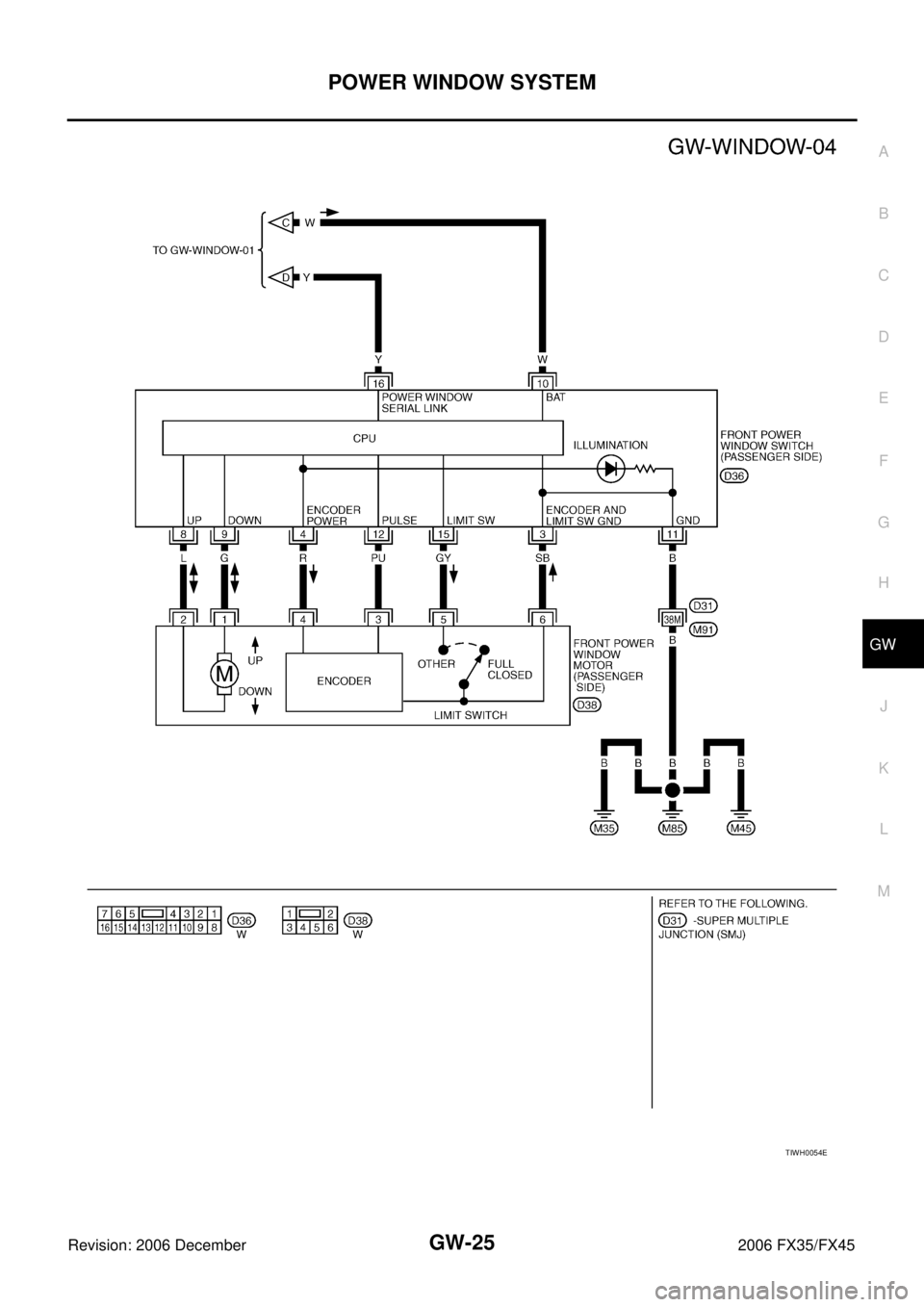

TIWH0054E

GW-26
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
Terminal and Reference Value for BCMNIS001QV
Te r -
minal Wire
color Item Signal
Input/Output Condition Voltage [V]
(Approx.)
12 P/B Front door switch
passenger side signal Input ON (Open) 0
OFF (Close) Battery voltage
22 OR Power window serial link Input/Output IGN SW ON or power window
timer operating.
38 W/L Ignition switch
(ON or START) Input Ignition switch
(ON or START position) Battery voltage
39 L CAN - H Input/Output — —
40 P CAN - L Input/Output — —
42 L/R Power source (Fuse) Input — Battery voltage
49 B Ground (signal) — — 0
52 B Ground (power) — — 0
53 Y/B Rap signal Output IGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFF Battery voltage
When driver side or passen-
ger side door is open in power
window timer is operates 0
54 W Power window power supply Output — Battery voltage
55 G Power source
(Fusible link) Input — Battery voltage
62 W Front door switch
driver side signal Input ON (Open) 0
OFF (Close) Battery voltage
PIIA2344J

POWER WINDOW SYSTEM GW-27
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
Terminal and Reference Value for Power Window Main Switch NIS001QW
Te r -
minal Wire
color Item Signal
Input/Output Condition Voltage [V]
(Approx.)
1Y Rear LH power window
UP signal Output When rear LH switch in
power window main switch is
UP at operated. Battery voltage
2SB Limit switch and encoder
ground —— 0
3R Rear LH power window
DOWN signal Output When rear LH switch in
power window main switch is
DOWN at operated. Battery voltage
4P Door key cylinder switch
LOCK signal InputKey position
(Neutral → Locked) 5
→ 0
5G Rear RH power window
DOWN signal Output When rear RH switch in
power window main switch is
DOWN at operated. Battery voltage
6OR Door key cylinder switch
UNLOCK signal InputKey position
(Neutral → Unlocked) 5
→ 0
7LG Rear RH power window
UP signal Output When rear RH switch in
power window main switch is
UP at operated. Battery voltage
8L Front driver side
power window motor UP signal Output When front LH switch in
power window main switch is
UP at operated Battery voltage
9 GY Limit switch signal Input Driver side door window is
between fully-open and just
before fully-closed position
(ON) 0
Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF) 5
10 BR Rap signal Input IGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFF Battery voltage
When driver side or passenger
side door open in power win-
dow timer is operates 0
11 B Front driver side
power window motor DOWN
signal Output When front LH switch in
power window main switch is
DOWN at operated Battery voltage
13 PU Encoder pulse signal Input When power window motor
operates.
14 Y Power window serial link Input/Output IGN SW ON or power window
timer operating.
OCC3383D
PIIA2344J

GW-28
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
Terminal and Reference Value for Front Power Window Switch (Passenger Side) NIS001QX
15 W Encoder power supply Output When ignition switch ON or
power window timer operates 10
17 B Ground — — 0
19 W Battery power supply Input — Battery voltage
Te r -
minal Wire
color Item Signal
Input/Output Condition Voltage [V]
(Approx.)
Te r -
minal Wire
color Item
Signal
Input/Output Condition
Voltage [V]
(Approx.)
3SB Limit switch and encoder
ground Input — 0
4 R Encoder power supply Output When ignition switch ON or
power window timer operates 10
8L Front passenger side
power window motor UP signal Output
When power window motor is
UP at operated. Battery voltage
9G Front passenger side
power window motor DOWN
signal Output
When power window motor is
DOWN at operated. Battery voltage
10 W Battery power supply Input — Battery voltage 11 B Ground — — 0
12 PU Encoder pulse signal Input When power window motor
operates.
15 GY Limit switch signal Input Passenger side door window
is between fully-open and just
before fully-closed position
(ON) 0
Passenger side door window
is between just before fully-
closed position and fully-
closed position (OFF) 5
16 Y Power window serial link Input/Output IGN SW ON or power window
timer operating.
OCC3383D
PIIA2344J

POWER WINDOW SYSTEM GW-29
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Function (BCM)NIS001R3
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
ACTIVE TEST
WORK SUPPORT
DATE MONITOR
BCM diagnostic test item Check item diagnostic test mode Content RETAINED PWR Work support Changes setting of each function.
Data monitor Displays the input data of BCM in real time.
Active test Gives a drive signal to a load to check the operation.
Test Item Description
RETAINED PWR This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in “OFF” position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-II screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-II might be stuck if
“RETAINED PWR” is turned to “ON” or “OFF” on CONSULT-II screen when ignition switch is OFF.
Work item Description
RETAINED PWR Rap signal’s power supply period can be changed by mode setting. Selects rap signal’s power
supply period between three steps

MODE1 (45 sec.) / MODE2 (OFF) / MODE 3 (2 min.).
Work item Description
IGN ON SW Indicates (ON / OFF) condition of ignition switch
DOOR SW–DR Indicates (ON / OFF) condition of front door switch driver side
DOOR SW–AS Indicates (ON / OFF) condition of front door switch passenger side

GW-30
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
Work FlowNIS001R4
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-16, "
System Description"
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction.
Refer to GW-30, "
Trouble Diagnosis Symptom Chart" .
4. Does power window system operate normally? Yes, GO TO 5, If No, GO TO 3.
5. INSPECTION END
Trouble Diagnosis Symptom ChartNIS001R5
Make sure other systems using the signal of the following systems operate normally.
Symptom Repair order Refer to page
None of the power windows can be operated using any switch. 1. Check BCM power supply and ground circuit
GW-32
2. Check power window main switch power
supply and ground circuit GW-33
3. Check power window serial link
GW-53
Driver side power window alone does not operated. 1. Check front power window motor (driver
side) circuit GW-35
2. Replace power window main switch —
Front passenger side power window alone does not operated. 1. Check front power window switch (passen-
ger side) power and ground circuit GW-34
2. Check power window serial link
GW-53
3. Check front power window motor (passen-
ger side) circuit GW-36
4. Replace BCM
BCS-15
Rear LH side power window alone does not operated Check rear power window motor (LH) circuit GW-36
Rear RH side power window alone does not operated Check rear power window motor (RH) circuitGW-39
Anti-pinch system does not operate normally (driver side) 1. Door window sliding part malfunction

A foreign material adheres to window glass
or glass run rubber.

Glass run rubber wear or deformation.

Sash is tilted too much, or no enough. —
2. Limit switch adjusting GW-60
3. Check limit switch circuit (driver side)GW-41
4. Check encoder circuit (driver side)GW-44
Anti-pinch system does not operate normally (passenger side) 1. Door window sliding part malfunction

A foreign material adheres to window glass
or glass run rubber.

Glass run rubber wear or deformation.

Sash is tilted too much, or no enough. —
2. Limit switch adjusting GW-60
3. Check limit switch circuit (passenger side)GW-43
4. Check encoder circuit (passenger side)GW-46
Power window retained power operation does not operate properly 1. Check the retained power operation mode
setting. GW-292. Check door switch
GW-49
3. Replace BCM.BCS-15
Does not operate by key cylinder switch 1. Check door key cylinder switch
GW-512. Replace power window main switch —
Power window lock switch does not function Check power window lock switch GW-55
