INFINITI FX35 2006 Service Manual

SERVICE DATA AND SPECIFICATIONS (SDS) PB-9
C
D E
G H
I
J
K L
M A
B
PB
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Drum Brake NFS000MU
Parking Brake ControlNFS000MV
Ty p e DS19HC
Brake lining Standard thickness 3.2 mm (0.126 in)
Repair limit thickness 1.5 mm (0.059 in)
Drum (disc) Standard inner diameter 190 mm (7.48 in) dia.
Maximum inner diameter 191 mm (7.52 in) dia.
Control type Foot pedal type
Number of notches [under a force of 200 N (20.4 kg, 44.9 lb)] 4 − 5 notches
Number of notches
when warning lamp switch comes on 1 notch

PB-10
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2006 December 2006 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ................. ..... 3
Schematic ........................................................... ..... 3
Wiring Diagram — POWER — ............................ ..... 4
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ........................................... ..... 4
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” .................................... ... 10
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” ............................... ... 12
Fuse .................................................................... ... 16
Fusible Link ......................................................... ... 16
Circuit Breaker .................................................... ... 16
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ................................... ... 17
System Description ............................................. ... 17
SYSTEMS CONTROLLED BY IPDM E/R ........ ... 17
CAN COMMUNICATION LINE CONTROL ...... ... 17
IPDM E/R STATUS CONTROL ........................ ... 18
CAN Communication System Description ........... ... 18
CAN Communication Unit ................................... ... 18
Function of Detecting Ignition Relay Malfunction ... 18
CONSULT-II Function (IPDM E/R) ...................... ... 19
CONSULT-II INSPECTION PROCEDURE ...... ... 19
SELF-DIAG RESULTS ..................................... ... 19
DATA MONITOR .............................................. ... 19
ACTIVE TEST .................................................. ... 20
Auto Active Test .................................................. ... 21
DESCRIPTION ................................................. ... 21
OPERATION PROCEDURE ............................ ... 21
INSPECTION IN AUTO ACTIVE TEST MODE ... 22
Schematic ........................................................... ... 24
IPDM E/R Terminal Arrangement ........................ ... 25
IPDM E/R Power/Ground Circuit Inspection ....... ... 26
Inspection With CONSULT-II (Self-Diagnosis) .... ... 27
Removal and Installation of IPDM E/R ................ ... 28
REMOVAL ........................................................ ... 28
INSTALLATION ................................................ ... 28 GROUND ................................................................
... 29
Ground Distribution .............................................. ... 29
MAIN HARNESS .............................................. ... 29
ENGINE ROOM HARNESS ............................. ... 32
ENGINE HARNESS/VK ENGINE MODELS ..... ... 35
ENGINE HARNESS/VQ ENGINE MODELS .... ... 36
ENGINE CONTROL HARNESS/VK ENGINE
MODELS .......................................................... ... 37
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS .......................................................... ... 38
BODY HARNESS ............................................. ... 39
BODY NO. 2 HARNESS .................................. ... 42
ROOM LAMP HARNESS ................................. ... 43
HARNESS .............................................................. ... 44
Harness Layout ................................................... ... 44
HOW TO READ HARNESS LAYOUT .............. ... 44
OUTLINE .......................................................... ... 45
MAIN HARNESS .............................................. ... 46
ENGINE ROOM HARNESS ............................. ... 49
ENGINE HARNESS/VK ENGINE MODELS ..... ... 52
ENGINE HARNESS/VQ ENGINE MODELS .... ... 53
ENGINE CONTROL HARNESS/VK ENGINE
MODELS .......................................................... ... 54
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS .......................................................... ... 56
BODY HARNESS ............................................. ... 58
BODY NO. 2 HARNESS .................................. ... 60
ROOM LAMP HARNESS ................................. ... 61
FRONT DOOR HARNESS ............................... ... 62
REAR DOOR HARNESS ................................. ... 63
BACK DOOR HARNESS ................................. ... 64
Wiring Diagram Codes (Cell Codes) ................... ... 65
ELECTRICAL UNITS LOCATION ......................... ... 68
Electrical Units Location ...................................... ... 68
ENGINE COMPARTMENT ............................... ... 68
PASSENGER COMPARTMENT ...................... ... 69
LUGGAGE COMPARTMENT ........................... ... 71
HARNESS CONNECTOR ...................................... ... 72
Description ........................................................... ... 72
HARNESS CONNECTOR (TAB-LOCKING

PG-2Revision: 2006 December 2006 FX35/FX45 TYPE) ...............................................................
... 72
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) ............................................................... ... 73
HARNESS CONNECTOR (LEVER LOCKING
TYPE) ............................................................... ... 74
ELECTRICAL UNITS ............................................. ... 75
Terminal Arrangement ......................................... ... 75
SMJ (SUPER MULTIPLE JUNCTION) .................. ... 77
Terminal Arrangement ......................................... ... 77 STANDARDIZED RELAY .......................................
... 79
Description ........................................................... ... 79
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ..................................... ... 79
TYPE OF STANDARDIZED RELAYS ............... ... 79
FUSE BLOCK - JUNCTION BOX (J/B) ................. ... 81
Terminal Arrangement .......................................... ... 81
FUSE, FUSIBLE LINK AND RELAY BOX ............. ... 82
Terminal Arrangement .......................................... ... 82

POWER SUPPLY ROUTING CIRCUIT PG-3
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45

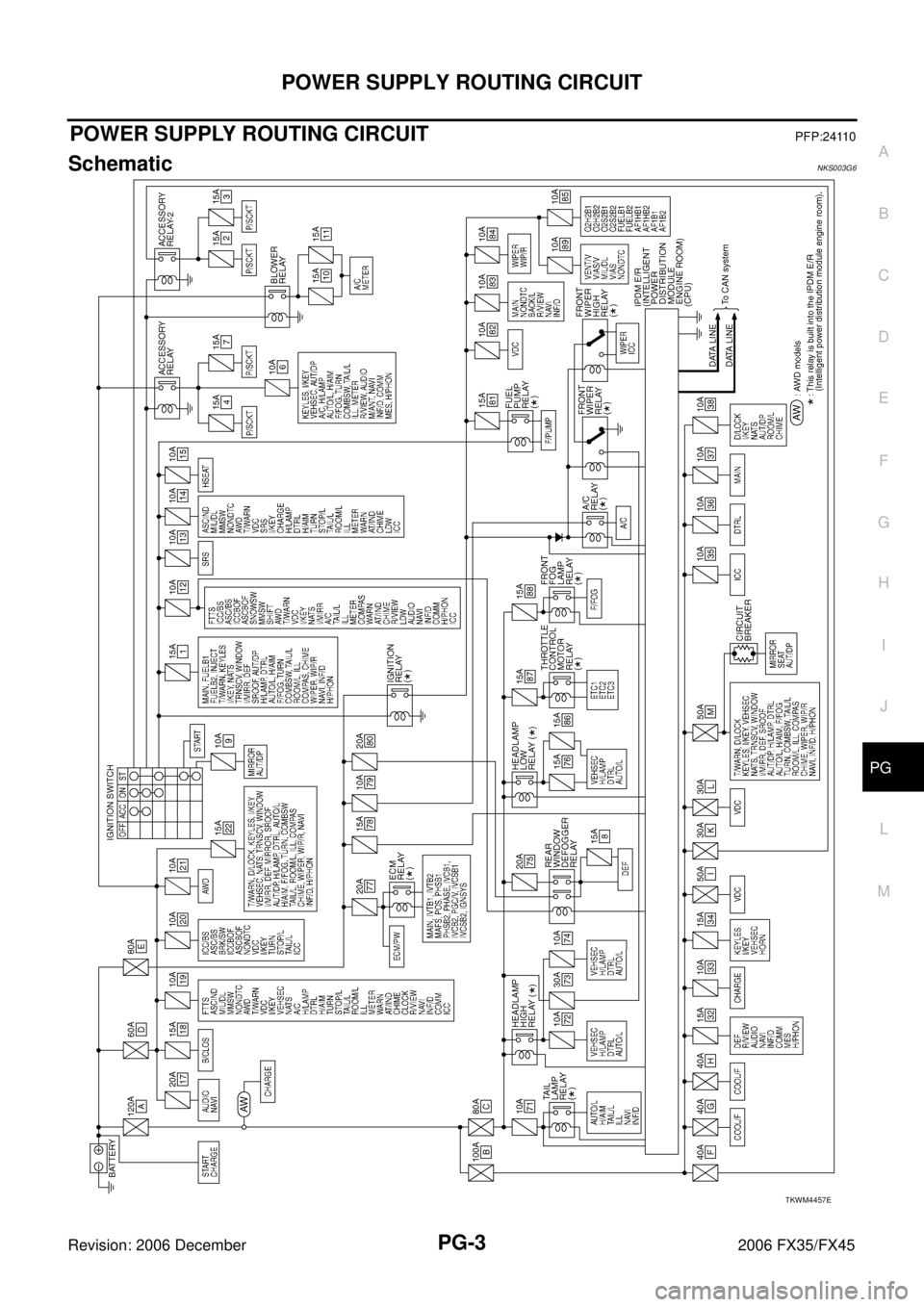

POWER SUPPLY ROUTING CIRCUITPFP:24110
SchematicNKS003G6
TKWM4457E

PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — POWER —NKS003G7
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWM4458E

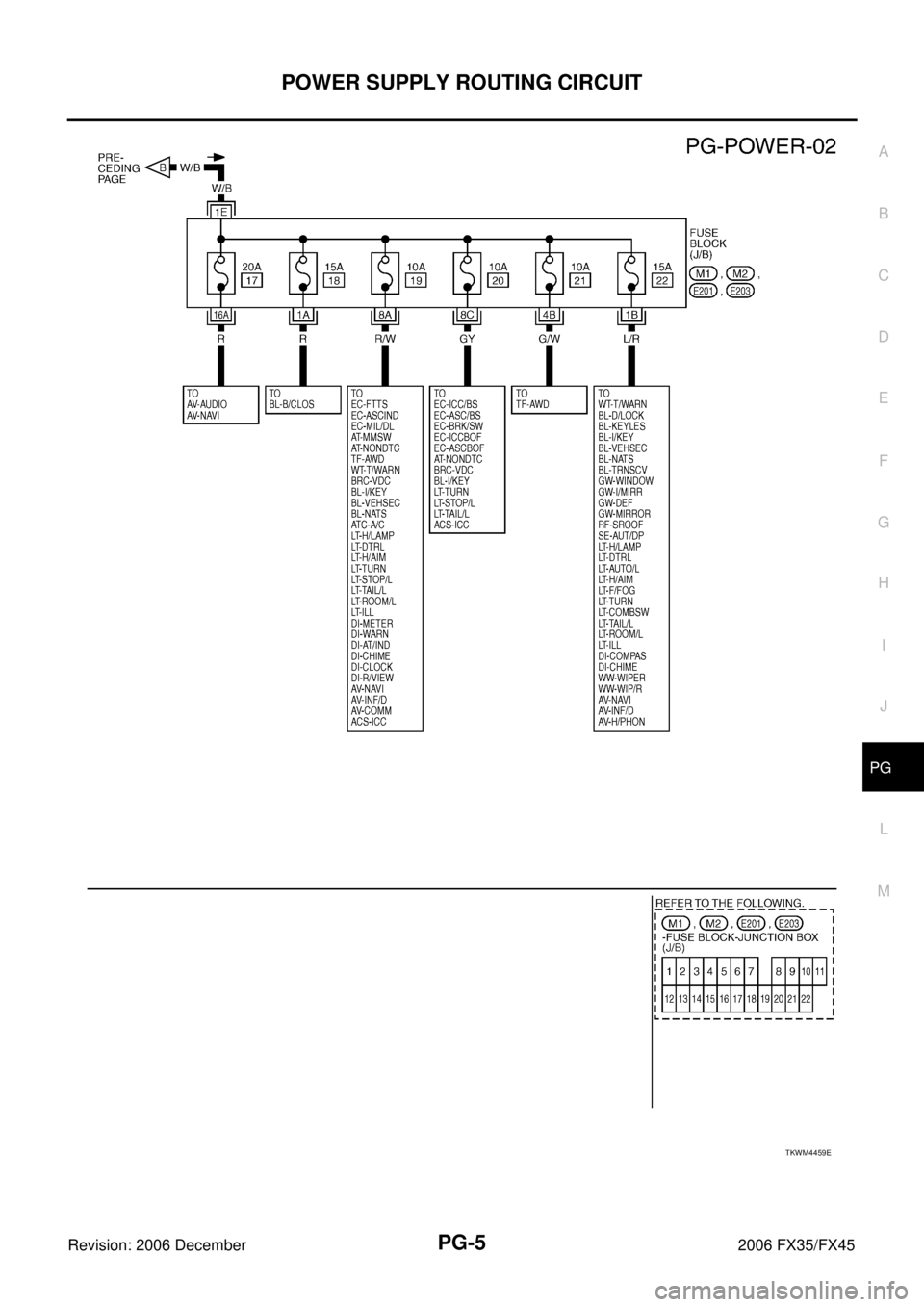

POWER SUPPLY ROUTING CIRCUIT PG-5
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
TKWM4459E

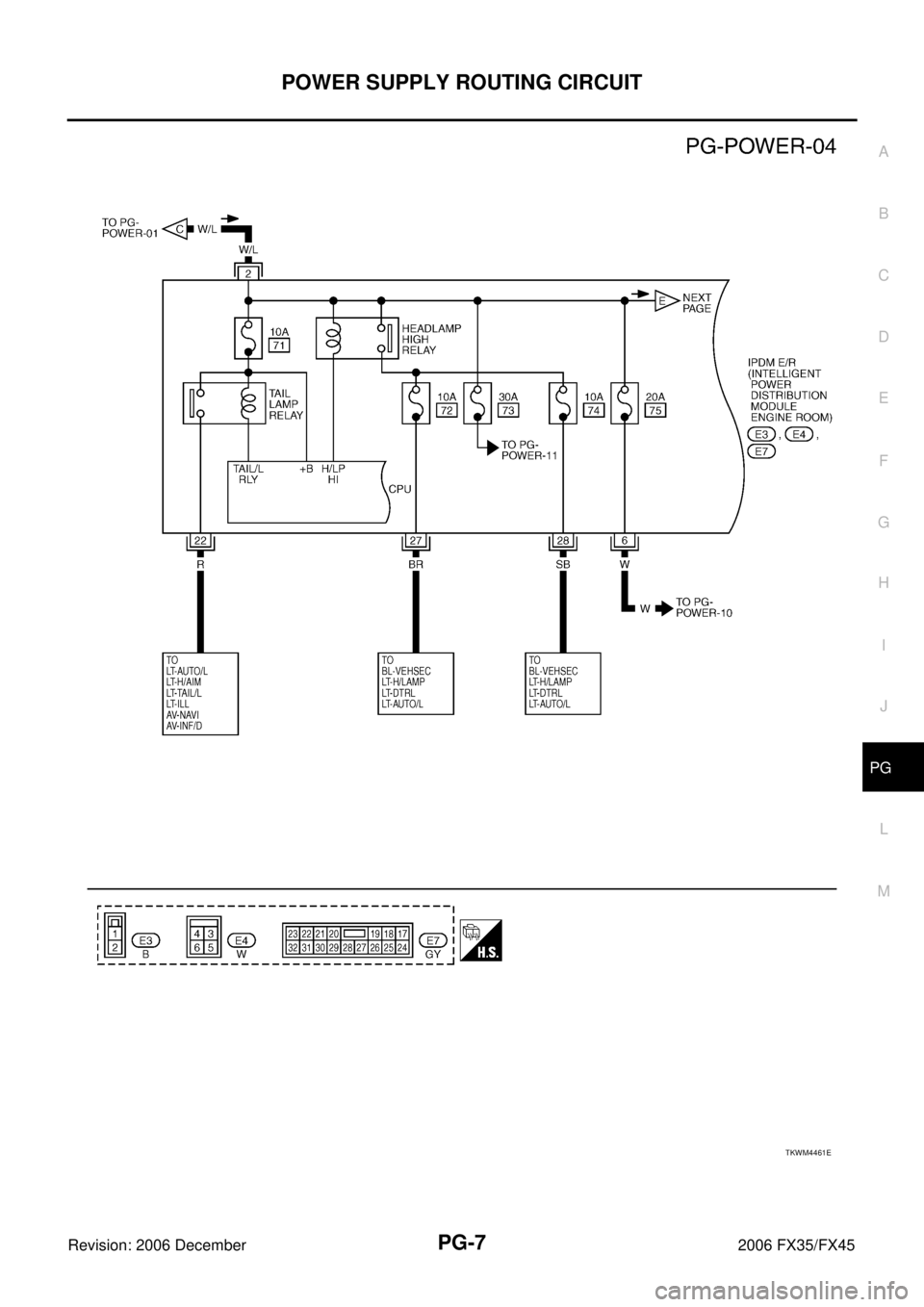

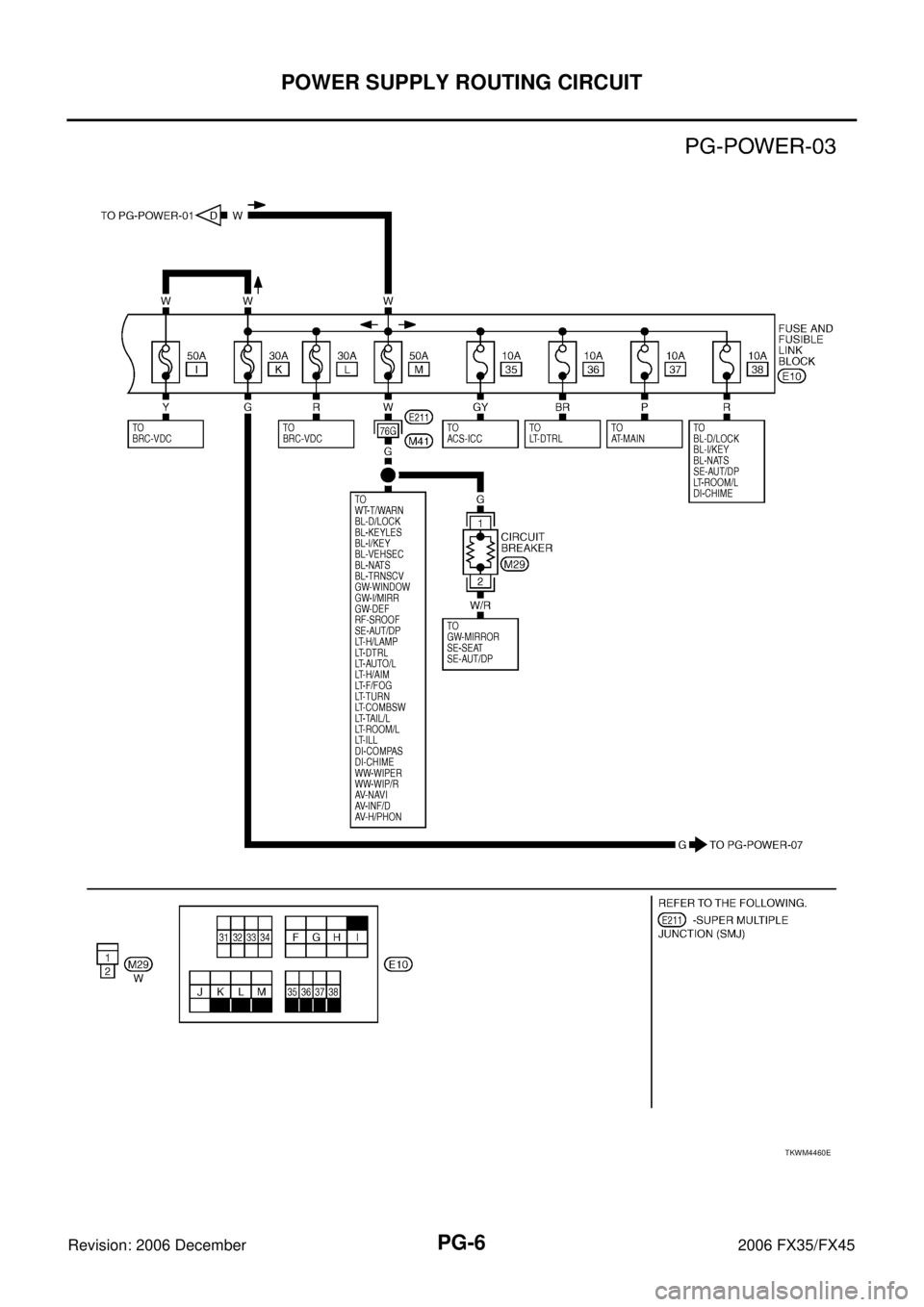

PG-6
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 December 2006 FX35/FX45
TKWM4460E

POWER SUPPLY ROUTING CIRCUIT PG-7
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
TKWM4461E

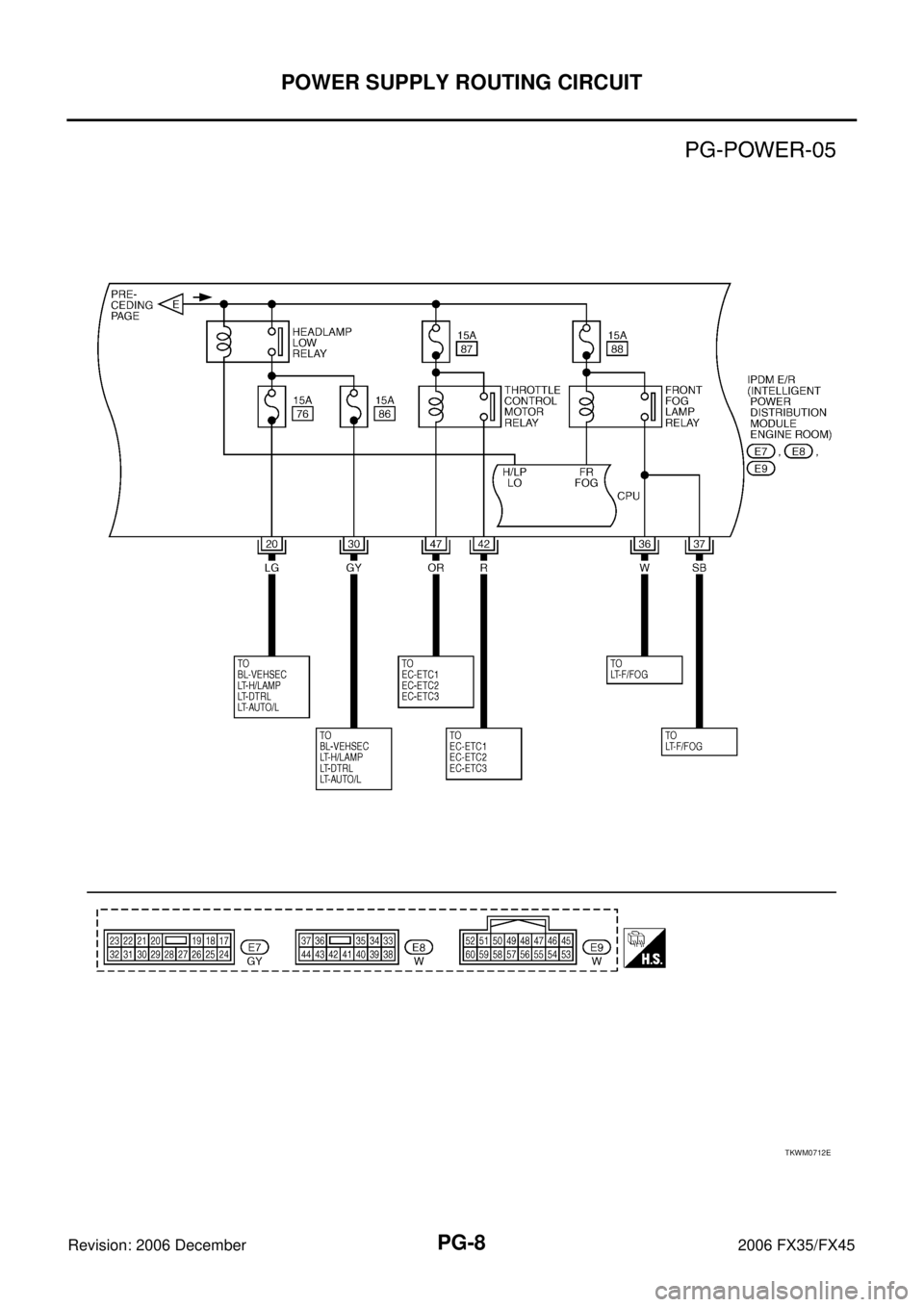

PG-8
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 December 2006 FX35/FX45
TKWM0712E
