INFINITI FX35 2006 Service Manual

FRONT SEAT SE-103
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

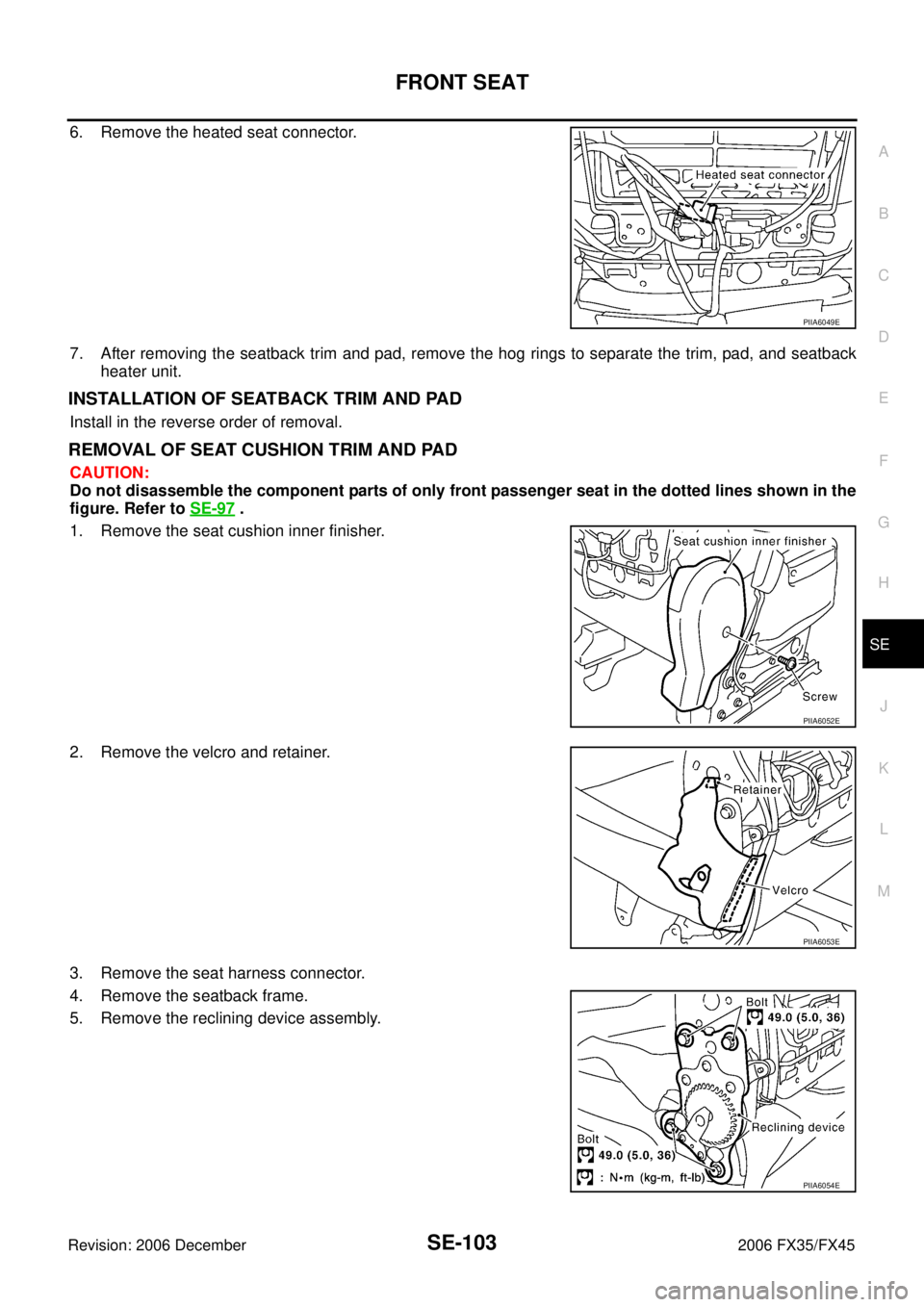

6. Remove the heated seat connector.
7. After removing the seatback trim and pad, remove the hog rings to separate the trim, pad, and seatback heater unit.
INSTALLATION OF SEATBACK TRIM AND PAD
Install in the reverse order of removal.
REMOVAL OF SEAT CUSHION TRIM AND PAD
CAUTION:
Do not disassemble the component parts of only front passenger seat in the dotted lines shown in the
figure. Refer to SE-97
.
1. Remove the seat cushion inner finisher.
2. Remove the velcro and retainer.
3. Remove the seat harness connector.
4. Remove the seatback frame.
5. Remove the reclining device assembly.
PIIA6049E
PIIA6052E
PIIA6053E
PIIA6054E

SE-104
FRONT SEAT
Revision: 2006 December 2006 FX35/FX45
6. Remove the retainer and clip.
7. After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad and the seat cushion heater unit.
INSTALLATION OF SEAT CUSHION TRIM AND PAD
Install in the reverse order of removal.
PIIA6055E

REAR SEAT SE-105
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

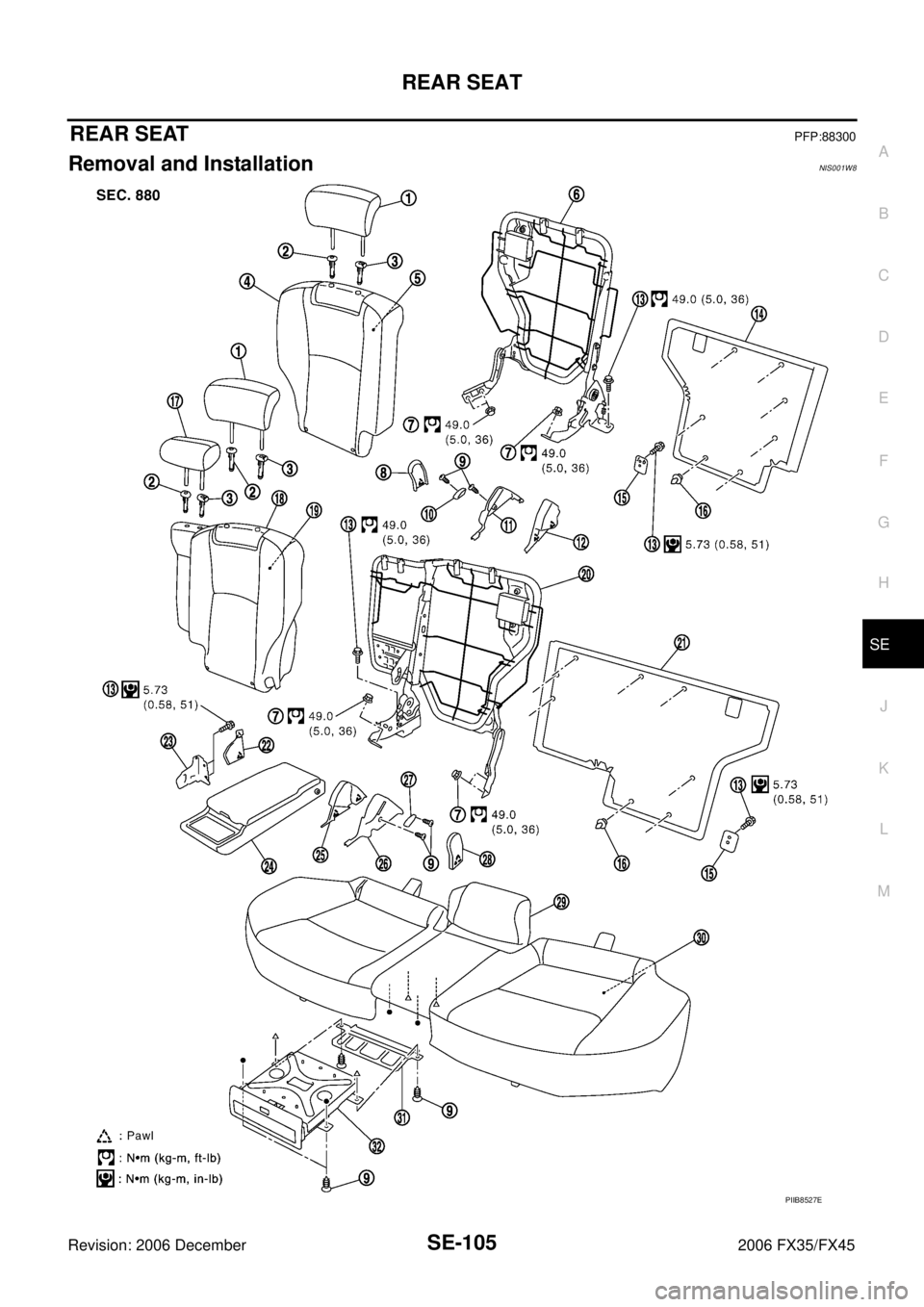

REAR SEATPFP:88300
Removal and InstallationNIS001W8
PIIB8527E

SE-106
REAR SEAT
Revision: 2006 December 2006 FX35/FX45
1. Headrest (side) 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback trim (RH) 5. Seatback pad (RH) 6. Seatback frame (RH)
7. Nut 8. Seat hinge cover (RH) 9. Screw
10. Reclining lever (RH) 11. Reclining device outer cover (RH) 12. Reclining device inner cover (RH)
13. Bolt 14. Seatback garnish (RH) 15. Trunk net hook
16. Clip (C101) 17. Headrest (center) 18. Seatback trim (LH)
19. Seatback pad (LH) 20. Seatback frame (LH) 21. Seatback garnish (LH)
22. Armrest bracket cover 23. Armrest bracket 24. Armrest
25. Reclining device inner cover (LH) 26. Reclining device outer cover (LH) 27. Reclining lever (LH)
28. Seat hinge cover (LH) 29. Seat cushion trim 30. Seat cushion pad
31. Cup holder bracket 32. Cup holder

REAR SEAT SE-107
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

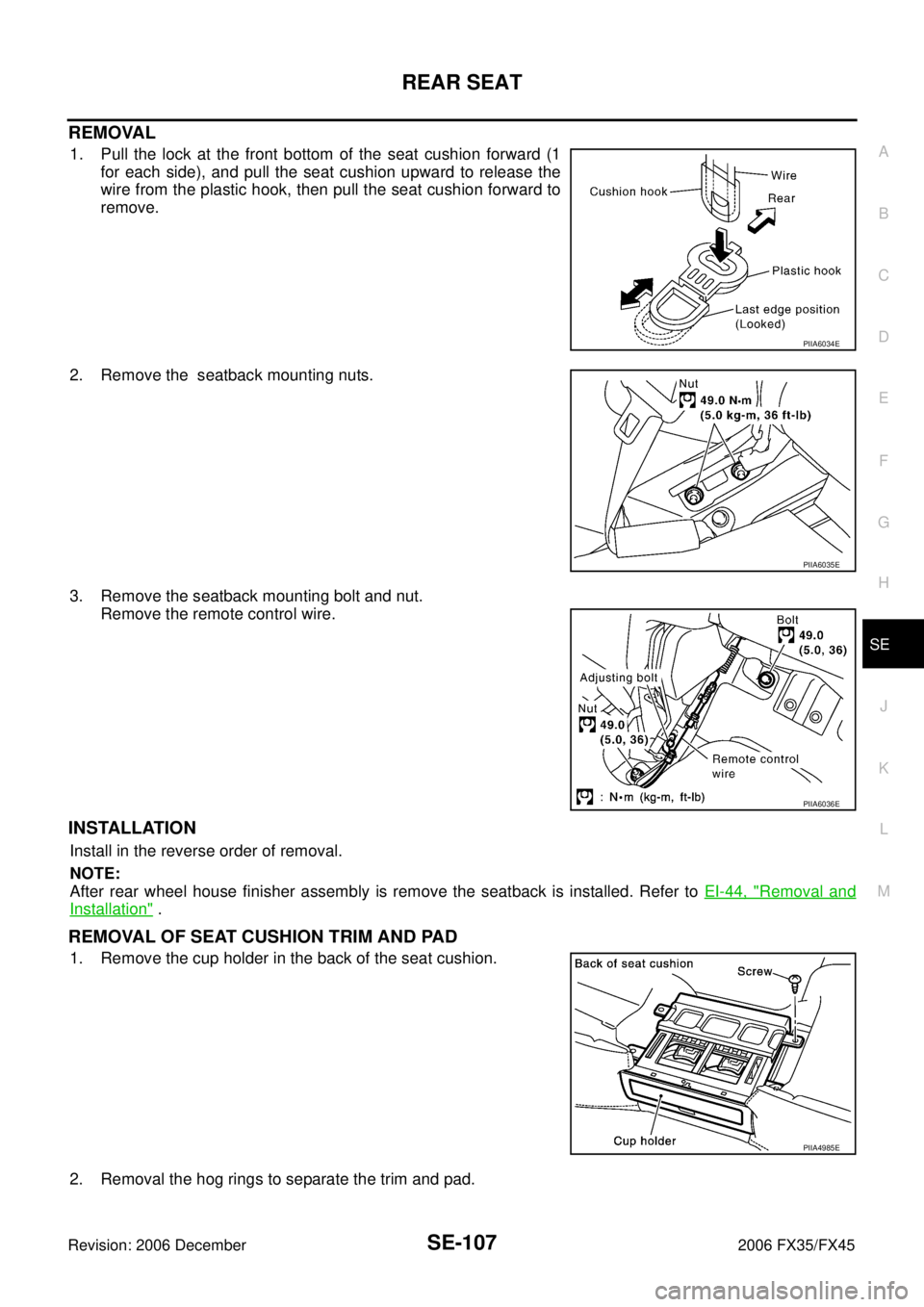

REMOVAL
1. Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the
wire from the plastic hook, then pull the seat cushion forward to
remove.
2. Remove the seatback mounting nuts.
3. Remove the seatback mounting bolt and nut. Remove the remote control wire.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After rear wheel house finisher assembly is remove the seatback is installed. Refer to EI-44, "
Removal and
Installation" .
REMOVAL OF SEAT CUSHION TRIM AND PAD
1. Remove the cup holder in the back of the seat cushion.
2. Removal the hog rings to separate the trim and pad.
PIIA6034E
PIIA6035E
PIIA6036E
PIIA4985E

SE-108
REAR SEAT
Revision: 2006 December 2006 FX35/FX45
INSTALLATION OF SEAT CUSHION TRIM AND PAD
Install in the reverse order of removal.
REMOVAL OF SEATBACK TRIM AND PAD
1. Remove the trunk net hook in the back of the seatback.
2. After removing the seatback garnish, remove the hog rings.
3. Remove the headrest.
4. Remove the headrest holder. Squeeze and pull up headrest holder tabs to remove from seat-
back frame.
NOTE:
Before installing the headrest holder, check its orientation (front,
rear, left and right).
5. Remove the armrest (LH only).
6. After removing the seatback trim and pad, separate the trim and pad.
INSTALLATION OF SEATBACK TRIM AND PAD
Install in the reverse order of removal.
PIIA6037E
PIIA1158E
PIIA6038E

REAR SEAT SE-109
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

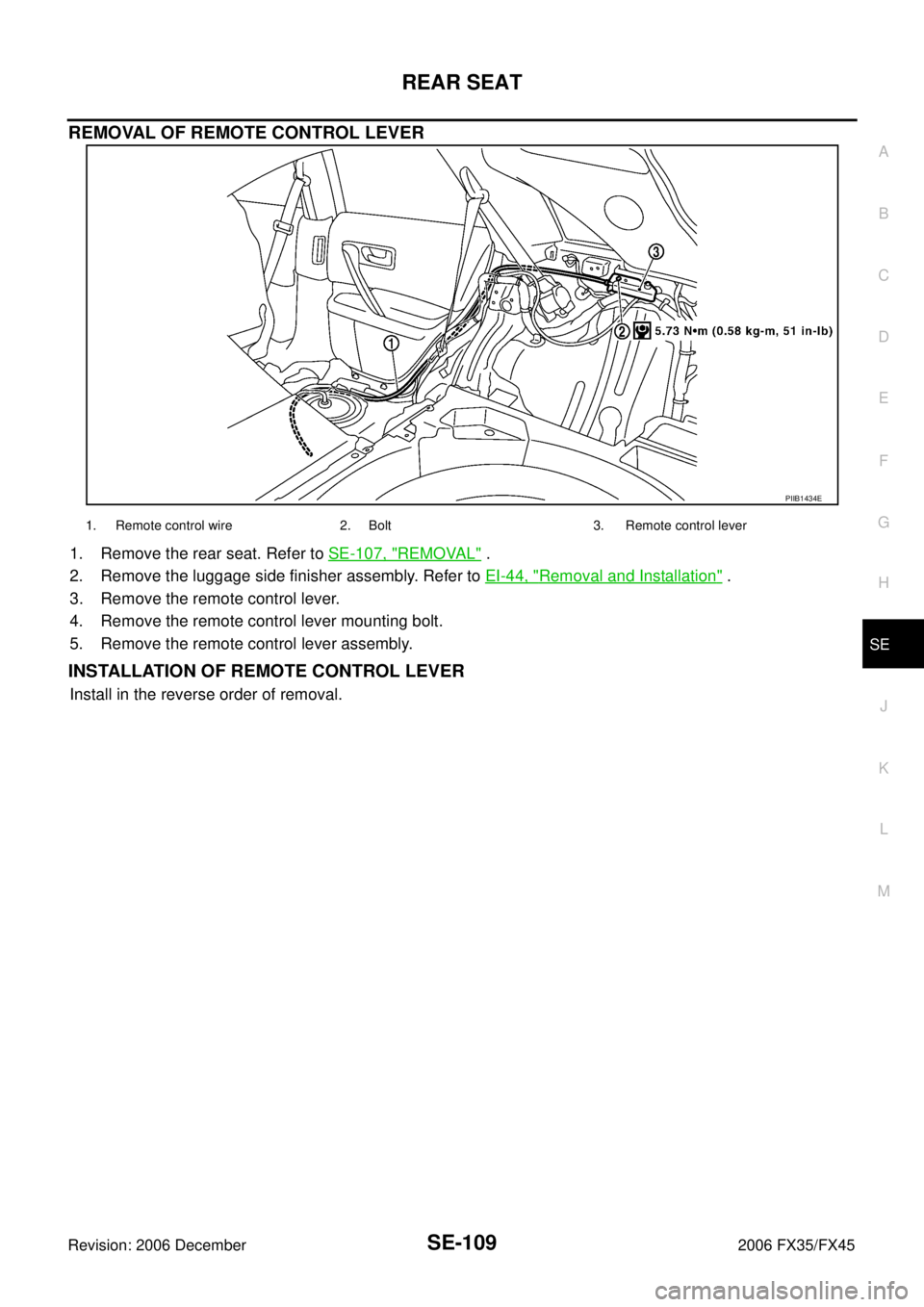

REMOVAL OF REMOTE CONTROL LEVER
1. Remove the rear seat. Refer to SE-107, "REMOVAL" .
2. Remove the luggage side finisher assembly. Refer to EI-44, "
Removal and Installation" .
3. Remove the remote control lever.
4. Remove the remote control lever mounting bolt.
5. Remove the remote control lever assembly.
INSTALLATION OF REMOTE CONTROL LEVER
Install in the reverse order of removal.
PIIB1434E
1. Remote control wire 2. Bolt 3. Remote control lever

SE-110
REAR SEAT
Revision: 2006 December 2006 FX35/FX45

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D E
F
G
I
J
K L
M
SECTION SRS
A
B
SRS
Revision: 2006 December 2006 FX35/FX45
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ................................ ..... 3
Occupant Classification System Precaution ....... ..... 3
PREPARATION ...................................................... ..... 4
Commercial Service Tools ................................... ..... 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) .. ..... 5
SRS Configuration .............................................. ..... 5
Front Seat Belt Pre-Tensioner with Load Limiter . ..... 6
Front Side Air Bag ............................................... ..... 6
Side Curtain Air Bag ............................................ ..... 6
Occupant Classification System (OCS) .............. ..... 7
Passenger Air Bag Status Condition ................... ..... 7
Component Parts of Occupant Classification Sys-
tem ...................................................................... ..... 7
TROUBLE DIAGNOSIS ......................................... ..... 8
Trouble Diagnosis Introduction ............................ ..... 8
DIAGNOSIS FUNCTION .................................. ..... 8
HOW TO PERFORM TROUBLE DIAGNOSIS
FOR QUICK AND ACCURATE REPAIR .......... ..... 8
WORK FLOW ................................................... ..... 9
Component Parts Location .................................. ... 10
Schematic ........................................................... .... 11
Wiring Diagram — SRS — .................................. ... 12
CONSULT-II Function ......................................... ... 17
DIAGNOSIS MODE FOR CONSULT-II ............ ... 17
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II ........................................... ... 17
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ......................................................... ... 18
Self-Diagnosis Function (Without CONSULT-II) .. ... 18
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITHOUT CONSULT-II ................................... ... 18
HOW TO ERASE SELF-DIAGNOSIS RESULTS ... 18
SRS Operation Check ......................................... ... 19
DIAGNOSTIC PROCEDURE 1 ........................ ... 19
Trouble Diagnosis with CONSULT-II ................... ... 21 DIAGNOSTIC PROCEDURE 2 ........................
... 21
DIAGNOSTIC PROCEDURE 3 ........................ ... 25
DIAGNOSTIC PROCEDURE 4 (CONTINUED
FROM DIAGNOSTIC PROCEDURE 2) ........... ... 27
DIAGNOSTIC PROCEDURE 5 ........................ ... 27
Trouble Diagnosis without CONSULT-II .............. ... 32
DIAGNOSTIC PROCEDURE 6 ........................ ... 32
WARNING LAMP FLASH CODE CHART ........ ... 32
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF ...................................................... ... 36
DIAGNOSTIC PROCEDURE 7 ........................ ... 36
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON ........................................................ ... 37
DIAGNOSTIC PROCEDURE 8 ........................ ... 37
DRIVER AIR BAG MODULE ................................. ... 38
Removal and Installation ..................................... ... 38
REMOVAL ........................................................ ... 38
INSTALLATION ................................................ ... 39
SPIRAL CABLE ..................................................... ... 40
Removal and Installation ..................................... ... 40
REMOVAL ........................................................ ... 40
INSTALLATION ................................................ ... 40
FRONT PASSENGER AIR BAG MODULE ........... ... 42
Removal and Installation ..................................... ... 42
REMOVAL ........................................................ ... 42
INSTALLATION ................................................ ... 43
SIDE CURTAIN AIR BAG MODULE ..................... ... 44
Removal and Installation ..................................... ... 44
REMOVAL ........................................................ ... 44
INSTALLATION ................................................ ... 45
CRASH ZONE SENSOR ........................................ ... 46
Removal and Installation ..................................... ... 46
REMOVAL ........................................................ ... 46
INSTALLATION ................................................ ... 46
SIDE AIR BAG (SATELLITE) SENSOR ................ ... 47
Removal and Installation ..................................... ... 47
REMOVAL ........................................................ ... 47
INSTALLATION ................................................ ... 47
FRONT SEAT BELT PRE-TENSIONER ................ ... 48
Removal and Installation ..................................... ... 48

SRS-2Revision: 2006 December 2006 FX35/FX45
DIAGNOSIS SENSOR UNIT ..................................
... 49
Removal and Installation ..................................... ... 49
REMOVAL ........................................................ ... 49
INSTALLATION ................................................. ... 49
ECU DISCRIMINATED NO. .............................. ... 49
COLLISION DIAGNOSIS ....................................... ... 50
For Frontal Collision ............................................. ... 50
SRS INSPECTION (FOR FRONTAL COLLI- SION) ................................................................
... 50
For Side Collision ................................................. ... 52
WHEN THE SIDE AIR BAG IS ACTIVATED IN
THE SIDE COLLISION: .................................... ... 52
WHEN SRS IS NOT ACTIVATED IN THE SIDE
COLLISION: ...................................................... ... 52
SRS INSPECTION (FOR SIDE COLLISION) ... ... 52
