INFINITI FX35 2006 Service Manual

POWER DOOR LOCK SYSTEM BL-27
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
TIWM1650E

BL-28
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
TIWM1651E

POWER DOOR LOCK SYSTEM BL-29
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
TIWM1652E

BL-30
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
TIWH0037E

POWER DOOR LOCK SYSTEM BL-31
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Schematic/Without Intelligent KeyNIS001M0
TIWM0321E

BL-32
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45

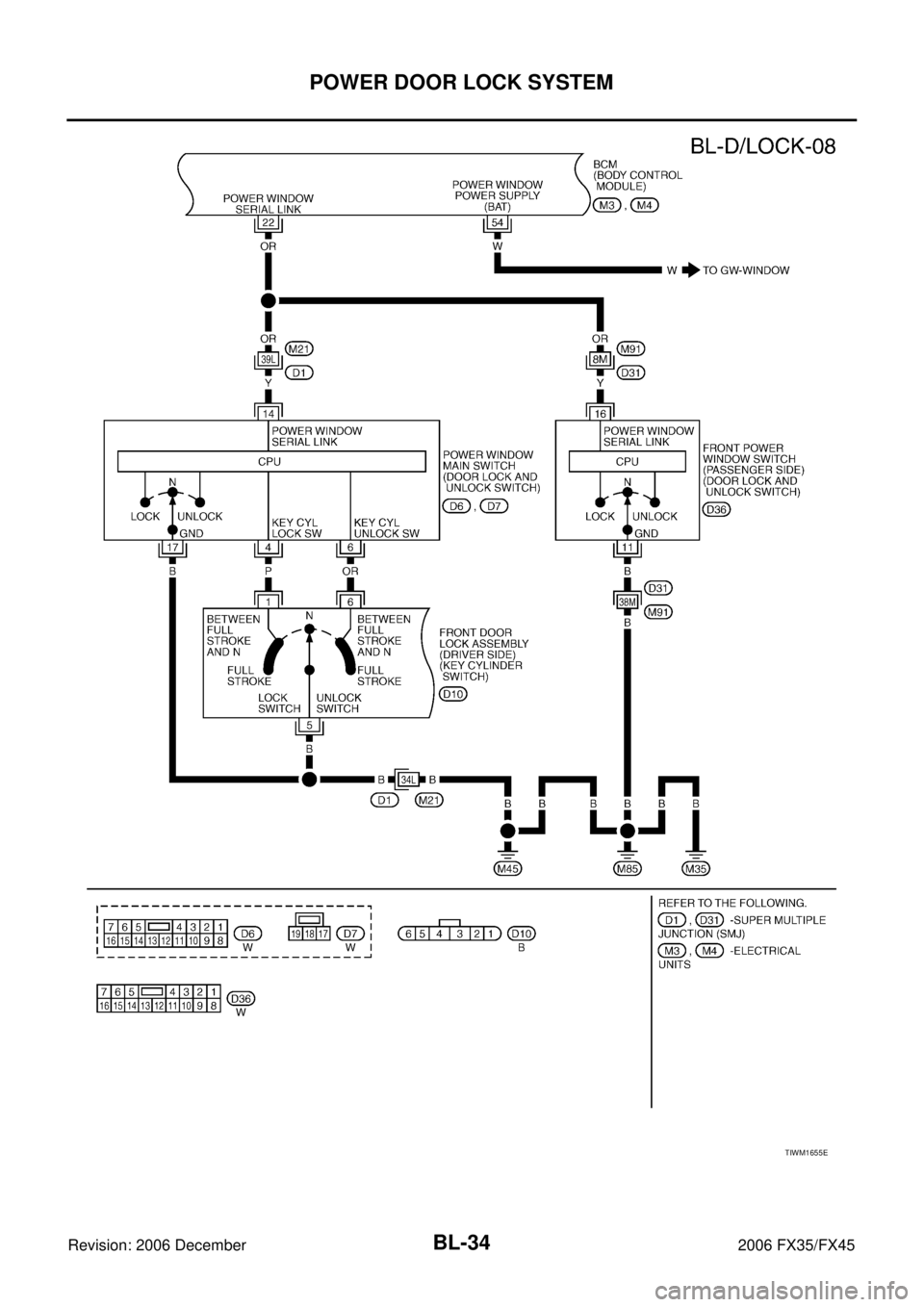

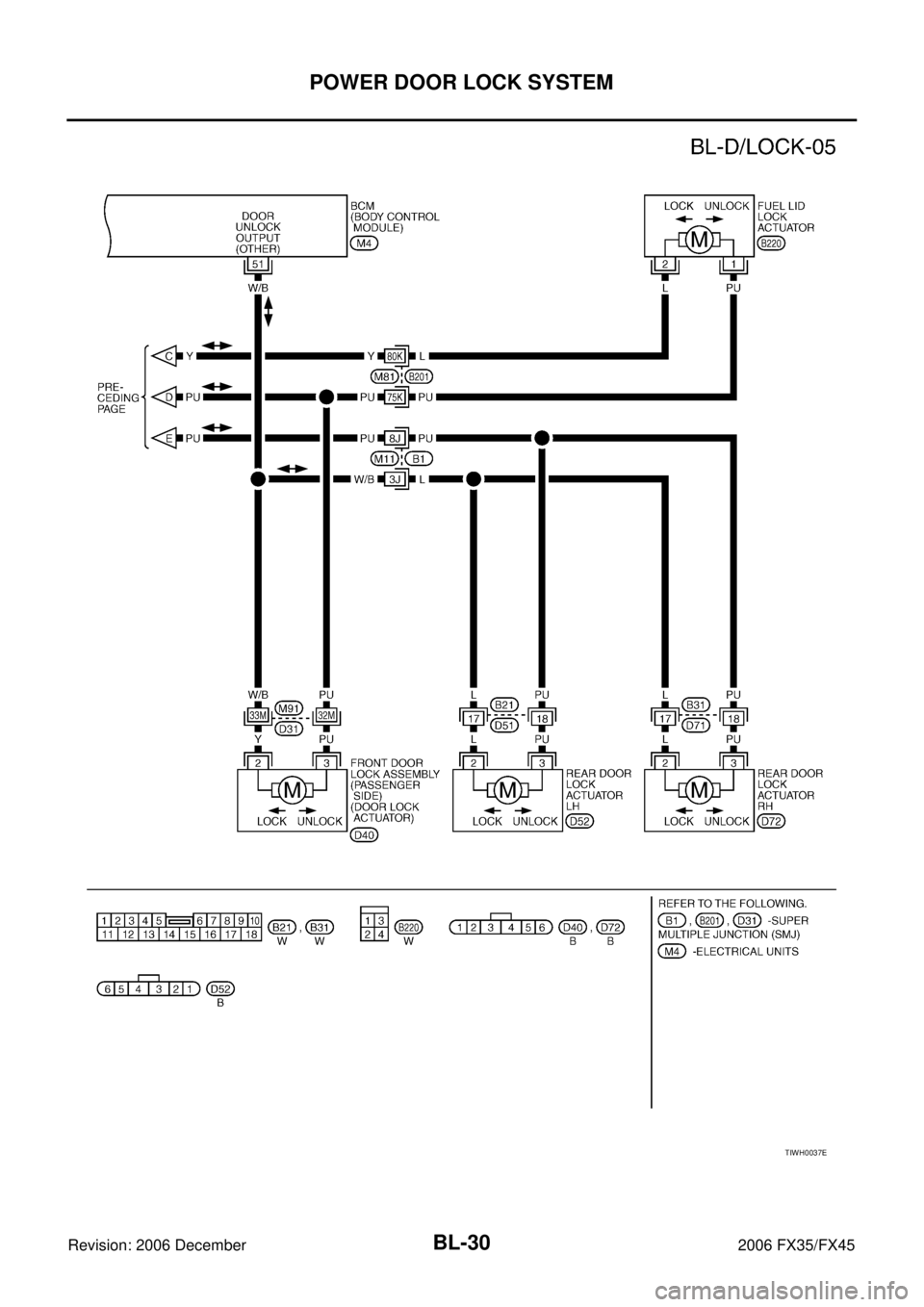

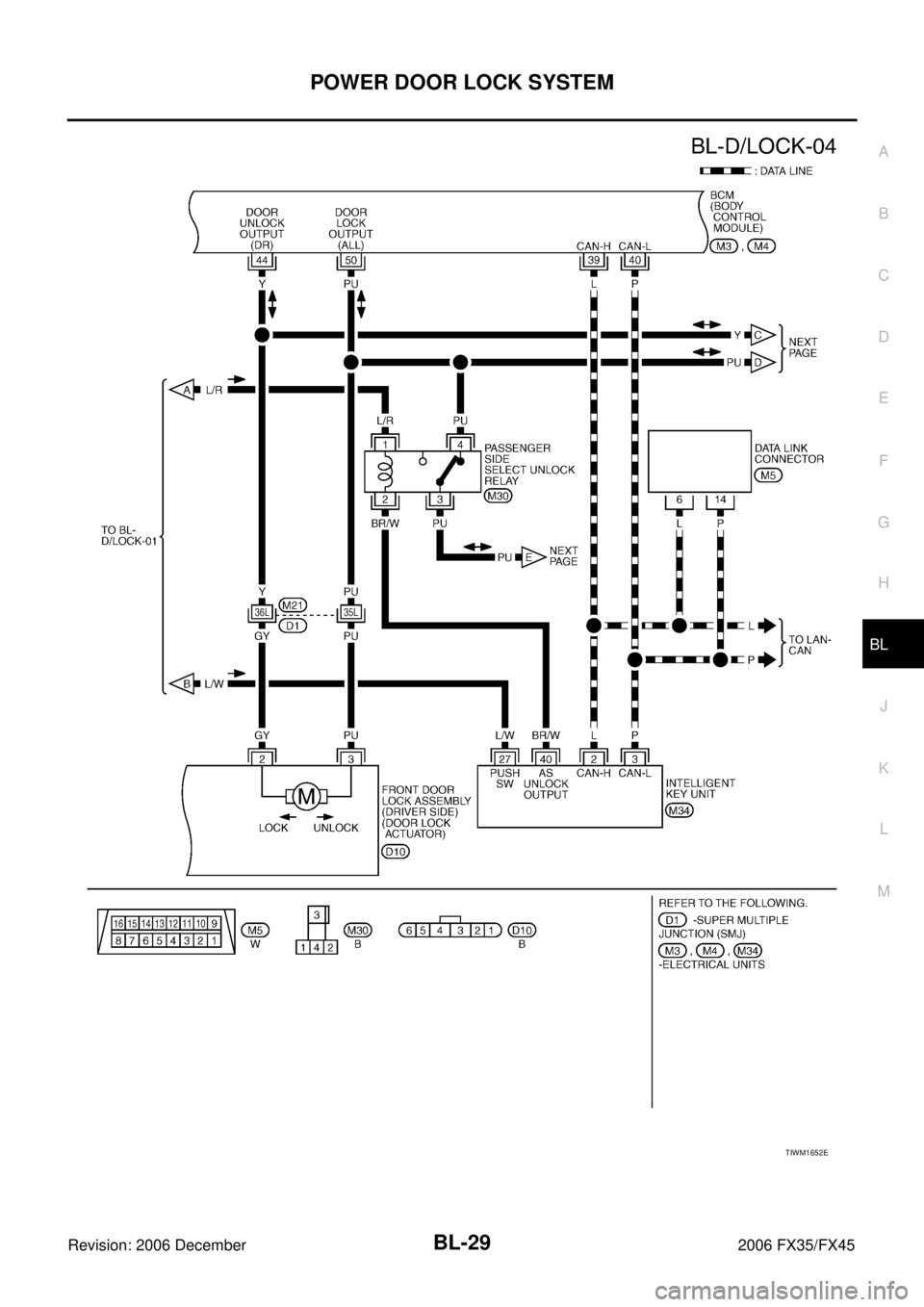

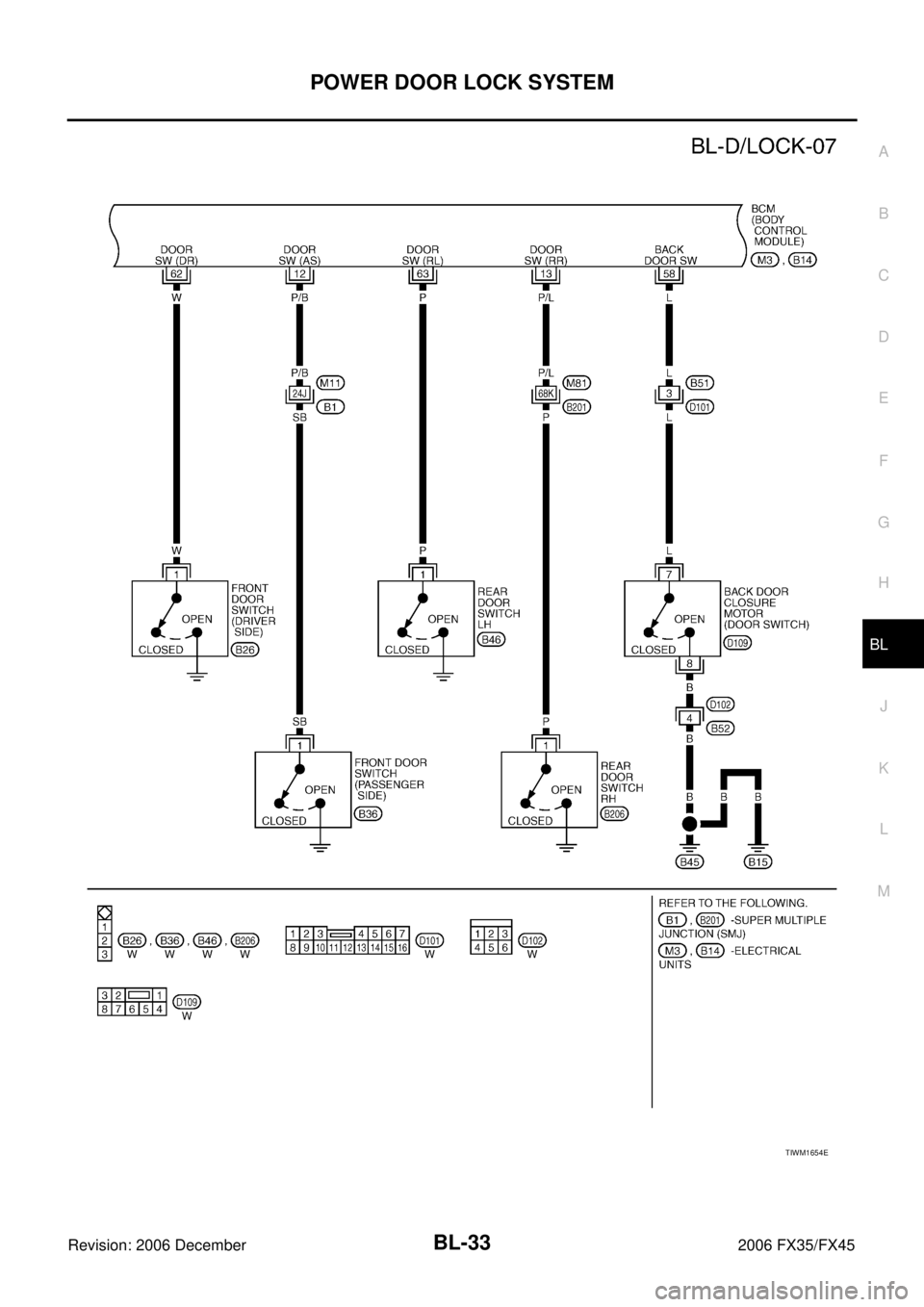

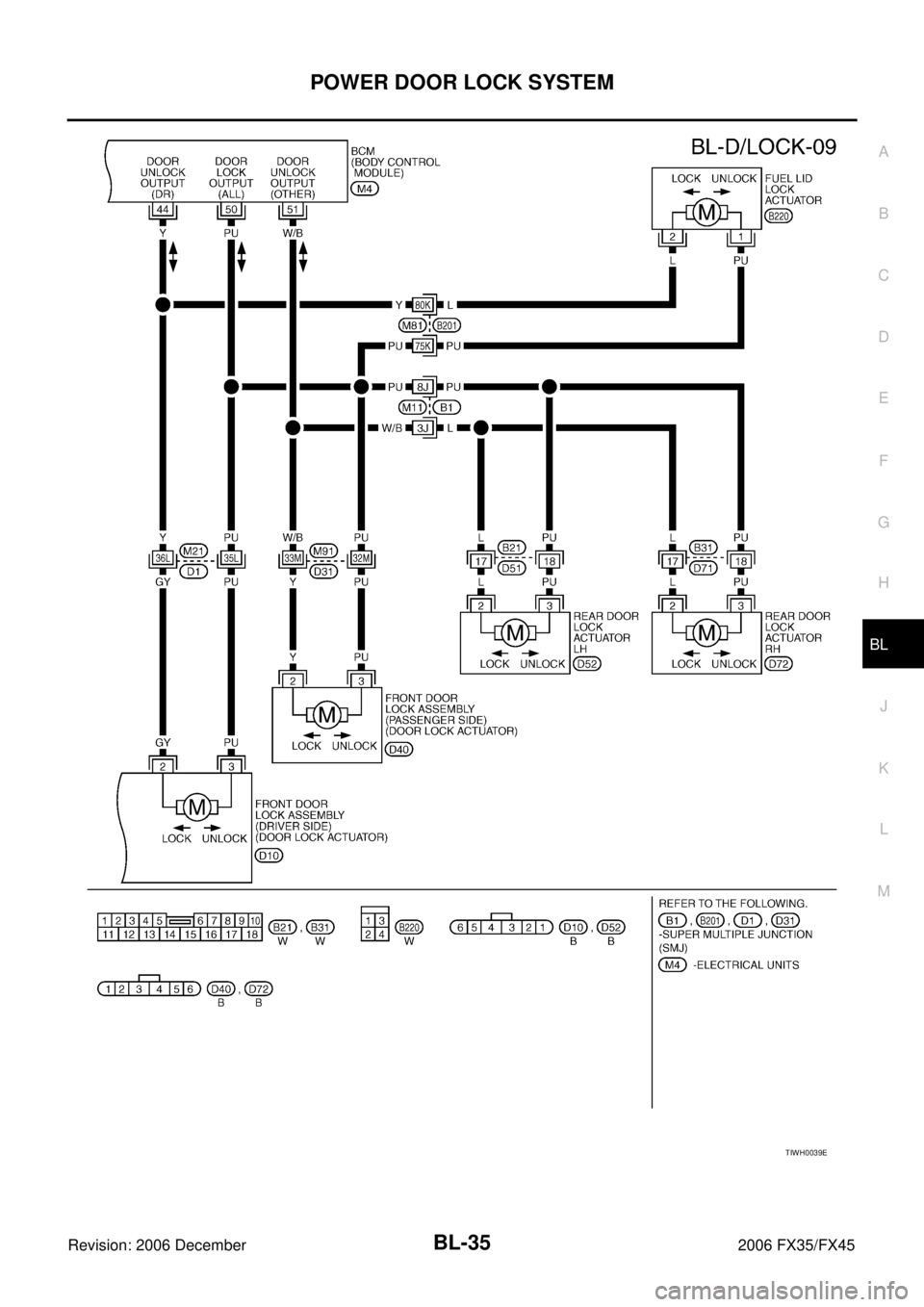

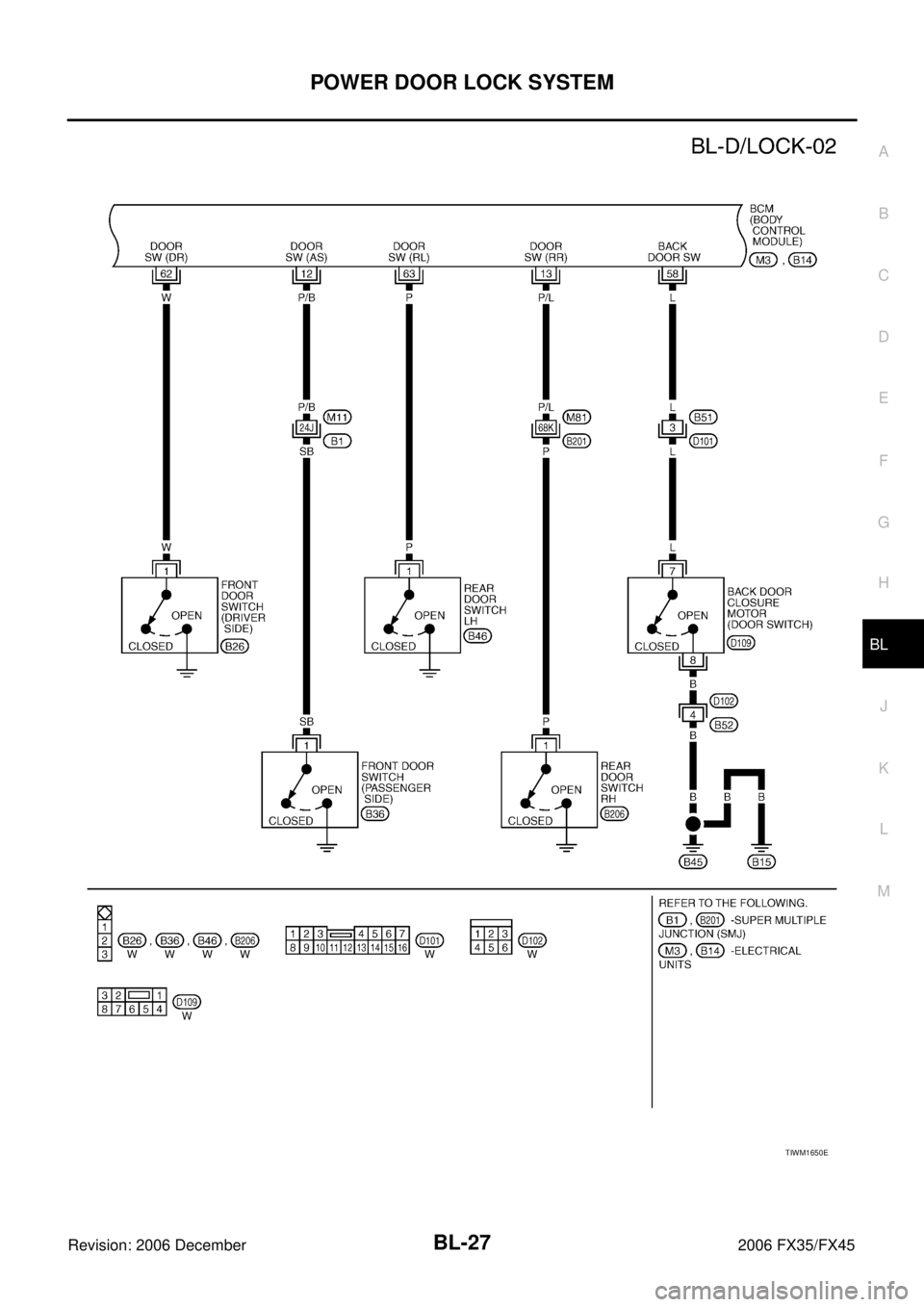

Wiring Diagram — D/LOCK —/Without Intelligent KeyNIS001M1
TIWM1653E

POWER DOOR LOCK SYSTEM BL-33
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
TIWM1654E

BL-34
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
TIWM1655E

POWER DOOR LOCK SYSTEM BL-35
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
TIWH0039E

BL-36
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for BCMNIS001M2
Terminals and Reference Value for Intelligent Key Unit (With Intelligent Key Sys-
tem)
NIS001M3
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
12 P/B Front door switch (Pas-
senger side) Input ON (door open)
→ OFF (door closed) 0 → Battery voltage
13 P/L Rear door switch RH Input ON (door open) → OFF (door closed) 0 → Battery voltage
22 OR Power window serial link Input/
Output Ignition switch ON
37 B/W Key switch Input ON (Key inserted)
→ OFF (Key
removed from IGN key cylinder) Battery voltage
→ 0
39 L CAN H Input/
Output ——
40 P CAN L Input/
Output ——
42 L/R Battery power supply
(fuse) Input — Battery voltage
44 Y Driver door lock actuator
(unlock) Output Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage → 0
49 B Ground — — 0
50 PU Door lock actuator (lock) Output Door lock / unlock switch
(Free → Lock) 0
→ Battery voltage → 0
51 W/B Passenger and rear doors
lock actuator (unlock) Output
Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage → 0
52 B Ground — — 0
55 G Power source (Fusible
link) Input — Battery voltage
58 L Back door switch Input ON (Door open) → OFF (Door closed) 0 → 9
62 W Front door switch (Driver
side) Input ON (Door open)
→ OFF (Door closed) 0 → Battery voltage
63 P Rear door switch LH Input ON (Door open) → OFF (Door closed) 0 → Battery voltage
PIIA2344J
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
2 L CAN H Input/
Output ——
3 P CAN L Input/
Output ——
27 L/W Push switch Input Push switch (OFF → ON) 0 → Battery voltage
40 BR/W AS unlock output signal Output Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
