2. CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM, power window main switch and front power window switch connectors.
3. Check continuity between BCM connector M3 terminal 22 and power window main switch (door lock and unlock switch) con-
nector D6 terminal 14.
4. Check continuity between power window main switch (door lock and unlock switch) connector D6 terminal 14 and ground.
5. Check continuity between BCM connector M3 terminal 22 and front power window switch (door lock and unlock switch) con-
nector D36 terminal 16.
6. Check continuity between front power window switch (door lock and unlock switch) connector D36 terminal 16 and ground.
OK or NG
OK >> GO TO 3.

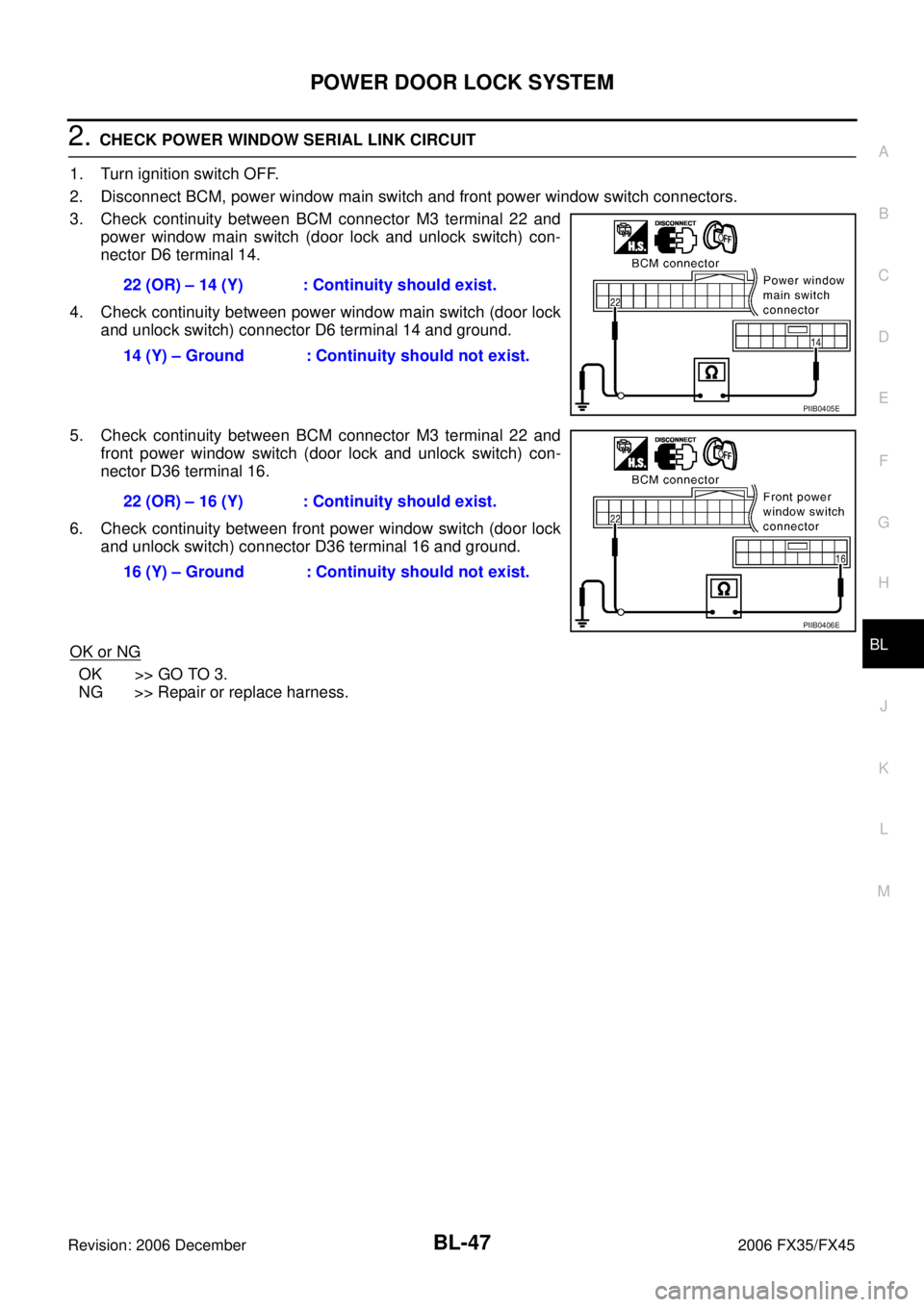

NG >> Repair or replace harness. 22 (OR) – 14 (Y) : Continuity should exist.
14 (Y) – Ground : Continuity should not exist.
PIIB0405E
22 (OR) – 16 (Y) : Continuity should exist.
16 (Y) – Ground : Continuity should not exist.
PIIB0406E

BL-48
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
3. CHECK DOOR LOCK AND UNLOCK SWITCH GROUND HARNESS

Check continuity between power window main switch (door lock
and unlock switch) connector D7 terminal 17 and ground.

Check continuity between power window sub-switch (front pas-
senger side) (door lock and unlock switch) connector D36 termi-
nal 11 and ground.
OK or NG
OK >> Replace power window main switch or power window sub-switch.
NG >> Repair or replace harness.
Check Door Lock Actuator (Driver Side)NIS001MB
1. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and front door lock actuator (driver side) connector.
3. Check continuity between BCM connector M4 terminals 44, 50 and front door lock actuator (driver side) connector D10 termi-
nals 2, 3.
4. Check continuity between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> GO TO 2.

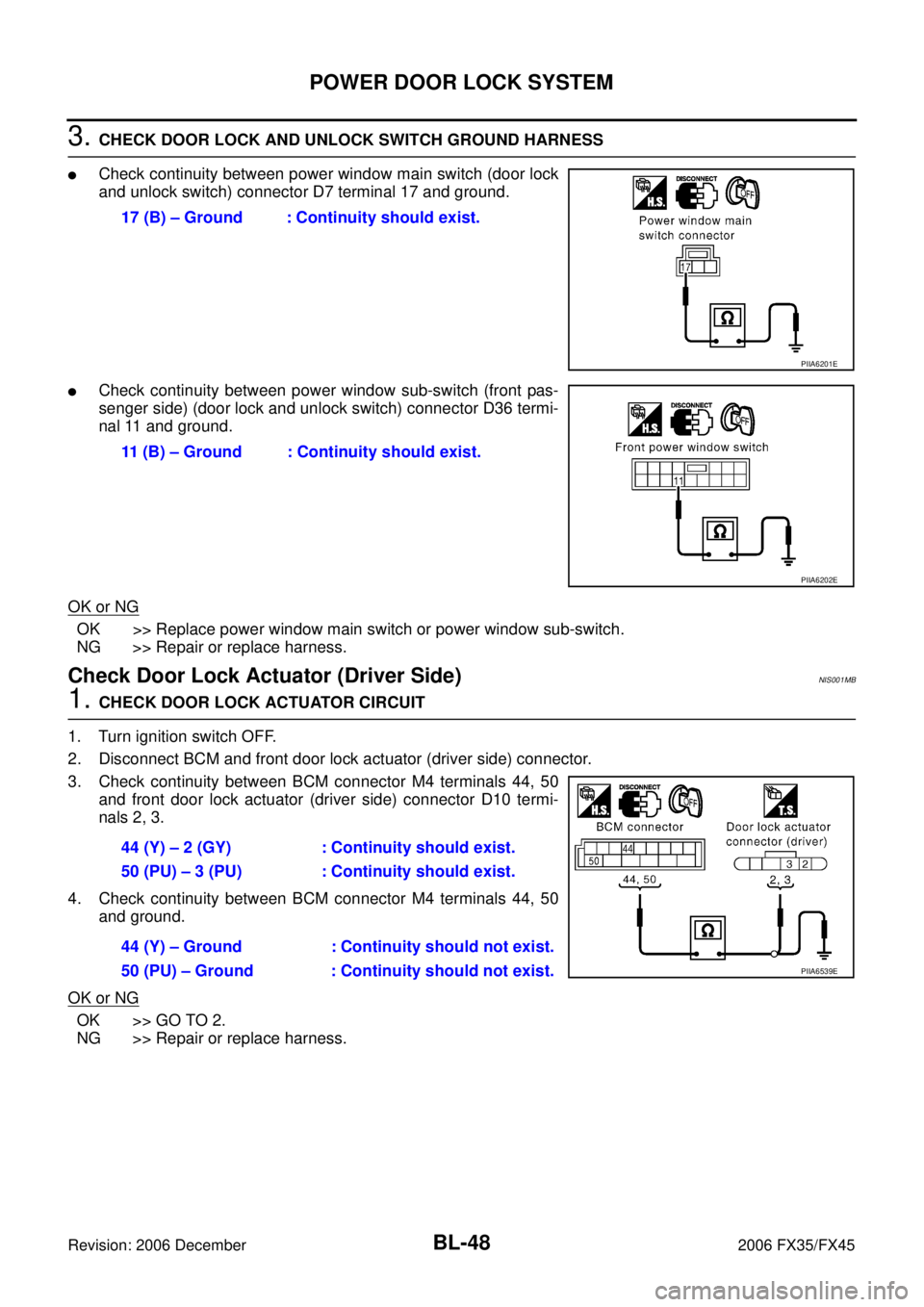

NG >> Repair or replace harness. 17 (B) – Ground : Continuity should exist.
PIIA6201E
11 (B) – Ground : Continuity should exist.
PIIA6202E
44 (Y) – 2 (GY) : Continuity should exist.
50 (PU) – 3 (PU) : Continuity should exist.
44 (Y) – Ground : Continuity should not exist.
50 (PU) – Ground : Continuity should not exist.
PIIA6539E

POWER DOOR LOCK SYSTEM BL-49
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
2. CHECK OUTPUT SIGNAL
1. Connect BCM and door lock actuator (driver side) connector.
2. Check voltage between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> Check harness connection.
NG >> Replace BCM.
Check Door Lock Actuator (Passenger Side and Rear LH/RH)NIS001MC
1. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM and each door lock actuator connectors.
2. Check continuity between BCM connector M4 terminals 50, 51 and front door lock actuator passenger side, rear door lock actu-
ator LH/RH connectors D40, D52, D72 terminals 2, 3.
3. Check continuity between BCM connector M4 terminals 50, 51 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
Con-
nector Terminal
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M4 44
(Y)
Ground Driver door lock/unlock
switch is turned to
UNLOCK. 0
→ Battery voltage → 0
50
(PU) Driver door lock/unlock
switch is turned to
LOCK. 0
→ Battery voltage → 0
PIIA6383E
50 (PU) – 3 (PU) : Continuity should exist.
51 (W/B) – 2 (L or Y) : Continuity should exist.
50 (PU) – Ground : Continuity should not exist.
51 (W/B) – Ground : Continuity should not exist.
PIIA6540E

BL-50
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
2. CHECK DOOR LOCK ACTUATOR SIGNAL
Check voltage between BCM connector M4 terminals 50, 51 and
ground.
OK or NG
OK >> Replace front door lock assembly (passenger side) or rear door lock actuator LH/RH.
NG >> Replace BCM.
Check Fuel Lid Lock Actuator NIS001MD
1. CHECK FUEL LID LOCK ACTUATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and fuel lid lock actuator connector.
3. Check continuity between BCM connector M4 terminals 44, 50 and fuel lid lock actuator connector B70 terminals 1, 2.
4. Check continuity between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> Replace fuel lid lock actuator.
NG >> Repair or replace harness.
Con-
nector Terminal
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M4 50
(PU) Ground Door lock/unlock switch
is turned to LOCK. 0
→ Battery voltage → 0
51
(W/B) Door lock/unlock switch
is turned to UNLOCK. 0
→ Battery voltage → 0
PIIA6385E
44 (Y) – 2 (L) : Continuity should exist.
50 (PU) – 1 (PU) : Continuity should exist.
44 (Y) – Ground : Continuity should not exist.
50 (PU) – Ground : Continuity should not exist.
PIIA6386E

POWER DOOR LOCK SYSTEM BL-51
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Check Front Door Key Cylinder Switch (Lock) NIS001ME
1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK SIGNAL)
With CONSULT-II
Check front door key cylinder switch LH (“KEY CYL LK SW”) in
“DATA MONITOR” mode with CONSULT-II.

When key cylinder switch is turned to “LOCK”.
Without CONSULT-II
Check voltage between power window main switch (door lock and
unlock switch) connector and ground.
OK or NG
OK >> Front door key cylinder switch circuit driver side (lock) is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR KEY CYLINDER SWITCH
1. Disconnect front door key cylinder switch driver side connector.
2. Check continuity between front door key cylinder switch driver side terminals 1 and 5.
OK or NG
OK >> Check the following.

Front door key cylinder switch driver side ground circuit.

Harness for open or short between power window main switch (door lock and unlock switch)
and front door key cylinder switch driver side.
NG >> Replace front door key cylinder switch driver side. KEY CYL LK-SW : ON
PIIA6541E
Connector
Terminal (Wire color)
Front door key cylinder
switch position Voltage (V)
(Approx.)
(+) (-)
D6 4 (P) Ground Neutral / Unlock 5
Lock 0
PIIA6203E
Terminal Front door key cylinder switch position Continuity
15 Neutral / Unlock No
Lock Yes
PIIA6543E

BL-52
POWER DOOR LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
Check Front Door Key Cylinder Switch (Unlock) NIS001MF
1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (UNLOCK SIGNAL)
With CONSULT-II
Check front door key cylinder switch driver side (“KEY CYL UN-SW”)
in “DATA MONITOR” mode with CONSULT-II.

When key cylinder switch is turned to “UNLOCK”.
Without CONSULT-II
Check voltage between main power window switch (door lock and
unlock switch) connector and ground.
OK or NG
OK >> Front door key cylinder switch circuit driver side (unlock) is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR KEY CYLINDER SWITCH
1. Disconnect front door key cylinder switch driver side connector.
2. Check continuity between front door key cylinder switch driver side terminals 5 and 6.
OK or NG
OK >> Check the following.

Front door key cylinder switch driver side ground circuit

Harness for open or short between power window main switch (door lock and unlock switch)
and front door key cylinder switch driver side
NG >> Replace front door key cylinder switch driver side. KEY CYL UN-SW : ON
PIIA6542E
Connector
Terminal (Wire color)
Front door key cylinder
switch position Voltage (V)
(Approx.)
(+) (-)
D6 6 (OR) Ground Neutral / Lock 5
Unlock 0
PIIA6205E
Terminal Front door key cylinder switch position Continuity
56 Neutral / Lock No
Unlock Yes
PIIA6544E

POWER DOOR LOCK SYSTEM BL-53
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
Check Select Unlock Relay Circuit NIS001MG
1. CHECK SELECT UNLOCK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM, rear door lock actuator (LH and RH), and passenger side select unlock relay connector.
3. Check continuity between BCM connector M4 terminal 50 and passenger side select unlock relay connector M30 terminal 4.
4. Check continuity between passenger side select unlock relay connector M30 terminal 4 and ground.
5. Check continuity between passenger side select unlock relay connector M30 terminal 3 and rear door lock actuator connector
D52 (LH), D72 (RH) terminal 3.
6. Check continuity between passenger side unlock relay connec- tor M30 terminal 3 and ground.
OK or NG
OK >> Check passenger side select unlock relay.

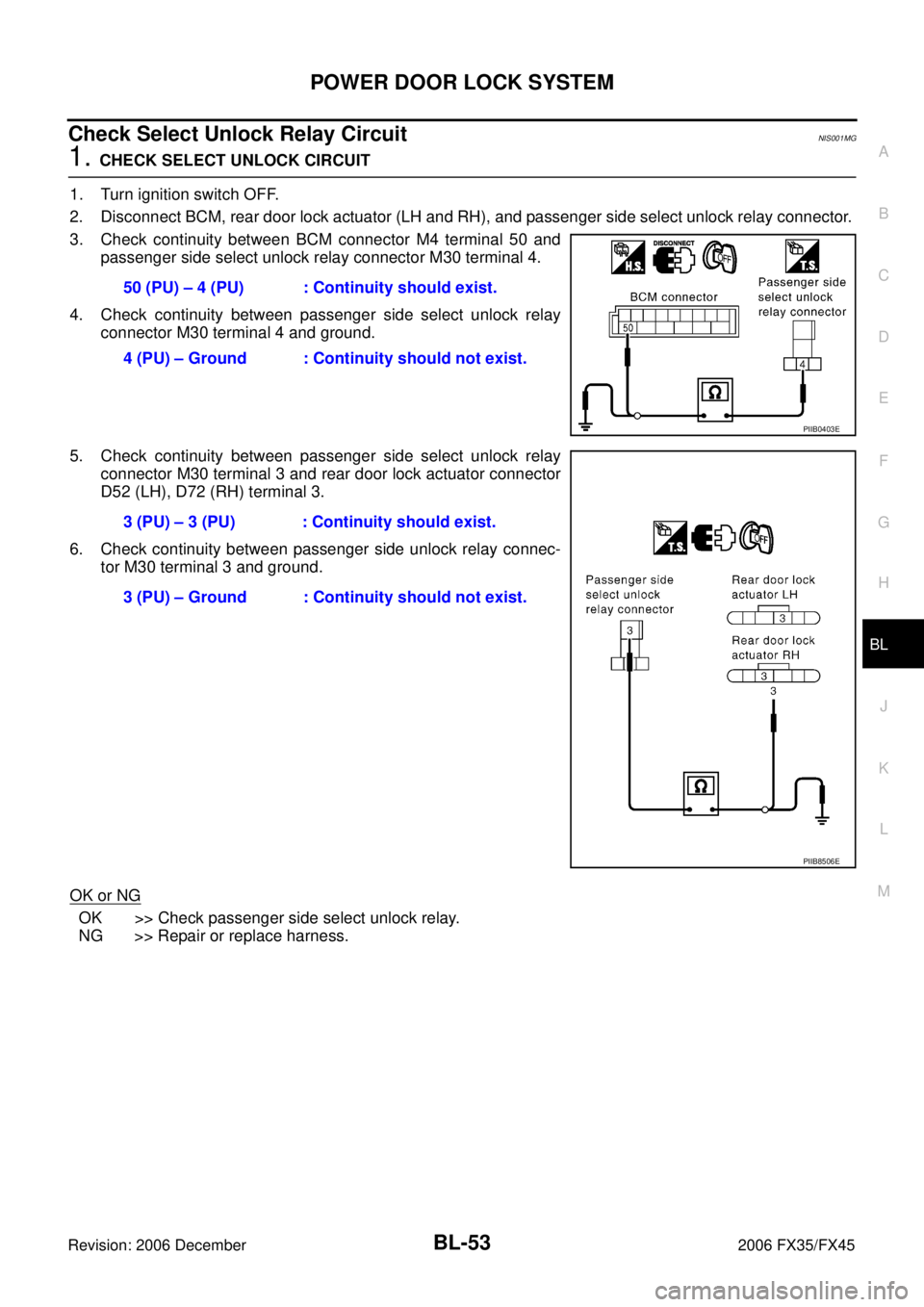

NG >> Repair or replace harness. 50 (PU) – 4 (PU) : Continuity should exist.
4 (PU) – Ground : Continuity should not exist.
PIIB0403E
3 (PU) – 3 (PU) : Continuity should exist.
3 (PU) – Ground : Continuity should not exist.
PIIB8506E

BL-54
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 December 2006 FX35/FX45
REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationNIS001MH
PIIB4074E

REMOTE KEYLESS ENTRY SYSTEM BL-55
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 December 2006 FX35/FX45
System DescriptionNIS001MI
INPUTS
Power is supplied at all times

to BCM terminal 55

through 50A fusible link (letter M , located in the fuse and fusible link box).

to BCM terminal 42

through 15A fuse [No. 22, located in the fuse block (J/B)].

to Horn relay terminal 2

through 15A fuse (No. 34, located in the fuse and fusible link box).
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

to BCM terminal 37

through key switch terminal 1 and 2

through 15A fuse [No. 22, located in the fuse block (J/B)].
When the ignition switch is ACC or ON, power is supplied

to BCM terminal 11

through 10A fuse [No. 6, located in the fuse block (J/B)].
When the ignition switch is ON or START, power is supplied

to BCM terminal 38

through 15A fuse [No. 1, located in the fuse block (J/B)].
When the front door switch (driver side) is ON (door is OPEN), ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1

through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch (passenger side) terminal 1

through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 63

through rear door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM meter terminal 13

through rear door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (door is open), ground is supplied

to BCM terminal 58

through back door closure motor (door switch) terminals 7 and 8

through body grounds B15 and B45
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).

to BCM terminal 20

from remote keyless entry system controls operation of the
The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

auto door lock

panic alarm

keyless power window down (open)

BL-56
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 December 2006 FX35/FX45

room lamp and key ring illumination
OPERATED PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from key fob. BCM locks all doors with input of LOCK signal from key fob.
When an UNLOCK signal is sent from key fob once, driver's door will be unlocked.
Then, if an UNLOCK signal is sent from key fob again within 5 seconds, all other door will be unlocked.
Power door lock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT” of “POWER DOOR LOCK SYSTEM”.
Refer to BL-65, "
Work Support" .
Power door lock operation mode can be changed also on the display.
Hazard and Horn Reminder
When the doors are locked or unlocked by key fob, power is supplied to hazard warning lamp and lamp flash
as follows

LOCK operation: C mode (flash twice) or S mode (flash twice)

UNLOCK operation: C mode (flash once) or S mode (do not flash)
BCM outputs to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
Operating function of hazard and horn reminder
Hazard and horn reminder do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-II
Hazard and horn reminder can be changed using “MULTI ANSWER BACK SET” mode in “WORK SUPPORT”.
Refer to BL-65, "
Work Support" .
Without CONSULT-II
When LOCK and UNLOCK signals are sent from the key fob for more than 2 seconds at the same time, the
hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the key fob:

when door switch is turned ON for open.

when the key switch is turned ON.

when the lock signal is sent from the key fob.
Auto door lock mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.
Refer to BL-65, "
Work Support" .
Auto door lock mode can be changed also on the display.
C mode S mode
Remote controller
operation Lock Unlock Lock Unlock
Hazard warning lamp
flash Twice Once Twice —
Horn sound Once — — —
SEL153WA
