TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45

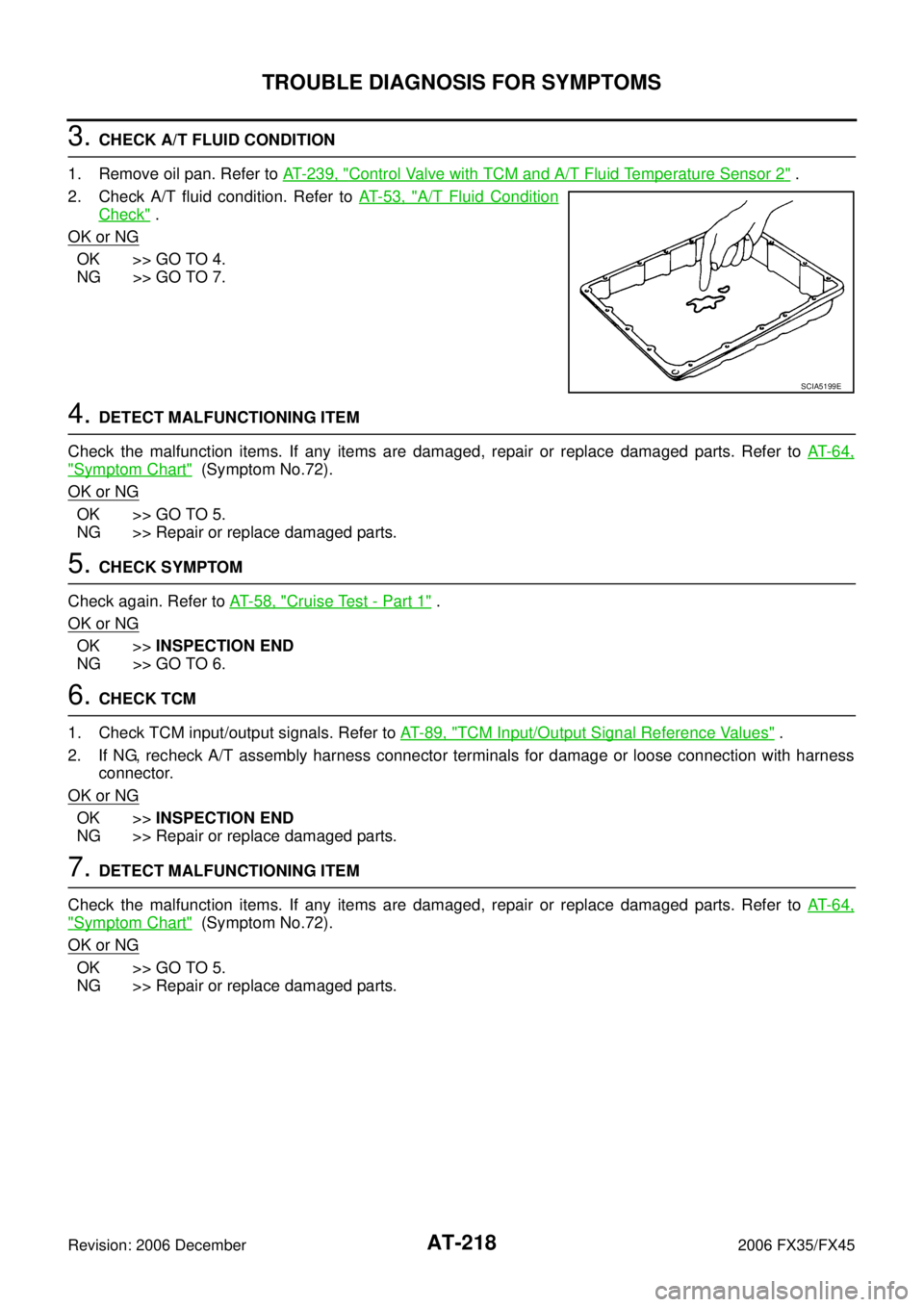

3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 7.
4. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.72).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test - Part 1" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.72).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SCIA5199E

AT-220
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45

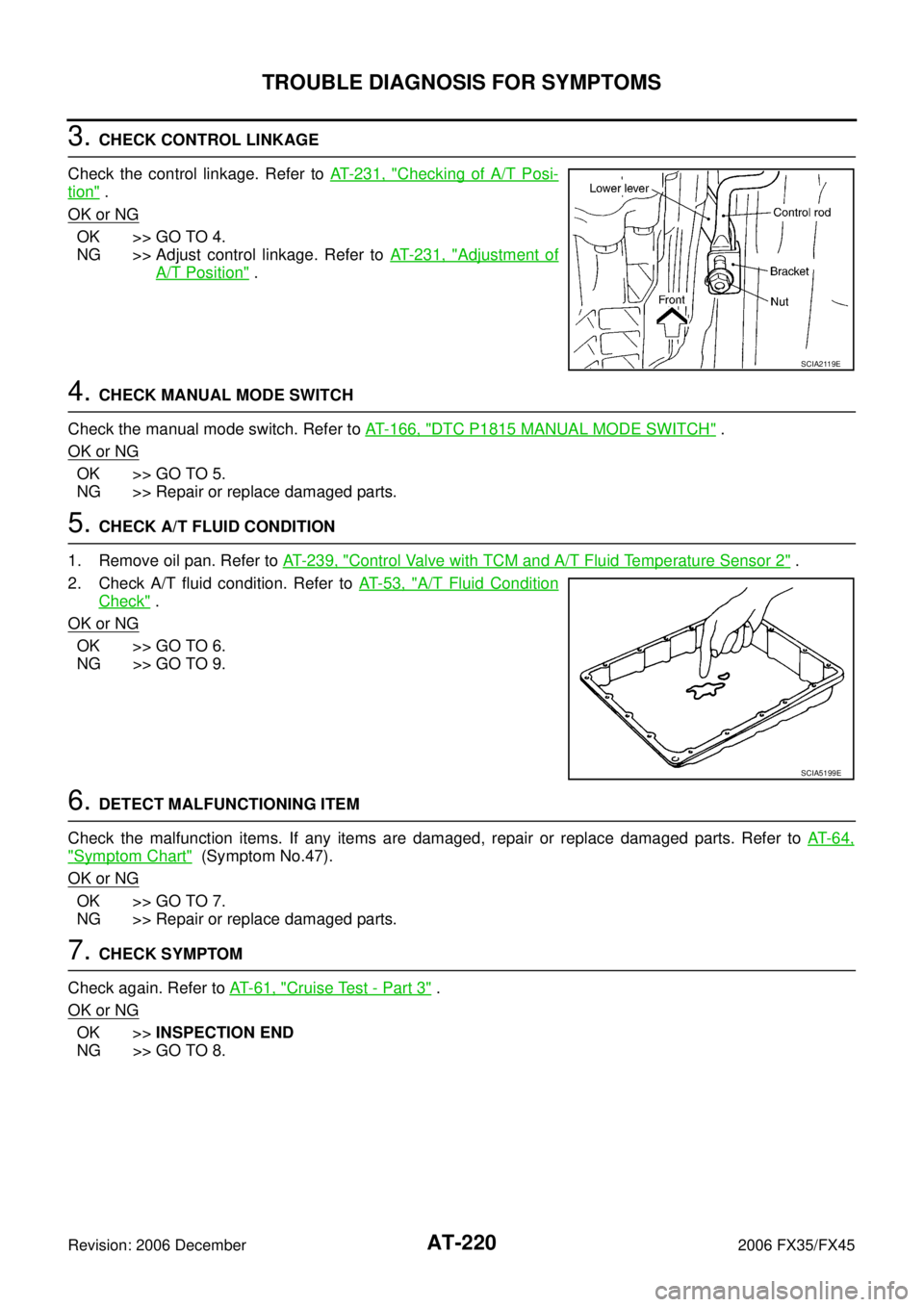

3. CHECK CONTROL LINKAGE
Check the control linkage. Refer to AT- 2 3 1 , "
Checking of A/T Posi-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control linkage. Refer to AT- 2 3 1 , "
Adjustment of
A/T Position" .

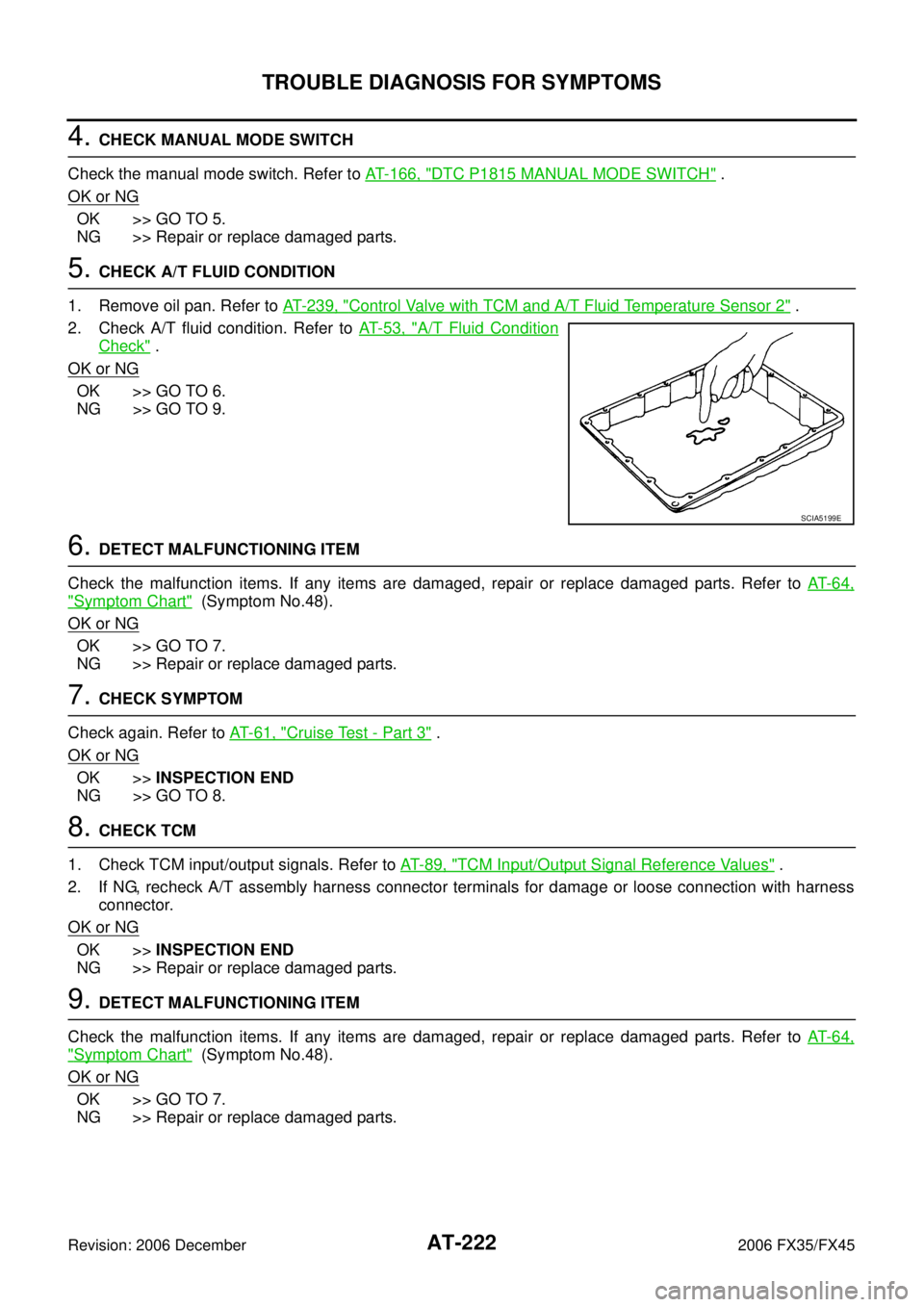

4. CHECK MANUAL MODE SWITCH
Check the manual mode switch. Refer to AT- 1 6 6 , "
DTC P1815 MANUAL MODE SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.47).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 1 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
SCIA2119E
SCIA5199E

AT-222
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
4. CHECK MANUAL MODE SWITCH
Check the manual mode switch. Refer to AT- 1 6 6 , "
DTC P1815 MANUAL MODE SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.48).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 1 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.48).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SCIA5199E

AT-224
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.49).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 1 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.49).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SCIA5199E

AT-226
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.50).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 1 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.50).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SCIA5199E

AT-228
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 1 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SCIA5199E

AT-234
A/T SHIFT LOCK SYSTEM
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNCS001IC
SYMPTOM 1:

Selector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.

Selector lever can be moved from “P” position with key in ON position and brake pedal released.

Selector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:

Ignition key cannot be removed when selector lever is set to “P” position.

Ignition key can be removed when selector lever is set to any position except “P” position.
1. CHECK KEY INTERLOCK CABLE
Check the key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace key interlock cable. Refer to AT- 2 3 6 , "
KEY INTERLOCK CABLE" .
2. CHECK SELECTOR LEVER POSITION
Check the selector lever position for damage. Refer to AT- 2 3 1 , "
Checking of A/T Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust A/T position. Refer to AT- 2 3 1 , "
Adjustment of A/T Position" .
3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Connect A/T device harness connector.
2. Turn ignition switch ON. (Do not start engine.)
3. Selector lever is set in “P” position.
4. Check operation.
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
4. CHECK POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check the voltage between A/T device harness connector M67 terminal 1 and ground. Refer to AT- 2 3 3 , "
Wiring Diagram — AT
— SHIFT" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
Condition Brake pedal Operation
When ignition switch is turned to ON and selector lever is set in
“P” position. Depressed Yes
Released No
Condition Brake pedal Data (Approx.)
When ignition switch is turned to
ON. Depressed Battery voltage
Released 0 V
SCIA2122E

A/T SHIFT LOCK SYSTEM AT-235
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
5. CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch harness connector E210 terminals 3 and 4.
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
Check the following items. If any items are damaged, repair or replace damaged parts.

Harness for short or open between ignition switch and stop lamp switch harness connector E210 terminal
3.

Harness for short or open between stop lamp switch harness connector E210 terminal 4 and A/T device
harness connector M67 terminal 1.

10 A fuse [No.12, located in the fuse block (J/B)].

Ignition switch, Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
7. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness connector M67 terminal 2 and ground.
OK or NG
OK >> Replace shift lock solenoid and park position switch assembly.
NG >> Repair open circuit in harness or connectors.
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2126E
Continuity should exist.
SCIA2125E

ATC-1
AUTOMATIC AIR CONDITIONER
J AIR CONDITIONER
CONTENTS
C
D E
F
G H
I
K L
M
SECTION AT C
A
B
AT C
Revision: 2006 December 2006 FX35/FX45
AUTOMATIC AIR CONDITIONER
PRECAUTIONS ..................................................... ..... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 5
OPERATION PROCEDURE ............................ ..... 5
Precautions for Procedures without Cowl Top Cover ..... 6
Precautions for Working with HFC-134a (R-134a) ..... 6
CONTAMINATED REFRIGERANT .................. ..... 7
General Refrigerant Precautions ......................... ..... 7
Precautions for Refrigerant Connection .............. ..... 8
ABOUT ONE-TOUCH JOINT ........................... ..... 8
FEATURES OF NEW TYPE REFRIGERANT
CONNECTION ................................................. ... 10
O-RING AND REFRIGERANT CONNECTION .... 11
Precautions for Servicing Compressor ................ ... 13
Precautions for Service Equipment ..................... ... 13
RECOVERY/RECYCLING EQUIPMENT ......... ... 13
ELECTRICAL LEAK DETECTOR .................... ... 13
VACUUM PUMP .............................................. ... 14
MANIFOLD GAUGE SET ................................. ... 14
SERVICE HOSES ............................................ ... 14
SERVICE COUPLERS ..................................... ... 15
REFRIGERANT WEIGHT SCALE ................... ... 15
CHARGING CYLINDER ................................... ... 15
Precautions for Leak Detection Dye .................... ... 16
IDENTIFICATION ............................................. ... 16
IDENTIFICATION LABEL FOR VEHICLE ........ ... 16
PREPARATION ...................................................... ... 17
Special Service Tools .......................................... ... 17
HFC-134a (R-134a) Service Tools and Equipment ... 18
Commercial Service Tools ................................... ... 20
REFRIGERATION SYSTEM .................................. ... 21
Refrigerant Cycle ................................................ ... 21
REFRIGERANT FLOW .................................... ... 21
FREEZE PROTECTION .................................. ... 21
Refrigerant System Protection ............................ ... 21
REFRIGERANT PRESSURE SENSOR .......... ... 21
PRESSURE RELIEF VALVE ............................ ... 21 V-6 Variable Displacement Compressor ..............
... 22
GENERAL INFORMATION .............................. ... 22
DESCRIPTION ................................................. ... 23
Component Layout .............................................. ... 26
LUBRICANT ........................................................... ... 27
Maintenance of Lubricant Quantity in Compressor ... 27
LUBRICANT ..................................................... ... 27
LUBRICANT RETURN OPERATION ............... ... 27
LUBRICANT ADJUSTING PROCEDURE FOR
COMPONENTS REPLACEMENT EXCEPT
COMPRESSOR ............................................... ... 28
LUBRICANT ADJUSTING PROCEDURE FOR
COMPRESSOR REPLACEMENT .................... ... 29
AIR CONDITIONER CONTROL ............................ ... 30
Description of Air Conditioner LAN Control System ... 30
System Construction ........................................... ... 30
OPERATION ..................................................... ... 30
TRANSMISSION DATA AND TRANSMISSION
ORDER ............................................................ ... 31
AIR MIX DOOR CONTROL (AUTOMATIC TEM-
PERATURE CONTROL) .................................. ... 32
FAN SPEED CONTROL ................................... ... 32
INTAKE DOOR CONTROL .............................. ... 32
MODE DOOR CONTROL ................................ ... 32
MAGNET CLUTCH CONTROL ........................ ... 33
SELF-DIAGNOSIS SYSTEM ........................... ... 33
Description of Control System ............................. ... 34
Control Operation ................................................ ... 34
DISPLAY SCREEN ........................................... ... 35
AUTO SWITCH ................................................ ... 35
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (DRIVER
SIDE) ................................................................ ... 35
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (PASSEN-
GER SIDE) ....................................................... ... 35
INTAKE SWITCH .............................................. ... 35
DEFROSTER (DEF) SWITCH .......................... ... 35
REAR WINDOW DEFOGGER SWITCH .......... ... 35
OFF SWITCH ................................................... ... 35

PRECAUTIONS ATC-7
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
CONTAMINATED REFRIGERANT
If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, take appropriate steps
shown below:

Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant
into the atmosphere.

Explain that recovery of the contaminated refrigerant could damage service equipment and refrigerant
supply.

Suggest the customer return the vehicle to the location of previous service where the contamination may
have occurred.

In case of repairing, recover the refrigerant using only dedicated equipment and containers. Never
recover contaminated refrigerant into the existing service equipment. If the facility does not have
dedicated recovery equipment, contact a local refrigerant product retailer for available service. This refrig-
erant must be disposed of in accordance with all federal and local regulations. In addition, replacement of
all refrigerant system components on the vehicle is recommended.

If the vehicle is within the warranty period, the air conditioner warranty is void. Please contact Nissan Cus-
tomer Affairs for further assistance.
General Refrigerant PrecautionsNJS000D9
WARNING:

Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) from the A/C system, using certified service equipment meet-
ing requirements of SAE J-2210 [HFC-134a (R-134a) recycling equipment], or J-2209 [HFC-134a (R-
134a) recovery equipment]. If accidental system discharge occurs, ventilate work area before
resuming service. Additional health and safety information may be obtained from refrigerant and
lubricant manufacturers.

Never release refrigerant into the air. Use approved recovery/recycling equipment to capture the
refrigerant every time an air conditioning system is discharged.

Always wear eye and hand protection (goggles and gloves) when working with any refrigerant or
air conditioning system.

Never store or heat refrigerant containers above 52 °C (126 °F).

Never heat a refrigerant container with an open flame; if container warming is required, place the
bottom of the container in a warm pail of water.

Never intentionally drop, puncture, or incinerate refrigerant containers.

Keep refrigerant away from open flames: poisonous gas will be produced if refrigerant burns.

Refrigerant will displace oxygen, therefore be certain to work in well ventilated areas to prevent
suffocation.

Never pressure test or leak test HFC-134a (R-134a) service equipment and/or vehicle air condition-
ing systems with compressed air during repair. Some mixtures of air and HFC-134a (R-134a) have
been shown to be combustible at elevated pressures. These mixtures, if ignited, may cause injury
or property damage. Additional health and safety information may be obtained from refrigerant
manufacturers.
