ATC-70
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Mode Door Control Specification
COMPONENT DESCRIPTION
Mode Door Motor
The mode door motor is attached to the heater & cooling unit assem-
bly. It rotates so that air is discharged from the outlet set by the uni-
fied meter and A/C amp. Motor rotation is conveyed to a link which
activates the mode door.
DIAGNOSIS PROCEDURE FOR MODE DOOR MOTOR
SYMPTOM: Mode door motor does not operate normally.
Perform diagnosis procedure. Refer to AT C - 6 4 , "
DIAGNOSIS PROCEDURE FOR LAN CIRCUIT" .
RJIA1778E
RJIA0890E

TROUBLE DIAGNOSIS ATC-73
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
COMPONENT DESCRIPTION

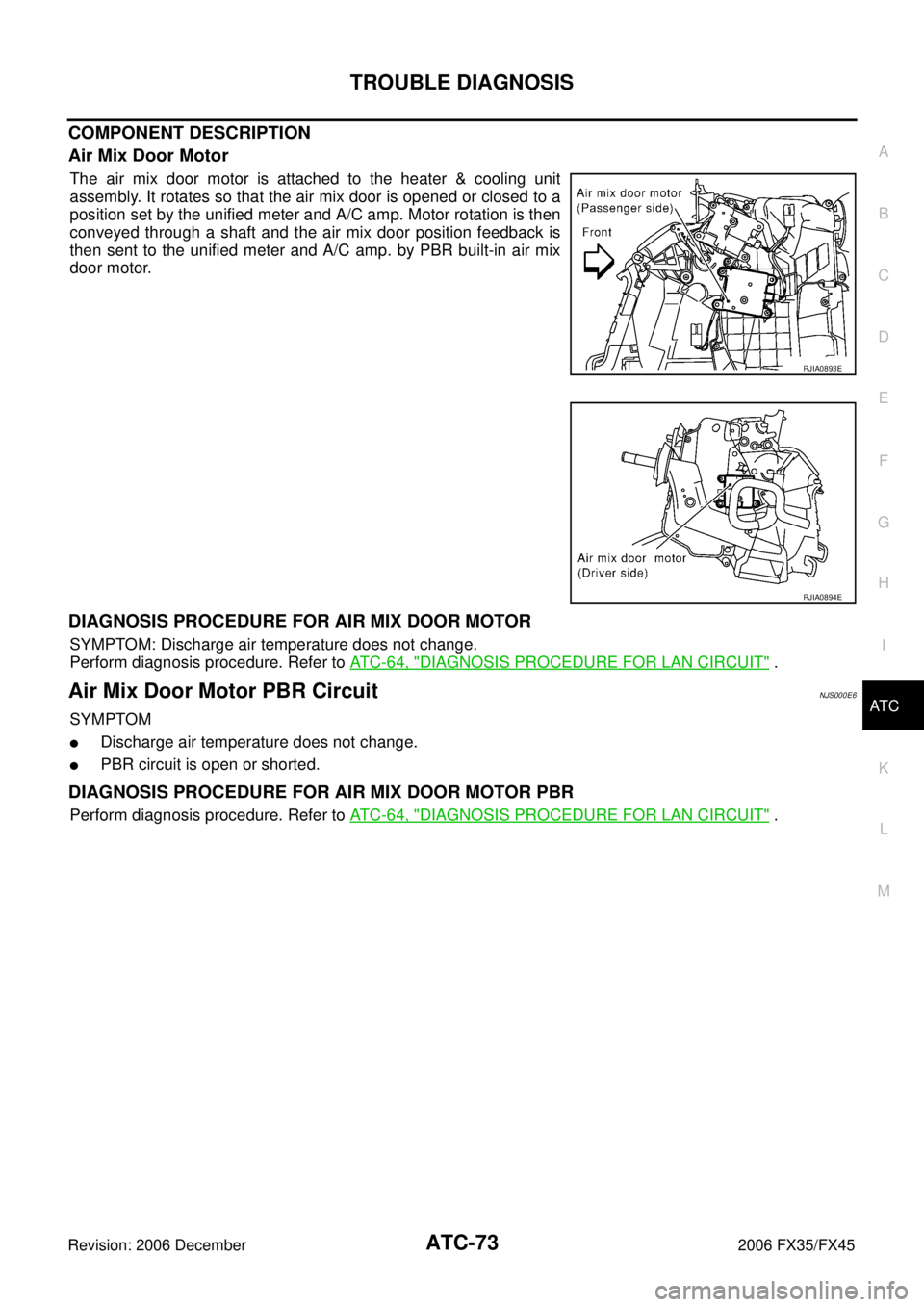

Air Mix Door Motor
The air mix door motor is attached to the heater & cooling unit
assembly. It rotates so that the air mix door is opened or closed to a
position set by the unified meter and A/C amp. Motor rotation is then
conveyed through a shaft and the air mix door position feedback is
then sent to the unified meter and A/C amp. by PBR built-in air mix
door motor.
DIAGNOSIS PROCEDURE FOR AIR MIX DOOR MOTOR
SYMPTOM: Discharge air temperature does not change.
Perform diagnosis procedure. Refer to AT C - 6 4 , "
DIAGNOSIS PROCEDURE FOR LAN CIRCUIT" .
Air Mix Door Motor PBR CircuitNJS000E6
SYMPTOM

Discharge air temperature does not change.

PBR circuit is open or shorted.
DIAGNOSIS PROCEDURE FOR AIR MIX DOOR MOTOR PBR
Perform diagnosis procedure. Refer to AT C - 6 4 , "DIAGNOSIS PROCEDURE FOR LAN CIRCUIT" .
RJIA0893E
RJIA0894E

ATC-106
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
In-vehicle Sensor CircuitNJS000EG
COMPONENT DESCRIPTION
In-vehicle Sensor
The in-vehicle sensor is located on instrument driver lower panel. It
converts variations in temperature of compartment air drawn from
the aspirator into a resistance value. It is then input into the unified
meter and A/C amp.
Aspirator
The aspirator is located on driver’s side of heater & cooling unit
assembly. It produces vacuum pressure due to air discharged from
the heater & cooling unit assembly, continuously taking compartment
air in the aspirator.
RJIA2021E
RJIA0921E
RJIA1804E

ATC-112
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Intake Sensor CircuitNJS000EI
COMPONENT DESCRIPTION
Intake Sensor
The intake sensor is located on the heater & cooling unit assembly. It
converts temperature of air after it passes through the evaporator
into a resistance value which is then input to the unified meter and A/
C amp.
DIAGNOSIS PROCEDURE FOR INTAKE SENSOR
SYMPTOM: Intake sensor circuit is open or shorted. (24 or −24 is
indicated on unified meter and A/C amp. as a result of performing
self-diagnosis STEP-2.)
1. CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND
1. Disconnect intake sensor connector.
2. Turn ignition switch ON.
3. Check voltage between intake sensor harness connector M254 terminal 2 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.
3. Check continuity between intake sensor harness connector M254 terminal 1 and unified meter and A/C amp. harness con-
nector M57 terminal 49.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
RJIA0928E
RJIA1458E
2 – Ground : Approx. 5 V
RJIA2031E
1 – 49 : Continuity should exist.
RJIA2032E

HEATER & COOLING UNIT ASSEMBLY ATC-125
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
HEATER & COOLING UNIT ASSEMBLYPFP:27110
Removal and InstallationNJS000EU
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Drain coolant from cooling system. Refer to CO-11, "
Changing Engine Coolant" (VQ35DE) or CO-38,
"Changing Engine Coolant" (VK45DE).
3. Remove cowl top cover. Refer to EI-23, "
COWL TOP" .
4. Remove high-pressure pipe 2 mounting clip.
5. Remove low-pressure flexible hose bracket mounting bolt. Refer to ATC-146, "
Removal and Installation of
Low-pressure Flexible Hose" .
6. Disconnect low-pressure pipe 1 and high-pressure pipe 2 from evaporator.
a. Set a disconnector [high-pressure side (SST: 9253089908), low- pressure side (SST: 9253089916)] on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
7. Remove electric throttle control actuator (VQ35DE). Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
8. Disconnect two heater hoses from heater core.
9. Remove instrument panel assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
10. Remove blower unit. Refer to ATC-120, "
BLOWER UNIT" .
RJIA2037E
RJIA2041E
RJIA2077E

ATC-126
HEATER & COOLING UNIT ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
11. Remove mounting nuts and bolts, and then remove instrument stays (left and right side).
12. Remove mounting bolts from heater & cooling unit assembly.
13. Disconnect drain hose.
14. Remove center and side ventilator ducts, defroster nozzle and side defroster ducts. Refer to ATC-134,
"Removal of Defroster Nozzle, Ducts and Ventilator Ducts" .
15. Remove steering column mounting bolts and nut.
16. Remove steering member mounting bolts, nut and harness clips.
17. Remove steering member, and then remove heater & cooling unit assembly.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. slowly insert the male-side piping
straight in axial direction.
RJIA2042E
SJIA1223E
SJIA1656E

HEATER & COOLING UNIT ASSEMBLY ATC-127
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
NOTE:

When filling radiator with coolant, refer to CO-11, "Changing Engine Coolant" (VQ35DE) or CO-38,
"Changing Engine Coolant" (VK45DE).

Recharge the refrigerant.
Heater & cooling unit assembly mounting bolt : 6.8 N·m (0.69 kg-m, 60 in-lb)
Steering member mounting nut and bolt : 12 N·m (1.2 kg-m, 9 fl-lb)
Steering column mounting nut and bolt : 16.7 N·m (1.7 kg-m, 12 fl-lb)

ATC-128
HEATER & COOLING UNIT ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
Disassembly and AssemblyNJS000EV
1. Heater pipe grommet 2. Heater core 3. Heater pipe cover
4. Aspirator 5. Aspirator hose 6. Air mix door motor (driver side)
7. Air mix door (slide door) 8. Max. cool door link 9. Max. cool door lever
10. Ventilator door lever 11. Ventilator door link 12. Air mix door motor (passenger side)
13. Intake sensor bracket 14. Intake sensor 15. Foot duct (right)
16. Evaporator cover 17. Evaporator cover adaptor 18. Heater pipe bracket
SJIA1645E

HEATER & COOLING UNIT ASSEMBLY ATC-129
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
19. Insulator 20. Heater case (right) 21. Low-pressure pipe 2
22. High-pressure pipe 3 23. Expansion valve 24. Evaporator
25. Heater case (left) 26. Foot duct (left) 27. Center case
28. Max. cool door (left) 29. Ventilator door 30. Side link
31. Mode door motor 32. Defroster door 33. Max. cool door (right)
34. Defroster door lever 35. Defroster door link
