INFINITI FX35 2007 Service Manual AV-54
INTEGRATED DISPLAY SYSTEM
Revision: 2006 July 2007 FX35/FX45
INTEGRATED DISPLAY SYSTEMPFP:28090
System DescriptionNKS003IZ
For system operation information, refer to Owners Manual.
INTEGRATED D

AV-54
INTEGRATED DISPLAY SYSTEM
Revision: 2006 July 2007 FX35/FX45
INTEGRATED DISPLAY SYSTEMPFP:28090
System DescriptionNKS003IZ
For system operation information, refer to Owner's Manual.

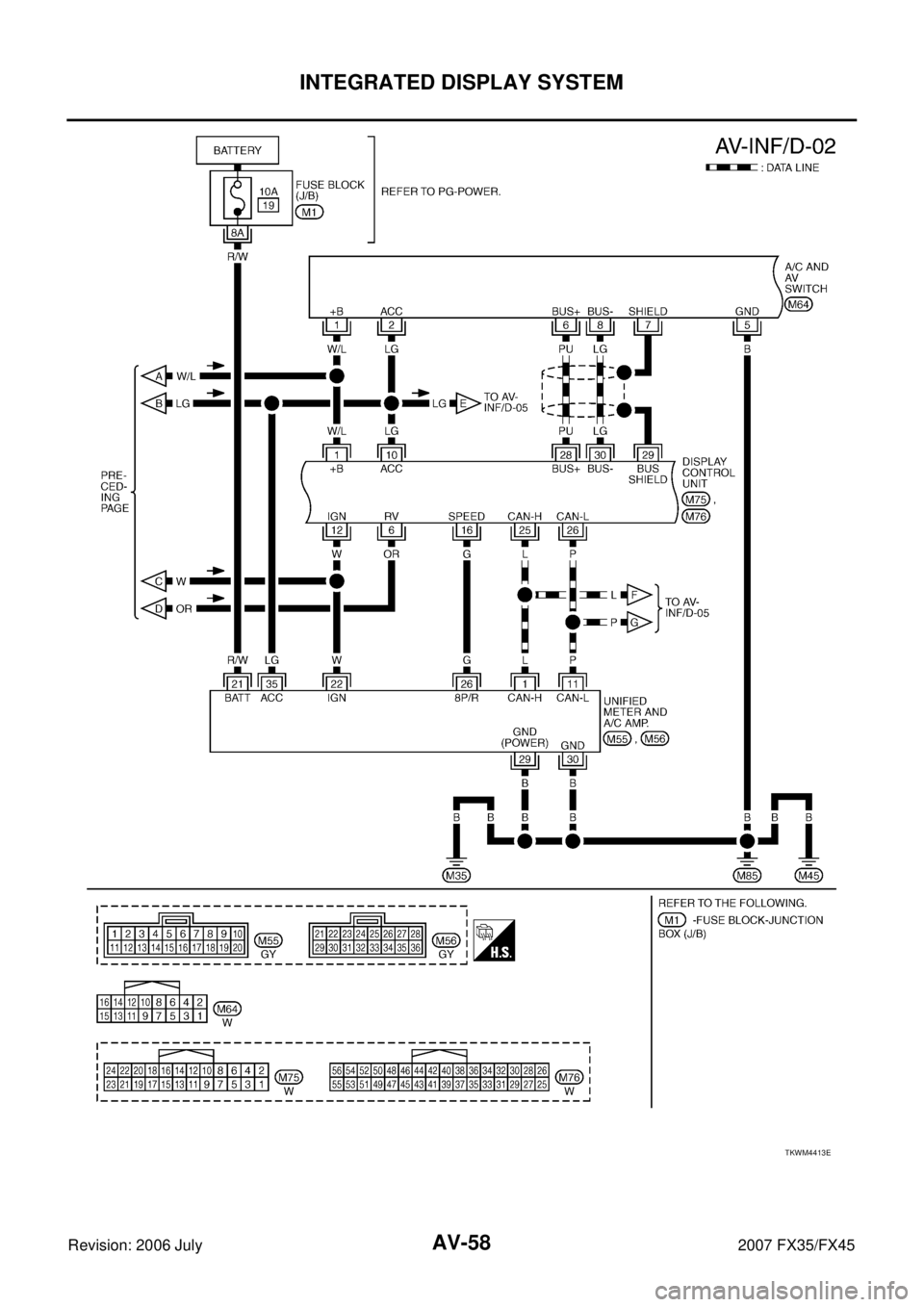

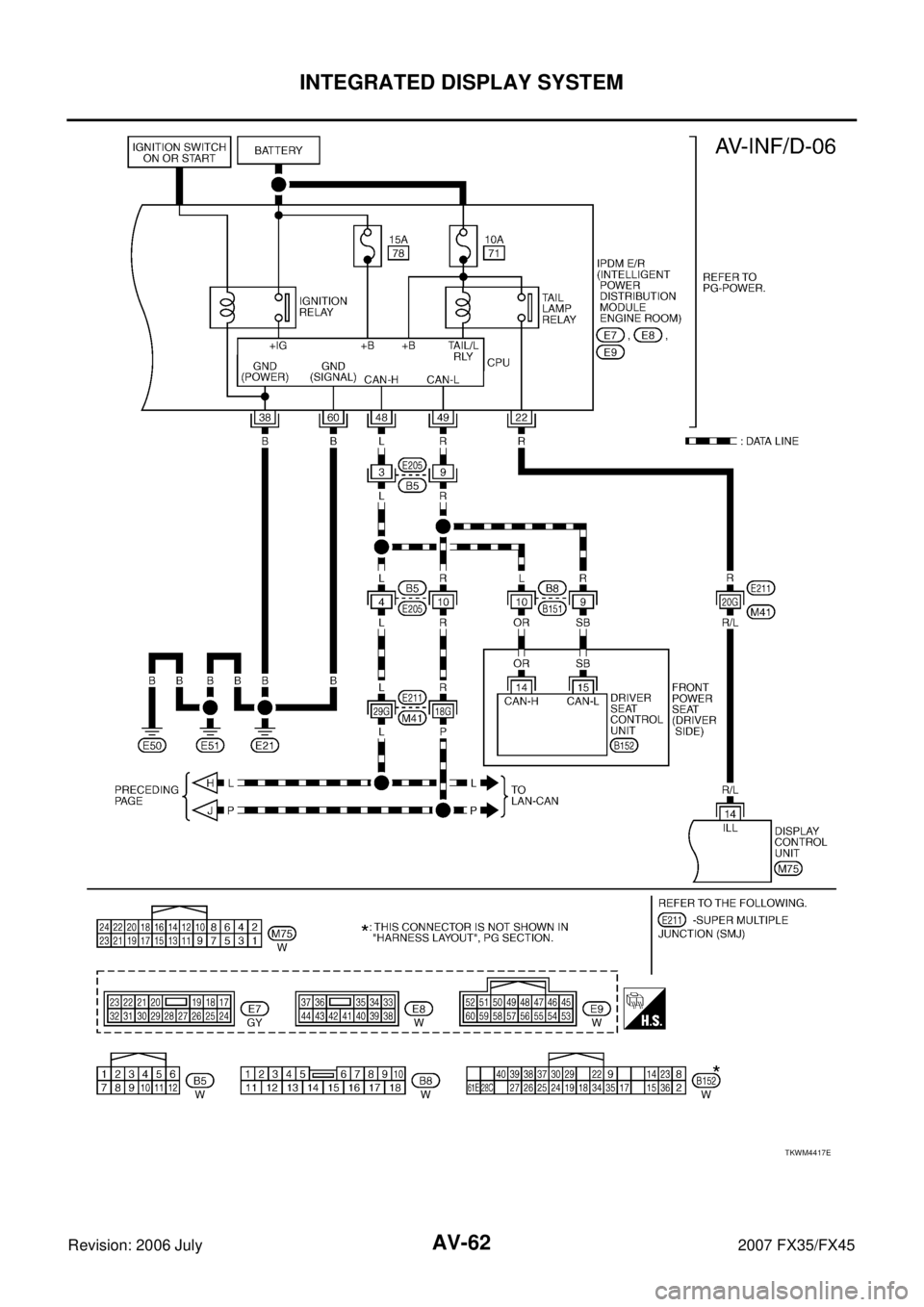

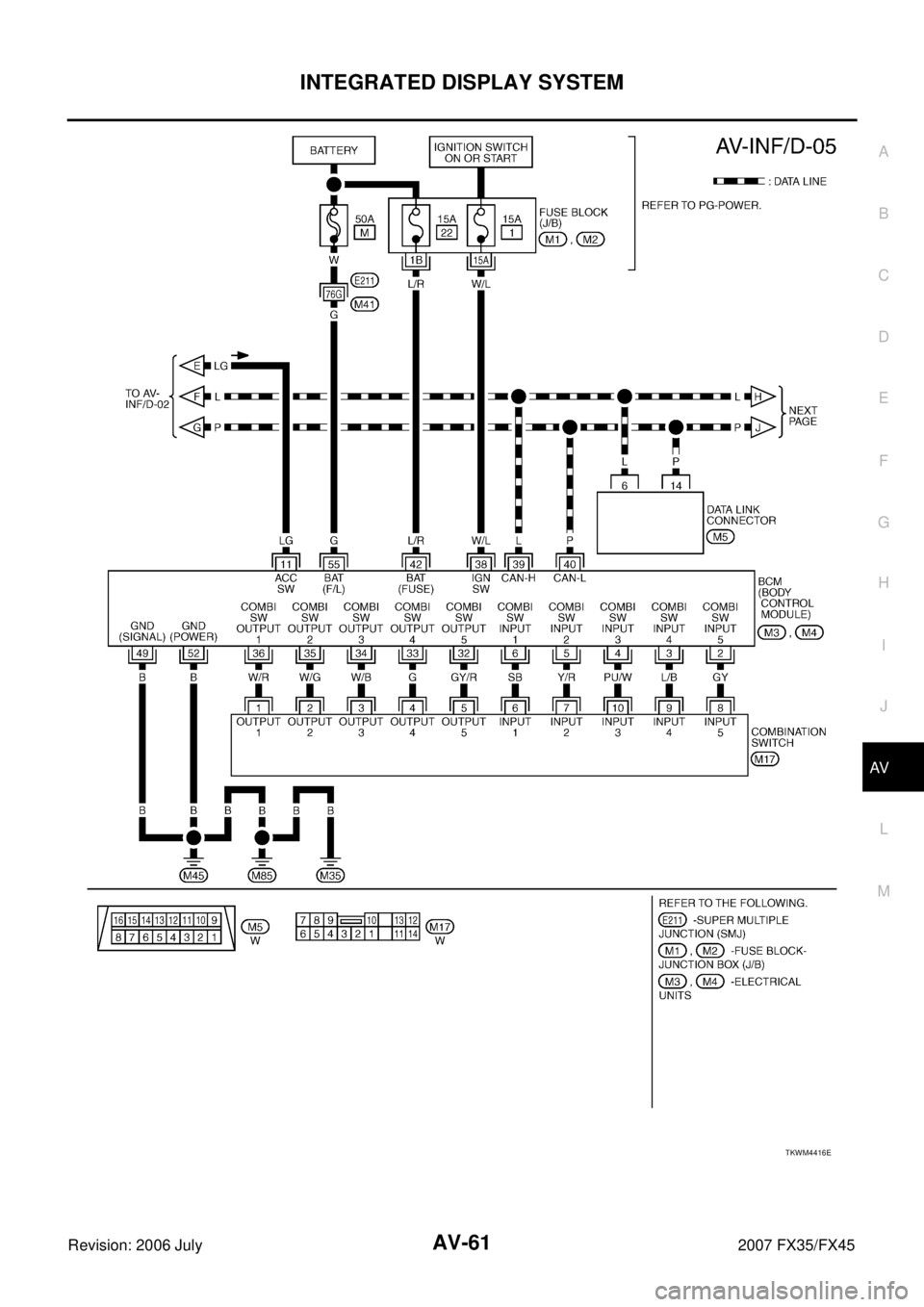

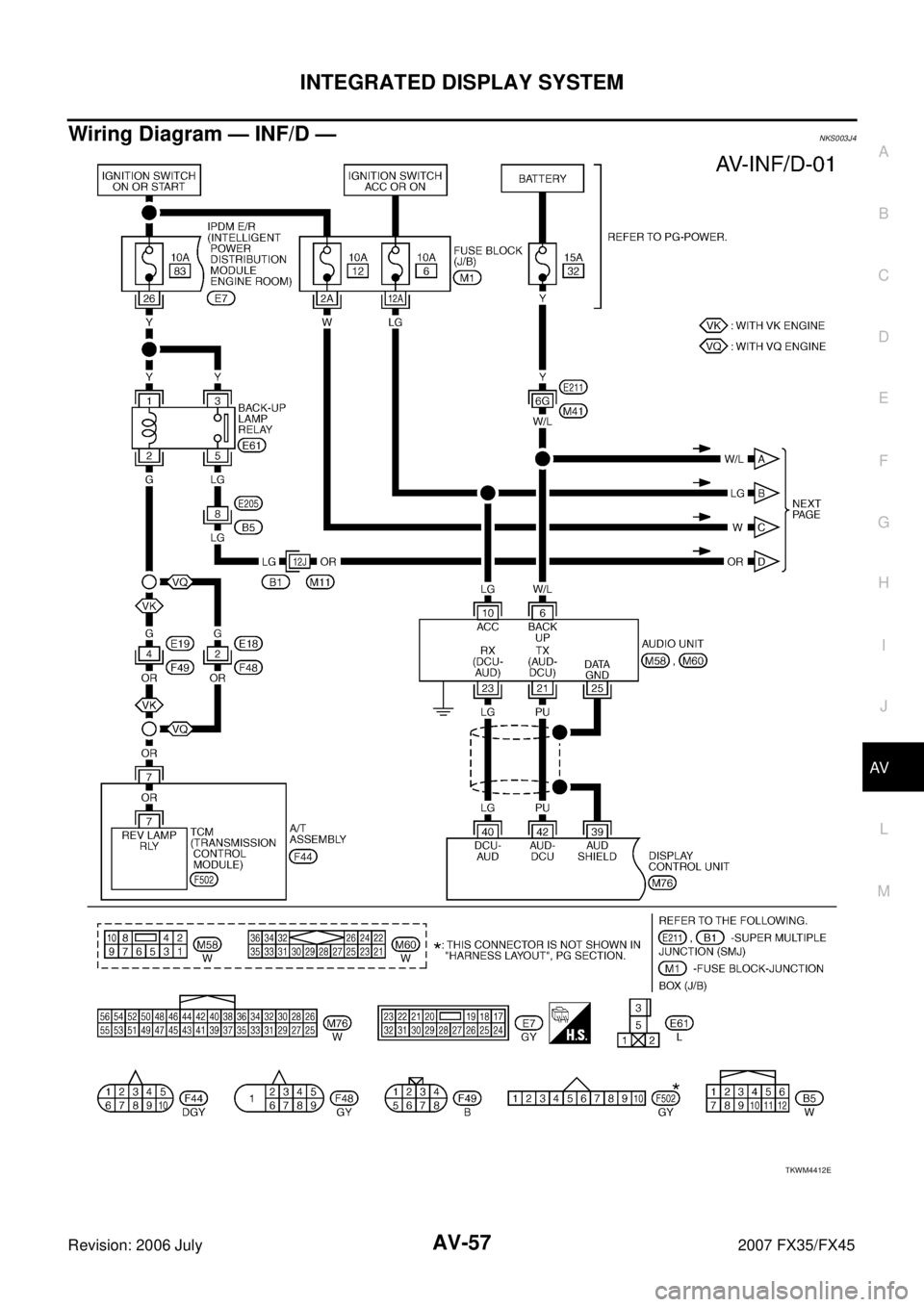

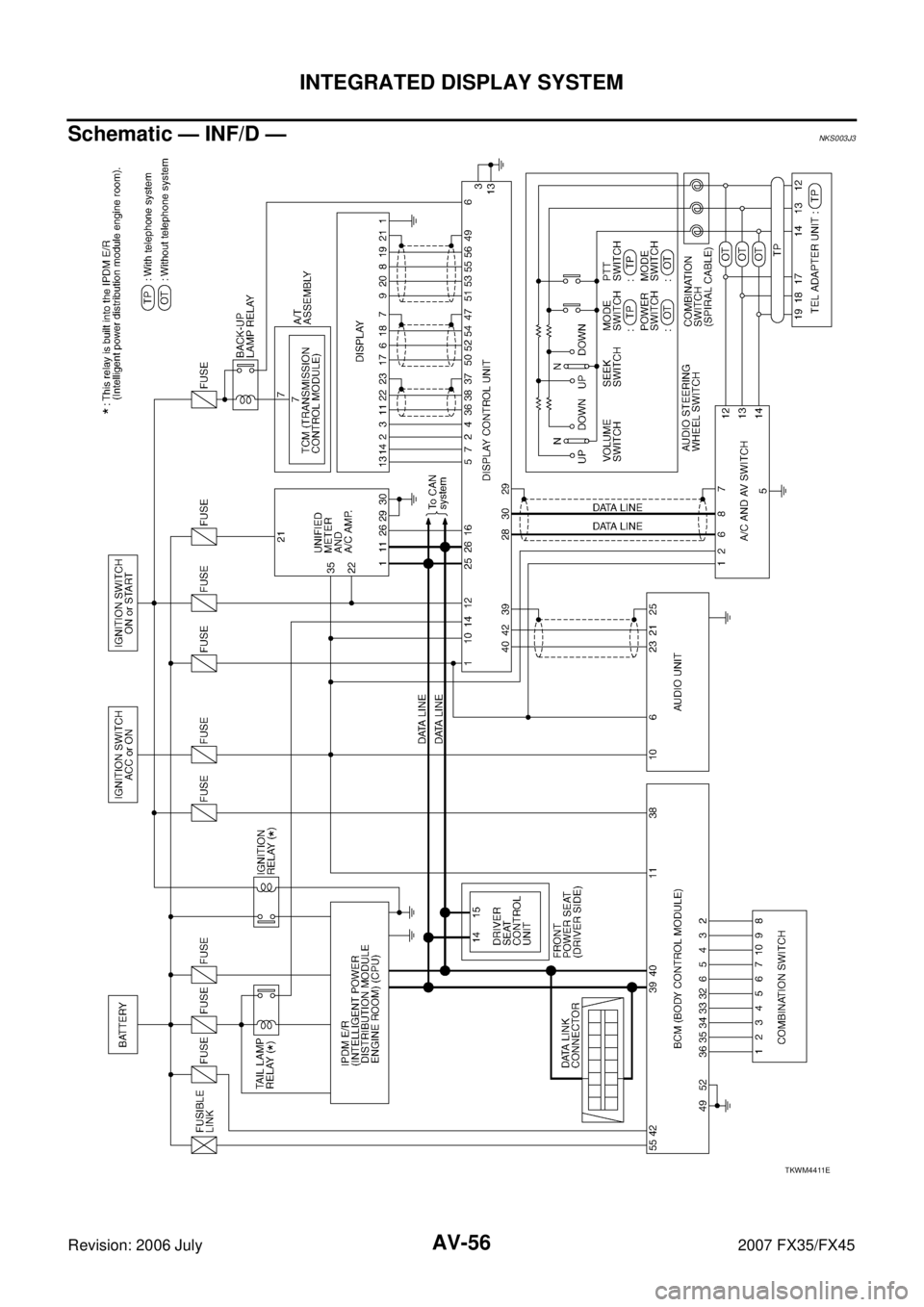

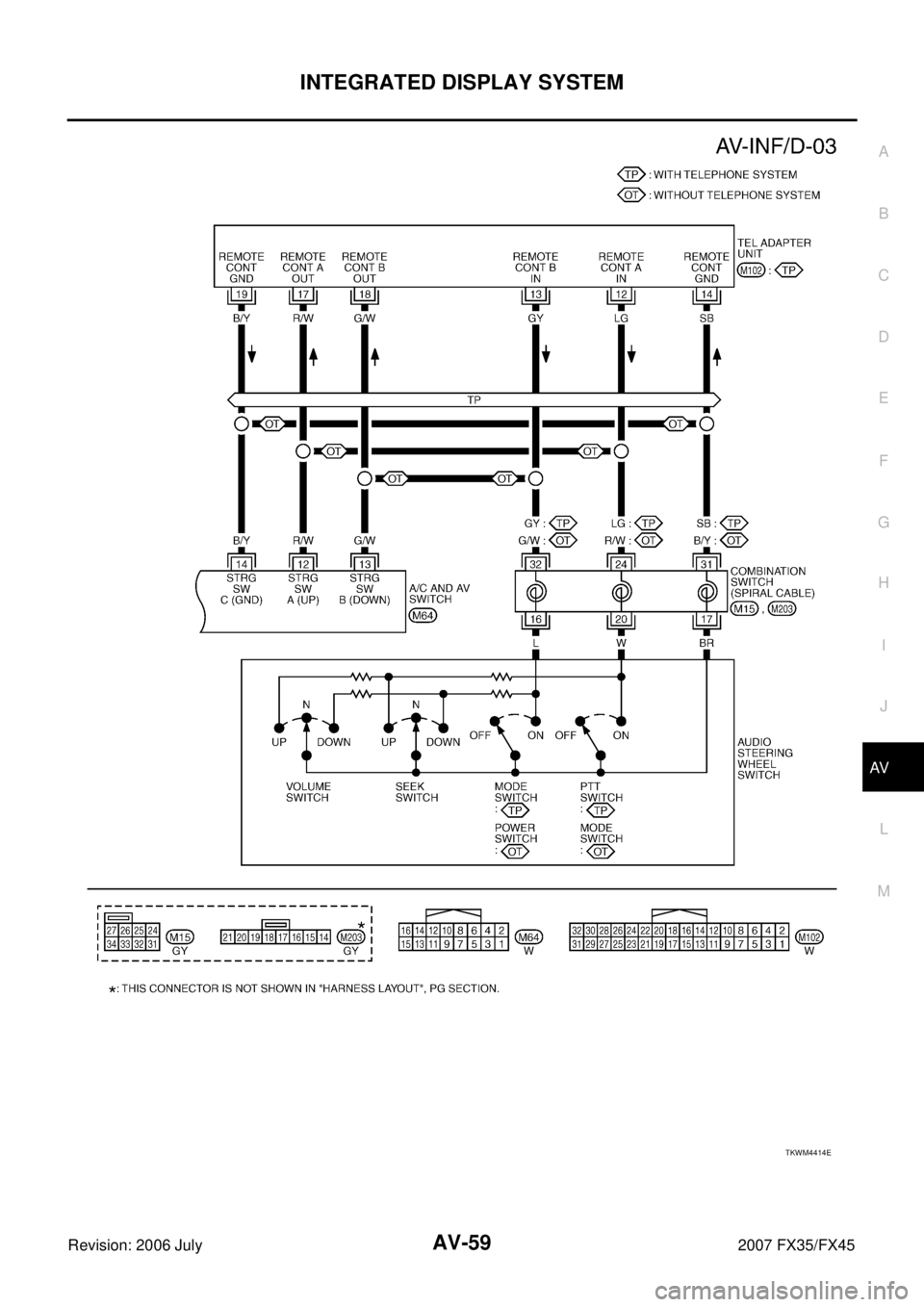

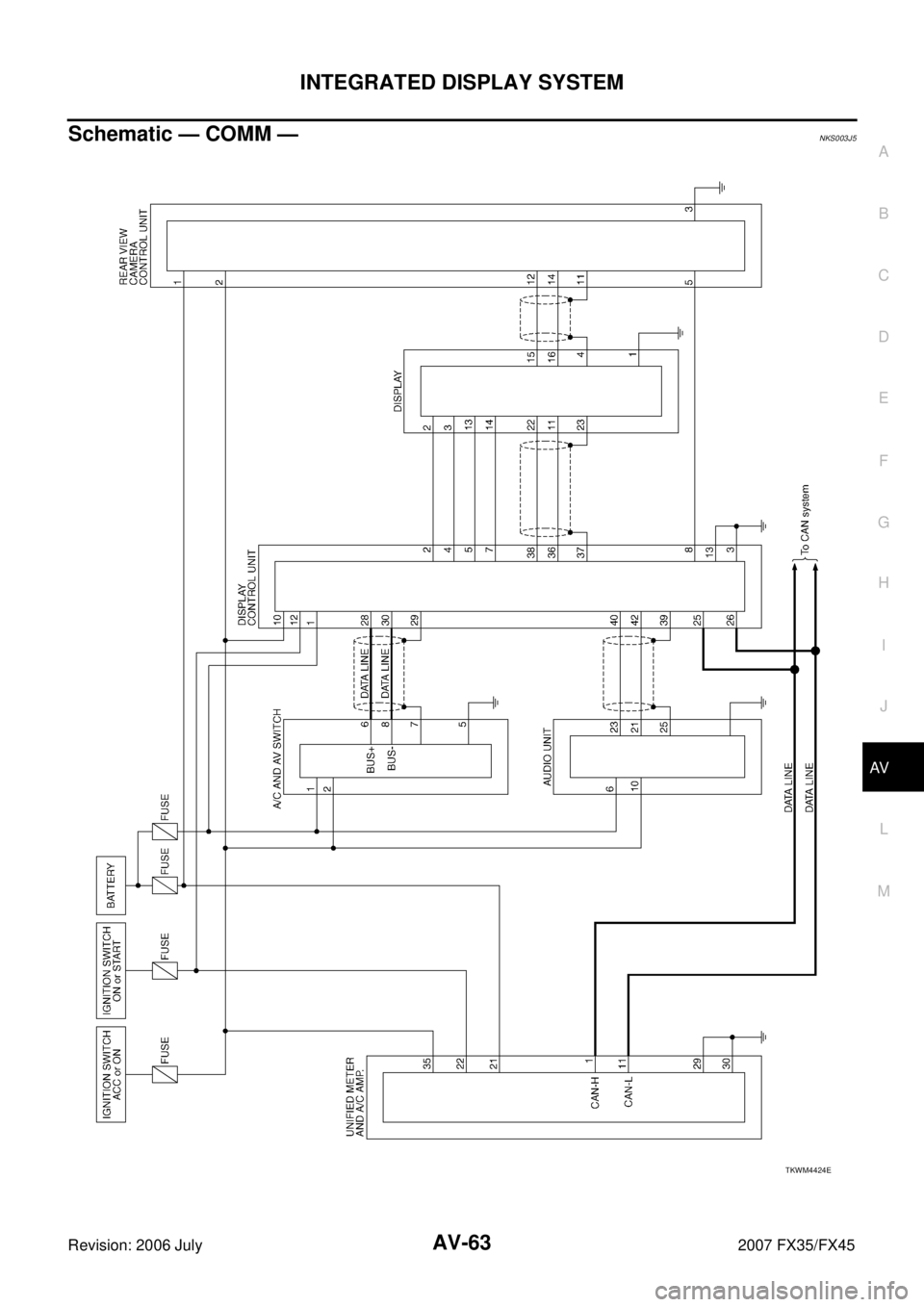

INTEGRATED DISPLAY SYSTEM
Each control unit that comprises the system is connected with a communication circuit. It transmits/
receives data signals including request signals and response signals, and controls the system.
The display control unit transmits/receives data signals to/from each control unit with CAN communica-
tion. It performs an arithmetical operation on fuel information values by using data obtained from the con-
trol units, and then displays the calculated values on the screen.
The display control unit receives door switch signals from the BCM with CAN communication, and dis-
plays a warning on the screen when driving over the set speed with a door half-shut.
The display control unit receives vehicle speed signals that are transmitted from the unified meter and A/
C amp., performs an arithmetical operation on drive information values, and then displays the calculated
values on the screen.

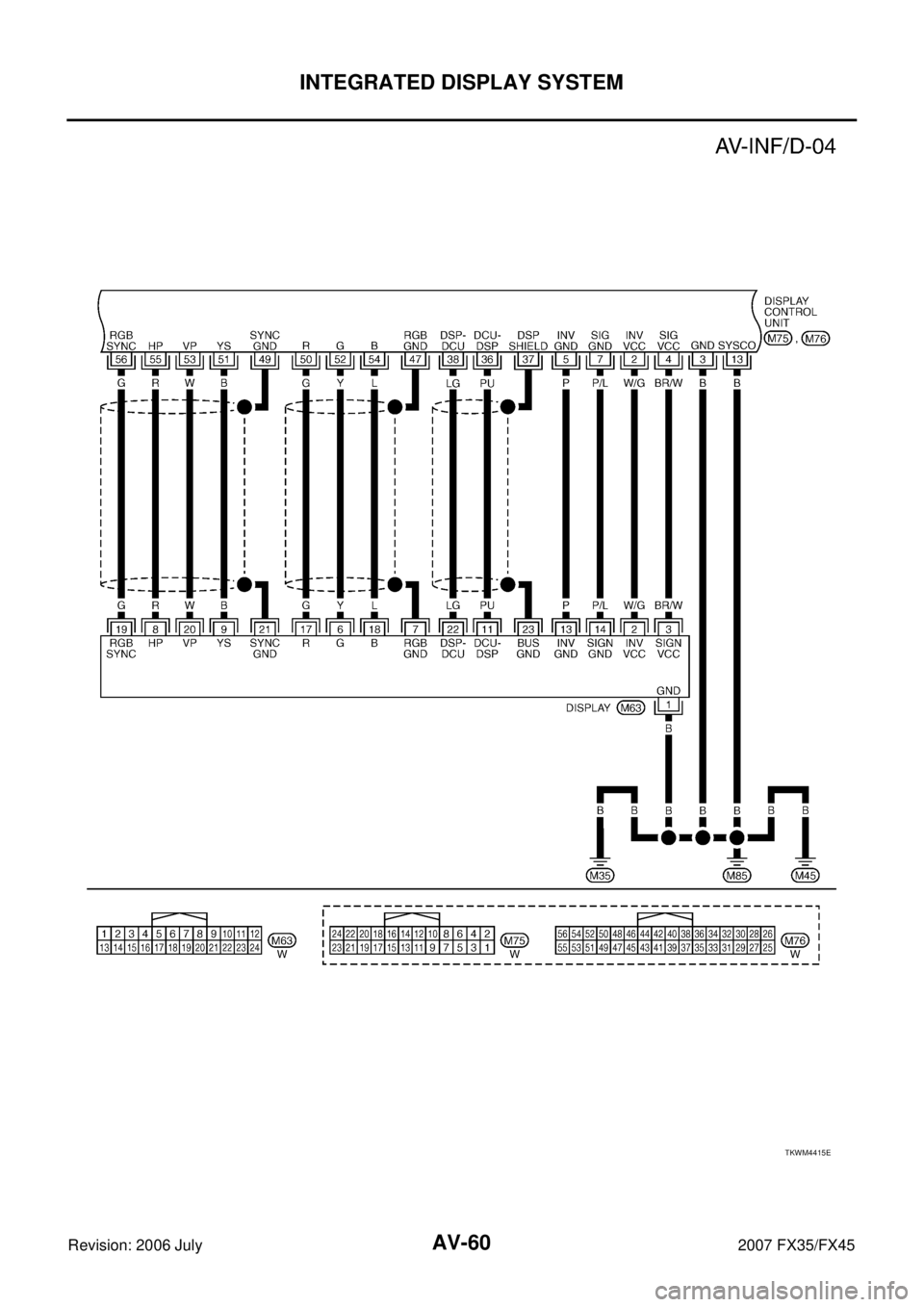

The images displayed on the monitor screen contain display control unit-generated RGB images.
The display control unit controls image switching and image quality adjustments by communications with
the display.
SKIB8651E
