warning INFINITI FX35 2007 Service Manual

EM-92
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER INSTALLATION
Inspection of Camshaft Sprocket (INT) Oil Groove
CAUTION:

Perform this inspection only when DTC P0011 or P0021 are detected in self-diagnostic results of
CONSULT-II and it is directed according to inspection procedure of EC section. Refer to EC-121,
"SELF-DIAG RESULTS MODE" .

Check when engine ins cold so as to prevent burns from any splashing engine oil.
1. Check the engine oil level. Refer to LU-7, "
ENGINE OIL" .
2. Perform the following procedure so as to prevent the engine from being unintentionally started while checking.
a. Release fuel pressure. Refer to EC-85, "
FUEL PRESSURE RELEASE" .
b. Disconnect ignition coil and injector harness connectors.
3. Remove intake valve timing control solenoid valve. Refer to EM-83, "
CAMSHAFT" .
4. Crank the engine, and then make sure that engine oil comes out from camshaft bracket (No. 1) oil hole. End crank after checking.
WARNING:
Be careful not to touch rotating parts (drive belts, idler pul-
ley, and crankshaft pulley, etc.).
CAUTION:
Engine oil may squirt from intake valve timing control sole-
noid valve installation hole during cranking. Use a shop
cloth to prevent the engine components and the vehicle. Do
not allow engine oil to get on rubber components such as
drive belt or engine mount insulators. Immediately wipe off
any splashed engine oil.

Clean oil groove between oil strainer and intake valve timing control solenoid valve if engine oil does not
come out from camshaft bracket (No. 1) oil hole. Refer to LU-5, "
LUBRICATION SYSTEM" .
5. Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT), and then check each oil groove for clogging.

Clean oil groove if necessary. Refer to LU-5, "LUBRICATION SYSTEM" .
6. After inspection, install removed parts.
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.

Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil
and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
PBIC2869E

CYLINDER HEAD EM-109
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

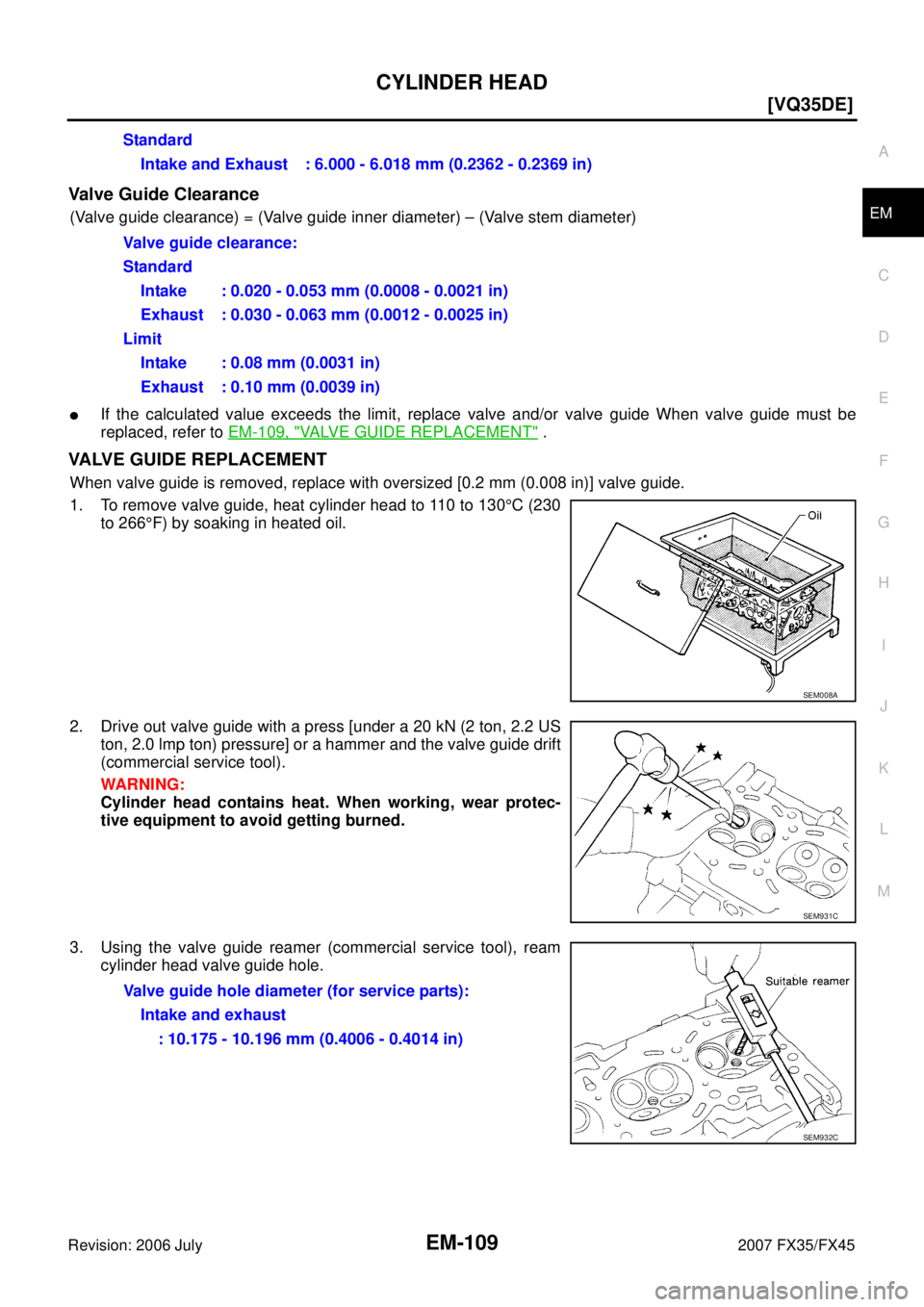

Valve Guide Clearance
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem diameter)

If the calculated value exceeds the limit, replace valve and/or valve guide When valve guide must be
replaced, refer to EM-109, "
VALVE GUIDE REPLACEMENT" .
VALVE GUIDE REPLACEMENT
When valve guide is removed, replace with oversized [0.2 mm (0.008 in)] valve guide.
1. To remove valve guide, heat cylinder head to 110 to 130 °C (230
to 266 °F) by soaking in heated oil.
2. Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US ton, 2.0 lmp ton) pressure] or a hammer and the valve guide drift
(commercial service tool).
WARNING:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
3. Using the valve guide reamer (commercial service tool), ream cylinder head valve guide hole. Standard
Intake and Exhaust : 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Valve guide clearance:
Standard Intake : 0.020 - 0.053 mm (0.0008 - 0.0021 in)
Exhaust : 0.030 - 0.063 mm (0.0012 - 0.0025 in)
Limit Intake : 0.08 mm (0.0031 in)
Exhaust : 0.10 mm (0.0039 in)
SEM008A
SEM931C
Valve guide hole diameter (for service parts): Intake and exhaust: 10.175 - 10.196 mm (0.4006 - 0.4014 in)
SEM932C

EM-110
[VQ35DE]
CYLINDER HEAD
Revision: 2006 July 2007 FX35/FX45
4. Heat cylinder head to 110 to 130°C (230 to 266 °F) by soaking in
heated oil.
5. Using the valve guide drift (commercial service tool), press valve guide from camshaft side to the dimensions as in the figure.
WARNING:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
6. Using the valve guide reamer (commercial service tool), apply reamer finish to valve guide.
VALVE SEAT CONTACT

After confirming that the dimensions of valve guides and valves
are within the specifications, perform this procedure.

Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.

Check if the contact area band is continuous all around the cir-
cumference.

If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has “NG” conditions even after the re-check,
replace valve seat. Refer to EM-110, "
VALVE SEAT REPLACE-
MENT" .
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess in cylinder head. Set the machine depth stop to ensure this. Refer to EM-157, "
Va l v e S e a t" .
CAUTION:
Prevent to scratch cylinder head by excessive boring.
SEM008A
Projection “L”
Intake and exhaust: 12.6 - 12.8 mm (0.496 - 0.504 in)
SEM950E
Standard:Intake and exhaust: 6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E

CYLINDER HEAD EM-111
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
2. Ream cylinder head recess diameter for service valve seat.

Be sure to ream in circles concentric to valve guide center.
This will enable valve to fit correctly.
3. Heat cylinder head to 110 to 130 °C (230 to 266 °F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Force fit valve seat into cylinder head. WARNING:
Cylinder head contains heat. When working, wear protective equipment to avoid getting burned.
CAUTION:
Avoid directly touching cold valve seats.
5. Using the valve seat cutter set (commercial service tool) or valve seat grinder, finish seat to the specified dimensions. Refer to
EM-157, "
Valve Seat" .
CAUTION:
When using the valve seat cutter, firmly grip cutter handle
with both hands. Then, press on the contacting surface all
around the circumference to cut in a single drive. Improper
pressure on with cutter or cutting many different times may
result in stage valve seat.
6. Using compound, grind to adjust valve fitting.
7. Check again for normal contact. Refer to EM-110, "
VALVE SEAT CONTACT" .
VALVE SPRING SQUARENESS

Set a try square along the side of valve spring and rotate spring.
Measure the maximum clearance between the top of spring and
try square.

If it exceeds the limit, replace valve spring. Oversize [0.5 mm (0.020 in)]
Intake : 38.500 - 38.516 mm (1.5157 - 1.5164 in)
Exhaust : 32.700 - 32.716 mm (1.2874 - 1.2880 in)
SEM795A
SEM008A
SEM934C
Limit : 2.1 mm (0.083 in)
PBIC0080E

ENGINE ASSEMBLY EM-113
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
ENGINE ASSEMBLYPFP:10001
Components (2WD Models)NBS003H1
Removal and Installation (2WD Models)NBS003H2
WARNING:

Situate the vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-41, "Garage Jack and
Safety Stand" .
1. Engine mounting bracket (RH) 2. Heat insulator (RH) 3. Engine mounting insulator (RH)
4. Engine mounting insulator (LH) 5. Heat insulator (LH) 6. Engine mounting bracket (LH)
7. Harness bracket 8. Engine mounting insulator (rear) 9. Rear engine mounting member
PBIC3039E

EM-118
[VQ35DE]
ENGINE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
Components (AWD Models)NBS003H3
Removal and Installation (AWD Models)NBS003H4
WARNING:

Situate the vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-41, "Garage Jack and
Safety Stand" .
1. Engine mounting bracket (RH) 2. Engine mounting bracket (RH)
(Lower) 3. Dynamic damper
4. Washer 5. Engine mounting insulator (RH) 6. Engine mounting insulator (LH)
7. Engine mounting bracket (LH) 8. Harness bracket 9. Heat insulator
10. Caller 11. Rubber bush 12. Rear engine mounting member
13. Engine mounting insulator (rear) 14. Dynamic damper
PBIC3041E

EM-174
[VK45DE]
DRIVE BELTS
Revision: 2006 July 2007 FX35/FX45
DRIVE BELTSPFP:02117
ComponentsNBS003HO
Checking Drive BeltsNBS003HP
WARNING:
Be sure to perform when engine is stopped.

Remove air duct (inlet) when inspecting drive belt for alternator, water pump and A/C compressor.

Remove front engine undercover with power tool when inspecting power steering oil pump belt.

Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range
(between three line notches).
NOTE:

Check auto tensioner indication when engine is cold.

When new drive belt is installed, the range should be “A”.

The indicator notch is located on the moving side of auto tensioner for alternator, water pump and A/C
compressor belt, while it is found on the fixed side for power steering oil pump belt.

Visually check entire belt for wear, damage or cracks.

If the indicator is out of allowable working range or belt is damaged, replace belt.
Tension AdjustmentNBS003HQ
Belt tensioning is not necessary, as it is automatically adjusted by auto tensioner.
Removal and InstallationNBS003HR
REMOVAL
Alternator, Water Pump and A/C Compressor Belt
1. Remove air duct (inlet). Refer to EM-177, "AIR CLEANER AND AIR DUCT" .
2. With box wrench, and while securely holding the hexagonal part in pulley center of auto tensioner, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto–tensioner pulley (Do not turn it clockwise). If turned
clockwise, the complete drive belt auto–tensioner must
be replaced as a unit, including the pulley.
PBIC2331E
PBIC2976E

EM-180
[VK45DE]
INTAKE MANIFOLD
Revision: 2006 July 2007 FX35/FX45

Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004LY
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the engine coolant when the engine is hot.
1. Remove engine cover with power tool.
2. Release fuel pressure. Refer to EC-747, "
FUEL PRESSURE RELEASE" .
3. Remove air duct (inlet), power duct, air cleaner case and air duct and resonator assembly. Refer to EM-
177, "AIR CLEANER AND AIR DUCT" .
4. Drain engine coolant from radiator. Refer to CO-38, "
DRAINING ENGINE COOLANT" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
1. PCV tube 2. PCV hose 3. PCV hose
4. Engine cover bracket (RH) 5. EVAP canister purge control sole-
noid valve 6. EVAP hose
7. EVAP service port 8. EVAP tube 9. Vacuum hose
10. Vacuum hose 11. PCV hose 12. PCV tube
13. PCV hose 14. PCV hose 15. Water hose
16. EVAP hose 17. Water hose 18. Intake manifold adapter
19. Gasket 20. Electric throttle control actuator 21. Gasket
22. Gasket 23. Intake manifold (lower) 24. Vacuum hose
25. VIAS control solenoid valve 26. Vacuum hose 27. Vacuum hose
28. Vacuum tank 29. Vacuum hose 30. Engine cover bracket (LH)
31. Vacuum hose 32. Water hose 33. Gasket
34. Intake manifold (upper)
A. To centralized under-floor piping B. To rocker cover (right bank) C. To rocker cover (left bank)
D. To thermostat housing E. To air duct and resonator assembly F. To heater pipe
PBIC4553E

EXHAUST MANIFOLD AND THREE WAY CATALYST EM-183
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
ComponentsNBS003HZ

Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003I0
REMOVAL
WARNING:
Perform the work, when the exhaust and cooling system have completely cooled down.
1. Remove engine cover with power tool. Refer to EM-173, "
ENGINE ROOM COVER" .
2. Remove front and rear engine undercovers with power tool.
3. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator assembly. Refer to EM-177, "
AIR CLEANER AND AIR DUCT" .
4. Remove front cross bar. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
5. Drain engine coolant from radiator. Refer to CO-38, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
6. Remove radiator. Refer to CO-41, "
RADIATOR" .
1. Air fuel ratio sensor 1 (bank 2) 2. Exhaust manifold cover (right bank) 3. Exhaust manifold (right bank)
4. Gasket 5. Exhaust manifold (left bank) 6. Exhaust manifold cover (left bank)
7. Air fuel ratio sensor 1 (bank 1) 8. Three way catalyst cover (right bank) 9. Three way catalyst (right bank)
10. Heated oxygen sensor 2 (bank 2) 11. Gasket 12. Three way catalyst cover (left bank)
13. Heated oxygen sensor 2 (bank 1) 14. Three way catalyst (left bank) 15. Mounting bracket
16. Mounting bracket
A. Protrusion for installation confirma-
tion.
:Above
PBIC4549E

OIL PAN AND OIL STRAINER EM-187
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
OIL PAN AND OIL STRAINERP F P : 1111 0
ComponentsNBS003I1

Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003I2
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove front road wheels and tires.
2. Remove hood assembly. Refer to BL-13, "
HOOD" .
3. Remove engine cover with power tool. Refer to EM-173, "
ENGINE ROOM COVER" .
4. Remove front and rear engine undercovers with power tool.
5. Drain engine oil. Refer to LU-27, "
Changing Engine Oil" .
CAUTION:

Perform this step when engine is cold.
1. Oil pan 2. O-ring 3. Crankshaft position sensor (POS)
4. Baffle plate 5. O-ring 6. Baffle plate
7. Oil pressure switch 8. Gasket 9. Oil strainer
10. Drain plug 11. Drain plug washer 12. O-ring
13. Oil cooler 14. Connector bolt 15. Oil filter
16. O-ring 17. Axle pipe 18. O-ring
19. Rear plate cover 20. Relief valve
A. Oil pan side B. Refer to LU-29
C. Refer to LU-28
PBIC4556E
