Check Key Fob Battery and FunctionNIS001MS
1. CHECK KEY FOB BATTERY
1. Remove key fob battery. Refer to BL-85, "
Key Fob Battery Replacement" .
2. Measure voltage between battery positive and negative termi- nals, (+) and ( −).
NOTE:
Key fob does not function if battery is not set correctly.
OK or NG
OK >> GO TO 2.
NG >> Replace battery.
2. CHECK KEY FOB FUNCTION
With CONSULT-II
Check key fob function in “DATA MONITOR” mode with CONSULT-
II. When pushing each button of key fob, the corresponding monitor
item should be turned as follows.
OK or NG
OK >> Key fob is OK.
NG >> Replace key fob. Voltage : 2.5 – 3.0V
SEL237W
Condition Monitor item
Pushing LOCK KEYLESS LOCK : ON
Pushing UNLOCK KEYLESS UNLOCK : ON
Keep pushing UNLOCK RKE KEEP UNLK : ON
Pushing PANIC KEYLESS PANIC : ON
Pushing LOCK and UNLOCK at the
same time RKE LCK-UNLOCK : ON
PIIA6468E
Page 900 of 4366
BL-88
INTELLIGENT KEY SYSTEM
Revision: 2006 July 2007 FX35/FX45
System DescriptionNIS001N6
The Intelligent Key system is a system which can lock and unlock the doors (door lock function) and start
the engine (engine start function) by carrying around the Intelligent Key, which operates based on the
results of electrical key-ID verification using two-way communications between the Intelligent Key and the
vehicle
Operation of the remote control buttons on the Intelligent Key also provides the same functions as the
remote control entry system. (Remote control entry functions)
As an ignition key warning function, when a door is locked or unlocked with entry switch or remote control-
ler button operation, the hazard lamps flash and the Intelligent Key warning buzzer sounds.
Even if the vehicle or Intelligent Key battery runs down, the door can be locked and unlocked and the
engine started with the mechanical key built into the Intelligent Key.
If an Intelligent Key was lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can
be registered.
It has been made possible to diagnose the system, change the function setting and register an Intelligent
Key with the CONSULT-II.
DOOR LOCK FUNCTION
Operation Description
When the driver door, passenger door, or back door request switch is pressed, Intelligent Key unit sends a
request signal from the transmission antenna corresponding to the pressed door request switch, key-ID
verification is performed using two-way communication with Intelligent Key, and if ID is successfully veri-
fied, a door lock/unlock request signal is sent to BCM (Body Control Module) using CAN communication
to lock/unlock the door lock.
When door is locking, door is unlocked, when door is unlocking, door is locked.
When door is locked/unlocked by door request switch operation, hazard lamps flash and Intelligent Key
warning buzzer sounds.
With the locking operation of door request switch, door lock actuators of all door are locked.
PIIB4645E
Page 904 of 4366
BL-92
INTELLIGENT KEY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Warning Procedure
Ignition knob OFF position warning
(for outside car: when door opened/
closed)
The ignition switch is in the OFF or LOCK position (knob pressed)
In the above state, when the ACC switch is changed from ON to OFF and 1 second
passes. (However, this warning is not issued if the mechanical key is inserted in the igni-
tion knob, ignition knob is turned except OFF position or ignition or ignition knob is not
pushed.)
Driver door open → closed
Warning for take out of Intelligent
Key to outside the car (when door
open/closed)
When Any of the Following Conditions Are Met
When the ignition knob is pressed in so that it can be rotated (or has been rotated), if any
of the doors has been opened, when all the doors are closed, the Intelligent Key unit
compares the key-ID with that of the Intelligent Key using the inside key antenna, if the
results of the comparison are NG (the Intelligent Key is not found)
When the ignition knob is pressed in so that it can be rotated (or has been rotated), if any
of the doors is open, the Intelligent Key unit compares the key-ID with that of the Intelli-
gent Key every 5 seconds using the inside key antenna (center console), if the results of
the comparison are NG (the Intelligent Key is not found)
NOTE:
However, this warning is not issued if the mechanical key is inserted in the ignition knob.
Warning for take out of Intelligent
Key to outside the car (from win-
dow) When the ignition knob is pressed in so that it can be rotated (or has been rotated), if the
vehicle speed is no greater than 5 km per hour, the Intelligent Key unit compares the key-ID
with that of the Intelligent Key every 30 seconds using the inside key antenna, if the results
of the comparison are NG (the Intelligent Key is not found)
Note: The factory setting for this function is OFF.
Door lock non-operation warning When any of the following conditions are met
Intelligent Key Lock-in Prevention Warning
When the Intelligent Key is inside the car and the ignition knob is not pressed, when an
attempt is made to lock a door lock with a door request switch
NOTE:
This warning is issued even if the Intelligent Key is not in the out side key antenna detec-
tion area corresponding to the door request switch was operated.
Knob Return Forgotten Warning
When the ignition knob is pressed, when an attempt is made to lock a door lock with a
door request switch
NOTE:
This warning is only issued if the Intelligent Key is in the out side key antenna detection
area corresponding to the door request switch was operated.
Door Ajar Alarm
When any of the doors is open, when an attempt is made to lock a door lock with a door
request switch
NOTE:
This warning is only issued if the Intelligent Key is in the out side key antenna detection
area corresponding to the door request switch was operated.
Intelligent Key low battery pre-
warning This warning is issued when it is detected that the battery in the Intelligent Key has been
used up.
Warning and alarm names Operating conditions (when all the conditions below are met)
Warning and alarm names
Buzzer Warning lamp
Inside car Outside car “KEY” “P” shift
Ignition switch return forgotten
warning Buzzer: Continuous — — —
Selector lever return for gotten
warning — — — Illuminate
Ignition key warning
(When mechanical key used) Buzzer: Continuous — — —
Page 906 of 4366
BL-94
INTELLIGENT KEY SYSTEM
Revision: 2006 July 2007 FX35/FX45
CHANGE SETTINGS FUNCTION
The settings for each function can be changed with the CONSULT-II or Intelligent Key operation.
Changing Settings With the Intelligent Key
Intelligent Key remote controller button and door request switch operations change the engine startup function
settings (startup enabled/disabled) for each Intelligent Key independently.
Settings Change Procedure
1. With the ignition switch is in the LOCK position (ignition knob not pressed), hold down both the LOCK and UNLOCK remote control buttons on the Intelligent Key at the same time for at least 10 seconds (The yard-
stick is that the Intelligent Key LED flashes 20 times.)
2. Within 5 seconds of releasing the Intelligent Key remote controller buttons, press the driver door request switch.
3. The KEY warning lamp in combination meter lights up for 3 seconds (engine starting enabled → starting
disabled: lights up red, engine starting disabled → flashes green). This completes the settings change.
Changing Settings Using CONSULT-II
The settings for the Intelligent Key system functions can be changed using CONSULT-II (WORK SUPPORT).
Refer to BL-116, "
WORK SUPPORT" .
NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.
Changing Settings Using Display Unit
The settings of the Intelligent Key system can be changed, using CONSULT-II, display unit, Intelligent Key and
door request switch in the center of the instrument panel.
NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.
INTELLIGENT KEY REGISTRATION
Intelligent Key-ID registration is executed using the CONSULT-II. Up to 4 can be registered.
CAUTION:
After a new Intelligent Key-ID is registered, be sure to check the function.
When registering an additional Intelligent Key-ID, take any Intelligent Keys already registered and
Intelligent Keys for any other vehicles out of the vehicle before starting.
CONSULT-II can be used to check and delete Intelligent Key-IDs.
For future information, see the CONSULT-II Operation Manual NATS.
STEERING LOCK UNIT REGISTRATION
Steering Lock Unit ID Registration
CAUTION:
The method for registering a steering lock unit ID depends on the status of the steering lock unit
and Intelligent Key unit (new or old unit).
After registration is completed, press ignition knob with a portable unit in the vehicle so that it can
be rotated, and confirm that it cannot be rotated even when ignition switch is pressed without a
portable unit in the vehicle.
For further information, see the CONSULT-II Operation Manual NATS.
Setting item Description
Intelligent Key Lock Response-Sound The sound pattern of the Intelligent Key operation can be set as desired. (Setting value:
OFF, Beeper or Horn chirp)
Intelligent Key Unlock Response-Beep
Sound The beep sound when unlocking door with the Intelligent Key operation can be turned ON
or OFF.
Intelligent Key Engine Start Function This function can be performed to ON or OFF.
Intelligent Key Lock/Unlock Function The door handle request switch lock/unlock operation with the Intelligent Key can be can-
celed or activated.
Return All Settings to Default The all settings made by VEHICLE ELECTRONICS will return to default.
Page 1111 of 4366
VACUUM LINES BR-17
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
VACUUM LINESPFP:41920

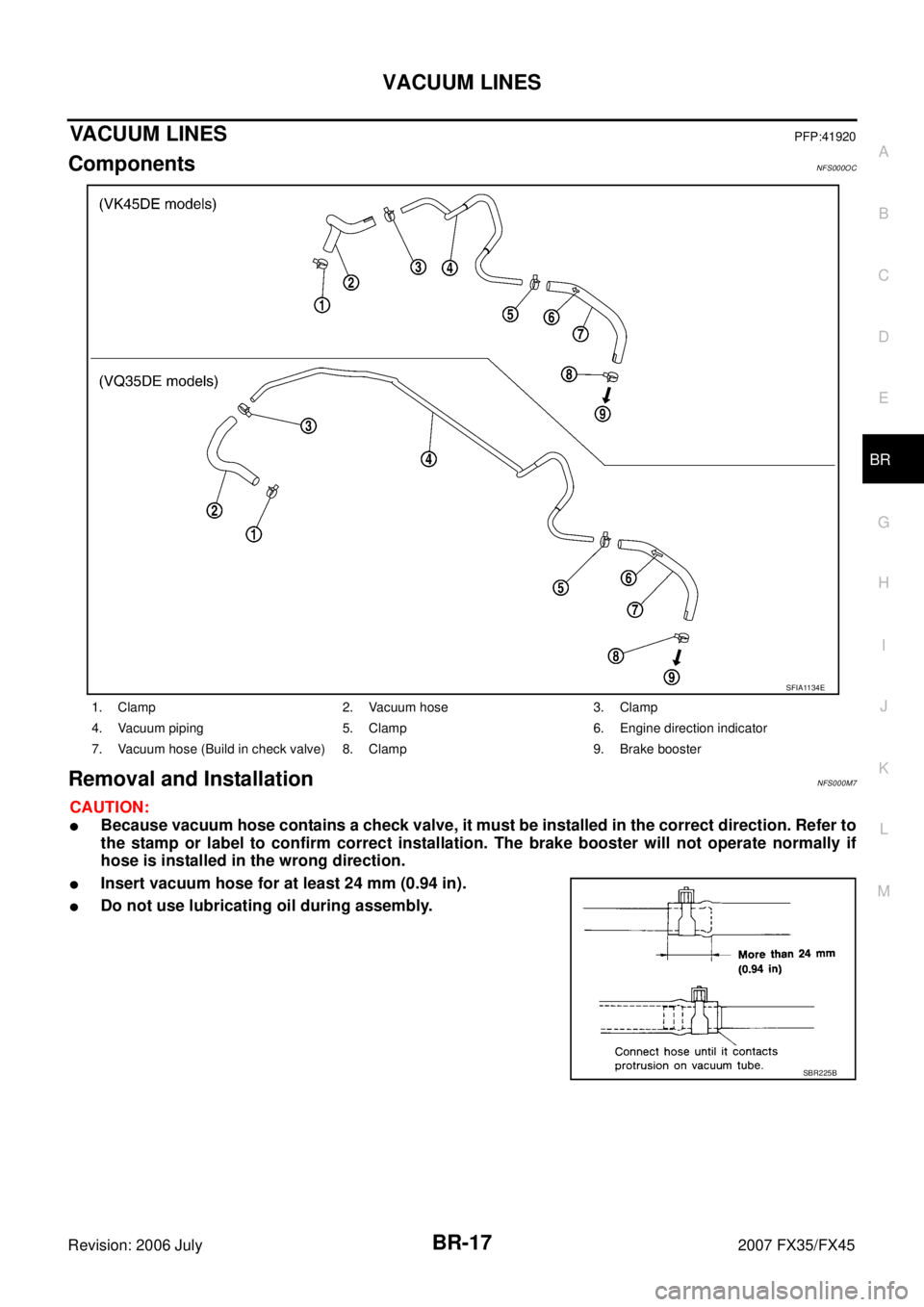

ComponentsNFS000OC
Removal and InstallationNFS000M7
CAUTION:
Because vacuum hose contains a check valve, it must be installed in the correct direction. Refer to
the stamp or label to confirm correct installation. The brake booster will not operate normally if
hose is installed in the wrong direction.
Insert vacuum hose for at least 24 mm (0.94 in).
Do not use lubricating oil during assembly.
1. Clamp 2. Vacuum hose 3. Clamp
4. Vacuum piping 5. Clamp 6. Engine direction indicator
7. Vacuum hose (Build in check valve) 8. Clamp 9. Brake booster
SFIA1134E
SBR225B
Page 1114 of 4366
BR-20
FRONT DISC BRAKE
Revision: 2006 July 2007 FX35/FX45
It is not necessary to remove bolts on torque member and brake hose except for disassembly or
replacement of caliper assembly. In this case, suspend cylinder body with wire so as not to stretch
brake hose.
Do not damage piston boot.
If any shim is subject to serious corrosion, replace it with a new one.
Always replace shims and shim covers as a set when replacing brake pads.
Keep rotor clean, from brake fluid.
Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft
pedal occurs at very low mileage. Refer to BR-24, "
Brake Burnishing Procedure" .
Removal and Installation of Brake PadNFS000MB
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove lower sliding pin bolt.
3. Hang cylinder body with a wire, and remove pads, pad retainers, shims from torque member.
CAUTION:
When removing pad retainer from torque member, lift pad
retainer in the direction shown by arrow (shown in the fig-
ure) so as not to deform it.
INSTALLATION
1. Apply PBC (Poly Butyl Cuprysil) or silicone-based grease to the
both sides of inner shim and outer shim, install inner shim and
inner shim cover to inner pad, and outer shim and outer shim
cover to outer pad.
2. Apply PBC (Poly Butyl Cuprysil) or silicone-based grease to pad contact surface on pad retainers, and install pad retainers and
pads to torque member.
CAUTION:
Inner pad and outer pad have pad-return mechanism on
upper side of pad retainer. When installing pad to torque
member, be sure to install pad return lever to pad wear sen-
sor securely.
3. Install cylinder body to torque member. CAUTION:
When replacing pads with new ones, press in piston until pads can be installed. In this case, care-
fully monitor brake fluid level in reservoir tank because brake fluid will return to master cylinder
reservoir tank.
4. Install lower sliding pin bolt, and tighten it to the specified torque. Refer to BR-19, "
Components" .
5. Secure disc rotor with wheel nuts. Depress brake pedal a few times until it gets a responsive touch.
6. Check brake for drag.
7. Install tires to vehicle.
Removal and Installation of Brake Caliper AssemblyNFS000MC
REMOVAL
1. Remove tires from vehicle with power tool.
2. Fasten disc rotor using wheel nut.
3. Drain brake fluid. Refer to BR-9, "
Drain and Refill" .
SBR556E
SBR557E
Page 1161 of 4366
![INFINITI FX35 2007 Workshop Manual TROUBLE DIAGNOSIS BRC-35
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
3. With engine running, make sure VDC OFF indicator lamp turns on and off when VDC OF](/img/42/57018/w960_57018-1160.png "INFINITI FX35 2007 Workshop Manual TROUBLE DIAGNOSIS BRC-35
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
3. With engine running, make sure VDC OFF indicator lamp turns on and off when VDC OF")
TROUBLE DIAGNOSIS BRC-35
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
3. With engine running, make sure VDC OFF indicator lamp turns on and off when VDC OFF switch is
turned ON and OFF. If indicator lamp status does not correspond to switch operation, check the VDC OFF
switch system. Refer to BRC-52, "
VDC OFF SWITCH" .
4. Make sure ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off 2 seconds after engine is started. If ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp have not turned
off 10 seconds after engine has been started, perform self-diagnosis of ABS actuator and electric unit
(control unit).
5. After performing the self-diagnosis, be sure to erase the error memory. Refer to BRC-25, "
Self-Diagnosis"
.
NOTE:
Brake warning lamp turns on when parking brake is operated (switch on) and brake fluid level switch is acti-
vated (leak of brake fluid).
Page 1181 of 4366
![INFINITI FX35 2007 Workshop Manual TROUBLE DIAGNOSIS FOR SYMPTOMS BRC-55
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Vehicle Jerks During VDC/TCS/ABS ControlNFS000O3
1. CHECK ENGINE SPEED S](/img/42/57018/w960_57018-1180.png "INFINITI FX35 2007 Workshop Manual TROUBLE DIAGNOSIS FOR SYMPTOMS BRC-55
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Vehicle Jerks During VDC/TCS/ABS ControlNFS000O3
1. CHECK ENGINE SPEED S")
TROUBLE DIAGNOSIS FOR SYMPTOMS BRC-55
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Vehicle Jerks During VDC/TCS/ABS ControlNFS000O3
1. CHECK ENGINE SPEED SIGNAL
Perform CONSULT-II “DATA MONITOR” to check engine speed.
Is engine speed at idle 400 rpm or higher?
YES >> GO TO 3.
NO >> GO TO 2.
2. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> System is normal.
NG >> GO TO 3.
3. CHECK ECM SELF-DIAGNOSTIC RESULTS
Perform ECM self-diagnosis.
Are self-diagnosis items displayed?
YES >> Check the corresponding items. Refer to EC-87, "TROUBLE DIAGNOSIS" (VQ35DE), EC-749,
"TROUBLE DIAGNOSIS" (VK45DE) in “Engine Control (EC section)”.
NO >> GO TO 4.
4. CHECK A/T SELF-DIAGNOSTIC RESULTS
Perform A/T self-diagnosis.
OK or NG
OK >> GO TO 5.
NG >> Check the corresponding items. Refer to AT- 4 4 , "
TROUBLE DIAGNOSIS" in “A/T”.
5. CHECK SELF-DIAGNOSTIC RESULTS 1
Perform self-diagnosis of ABS actuator and electric unit (control unit).
Are self-diagnosis items displayed?
YES >> Check the corresponding items, make repairs, and perform ABS actuator and electric unit (control unit) self-diagnosis again.
NO >> GO TO 6.
6. CHECK CONNECTOR
1. Disconnect ABS actuator and electric unit (control unit) connector E56 and ECM connector, check termi- nals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace
connector.
2. Securely reconnect connector and perform self-diagnosis.
OK or NG
OK >> If poor connect, damaged, open or short circuit is found, repair or replace connector terminal.
NG >> GO TO 7.
7. CHECK SELF-DIAGNOSTIC RESULTS 2
Re-perform ABS actuator and electric unit (control unit) self-diagnosis.
Are self-diagnosis items displayed?
YES >> Repair or replace malfunctioning items.
NO >> GO TO 8.
Page 1254 of 4366
DI-8
COMBINATION METERS
Revision: 2006 July 2007 FX35/FX45
COMBINATION METER ILLUMINATION CONTROL
Daytime Mode
When ignition switch is turned ON, combination meter illumination is turned ON by unified meter control unit.
Nighttime Mode
Unified meter control unit is transferred to nighttime mode, with ignition switch turned ON and position
light request signal from BCM with CAN communication.
When nighttime mode, illumination control switch illumination
turns ON by unified meter control unit. Each illumination is con-
trolled by unified meter control unit.
Each illumination can be adjusted to 16 step by illumination con-
trol switch in nighttime mode.
NOTE:
For further details of illumination circuit, refer to LT- 1 8 6 , "
ILLUMINA-
TION" .
FAIL-SAF E
Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malfunc-
tioning.
SKIA4795E
Function Fail-safe operation
Speedometer
Return to zero.
Tachometer
Fuel gauge
Water temperature gauge
Illumination control Combination meter illumination Change to nighttime mode.
Odo/trip meter Integrate in response to 8-pulse input.
A/T position indicator The display turns OFF.
Warning buzzer The warning buzzer turns OFF.
Warning lamp/indicator lamp ABS warning lamp
The lamp turns ON.
VDC OFF indicator
SLIP indicator
Brake warning lamp
Low tire pressure warning lamp
AWD warning lamp
Door warning lamp
The lamp turns OFF.
SET indicator lamp
CRUISE indicator lamp
ICC warning lamp
A/T CHECK warning lamp
Oil pressure warning lamp
Snow mode indicator lamp
Turn signal indicator
Malfunction indicator lamp
High beam indicator
Key warning lamp
Run-flat tire warning lamp
Page 1263 of 4366
COMBINATION METERS DI-17
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
PRELIMINARY CHECK
1. CHECK OPERATION OF SELF-DIAGNOSIS MODE (COMBINATION METER)
Perform self-diagnosis mode of combination meter. Refer to DI-15, "
OPERATION PROCEDURE" .
Does self-diagnosis function operate?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK UNIFIED METER AND A/C AMP. (CONSULT-II)
Perform self-diagnosis of unified meter and A/C amp. Refer to DI-31, "
CONSULT-II Function (METER A/C
AMP)" .
Self-diagnosis results
No malfunction detected >> INSPECTION END
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.
3. CHECK POWER SUPPLY AND GROUND CIRCUIT OF COMBINATION METER
Check power supply and ground circuit of combination meter. Refer to DI-18, "
Power Supply and Ground Cir-
cuit Inspection" .
OK or NG
OK >> Check odo/trip meter switch. Refer to DI-24, "Odo/Trip Meter and Illumination Control Switch
Inspection" .
NG >> Repair malfunctioning part.
Symptom Chart NKS002ZM
Symptom Possible cause
Speedometer and odo/trip meter indication is malfunctioning. Refer to DI-19, "
Vehicle Speed Signal Inspection" .
Tachometer indication is malfunctioning. Refer to DI-20, "
Engine Speed Signal Inspection" .
Water temperature gauge indication is malfunctioning. Refer to DI-21, "
Engine Coolant Temperature Signal Inspection" .
Fuel gauge indication is malfunctioning. Refer to DI-21, "
Fuel Level Sensor Signal Inspection" .
Low-fuel warning lamp indication is irregular.
Shift position indicator is malfunctioning. Refer to DI-55, "
A/T Indicator Is Malfunction" .
Illumination control does not operate. Refer to
DI-24, "
Odo/Trip Meter and Illumination Control Switch
Inspection" .
