2. CHECK OUTPUT SIGNAL
1. Connect BCM and door lock actuator (driver side) connector.
2. Check voltage between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> Check harness connection.
NG >> Replace BCM.
Check Door Lock Actuator (Passenger Side and Rear LH/RH)NIS001MC

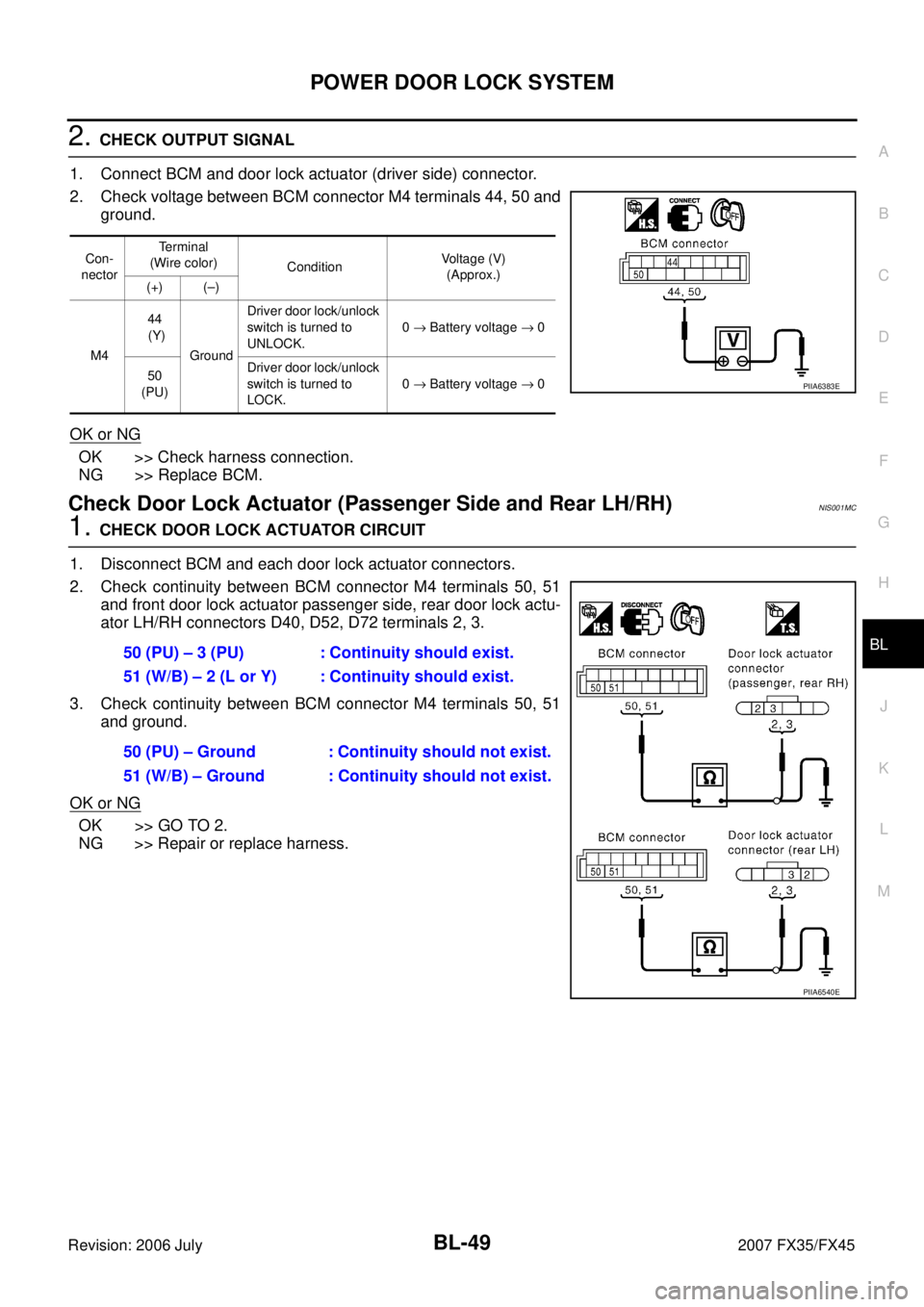

1. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM and each door lock actuator connectors.
2. Check continuity between BCM connector M4 terminals 50, 51 and front door lock actuator passenger side, rear door lock actu-
ator LH/RH connectors D40, D52, D72 terminals 2, 3.
3. Check continuity between BCM connector M4 terminals 50, 51 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
Con-
nector Terminal
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M4 44
(Y)
Ground Driver door lock/unlock
switch is turned to
UNLOCK. 0
→ Battery voltage → 0
50
(PU) Driver door lock/unlock
switch is turned to
LOCK. 0
→ Battery voltage → 0
PIIA6383E
50 (PU) – 3 (PU) : Continuity should exist.
51 (W/B) – 2 (L or Y) : Continuity should exist.
50 (PU) – Ground : Continuity should not exist.
51 (W/B) – Ground : Continuity should not exist.
PIIA6540E

BL-50
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
2. CHECK DOOR LOCK ACTUATOR SIGNAL
Check voltage between BCM connector M4 terminals 50, 51 and
ground.
OK or NG
OK >> Replace front door lock assembly (passenger side) or rear door lock actuator LH/RH.
NG >> Replace BCM.
Check Fuel Lid Lock Actuator NIS001MD

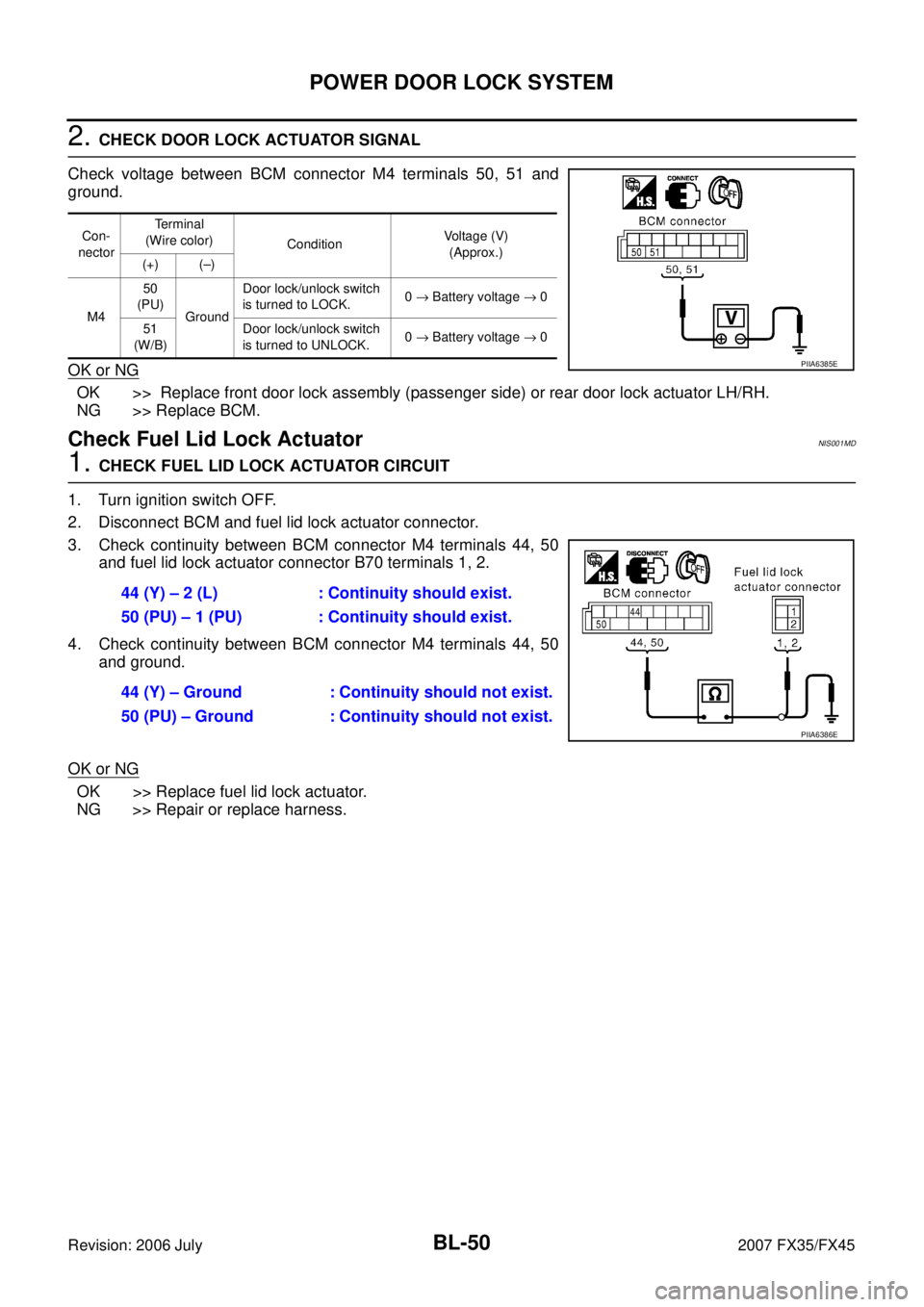

1. CHECK FUEL LID LOCK ACTUATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and fuel lid lock actuator connector.
3. Check continuity between BCM connector M4 terminals 44, 50 and fuel lid lock actuator connector B70 terminals 1, 2.
4. Check continuity between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> Replace fuel lid lock actuator.
NG >> Repair or replace harness.
Con-
nector Terminal
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M4 50
(PU) Ground Door lock/unlock switch
is turned to LOCK. 0
→ Battery voltage → 0
51
(W/B) Door lock/unlock switch
is turned to UNLOCK. 0
→ Battery voltage → 0
PIIA6385E
44 (Y) – 2 (L) : Continuity should exist.
50 (PU) – 1 (PU) : Continuity should exist.
44 (Y) – Ground : Continuity should not exist.
50 (PU) – Ground : Continuity should not exist.
PIIA6386E

BL-62
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for BCMNIS001MN
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
1PU Key ring illumination output
signal Output Key ring illumination is lighting. Battery voltage
Key ring illumination is being
turned off. 0
11 LG Ignition switch Input Ignition switch is in ACC or ON
position Battery voltage
12 P/B Front door switch (Passen-
ger side) Input
ON (door open)
→ OFF (door
closed) 0
→ Battery voltage
13 P/L Rear door switch RH Input ON (door open)
→ OFF (door
closed) 0
→ Battery voltage
18 B Remote keyless entry
receiver (Ground) —— 0
19 R Remote keyless entry
receiver (Power supply) Output Key is inserted in IGN key cylinder 0
All door closed
20 Y Remote keyless entry
receiver (Signal) Input Key is inserted in IGN key cylinder 0
Waiting
(All door closed)
When signal is received
(All door closed)
37 B/W Key switch Input ON (Key is inserted in IGN key cyl-
inder) → OFF (Key is removed
from IGN key cylinder) Battery voltage
→ 0
38 W/L Ignition switch Input Ignition switch is in ON or START
position Battery voltage
39 L CAN H Input/
Output ——
40 P CAN L Input/
Output ——
41 R/B Battery saver output signal Output 30 minutes after ignition switch is
turned to OFF 0
Ignition switch is in ON position Battery voltage
42 L/R Battery power supply
(fuse) Input — Battery voltage
44 Y Driver door lock actuator
(Unlock) Output
Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
OCC3881D
OCC3879D
OCC3880D

REMOTE KEYLESS ENTRY SYSTEM BL-63
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
*1 : In the state that hazard reminder operates.
*2 : In the state that room lamp switch is in “DOOR” position.
Terminals and Reference Value for IPDM E/RNIS001MO
* : In the state that horn reminder operates. 45 G/W Left turn signal lamp Output
When door lock or unlock is oper-
ated using key fob.*
1
(ON → OFF) Battery voltage
→ 0
46 BR/W Right turn signal lamp Output When door lock or unlock is oper-
ated using key fob.*
1
(ON → OFF) Battery voltage
→ 0
47 Y/R Step lamp output signal Output Step lamp is lighting. 0
Step lamp is being turned off. Battery voltage
48 PU/W Room lamp output signal Output Room lamp is lighting.*
20
Room lamp is being turned off.*
2Battery voltage
49 B Ground — — 0
50 PU Door lock actuator (Lock) Output Door lock / unlock switch
(Free → Lock) 0
→ Battery voltage
51 W/B Passenger and rear doors
lock actuator (Unlock) Output Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
52 B Ground — — 0
54 W Battery power supply
(power window) Input — Battery voltage
55 G Battery power supply (Fus-
ible link) Input — Battery voltage
58 L Back door switch Input OFF (Door close)
→ ON (Door
open) 9
→ 0
62 W Front door switch (Driver
side) InputOFF (Door close)
→ ON (Door
open) Battery voltage
→ 0
63 P Rear door switch LH Input OFF (Door close)
→ ON (Door
open) Battery voltage
→ 0
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
Te r m i -nal Wire
Color Item Signal
Input/
Output Condition
Voltage (V)
Approx.
38 B Ground — — 0
48 L CAN H Input/
Output ——
49 R CAN L Input/
Output ——
51 SB Horn relay Output When door lock is operated using
key fob* (OFF → ON) Battery voltage
→ 0
60 B Ground — — 0

REMOTE KEYLESS ENTRY SYSTEM BL-67
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Trouble Diagnosis Chart by SymptomNIS001MR
NOTE:

Always check the “Work Flow” before troubleshooting. Refer to BL-66, "Work Flow" .

Always check key fob battery before replacing key fob.
Symptom Diagnoses/service procedure Reference
page
All function of remote keyless entry system do not
operate. 1. Check key fob battery and function.
BL-69
2. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning. BL-81
3. Check remote keyless entry receiver.
BL-76
4. Replace BCM.BCS-14
The new ID of key fob cannot be entered. 1. Check key fob battery and function.
BL-69
2. Check key switch.BL-75
3. Check door switch.BL-71
4. Check ACC switch.BL-70
5. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning. BL-81
6. Replace BCM.
BCS-14
Door lock or unlock does not function with key fob.
(Power door lock system is “OK”.) 1. Check key fob battery and function.
BL-69
2. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning. BL-81
3. Replace BCM.
BCS-14
Hazard and horn reminder does not activate prop-
erly when pressing lock or unlock button of key fob. 1. Check hazard and horn reminder mode.*
*: Hazard and horn reminder mode can be changed.
First check the hazard and horn reminder setting. BL-65
2. Check door switch.
BL-71
3. Replace BCM.BCS-14
Hazard reminder does not activate properly when
pressing lock or unlock button of key fob.
(Horn reminder is “OK”.) 1. Check hazard reminder mode.*
*: Hazard reminder mode can be changed.
First check the hazard reminder setting. BL-65
2. Check hazard function with hazard switch.
BL-80
3. Replace BCM.BCS-14
Horn reminder does not activate properly when
pressing lock button of key fob.
(Hazard reminder is “OK”.) 1. Check horn reminder mode.*
*: Horn reminder can be changed.
First check the horn chirp setting. BL-65
2. Check horn function.
BL-80
3. Check IPDM E/R operation.BL-79
4. Replace BCM.BCS-14

BL-68
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Panic alarm (horn and headlamp) does not activate
when panic alarm button is continuously pressed. 1. Check panic alarm mode.*
*: Panic alarm mode can be changed.
First check the panic alarm setting. BL-65
2. Check key fob battery and function.
BL-69
3. Check headlamp function.BL-80
4. Check horn function.BL-80
5. Check IPDM E/R operation.BL-79
6. Check key switch.BL-75
7. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning. BL-81
8. Replace BCM.
BCS-14
Auto door lock operation does not activate properly.
(All other remote keyless entry system function is
OK.) 1. Check auto door lock operation mode.*
*: Auto door lock operation mode can be changed.
First check the auto door lock operation setting. BL-65
2. Replace BCM.
BCS-14
Keyless power window down (open) operation does
not activate properly.
(All other remote keyless entry system function is
OK.) 1. Check power window down operation mode.*
*: Power window down operation mode can be changed.
First check the power window down setting. BL-65
2. Check power window function.
GW-15
3. Replace BCM.BCS-14
Map lamp and ignition keyhole illumination opera-
tion does not activate properly. 1. Check map lamp and ignition keyhole illumination operation.
BL-802. Check door switch.BL-71
3. Replace BCM.BCS-14
Symptom Diagnoses/service procedure Reference
page

REMOTE KEYLESS ENTRY SYSTEM BL-69
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Check Key Fob Battery and FunctionNIS001MS
1. CHECK KEY FOB BATTERY
1. Remove key fob battery. Refer to BL-85, "
Key Fob Battery Replacement" .
2. Measure voltage between battery positive and negative termi- nals, (+) and ( −).
NOTE:
Key fob does not function if battery is not set correctly.
OK or NG
OK >> GO TO 2.
NG >> Replace battery.
2. CHECK KEY FOB FUNCTION
With CONSULT-II
Check key fob function in “DATA MONITOR” mode with CONSULT-
II. When pushing each button of key fob, the corresponding monitor
item should be turned as follows.
OK or NG
OK >> Key fob is OK.
NG >> Replace key fob. Voltage : 2.5 – 3.0V
SEL237W
Condition Monitor item
Pushing LOCK KEYLESS LOCK : ON
Pushing UNLOCK KEYLESS UNLOCK : ON
Keep pushing UNLOCK RKE KEEP UNLK : ON
Pushing PANIC KEYLESS PANIC : ON
Pushing LOCK and UNLOCK at the
same time RKE LCK-UNLOCK : ON
PIIA6468E

BL-70
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Check ACC SwitchNIS001MT
1. CHECK ACC SWITCH
With CONSULT-II
Check ACC switch (“ACC ON SW”) in “DATA MONITOR” mode with
CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> ACC switch is OK.
NG >> Check the following.

10A fuse [No. 6, located in fuse block (J/B)]

Harness for open or short between BCM and fuse.
Monitor item Condition
ACC SW Ignition switch position is ACC or ON : ON
Ignition switch position is OFF : OFF
PIIA3367E
Item (+)
(–) Condition Voltage (V)
Approx.
Con-
nector Terminal
(Wire color)
BCM M3 11 (LG) Ground ACC or ON Battery voltage
OFF 0
PIIA7002E

REMOTE KEYLESS ENTRY SYSTEM BL-71
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Check Door SwitchNIS001MU
CHECK DOOR SWITCH (EXCEPT BACK DOOR SWITCH)
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switches (“DOOR SW-DR”, “DOOR SW-AS”, “DOOR
SW-RL” and “DOOR SW-RR”) in “DATA MONITOR” mode with
CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Door switch circuit is OK.
NG >> GO TO 2.
Monitor item Condition DATA MONITOR
DOOR SW-DR CLOSE ↓
OPEN: OFF
↓
ON
DOOR SW-AS
DOOR SW-RL
DOOR SW-RR
Item Connector Terminals
(Wire color) Door
condition Voltage (V)
(Approx.)
(+) (-)
Driver side B14 62 (W)
Ground CLOSE
↓
OPEN Battery voltage
↓0
Rear LH 63 (P)
Passenger side M3 12 (P/B)
Rear RH 13 (P/L)
PIIA6469E
PIIA7003E

REMOTE KEYLESS ENTRY SYSTEM BL-75
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Check Key SwitchNIS001MV
1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II
Check ignition key switch “KEY ON SW” in “DATA MONITOR” mode
with CONSULT-II.

When key is inserted in ignition key cylinder

When key is removed from ignition key cylinder
Without CONSULT-II
Check voltage between BCM connector M3 terminal 37 (B/W) and
ground.
OK or NG
OK >> Key switch circuit is OK.
NG >> GO TO 2.
2. CHECK KEY SWITCH
1. Disconnect key switch connector.
2. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> Check the following.

15A fuse [No. 22, located in fuse block (J/B)]

Harness for open or short between key switch and fuse

Harness for open or short between BCM and key switch
NG >> Replace key switch. KEY ON SW : ON
KEY ON SW : OFF
PIIA6470E
Condition of ignition key cylinder Voltage (V)
Approx.
Key is inserted Battery voltage
Key is removed 0
PIIA6471E
Terminal Key switch condition Continuity
12 Key is inserted in IGN key cylinder. Yes
Key is removed from IGN key cylinder No
PIIA2627E
