CD changer INFINITI FX35 2007 Service Manual

AV-1
AUDIO VISUAL, NAVIGATION & TELEPHONE SYS- TEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION
A
B
AV
Revision: 2006 July 2007 FX35/FX45
AUDIO VISUAL, NAVIGATION & TELEPHONE SYSTEM
PRECAUTIONS .......................................................... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
PREPARATION ...................................................... ..... 5
Commercial Service Tools ................................... ..... 5
AUDIO .................................................................... ..... 6
System Description ............................................. ..... 6
AUDIO SYSTEM .............................................. ..... 6
SPEED SENSITIVE VOLUME SYSTEM ......... ..... 7
Component Parts Location .................................. ..... 7
Schematic — AUDIO — / With Navigation System ..... 8
Wiring Diagram — AUDIO — / With Navigation Sys-
tem ...................................................................... ..... 9
Schematic — AUDIO — Without Navigation System ... 19
Wiring Diagram — AUDIO — / Without Navigation
System ................................................................ ... 20
Terminals and Reference Value for Audio Unit .... ... 29
Terminals and Reference Value for BOSE Speaker
Amp. .................................................................... ... 31
Terminals and Reference Value for A/C and AV
Switch .................................................................. ... 33
Terminals and Reference Value for Woofer ......... ... 34
Terminals and Reference Value for Satellite Radio
Tuner ................................................................... ... 34
A/C and AV Switch Self-Diagnosis Function ....... ... 35
STARTING THE SELF-DIAGNOSIS MODE .... ... 35
DIAGNOSIS FUNCTION .................................. ... 35
EXITING THE SELF-DIAGNOSIS MODE ........ ... 35
Trouble Diagnosis ............................................... ... 36
Power Supply Circuit Inspection ......................... ... 37
Audio Steering Wheel Switch Inspection ............. ... 38
A/C and AV Switch Inspection ............................. ... 40
BOSE Speaker Amp. Inspection ......................... ... 40
Vehicle Speed Signal Inspection ......................... ... 41
Locking CD Auto-Changer Mechanism ............... ... 42
DAMPER LOCK PROCEDURE ....................... ... 42
Removal and Installation of Audio Unit ............... ... 43
REMOVAL ........................................................ ... 43
INSTALLATION ................................................ ... 43 Disassembly and Assembly for Audio Unit ..........
... 43
DISASSEMBLY ................................................ ... 43
ASSEMBLY ...................................................... ... 43
Removal and Installation for A/C and AV Switch . ... 44
REMOVAL ........................................................ ... 44
INSTALLATION ................................................ ... 44
Removal and Installation for Front Door Speaker ... 44
REMOVAL ........................................................ ... 44
INSTALLATION ................................................ ... 44
Removal and Installation for Rear Door Speaker ... 44 REMOVAL ........................................................ ... 44
INSTALLATION ................................................ ... 44
Removal and Installation for Instrument Speaker ... 45 REMOVAL ........................................................ ... 45
INSTALLATION ................................................ ... 45
Removal and Installation for Tweeter .................. ... 45
REMOVAL ........................................................ ... 45
INSTALLATION ................................................ ... 45
Removal and Installation for Woofer (BOSE Sys-
tem) ..................................................................... ... 45
REMOVAL ........................................................ ... 45
INSTALLATION ................................................ ... 45
Removal and Installation for BOSE Speaker Amp. ... 46
REMOVAL ........................................................ ... 46
INSTALLATION ................................................ ... 46
Removal and Installation of Satellite Radio Tuner ... 47
REMOVAL ........................................................ ... 47
INSTALLATION ................................................ ... 47
Removal and Installation of Satellite Radio Antenna ... 47
REMOVAL ........................................................ ... 47
INSTALLATION ................................................ ... 47
ANTENNA .............................................................. ... 48
System Description .............................................. ... 48
Wiring Diagram — M/ANT — .............................. ... 49
Terminals and Reference Value for Audio Unit .... ... 50
Antenna Amp. Inspection .................................... ... 50
Location of Antenna ............................................. ... 51
RADIO ANTENNA AND GPS ANTENNA ......... ... 51
SATELLITE RADIO ANTENNA ........................ ... 51
Window Antenna Repair ...................................... ... 52

AV-42
AUDIO
Revision: 2006 July 2007 FX35/FX45
3. CHECK VEHICLE SPEED SIGNAL
1. Connect audio unit and unified meter and A/C amp. connectors.
2. Start engine and drive vehicle at more than 40 km/h (25 MPH).
3. Check the signal between audio unit harness connector M60 terminal 22 and ground with CONSULT-II or oscilloscope.
OK or NG
OK >> INSPECTION END (System is OK.)
NG >> Replace unified meter and A/C amp.
Locking CD Auto-Changer MechanismNKS003B1
CAUTION:

Prior to removing a malfunctioning CD auto-changer unit that will be shipped for repair, the
changer mechanism MUST BE LOCKED to prevent the mechanism from being damaged during
shipping.

If a CD is jammed or unable to be removed from the unit, do NOT lock the changer mechanism. If
the unit is to be shipped for repair, carefully package the unit to prevent vibration and shock.
DAMPER LOCK PROCEDURE
1. Eject and remove any CDs from the audio unit.
2. Turn ignition switch OFF. Wait until audio unit display is off and mechanism stops moving (mechanism sound stops).
3. Press any one of the disc selection buttons once. When a display shows on the audio unit, press the same disc selection button again within 5 seconds.

The changer mechanism will lock itself within 10 seconds.
4. After mechanism stops moving (mechanism sound stops), open the driver and passenger window, and then disconnect negative battery cable.
NOTE:
After installing a new or remanufactured audio unit, switching the audio unit ON will automatically unlock the
mechanism. A special unlocking procedure is not required.
Terminal Condition Reference
signal
(+) (–)
22 Ground When vehicle speed is
approx. 40 km/h (25 MPH)
SKIA6809E
ELF1080D

AUDIO AV-43
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45

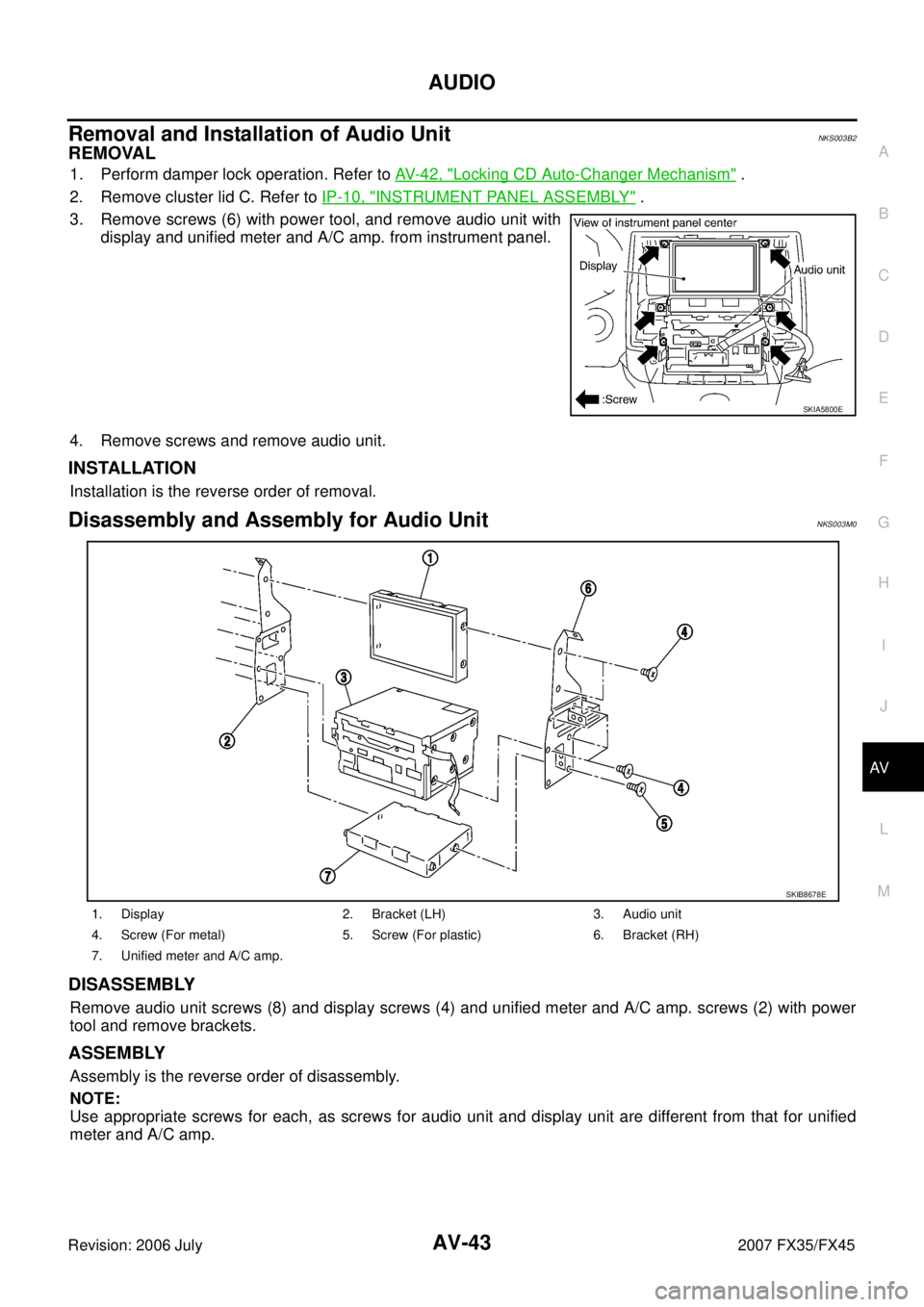

Removal and Installation of Audio UnitNKS003B2
REMOVAL
1. Perform damper lock operation. Refer to AV- 4 2 , "Locking CD Auto-Changer Mechanism" .
2. Remove cluster lid C. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Remove screws (6) with power tool, and remove audio unit with display and unified meter and A/C amp. from instrument panel.
4. Remove screws and remove audio unit.
INSTALLATION
Installation is the reverse order of removal.
Disassembly and Assembly for Audio UnitNKS003M0
DISASSEMBLY
Remove audio unit screws (8) and display screws (4) and unified meter and A/C amp. screws (2) with power
tool and remove brackets.
ASSEMBLY
Assembly is the reverse order of disassembly.
NOTE:
Use appropriate screws for each, as screws for audio unit and display unit are different from that for unified
meter and A/C amp.
SKIA5800E
1. Display 2. Bracket (LH) 3. Audio unit
4. Screw (For metal) 5. Screw (For plastic) 6. Bracket (RH)
7. Unified meter and A/C amp.
SKIB8678E
