HOW TO ERASE DTC (WITH GST)
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.
2. Perform “TCM SELF-DIAGNOSTIC PROCEDURE (No Tools)”. Refer to AT- 1 0 2 , "
TCM SELF-DIAGNOS-
TIC PROCEDURE (NO TOOLS)" . (The engine warm-up step can be skipped when performing the diag-
nosis only to erase the DTC.)
3. Select Mode 4 with Generic Scan Tool (GST). For details, refer to EC-129, "
Generic Scan Tool (GST)
Function" (for VQ35DE) or EC-793, "Generic Scan Tool (GST) Function" (for VK45DE).
HOW TO ERASE DTC (NO TOOLS)
The A/T CHECK indicator lamp is located on the instrument panel.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
2. Perform “TCM SELF-DIAGNOSTIC PROCEDURE (No Tools)”. Refer to AT- 1 0 2 , "
TCM SELF-DIAGNOS-
TIC PROCEDURE (NO TOOLS)" . (The engine warm-up step can be skipped when performing the diag-
nosis only to erase the DTC.)
3. Perform “OBD-II SELF-DIAGNOSTIC PROCEDURE (No tools)”. Refer to EC-66, "
How to Erase DTC"
(for VQ35DE) or EC-728, "How to Erase DTC" (for VK45DE).
Malfunction Indicator Lamp (MIL)NCS001BB
DESCRIPTION
The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned ON with- out the engine running. This is a bulb check.

If the MIL does not light up, refer to DI-38, "WARNING LAMPS" ,
or see EC-673, "
MIL AND DATA LINK CONNECTOR" (for
VQ35DE) or EC-1364, "
MIL AND DATA LINK CONNECTOR"
(for VK45DE).
2. When the engine is started, the MIL should go off. If the MIL remains on, the on board diagnostic system has
detected an engine system malfunction.
SEF217U

ON BOARD DIAGNOSTIC (OBD) SYSTEM EC-67
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
2. Perform AT- 4 3 , "HOW TO ERASE DTC (WITH GST)" . (The DTC in TCM will be erased.)
3. Select Service $04 with GST (Generic Scan Tool).
No Tools
NOTE:
If the DTC is not for A/T related items (see EC-15, "
INDEX FOR DTC" ), skip step 2.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
2. Perform AT- 4 3 , "
HOW TO ERASE DTC (NO TOOLS)" . (The DTC in TCM will be erased.)
3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to EC-68, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .

If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.

The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–Freeze frame data
–1st trip freeze frame data
–System readiness test (SRT) codes
–Test values
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
Malfunction Indicator Lamp (MIL)NBS003LN
DESCRIPTION
The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned ON with- out the engine running. This is a bulb check.
If the MIL does not light up, refer to DI-38, "
WARNING LAMPS"
or see EC-673, "MIL AND DATA LINK CONNECTOR" .
2. When the engine is started, the MIL should go off. If the MIL remains on, the on board diagnostic system has
detected an engine system malfunction.
SEF217U

EC-68
[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 July 2007 FX35/FX45
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following three functions.
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
MIL Flashing Without DTC
When any SRT codes are not set, MIL may flash without DTC. For the details, refer to EC-62, "How to Display
SRT Status" .
HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
How to Set Diagnostic Test Mode II (Self-Diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly 5 times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MIL starts blinking.
Diagnostic Test
Mode KEY and ENG.
Sta tus Function Explanation of Function
Mode I Ignition switch in ON position
Engine stopped BULB CHECK This function checks the MIL bulb for damage (blown,
open circuit, etc.).
If the MIL does not come on, check MIL circuit.
Engine running MALFUNCTION WARNING This is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MIL will light up to inform the driver
that a malfunction has been detected.
The following malfunctions will light up or blink the MIL in
the 1st trip.

Misfire (Possible three way catalyst damage)

One trip detection diagnoses
Mode II Ignition switch in ON position
Engine stopped SELF-DIAGNOSTIC
RESULTS This function allows DTCs and 1st trip DTCs to be read.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

ON BOARD DIAGNOSTIC (OBD) SYSTEM EC-69
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL may start blinking on the halfway of this
10 seconds. This blinking is displaying SRT status and is continued for another 10 seconds. For
the details, refer to EC-62, "
How to Display SRT Status" .
4. Fully release the accelerator pedal. ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.
How to Erase Diagnostic Test Mode II (Self-Diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-68, "How to Set Diagnostic Test
Mode II (Self-Diagnostic Results)" .
2. Fully depress the accelerator pedal and keep it for more than 10 seconds. The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.

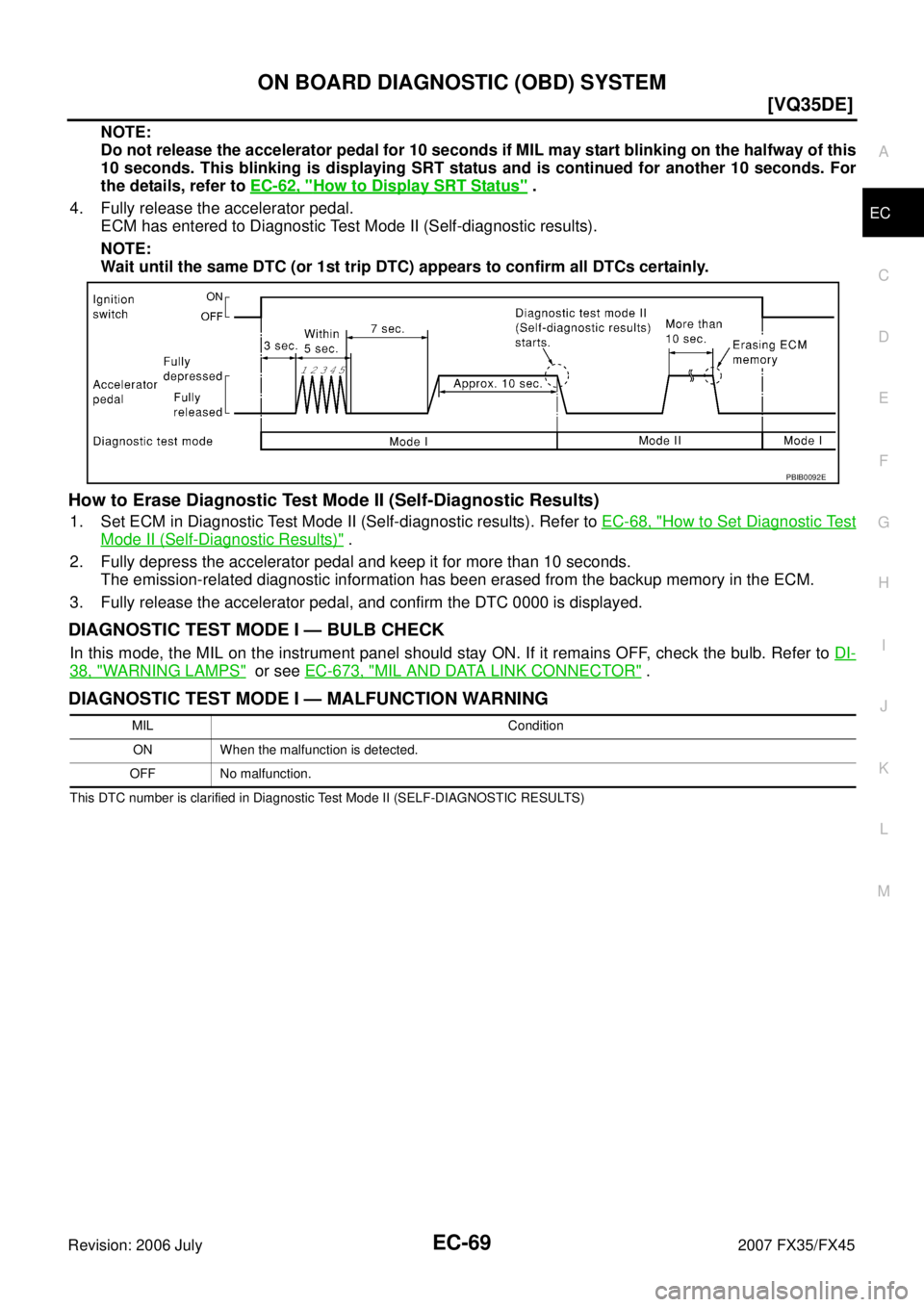

DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MIL on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to DI-
38, "WARNING LAMPS" or see EC-673, "MIL AND DATA LINK CONNECTOR" .
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING
This DTC number is clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
PBIB0092E
MIL Condition
ON When the malfunction is detected.
OFF No malfunction.

EC-730
[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 July 2007 FX35/FX45
–Test values
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
Malfunction Indicator Lamp (MIL)NBS004JU
DESCRIPTION
The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned ON with- out the engine running. This is a bulb check.
If the MIL does not light up, refer to DI-38, "
WARNING LAMPS" ,
or see EC-1364, "
MIL AND DATA LINK CONNECTOR" .
2. When the engine is started, the MIL should go off. If the MIL remains on, the on board diagnostic system has
detected an engine system malfunction.
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following three functions.
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
SEF217U
Diagnostic Test
Mode KEY and ENG.
Sta tus Function Explanation of Function
Mode I Ignition switch in ON position
Engine stopped BULB CHECK This function checks the MIL bulb for damage (blown,
open circuit, etc.).
If the MIL does not come on, check MIL circuit.
Engine running MALFUNCTION WARNING This is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MIL will light up to inform the driver
that a malfunction has been detected.
The following malfunctions will light up or blink the MIL in
the 1st trip.

Misfire (Possible three way catalyst damage)

One trip detection diagnoses
Mode II Ignition switch in ON position
Engine stopped SELF-DIAGNOSTIC
RESULTS This function allows DTCs and 1st trip DTCs to be read.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

ON BOARD DIAGNOSTIC (OBD) SYSTEM EC-731
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
MIL Flashing Without DTC
When any SRT codes are not set, MIL may flash without DTC. For the details, refer to EC-724, "How to Dis-
play SRT Status" .
HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
How to Set Diagnostic Test Mode II (Self-diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MIL starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL may start blinking on the halfway of this
10 seconds. This blinking is displaying SRT status and is continued for another 10 seconds. For
the details, refer to EC-724, "
How to Display SRT Status" .
4. Fully release the accelerator pedal. ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-731, "How to Set Diagnostic
Test Mode II (Self-diagnostic Results)" .
2. Fully depress the accelerator pedal and keep it for more than 10 seconds. The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MIL on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to DI-
38, "WARNING LAMPS" or see EC-1364, "MIL AND DATA LINK CONNECTOR" .
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING
This DTC number is clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
DIAGNOSTIC TEST MODE II — SELF-DIAGNOSTIC RESULTS
In this mode, the DTC and 1st trip DTC are indicated by the number of blinks of the MIL as shown below.
PBIB0092E
MIL Condition
ON When the malfunction is detected.
OFF No malfunction.

GI-34
SERVICE INFORMATION FOR ELECTRICAL INCIDENT
Revision: 2006 July 2007 FX35/FX45
If repairs are needed always use wire that is of the same or larger gauge.

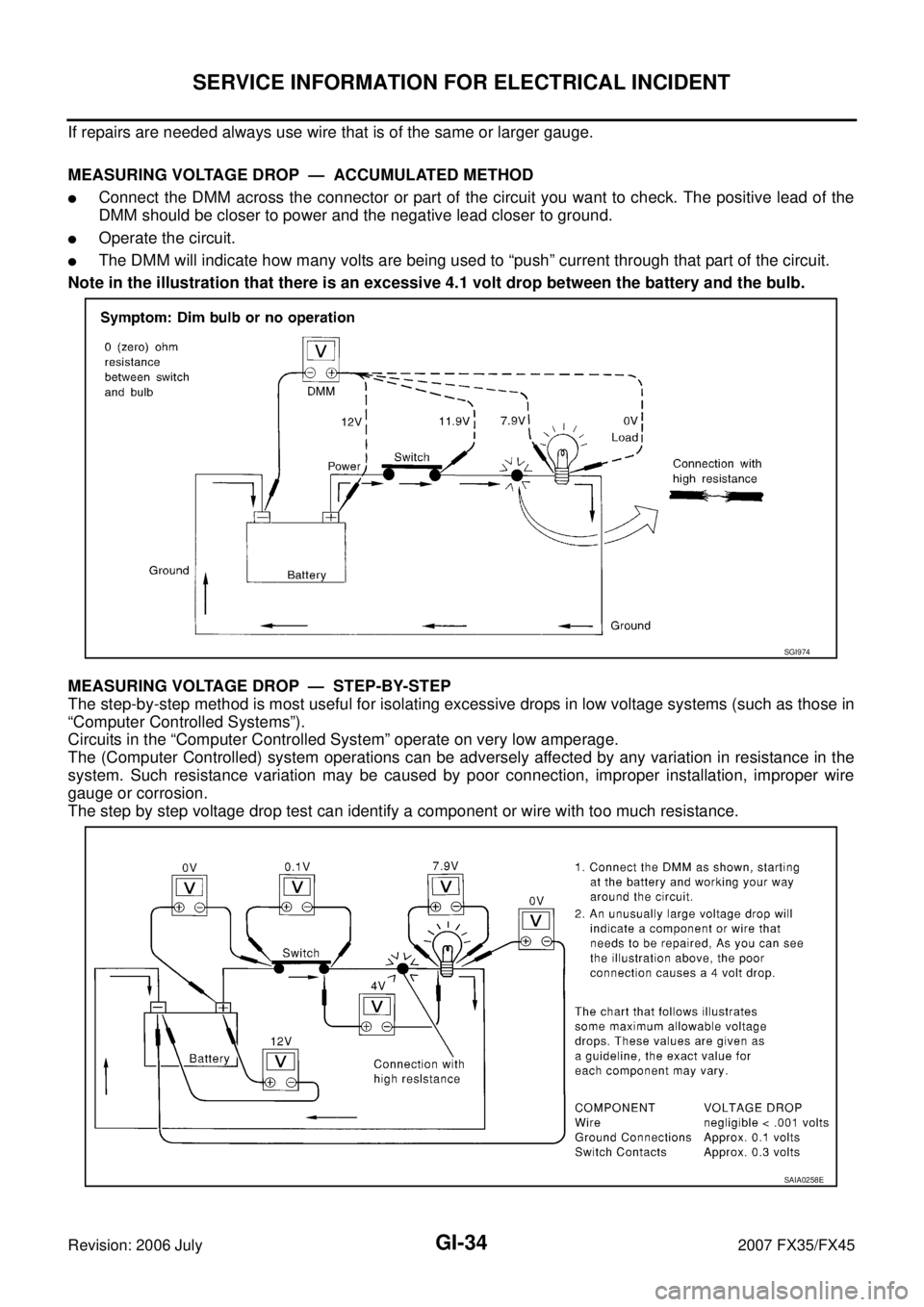

MEASURING VOLTAGE DROP — ACCUMULATED METHOD

Connect the DMM across the connector or part of the circuit you want to check. The positive lead of the
DMM should be closer to power and the negative lead closer to ground.

Operate the circuit.

The DMM will indicate how many volts are being used to “push” current through that part of the circuit.
Note in the illustration that there is an excessive 4.1 volt drop between the battery and the bulb.
MEASURING VOLTAGE DROP — STEP-BY-STEP
The step-by-step method is most useful for isolating excessive drops in low voltage systems (such as those in
“Computer Controlled Systems”).
Circuits in the “Computer Controlled System” operate on very low amperage.
The (Computer Controlled) system operations can be adversely affected by any variation in resistance in the
system. Such resistance variation may be caused by poor connection, improper installation, improper wire
gauge or corrosion.
The step by step voltage drop test can identify a component or wire with too much resistance.
SGI974
SAIA0258E

IDX-2
ALPHABETICAL INDEX
A
A/C air flow ...................................................... ATC-37
A/C component layout ..................................... ATC-26
A/C compressor clutch removal and installation ...........
ATC-142
A/C compressor mounting ........... ATC-140, ATC-142,
ATC-146
, ATC-147, ATC-148, ATC-149, ATC-150,
ATC-152
, ATC-153, ATC-154, ATC-155
A/C compressor precaution ............................. ATC-13
A/C compressor special service tool ................ ATC-17
A/C control operation (auto A/C) ...................... ATC-34
A/C diagnostic work flow (auto A/C) .............. ATC-101
A/C evaporator ............................................... ATC-154
A/C HFC134a (R134a) system precaution ........ ATC-6
A/C HFC134a (R134a) system service procedure .......
ATC-137
A/C HFC134a (R134a) system service tools ... ATC-18
A/C HFC134a system service equipment precaution ...
ATC-13
A/C lubricant (R134a) ...................................... ATC-27
A/C lubrication oil ........................................... ATC-160
A/C operational check ...................................... ATC-60
A/C self-diagnoses (auto A/C) ........ ATC-52, ATC-101
A/C service data specification ........................ ATC-160
A/C system description (auto A/C) ................... ATC-30
A/C trouble diagnoses (auto A/C) .................... ATC-40
A/C, A - Wiring diagram ................................... ATC-45
A/T fluid checking ...................... AT-13, AT-53, MA-29
A/T fluid cooler cleaning .................................... AT-15
A/T fluid replacement ............................. AT-12, MA-31
A/T fluid temperature sensor ........................... AT-134
A/T IND - Wiring diagram .................................... DI-53
A/T self-diagnoses ........................................... AT-102
A/T shift lock system ........................................ AT-232
A/T shift lock system - Wiring diagram ............ AT-233
A/T trouble diagnoses ........................................ AT-44
Accelerator pedal position (APP) sensor ........ EC-576,
EC-583
, EC-597, EC-1258, EC-1265, EC-1279
Accelerator pedal released position learning .... EC-83,
EC-745
AF1B1-Wiring diagram ...... EC-232, EC-241, EC-250,
EC-260
, EC-607, EC-904, EC-913, EC-922, EC-932,
EC-1289
AF1B2-Wiring diagram ...... EC-234, EC-243, EC-252,
EC-262
, EC-609, EC-906, EC-915, EC-924, EC-934,
EC-1291
AF1HB1-Wiring diagram .................... EC-166, EC-838
AF1HB2-Wiring diagram .................... EC-168, EC-840
Air bag .............................................................. SRS-3
Air bag precautions ........................................... SRS-3
Air cleaner and air duct(VK45DE) ................... EM-177
Air cleaner and air duct(VQ35DE) .................... EM-17
Air cleaner filter replacement ............................ MA-25
Air cleaner filter replacement(VQ35DE) ........... MA-18
Air cleaner filter(VQ35DE) ................................ EM-18
Air conditioner cut control .................... EC-34, EC-696
Air flow meter - See Mass air flow sensor ...... EC-187,
EC-196
, EC-859, EC-868
Air fuel ratio sensor 1 ......... EC-229, EC-239, EC-248,
EC-257
, EC-605, EC-901, EC-911, EC-920, EC-929,
EC-1287
Air fuel ratio sensor 1 heater ............. EC-164, EC-837
Air mix. door motor ......................... ATC-71, ATC-131
Ambient sensor ............................. ATC-103, ATC-116
Angular tightening application ............................. EM-6
Angular tightening application(VK45DE) ........ EM-165
APPS1 - Wiring diagram ................. EC-578, EC-1260
APPS2 - Wiring diagram ................. EC-585, EC-1267
APPS3 - Wiring diagram ................. EC-599, EC-1281
ASC/BS - Wiring diagram ............... EC-541, EC-1217
ASC/SW - Wiring diagram .............. EC-524, EC-1200
ASCBOF - Wiring diagram .............. EC-618, EC-1300
ASCD .................................................. EC-35, EC-697
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch .......................................... EC-539
ASCD indicator lamp ....................................... EC-624
ASCD steering switch ...................................... EC-522
ASCIND - Wiring diagram ............... EC-625, EC-1307
AT indicator lamp ................................................ DI-52
Auto air conditioner - Wiring diagram ............. ATC-45
Auto amp ...................................................... ATC-115
Auto anti-dazzling inside mirror ....................... GW-65
Automatic amplifier ........... ATC-50, ATC-62, ATC-115
Automatic transmission fluid replacement ........ MA-32
AV communication line ........................ AV-64, AV-108
AWD - Wiring diagram ....................................... TF-17
Axle ................................................................... MA-37
Axle housing (rear) ........................................... RAX-7
B
Back Door ........................................................ BL-158
Back door ......................................................... BL-158
Back door opener - See Back door .................. BL-162
Basic inspection .................................. EC-76, EC-738
Battery ................................................................. SC-5
Battery/Starting/Charging System Tester SC-8, SC-14,
SC-27
BCM (Body control module) .............................. BCS-3
Block heater(VK45DE) .................................... EM-248
Block heater(VQ35DE) ................................... EM-123
Blower motor ................................... ATC-77, ATC-122
Blower unit .................................................... ATC-120
Brake booster .................................................... BR-15
Brake fluid level ................................................ MA-35
Brake hydraulic line ........................................... BR-11
Brake inspection ............................................... MA-36
Brake lines and cables inspection .................... MA-35
Brake master cylinder ........................................ BR-13
Brake switch ................................... EC-552, EC-1233
BRK/SW - Wiring diagram .............. EC-553, EC-1234
Bulb specifications ........................................... LT-201
Bumper, front ...................................................... EI-14
Bumper, rear ....................................................... EI-17

LT-1
LIGHTING SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION LT
A
B
LT
Revision: 2006 July 2007 FX35/FX45
LIGHTING SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
General Precautions for Service Operations ....... ..... 5
HEADLAMP - XENON TYPE - .............................. ..... 6
Component Parts and Harness Connector Location ..... 6
System Description ............................................. ..... 6
OUTLINE .......................................................... ..... 6
HEADLAMP OPERATION ............................... ..... 7
COMBINATION SWITCH READING FUNCTION ..... 8
EXTERIOR LAMP BATTERY SAVER CONTROL ..... 8
AUTO LIGHT OPERATION (IF EQUIPPED) .... ..... 8
VEHICLE SECURITY SYSTEM ....................... ..... 8
XENON HEADLAMP ........................................ ..... 8
CAN Communication System Description ........... ..... 8
CAN Communication Unit ................................... ..... 8
Schematic ........................................................... ..... 9
Wiring Diagram — H/LAMP — ............................ ... 10
Terminals and Reference Values for BCM .......... ... 14
Terminals and Reference Values for IPDM E/R .. ... 16
How to Proceed With Trouble Diagnosis ............. ... 16
Preliminary Check ............................................... ... 16
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. ... 16
CONSULT-II Functions (BCM) ............................ ... 18
CONSULT-II BASIC OPERATION .................... ... 18
WORK SUPPORT ............................................ ... 18
DATA MONITOR .............................................. ... 18
ACTIVE TEST .................................................. ... 20
CONSULT-II Functions (IPDM E/R) .................... ... 20
CONSULT-II BASIC OPERATION .................... ... 20
DATA MONITOR .............................................. ... 20
ACTIVE TEST .................................................. ... 21
Headlamp Does Not Change To High Beam (Both
Sides) .................................................................. ... 22
Headlamp Does Not Change To High Beam (One
Side) .................................................................... ... 24
Headlamp Low Beam Does Not Illuminate (Both
Sides) .................................................................. ... 25 Headlamp Low Beam Does Not Illuminate (One
Side) .................................................................... ... 27
Headlamp RH Low Beam and High Beam Does Not
Illuminate ............................................................. ... 29
Headlamp LH Low Beam and High Beam Does Not
Illuminate ............................................................. ... 29
Headlamps Do Not Turn OFF .............................. ... 30
General Information for Xenon Headlamp Trouble
Diagnosis ............................................................. ... 32
Caution: ............................................................... ... 32
Xenon Headlamp Trouble Diagnosis ................... ... 32
Aiming Adjustment ............................................... ... 33
PREPARATION BEFORE ADJUSTING ........... ... 33
LOW BEAM AND HIGH BEAM ........................ ... 33
ADJUSTMENT USING AN ADJUSTMENT
SCREEN (LIGHT/DARK BORDERLINE) ......... ... 34
Bulb Replacement ............................................... ... 34
HEADLAMP HIGH/LOW BEAM ....................... ... 34
DAYTIME/PARKING LAMP .............................. ... 35
FRONT TURN SIGNAL LAMP ......................... ... 35
FRONT SIDE MARKER LAMP ........................ ... 35
Removal and Installation ..................................... ... 35
REMOVAL ........................................................ ... 35
INSTALLATION ................................................ ... 36
Disassembly and Assembly ................................. ... 36
DISASSEMBLY ................................................ ... 36
ASSEMBLY ...................................................... ... 36
DAYTIME LIGHT SYSTEM .................................... ... 38
Component Parts and Harness Connector Location ... 38
System Description .............................................. ... 38
OUTLINE .......................................................... ... 38
DAYTIME LIGHT OPERATION ........................ ... 39
COMBINATION SWITCH READING FUNCTION ... 39
AUTO LIGHT OPERATION .............................. ... 39
CAN Communication System Description ........... ... 39
CAN Communication Unit .................................... ... 39
Schematic ............................................................ ... 40
Wiring Diagram — DTRL — ................................ ... 41
Terminals and Reference Values for BCM ........... ... 45
How to Proceed With Trouble Diagnosis ............. ... 47

LT-2Revision: 2006 July 2007 FX35/FX45
Preliminary Check ...............................................
... 48
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. ... 48
INSPECTION PARKING BRAKE SWITCH CIR-
CUIT ................................................................. ... 49
CONSULT-II Functions (BCM) ............................. ... 50
CONSULT-II BASIC OPERATION .................... ... 50
DATA MONITOR ............................................... ... 50
ACTIVE TEST .................................................. ... 51
Daytime Light Control Does Not Operate Properly ... 52
Aiming Adjustment ............................................... ... 54
Bulb Replacement ............................................... ... 54
Removal and Installation ..................................... ... 54
Disassembly and Assembly ................................. ... 54
AUTO LIGHT SYSTEM .......................................... ... 55
Component Parts and Harness Connector Location ... 55
System Description .............................................. ... 55
OUTLINE .......................................................... ... 55
COMBINATION SWITCH READING FUNCTION ... 56
DELAY TIMER FUNCTION .............................. ... 56
CAN Communication System Description ........... ... 56
CAN Communication Unit .................................... ... 56
Major Components and Functions ....................... ... 56
Schematic ............................................................ ... 57
Wiring Diagram — AUTO/L — ............................. ... 58
Terminals and Reference Values for BCM ........... ... 61
Terminals and Reference Values for IPDM E/R ... ... 63
How to Proceed With Trouble Diagnosis ............. ... 63
Preliminary Check ............................................... ... 64
SETTING CHANGE FUNCTIONS .................... ... 64
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. ... 64
CONSULT-II Functions (BCM) ............................. ... 66
CONSULT-II BASIC OPERATION .................... ... 66
WORK SUPPORT ............................................ ... 66
DATA MONITOR ............................................... ... 66
ACTIVE TEST .................................................. ... 68
CONSULT-II Functions (IPDM E/R) ..................... ... 68
CONSULT-II BASIC OPERATION .................... ... 68
DATA MONITOR ............................................... ... 68
ACTIVE TEST .................................................. ... 69
Symptom Chart .................................................... ... 69
Lighting Switch Inspection ................................... ... 70
Optical sensor System Inspection ....................... ... 70
Removal and Installation of Optical Sensor ......... ... 72
REMOVAL ........................................................ ... 72
INSTALLATION ................................................. ... 72
HEADLAMP AIMING CONTROL ........................... ... 73
Schematic ............................................................ ... 73
Wiring Diagram — H/AIM — ................................ ... 74
Removal and Installation ..................................... ... 77
REMOVAL ........................................................ ... 77
INSTALLATION ................................................. ... 77
Switch Circuit Inspection ..................................... ... 77
FRONT FOG LAMP ............................................... ... 78
Component Parts and Harness Connector Location ... 78
System Description .............................................. ... 78
OUTLINE .......................................................... ... 78 FRONT FOG LAMP OPERATION ....................
... 79
COMBINATION SWITCH READING FUNCTION ... 79
EXTERIOR LAMP BATTERY SAVER CONTROL ... 79
CAN Communication System Description ........... ... 79
CAN Communication Unit .................................... ... 79
Wiring Diagram — F/FOG — ............................... ... 80
Terminals and Reference Values for BCM ........... ... 82
Terminals and Reference Values for IPDM E/R ... ... 83
How to Proceed With Trouble Diagnosis ............. ... 83
Preliminary Check ................................................ ... 83
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. ... 83
CONSULT-II Functions (BCM) ............................. ... 84
CONSULT-II Functions (IPDM E/R) ..................... ... 84
Front Fog Lamps Do Not Illuminate (Both Sides) ... 85
Front Fog Lamp Does Not Illuminate (One Side) . ... 87
Aiming Adjustment ............................................... ... 88
Bulb Replacement ................................................ ... 89
Removal and Installation ...................................... ... 89
REMOVAL ......................................................... ... 89
INSTALLATION ................................................. ... 89
TURN SIGNAL AND HAZARD WARNING LAMPS ... 90
Component Parts and Harness Connector Location ... 90
System Description .............................................. ... 90
OUTLINE .......................................................... ... 90
TURN SIGNAL OPERATION ............................ ... 91
HAZARD LAMP OPERATION .......................... ... 91
REMOTE CONTROL ENTRY SYSTEM OPER-
ATION ............................................................... ... 92
COMBINATION SWITCH READING FUNCTION ... 92
CAN Communication System Description ........... ... 92
CAN Communication Unit .................................... ... 92
Schematic ............................................................ ... 93
Wiring Diagram — TURN — ................................ ... 94
Terminals and Reference Values for BCM ........... ... 97
Terminals and Reference Value for Rear Combina-
tion Lamp Control Unit ......................................... ... 98
How to Proceed With Trouble Diagnosis ............. .100
Preliminary Check ................................................ .100
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. .100
CONSULT-II Functions (BCM) ............................. .102
CONSULT-II BASIC OPERATION .................... .102
DATA MONITOR ............................................... .102
ACTIVE TEST ................................................... .102
Turn Signal Lamps Do Not Operate ..................... .103
Rear Turn Signal Lamp Does Not Operate .......... .105
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamp Operate ........................................... .106
Bulb Replacement (Front Turn Signal Lamp) ....... .108
Bulb Replacement (Rear Turn Signal Lamp) ....... .108
Removal and Installation of Front Turn Signal Lamp .108
Removal and Installation of Rear Turn Signal Lamp .108
Removal and Installation of Rear Combination
Lamp Control Unit ................................................ .108
REMOVAL ......................................................... .108
INSTALLATION ................................................. .108
