TROUBLE DIAGNOSIS EC-129
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

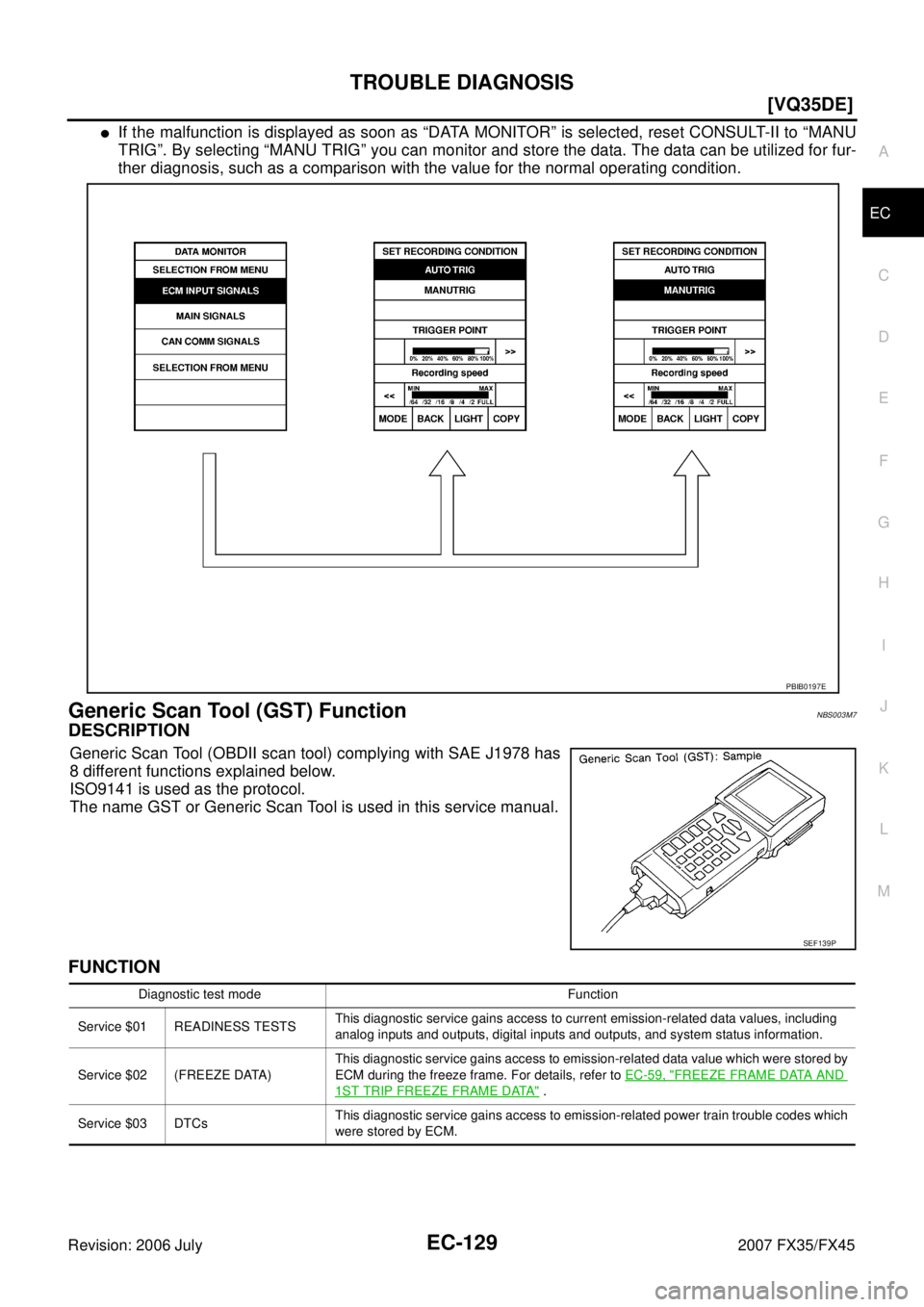

If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.
Generic Scan Tool (GST) FunctionNBS003M7
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO9141 is used as the protocol.
The name GST or Generic Scan Tool is used in this service manual.
FUNCTION
PBIB0197E
SEF139P
Diagnostic test mode Function
Service $01 READINESS TESTS This diagnostic service gains access to current emission-related data values, including
analog inputs and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA) This diagnostic service gains access to emission-related data value which were stored by
ECM during the freeze frame. For details, refer to EC-59, "
FREEZE FRAME DATA AND
1ST TRIP FREEZE FRAME DATA" .
Service $03 DTCs This diagnostic service gains access to emission-related power train trouble codes which
were stored by ECM.

EC-130
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are
shown.)
Service $04 CLEAR DIAG INFO This diagnostic service can clear all emission-related diagnostic information. This
includes:

Clear number of diagnostic trouble codes (Service $01)

Clear diagnostic trouble codes (Service $03)

Clear trouble code for freeze frame data (Service $01)

Clear freeze frame data (Service $02)

Reset status of system monitoring test (Service $01)

Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS) This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS) This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.
Service $08 — This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, EVAP canister vent control valve
can be closed.
In the following conditions, this mode cannot function.

Low ambient temperature

Low battery voltage

Engine running

Ignition switch OFF

Low fuel temperature

Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID) This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.
Diagnostic test mode Function
PBIB1570E
SEF398S

TROUBLE DIAGNOSIS EC-793
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Operation

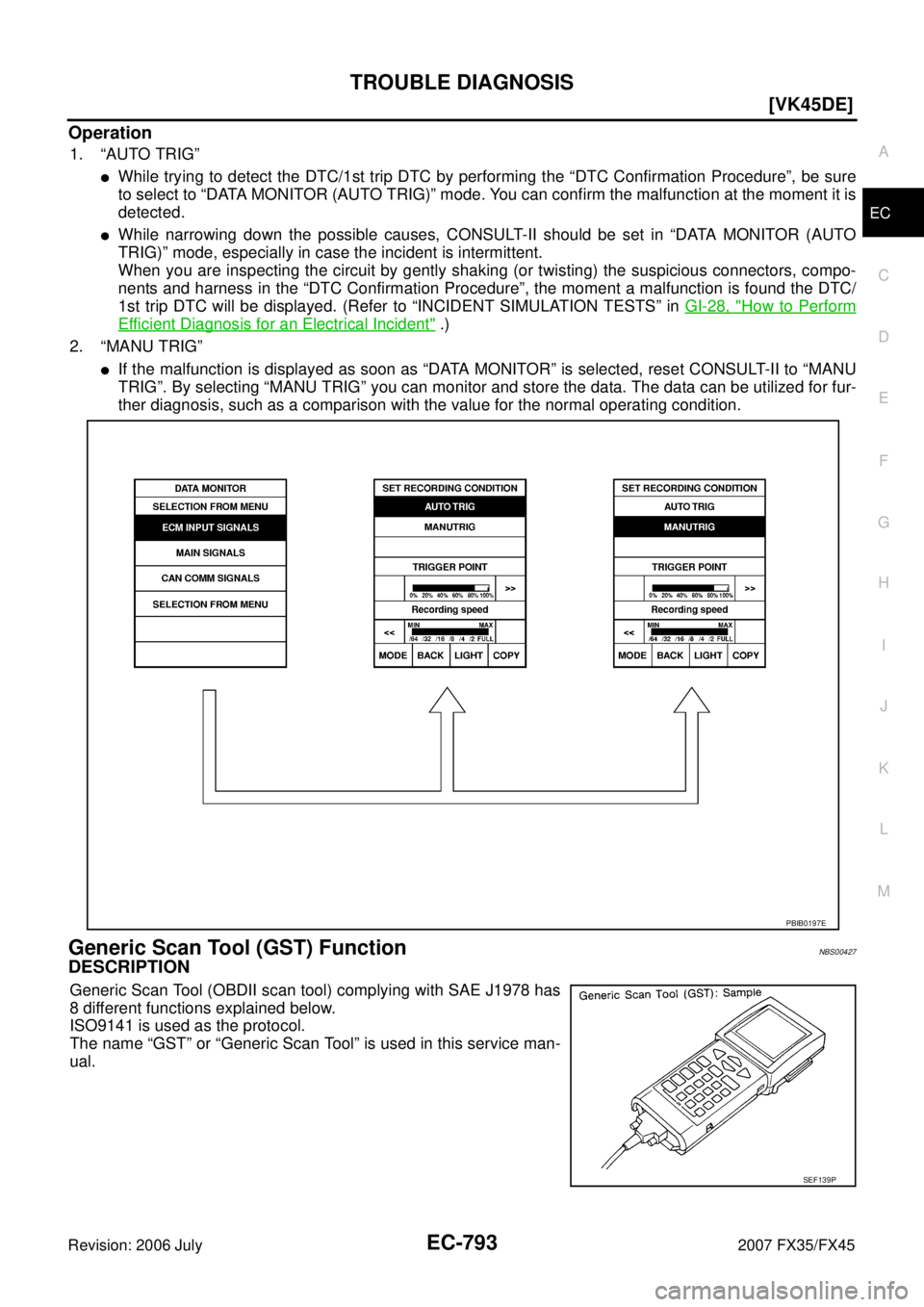

1. “AUTO TRIG”

While trying to detect the DTC/1st trip DTC by performing the “DTC Confirmation Procedure”, be sure
to select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.

While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC/
1st trip DTC will be displayed. (Refer to “INCIDENT SIMULATION TESTS” in GI-28, "
How to Perform
Efficient Diagnosis for an Electrical Incident" .)
2. “MANU TRIG”

If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.
Generic Scan Tool (GST) FunctionNBS00427
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO9141 is used as the protocol.
The name “GST” or “Generic Scan Tool” is used in this service man-
ual.
PBIB0197E
SEF139P

EC-794
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
FUNCTION
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connector, which is located under LH dash panel near the hood opener handle.
Diagnostic service Function
Service $01 READINESS TESTS This mode gains access to current emission-related data values, including analog inputs
and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA) This mode gains access to emission-related data value which were stored by ECM during
the freeze frame. For details, refer to EC-721, "
FREEZE FRAME DATA AND 1ST TRIP
FREEZE FRAME DATA" .
Service $03 DTCs This mode gains access to emission-related power train trouble codes which were stored
by ECM.
Service $04 CLEAR DIAG INFO This mode can clear all emission-related diagnostic information. This includes:

Clear number of diagnostic trouble codes (Service $01)

Clear diagnostic trouble codes (Service $03)

Clear trouble code for freeze frame data (Service $01)

Clear freeze frame data (Service $02)

Reset status of system monitoring test (Service $01)

Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS) This mode accesses the results of on board diagnostic monitoring tests of specific com-
ponents/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS) This mode enables the off board test drive to obtain test results for emission-related pow-
ertrain components/systems that are continuously monitored during normal driving condi-
tions.
Service $08 — This mode can close EVAP system in ignition switch ON position (Engine stopped). When
this mode is performed, EVAP canister vent control valve can be closed.
In the following conditions, this mode cannot function.

Low ambient temperature

Low battery voltage

Engine running

Ignition switch OFF

Low fuel temperature

Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID) This mode enables the off-board test device to request specific vehicle information such
as Vehicle Identification Number (VIN) and Calibration IDs.
PBIB1503E
