QUICK REFERENCE CHART FX35/FX45
ENGINE TUNE-UP DATA (VK45DE)
FRONT WHEEL ALIGNMENT (Unladen* )
ELS0003X
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.Engine modelVK45DE
Firing order1-8-7-3-6-5-4-2
Idle speed
A/T (In “P” or “N” position) rpm650 ± 50
Ignition timing
(BTDC at idle speed)12° ± 5°
Tensions of drive belts Auto adjustment by auto tensioner
Radiater cap relief pressure
kPa (kg/cm
2 , psi)
78 - 98 (0.8-1.0 , 11-14) Standard
Limit 59 (0.6, 9)
Cooling system leakage testing pressure
157 (1.6, 23)
kPa (kg/cm
2 , psi)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
1,320 (13.5, 191) /300 Standard
Minimum 1,130 (11.5, 164) /300
Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
Camber Degree minute (Decimal degree) Minimum –1° 29′ (–1.48°)
Nominal –0° 44′ (–0.73°)
Maximum 0° 01′ (0.02°)
Left and right difference 45′ (0.75°) or less
Caster Degree minute (Decimal degree) Minimum 3° 02′ (3.03°)
Nominal 3° 47′ (3.78°)
Maximum 4° 32′ (4.53°)
Left and right difference 45′ (0.75°) or less
Kingpin inclination Degree minute (Decimal degree) Minimum 12° 20′ (12.33°)
Nominal 13° 05′ (13.08°)
Maximum 13° 50′ (13.83°)
Total toe-in Distance Minimum 0.6 mm (0.024 in)
Nominal 1.6 mm (0.063 in)
Maximum 2.6 mm (0.102 in)
Angle (left wheel or right wheel)
Degree minute (Decimal degree)Minimum 0° 01′ (0.02°)
Nominal 0° 04′ (0.06°)
Maximum 0° 06′ (0.10°)
Wheel turning angle (Full turn) Inside Minimum 32° 00 (32.0°)
Degree minute (Decimal degree) Nominal 35° 00 (35.0°)
Maximum 36° 00 (36.0°)
Outside
Nominal 30° 00 (30.0°)
Degree minute (Decimal degree)
2007

QUICK REFERENCE CHART FX35/FX45
REAR WHEEL ALIGNMENT (Unladen*)
ELS0003Y
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
BRAKEELS0003Z
* : Under force of 490 N (50 kg, 110 lb) with engine running.
REFILL CAPACITIESELS00040
Camber
Degree minute (Decimal degree)Minimum –1° 18′ (–1.30°)
Nominal –0° 48′ (–0.80°)
Maximum – 0° 18′ (– 0.30°)
Total toe-inDistance Minimum 2.4 mm (0.09 in)
Nominal 4.7 mm (0.19 in)
Maximum 7.0 mm (0.28 in)
Angle (left wheel or right wheel)
Degree minute (Decimal degree)Minimum 0° 05′ (0.08°)
Nominal 0° 10′ (0.17°)
Maximum 0° 15′ (0.25°)
Front brake Pad wear limit 2.0 mm (0.079 in)
Rotor repair limit 32.0 mm (1.260 in)
Rear brake Pad wear limit 2.0 mm (0.079 in)
Rotor repair limit 14.0 mm (0.551 in)
Pedal free height 161.5 - 171.5 mm (6.358 - 6.752 in)
Pedal depressed height* More than 95 mm (3.74 in)
UNITLiter US measure
Fuel tank90 23 - 3/4 gal
Coolant (With reservoir tank)VQ35DE 8.6 9 - 1/8 qt
VK45DE 10.0 10 - 5/8 qt
Engine(VQ35DE)Drain and refill
With oil filter change 4.7 5 qt
Without oil filter change 4.4 4 - 5/8 qt
Dry engine (Overhaul) 5.4 5 - 3/4 qt
Engine(VK45DE)Drain and refill
With oil filter change 5.8 6 - 1/8 qt
Without oil filter change 5.2 5 - 1/2 qt
Dry engine (Overhaul) 7.0 7 - 3/8 qt
Transmission A/T 10.3 10 - 7/8 qt
Transfer1.25 2 - 5/8 pt
Differential carrierFront 0.65 1 - 3/8 pt
Rear 1.4 3 pt
Power steering system 1.0 1 - 1/8 qt
Air conditioning systemCompressor oil 0.18 6.0 fl oz
Refrigerant 0.55 kg 1.21 lb
2007

ACS-8
[ICC]
DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
ABS actuator
and electric
unit (control
unit) VHCL SPEED SE
[km/h] or [mph] × Indicates vehicle speed calculated from wheel sensor by ICC unit through CAN commu-
nication (ABS actuator and electric unit (control unit) transmits wheel speed sensor sig-
nal through CAN communication).
BCM WIPER SW
[OFF/LOW/HIGH] ×
Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front wiper request signal
through CAN communication).
Brake pres-
sure sensor PRESS SENS
[bar] Indicates brake fluid pressure value calculated from signal voltage of pressure sensor.
Release
switch RELEASE SW NO
[ON/OFF] Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is depressed.
OFF when brake is not depressed.
RELEASE SW NC
[ON/OFF] Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is not depressed.
OFF when brake is depressed.
ICC brake
switch BRAKE SW
[ON/OFF] Indicates [ON/OFF] status as judged from ICC brake switch signal.
Stop lamp
switch STOP LAMP SW
[ON/OFF] Indicates [ON/OFF] status as judged from stop lamp switch signal.
Input
Data monitored
Item [unit] CAN Description
OutputData monitored
Item [unit] CAN Description
ICC warning
chime BUZZER O/P
[ON/OFF] ×
Indicates [ON/OFF] status of ICC warning chime output.
ICC brake hold
relay STP LMP DRIVE
[ON/OFF] Indicates [ON/OFF] status of brake hold relay drive output.
Output CONSULT-ll ICC
[ACTIVE TEST] Item CAN Description
Combination
meter ICC BUZZER 1
×Able to start ICC warning chime with a driving signal from ICC unit.
METER LAMP ×Able to turn ICC system display ON with a driving signal from ICC unit.
ICC brake hold
relay STOP LAMP Able to start ICC brake hold relay with a driving signal from ICC unit.
Booster sole-
noid BOOSTER SOL/V
3 Able to start booster solenoid with a driving signal from ICC unit.

DESCRIPTION ACS-9
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Components DescriptionNKS003EL
CAN CommunicationNKS003EM
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tric control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN COMMUNICATION UNIT
Refer to LAN-49, "CAN System Specification Chart" .
Component Vehicle-to-
vehicle
distance
control mode Conventional
(fixed speed) cruise
control mode Brake assist
(with pre-
view func- tion) Description
ICC unit ××× Operates electric throttle control actuator and brake
booster based on that sensor signals and CAN commu-
nication data, then controls vehicle distance.
ICC sensor ×× Irradiates laser beam, and receives reflected laser
beam to measure distance from preceding vehicle.
ECM ××× Transmits throttle position signal and ICC steering
switch signal to ICC unit through CAN communication.
ABS actuator and electric
unit (control unit) ×××
Transmits wheel speed sensor signal to ICC unit
through CAN communication.
Brake pressure sensor ×× Detects fluid pressure in master cylinder.
Brake booster ×× Adjusts brake fluid pressure, based on command from
ICC unit.
BCM × Transmit front wiper request signal to ICC unit through
CAN communication.
TCM ×× Transmits gear position signal and output shaft revolu-
tion signal to ICC unit through CAN communication.
Unified meter and A/C amp. ××× Receives ICC system display signal, ICC warning lamp
signal and buzzer output signal from ICC unit through
CAN communication.
ICC brake switch, stop
lamp switch ××× Transmit operating signal to ICC unit when touching
brake pedal. ICC unit cancels cruise system at driver's
brake operation.
ICC brake hold relay × Receives stop lamp driving signal from ICC unit, and
turns stop lamp ON.
Parking brake switch ×× The cruise system is cancelled when applied.

ACS-10
[ICC]
DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
Switch OperationNKS003EN
The system is operated by MAIN switch and four control switches, all mounted on the steering wheel.
ICC System DisplayNKS003EO
No. Switch name Description
1 RESUME/ACCELERATE switch Resumes set speed or increases speed incrementally.
2 SET/COAST switch Sets desired cruise speed, reduces speed incrementally.
3 CANCEL switch Deactivates system without erasing set speed.
4 MAIN switch Master switch to activate the system
5 DISTANCE switch Changes the following distance from: Long, Middle, Short.
SKIB8558E
SKIA6177E
No. Display items Description
1 Set vehicle speed indicator Indicates the set vehicle speed.

For CANADA models: km/h

For US models: MPH
2 Vehicle ahead detection indicator Indicates whether it detects a vehicle ahead.
3 Set distance indicator Display the selected distance between vehicles set with the DISTANCE switch.
4 Own vehicle indicator Indicates the base vehicle.
5 MAIN switch indicator lamp (Green) Indicates that the MAIN switch is ON.
6 Intelligent cruise control system warning
lamp (Orange) The light comes on if there is a malfunction in the ICC system.
7 SET switch indicator lamp Indicates that the conventional cruise control mode is controlled.

ACS-32
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2006 July 2007 FX35/FX45
WORK SUPPORT
Work Item
Cause of Auto-Cancel
1. Touch “WORK SUPPORT” on the “SELECT DIAG MODE” screen. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch “CAUSE OF AUTO-CANCEL” on the “SELECT WORK ITEM” screen.
3. Cause of automatic cancellation screen will be shown. CAUTION:
Last five cancel (system cancel) causes are displayed.
Display Item List
Laser Beam Adjust
For details, refer to ACS-14, "LASER BEAM AIMING ADJUSTMENT" .
SELF-DIAGNOSTIC RESULTS
For details, refer to ACS-42, "Diagnostic Trouble Code (DTC) Chart" .
Operation Function
CAUSE OF AUTO-CANCEL Indicates causes of automatic cancellation of the ICC system.
LASER BEAM ADJUST Outputs laser beam, calculates dislocation of the beam, and indicates adjustment direction.
SKIA6191E
Cause of cancellation Description
OPERATING WIPER Windshield wipers were operated at HI or LO speed operation.
OPERATING ABS ABS function was operated.
OPERATING TCS TCS function was operated.
OPERATING VDC VDC function was operated.
OPE SW VOLT CIRC Outside the standard control switch input voltage was detected.
ECM CIRCUIT ECM did not permit ICC operation.
LASER SUN BEAM Intense light such as sunlight entered ICC sensor light sensing part.
LASER TEMP Temperature around ICC sensor became low.
OP SW DOUBLE TOUCH ICC steering switches were pressed at the same time.
WHL SPD ELEC NOISE Wheel speed sensor signal caught electromagnetic noise.
VDC/TCS OFF SW VDC OFF switch was pressed.
WHEEL SPD UNMATCH Wheel speed became different from AT vehicle speed.
TIRE SLIP Wheel slipped.
PKB SW ON Parking brake is applied.
IGN LOW VOLT Power supply voltage became low.
SNOW MODE SW Snow mode switch was pressed.
NO RECORD —

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-33
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch any of “ECU INPUT SIGNALS”, “MAIN SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Monitored Item
× : Applicable
PKIB0112E
Monitored Item
[unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM MENU Description
VHCL SPEED SE
[km/h] or [mph] ××× Indicates vehicle speed calculated from ICC unit through CAN
communication [ABS actuator and electric unit (control unit)
transmits wheel speed sensor signal through CAN communica-
tion].
SET VHCL SPD
[km/h] or [mph] ××Indicates set vehicle speed memorized in ICC unit.
THRTL OPENING
[%] ××× Indicates throttle angle read from ICC unit through CAN commu-
nication (ECM transmits throttle angle through CAN communi-
cation).
ENGINE RPM
[rpm] ×× Indicates engine speed read from ICC unit through CAN com-
munication (ECM transmits engine speed through CAN commu-
nication).
DISTANCE ADJ
[SHOR/MID/LONG] ××× Indicates set distance memorized in ICC unit.
WIPER SW
[OFF/LOW/HIGH] ×× Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front
wiper request signal through CAN communication).
MAIN SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
SET/COAST SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CANCEL SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
RESUME/ACC SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CRUISE OPE
[ON/OFF] ××
Indicates whether controlling or not (ON means “controlling”).
BRAKE SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC brake switch sig-
nal.
STOP LAMP SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from stop lamp switch sig-
nal.
RELEASE SW NO
[ON/OFF] ×× Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is depressed.
OFF when brake is not depressed.

ACS-42
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Diagnostic Trouble Code (DTC) ChartNKS003F3
×: Applicable
DTC No. CONSULT-II
screen terms ICC
system
warning lamp Fail-safe
Malfunctions detected where... Refer-
ence
page
Vehicle-
to-
vehicle
distance
control mode Conven-
tional
(fixed
speed) cruise
control
mode Brake
assist
(with
preview
function)
11 CONTROL UNIT ××××

ICC unit internal malfunctionACS-44
20 CAN COMM CIRCUIT ××××
ICC unit detected CAN communi-
cation malfunction. ACS-44
31 POWER SUPPLY CIR
××××
ICC unit power supply voltage is
excessively low (less than 8 V). ACS-44
34 POWER SUPPLY CIR2
××××
ICC unit power supply voltage is
excessively high (more than 19 V). ACS-44
41 VHCL SPEED SE CIRC
××××

Wheel sensor malfunction.

ABS actuator and electric unit (
control unit) malfunction

AT vehicle speed sensor malfunc-
tion

TCM malfunction ACS-45
43 ABS/TCS/VDC CIRC
××××
VDC/TCS/ABS system malfunc-
tion ACS-46
45 BRAKE SW/STOP L SW
××××

Brake and stop lamp switch har-
ness is open or shorted.

Brake and stop lamp switch is ON
or stuck to OFF.

Brake and stop lamp switch is
stuck to ON. ACS-46
46 OPERATION SW CIRC
×××

ICC steering switch harness or
spiral cable is open or shorted.

ICC steering switch malfunction ACS-48
61 PRESS SEN CIRCUIT
×× ×

Brake pressure sensor harness is
open or shorted.

Brake pressure sensor malfunc-
tion

Brake pressure sensor input circuit
malfunction ACS-50
62
BOOSTER SOL/V
CIRCUIT ×× ×

Solenoid harness is open or
shorted.

Solenoid is open.

Solenoid drive circuit malfunction ACS-51
63 RELEASE SW CIRCUIT
××××

Release switch harness is open or
shorted.

Release switch malfunction

Release switch input circuit mal-
function ACS-52
65 PRESSURE CONTROL
×× ×
Booster malfunctionACS-54
74 LASER BEAM OFF CNTR ×× ×
Laser beam of ICC sensor is off
the aiming point. ACS-55

AT-38
A/T CONTROL SYSTEM
Revision: 2006 July 2007 FX35/FX45

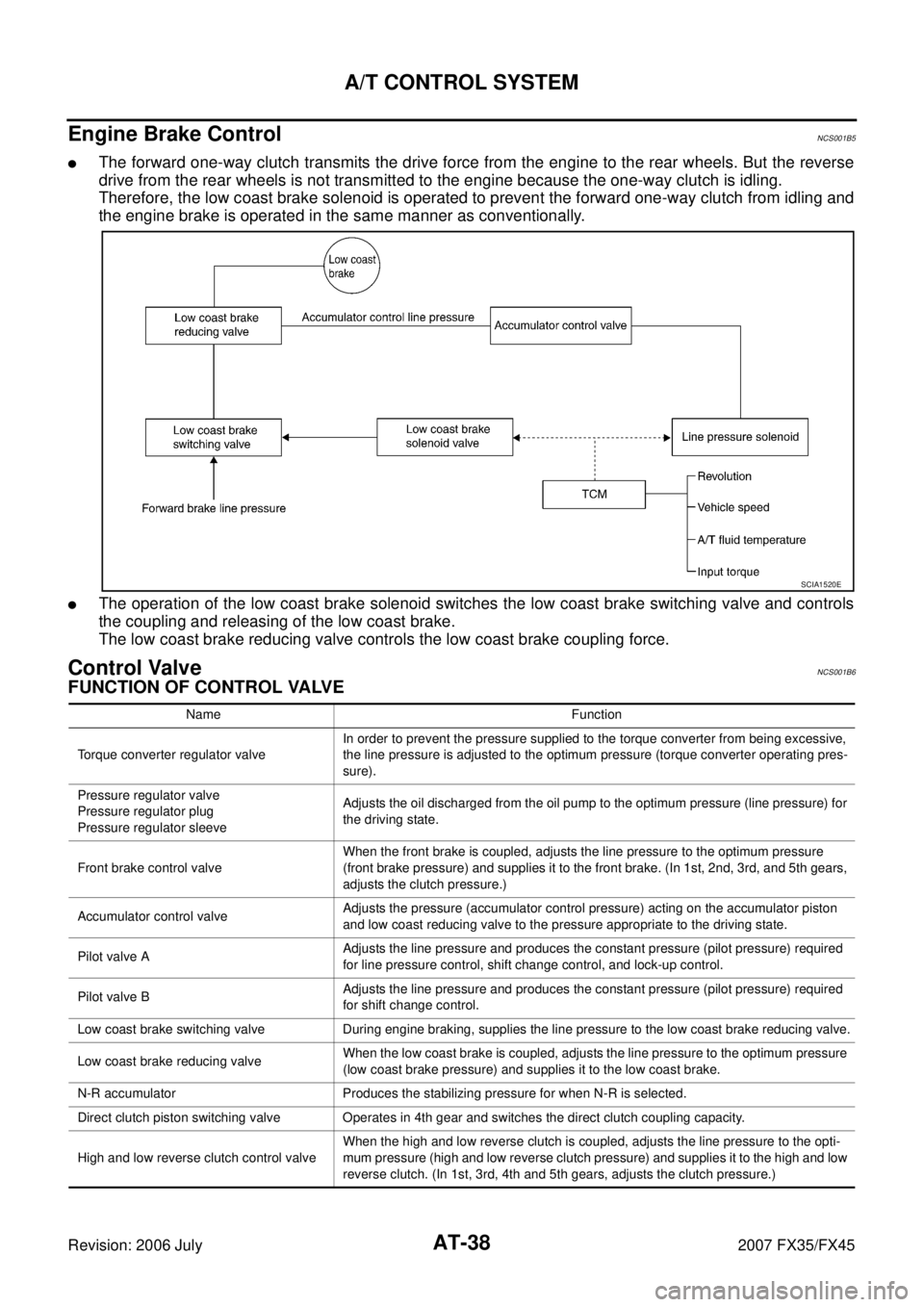

Engine Brake ControlNCS001B5

The forward one-way clutch transmits the drive force from the engine to the rear wheels. But the reverse
drive from the rear wheels is not transmitted to the engine because the one-way clutch is idling.
Therefore, the low coast brake solenoid is operated to prevent the forward one-way clutch from idling and
the engine brake is operated in the same manner as conventionally.

The operation of the low coast brake solenoid switches the low coast brake switching valve and controls
the coupling and releasing of the low coast brake.
The low coast brake reducing valve controls the low coast brake coupling force.
Control ValveNCS001B6
FUNCTION OF CONTROL VALVE
SCIA1520E
Name Function
Torque converter regulator valve In order to prevent the pressure supplied to the torque converter from being excessive,
the line pressure is adjusted to the optimum pressure (torque converter operating pres-
sure).
Pressure regulator valve
Pressure regulator plug
Pressure regulator sleeve Adjusts the oil discharged from the oil pump to the optimum pressure (line pressure) for
the driving state.
Front brake control valve When the front brake is coupled, adjusts the line pressure to the optimum pressure
(front brake pressure) and supplies it to the front brake. (In 1st, 2nd, 3rd, and 5th gears,
adjusts the clutch pressure.)
Accumulator control valve Adjusts the pressure (accumulator control pressure) acting on the accumulator piston
and low coast reducing valve to the pressure appropriate to the driving state.
Pilot valve A Adjusts the line pressure and produces the constant pressure (pilot pressure) required
for line pressure control, shift change control, and lock-up control.
Pilot valve B Adjusts the line pressure and produces the constant pressure (pilot pressure) required
for shift change control.
Low coast brake switching valve During engine braking, supplies the line pressure to the low coast brake reducing valve.
Low coast brake reducing valve When the low coast brake is coupled, adjusts the line pressure to the optimum pressure
(low coast brake pressure) and supplies it to the low coast brake.
N-R accumulator Produces the stabilizing pressure for when N-R is selected.
Direct clutch piston switching valve Operates in 4th gear and switches the direct clutch coupling capacity.
High and low reverse clutch control valve When the high and low reverse clutch is coupled, adjusts the line pressure to the opti-
mum pressure (high and low reverse clutch pressure) and supplies it to the high and low
reverse clutch. (In 1st, 3rd, 4th and 5th gears, adjusts the clutch pressure.)
