Page 929 of 3924
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-195
< SERVICE INFORMATION >
C
D E
F
G H
J
K L
M A
B
BL
N
O P
Trouble Diagnosis Symptom ChartINFOID:0000000001327932
*: When IVIS (NATS) detects trouble, the security indica tor lights up while electronic key is in the “ON” position.
Security Indicator InspectionINFOID:0000000001327933
*: CONSULT-III self-diagnostic results display screen “no malfunction is detected”.
Diagnosis Procedure 1INFOID:0000000001327934
Self-diagnostic results:
“CHAIN OF ECM-IMMU” is display on CONSULT-III screen
First perform the “SELF-DIAG RESULTS” in “BCM” wi th CONSULT-III, then perform the trouble diag-
nosis of malfunction system indicated “SEL F-DIAG RESULTS” of “BCM”. Refer to BCS-13, "
U1000
CAN Communication Circuit".
1.CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm that SELF-DIAGNOSTIC RESULTS “CHAIN OF ECM-IMMU” is displayed on the screen?
Does CONSULT-III screen display as shown in figure?
SYMPTOM Displayed “SELF-DIAG
RESULTS” on CON- SULT-III screen. DIAGNOSTIC PROCE-
DURE SYSTEM (Malfunctioning part or mode)
Security indicator lighting up*
Engine hard to start CHAIN OF ECM-IMMU
[P1612] Refer to
BL-195, "
Diag-
nosis Procedure 1".Open circuit in battery voltage line to BCM (NATS
IMMU) circuit
Open circuit in ignition
line to BCM (NATS IMMU) cir-
cuit
Open circuit in ground line to BCM (NATS IMMU) cir-
cuit
Open or short circuit between BCM (NATS IMMU)
and ECM communication line.
ECM
BCM (NATS IMMU)
DIFFERENCE OF KEY [P1615] Refer to
BL-197, "
Diag-
nosis Procedure 2".Unregistered key
NATS IMMU
CHAIN OF IMMU-KEY [P1614] Refer to
BL-198, "
Diag-
nosis Procedure 5".Open or short circuit between BCM (NATS IMMU)
and NATS antenna amp.
Malfunction of key ID chip
BCM (NATS IMMU)
Antenna amp.
ID DISCORD, IMM-ECM [P1611] Refer to
BL-197, "
Diag-
nosis Procedure 3"
System initialization has not yet been completed.
ECM
LOCK MODE [P1610] Refer to
BL-197, "
Diag-
nosis Procedure 4".LOCK MODE
MIL staying ON
Security indicator lighting up* DON'T ERASE BEFORE
CHECKING ENG DIAG Refer to
BL-194, "
Diag-
nosis Procedure".Engine trouble data and IVIS (NATS) trouble data
have been detected in ECM
SYMPTOM
SYSTEM
(Malfunctioning part or mode) DIAGNOSTIC PROCEDURE
Security indicator does not operate* Security indicator
Refer to BL-200, "
Diagnosis
Procedure 6".
Open circuit between Fuse and BCM (NATS IM-
MU)
Continuation of initialization mode
BCM (NATS IMMU)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 931 of 3924
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-197
< SERVICE INFORMATION >
C
D E
F
G H
J
K L
M A
B
BL
N
O P
Replace ECM.
Perform initialization or re-communicating function.
- For re-communicating function, refer to BL-187, "
ECM Re-Communicating Function".
- For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
Diagnosis Procedure 2INFOID:0000000001327935
Self-diagnostic results:
“DIFFERENCE OF KEY” is displayed on CONSULT-III screen
1.CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm that SELF-DIAGNOSTIC RESULTS “DIFFERENCE OF KEY” is displayed on CONSULT-III screen.
Does CONSULT-III screen display as shown in figure?
YES >> GO TO 2.
NO >> Refer to BL-195, "
Trouble Diagnosis Symptom Chart".
2.PERFORM INITIALIZATION WITH CONSULT-III
Perform initialization with CONS ULT-III. Re-register all ignition key or mechanical key IDs.
For initialization and registration of ignition key or mec hanical key IDs, refer to “CONSULT-III Operation Man-
ual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or ma lfunction, CONSULT-III shows message on the screen.
Can the system be initialized and can the engine be started with re-registered ignition key or mechanical key?
YES >> Ignition key ID was unregistered.
NO >> BCM is malfunctioning.
Replace BCM.
Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
Diagnosis Procedure 3INFOID:0000000001327936
Self-diagnostic results:
“ID DISCORD, IMM-ECM” is displayed on CONSULT-III screen
1.CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm that SELF-DIAGNOSTIC RESULTS “ID DISCO RD, IMM-ECM” is displayed on CONSULT-III screen.
NOTE:
“ID DISCORD IMM-ECM”:
Registered ID of BCM is in discord with that of ECM.
Does CONSULT-III screen display as shown in figure?
YES >> GO TO 2.
NO >> Refer to BL-195, "
Trouble Diagnosis Symptom Chart".
2.PERFORM INITIALIZATION WITH CONSULT-III
Perform initialization with CONS ULT-III. Re-register all ignition key or mechanical key IDs.
For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or ma lfunction, CONSULT-III shows message on the screen.
Can the system be initialized?
YES >> Start engine. (END) System initialization had not been completed.
NO >> ECM is malfunctioning. Replace ECM.
Perform initialization or re-communicating function.
- For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
- For re-communicating function, refer to BL-187, "
ECM Re-Communicating Function".
Diagnosis Procedure 4INFOID:0000000001327937
Self-diagnostic results:
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 932 of 3924
BL-198
< SERVICE INFORMATION >
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
“LOCK MODE” displayed on CONSULT-III screen
1.CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “LOCK MO DE” is displayed on CONSULT-III screen.
Does CONSULT-III screen disp lay as shown in figure?
YES >> GO TO 2.
NO >> Refer to BL-195, "
Trouble Diagnosis Symptom Chart".
2.ESCAPE FROM LOCK MODE
1. Turn ignition switch OFF.
2. Turn ignition switch ON with registered key. (Do not start engine.) Wait 5 seconds.
3. Return the key to OFF position. Wait 5 seconds.
4. Repeat steps 2 and 3 twice (total of three cycles).
5. Start the engine.
Does engine start?
YES >> System is OK (Now system is escaped from “LOCK MODE”).
NO >> GO TO 3.
3.PERFORM INITIALIZATION WITH CONSULT-III
Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or malf unction, CONSULT-III shows the message on the screen.
Can the system be initialized?
YES >> System is OK.
NO >> GO TO 4.
4.PERFORM INITIALIZATION WITH CONSULT-III AGAIN
1. Replace BCM.
2. Perform initialization with CONSULT-III. For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or malf unctions, CONSULT-III shows the message on the screen.
Can the system be initialized?
YES >> System is OK. BCM is malfunctioning. Replace BCM.
Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
NO >> ECM is malfunctioning. Replace ECM.
Perform initialization or re-communicating function.
- For initialization, refer to “CONSULT -III Operation Manual NATS-IVIS/NVIS”.
- For re-communicating function, refer to BL-187, "
ECM Re-Communicating Function".
Diagnosis Procedure 5INFOID:0000000001327938
Self-diagnostic results:
“CHAIN OF IMMU-KEY” is displayed on CONSULT-III screen
1.CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm self-diagnostic results “CHAIN OF IM MU-KEY” is displayed on CONSULT-III screen.
Does CONSULT-III screen display as shown?
YES >> GO TO 2.
NO >> Refer to BL-195, "
Trouble Diagnosis Symptom Chart".
2.CHECK NATS ANTENNA AMP. INSTALLATION
Check NATS antenna amp. installation. Refer to BL-201, "
Removal and Installation NATS Antenna Amp".
OK or NG
OK >> GO TO 3.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1023 of 3924
![INFINITI FX35 2008 Service Manual
BRC-8
< SERVICE INFORMATION >[VDC/TCS/ABS]
ON-VEHICLE SERVICE
ON-VEHICLE SERVICE
Adjustment of Steering Angl
e Sensor Neutral PositionINFOID:0000000001327658
In case of doing work that applies to the](/img/42/57017/w960_57017-1022.png "INFINITI FX35 2008 Service Manual
BRC-8
< SERVICE INFORMATION >[VDC/TCS/ABS]
ON-VEHICLE SERVICE
ON-VEHICLE SERVICE
Adjustment of Steering Angl
e Sensor Neutral PositionINFOID:0000000001327658
In case of doing work that applies to the")
BRC-8
< SERVICE INFORMATION >[VDC/TCS/ABS]
ON-VEHICLE SERVICE
ON-VEHICLE SERVICE
Adjustment of Steering Angl
e Sensor Neutral PositionINFOID:0000000001327658
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sen-
sor before running vehicle.
CAUTION:
To adjust neutral position of steering angl e sensor, make sure to use CONSULT-III.
(Adjustment can not be done without CONSULT-III.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Touch “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” on CONSULT-III screen in this order.
3. Touch “START”. CAUTION:
Do not touch steering wheel whil e adjusting steering angle sensor.
4. After approximately 10 seconds, touch “END”. (After approximately 60 seconds, it ends automatically.)
5. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
6. Run vehicle with front wheels in straight-ahead position, then stop.
7. Select “DATA MONITOR”, “SELECTION FROM ME NU”, and “STR ANGLE SIG” on CONSULT-III screen.
Then make sure “STR ANGLE SIG” is within 0 ± 3.5 deg. If value is more than specification, repeat steps
1 to 6.
8. Erase memory of ABS actuator and electric unit (control unit) and ECM.
9. Turn ignition switch OFF.
Calibration of Decel G Sensor (AWD Models)INFOID:0000000001327659
NOTE:
After removing/installing or replacing yaw rate/side/dec el G sensor, ABS actuator and electric unit (control
unit), suspension components, or after adjusting wheel ali gnment, make sure to calibration of decel G sensor
before running vehicle.
CAUTION:
To calibrate decel G sensor, make sure to use CONS ULT-III. (Adjustment can not be done without CON-
SULT-III.)
1. Stop vehicle with front wheels in straight-ahead position.
CAUTION:
The work should be done at a horizontal place when vehicle is in the unloaded vehicle condition.
Keep all tires inflated to correct pressures. Ad just the tire pressure to the specified pressure
value.
2. Touch “WORK SUPPORT” and “DECEL G-SEN CALI BRATION” on CONSULT-III screen in this order.
3. Touch “START”. CAUTION:
Set vehicle as shown in the display.
4. After approximately 10 seconds, touch “END”. (After approximately 60 seconds, it ends automatically.)
Situation Adjustment of Steering Angle Sensor Neutral Position
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering angle sensor ×
Removing/Installing steering components ×
Removing/Installing suspension components ×
Change 4 tires to new ones —
Tire rotation —
Adjusting wheel alignment ×
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1038 of 3924
![INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-23
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Control Unit Input/Out put Signal StandardINFOID:0000000001327670
REFERENCE VALUE FROM CONSULT-III
CAUT](/img/42/57017/w960_57017-1037.png "INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-23
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Control Unit Input/Out put Signal StandardINFOID:0000000001327670
REFERENCE VALUE FROM CONSULT-III
CAUT")
TROUBLE DIAGNOSISBRC-23
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Control Unit Input/Out put Signal StandardINFOID:0000000001327670
REFERENCE VALUE FROM CONSULT-III
CAUTION:
The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value
might be displayed even in the event the output circuit (harness) is open or short-circuited.

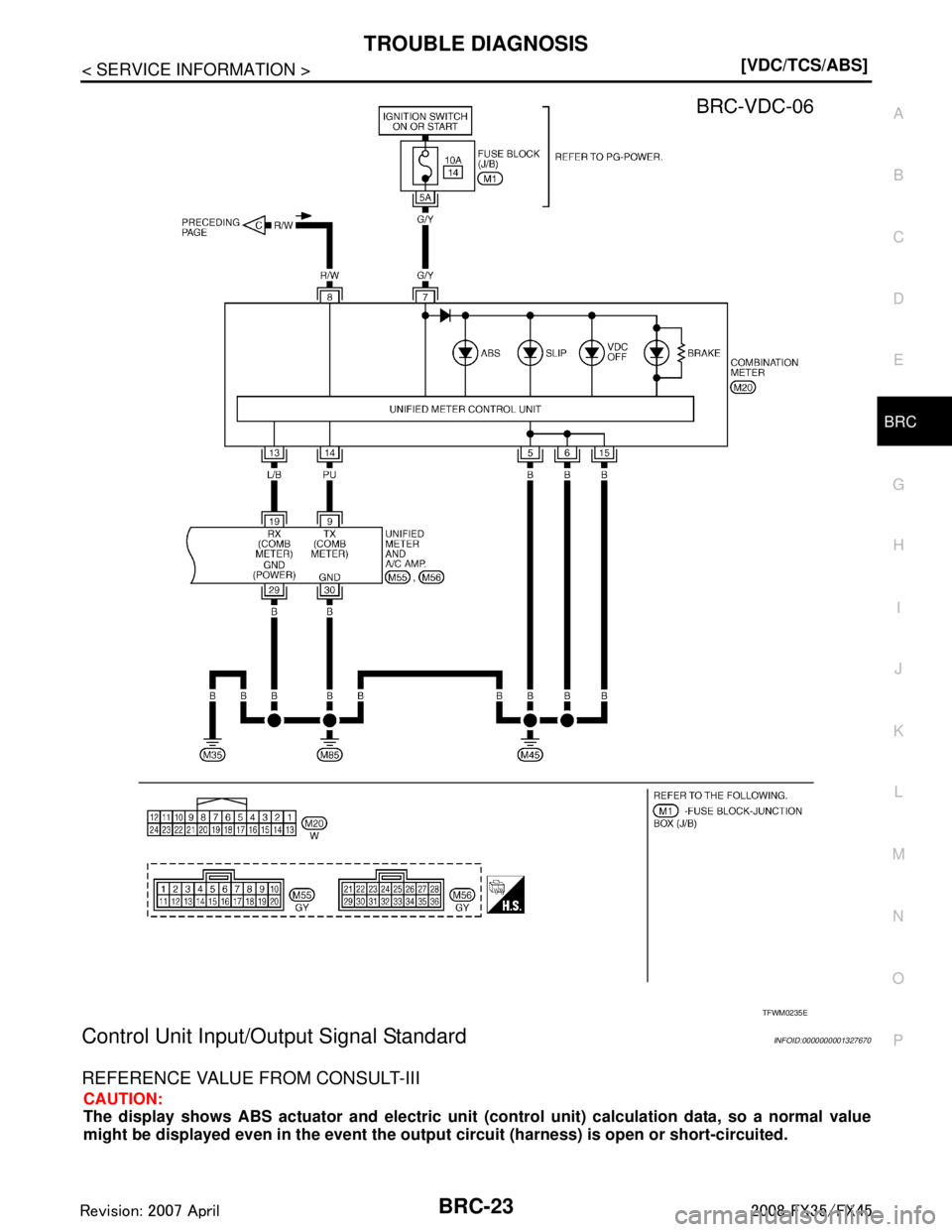

TFWM0235E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1039 of 3924
![INFINITI FX35 2008 Service Manual
BRC-24
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R](/img/42/57017/w960_57017-1038.png "INFINITI FX35 2008 Service Manual
BRC-24
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R")
BRC-24
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R: R position
N: N position
D: D position
GEAR A/T gear position 1: 1st gear
2: 2nd gear
3: 3rd gear
4: 4th gear
5: 5th gear
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSOR Wheel speed Vehicle stopped 0 [km/h (MPH)]
Vehicle running (Note 1)
Almost in accordance
with speedometer
display
(within
± 10 %)
ACCEL POS SIG Open/close condition of throttle valve
(linked with a
ccelerator pedal) Accelerator pedal not depressed
(Engine stopped)
0 %
Depress accelerator pedal
(Engine stopped) 0 to 100 %
ENGINE SPEED With engine running With engine stopped 0 rpm
Engine running
Almost in accordance
with tachometer dis-
play
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead Approx. 0 deg
Steering wheel turned –756 to 756 deg
YAW RATE SEN Yaw rate detected by yaw rate sensor Vehicle stopped Approx. 0 d/s
Vehicle running –100 to 100 d/s
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle running–16.7 to 16.7 m/s2
PRESS SENSORBrake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released
Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed 0 to 170 bar
BATTERY VOLT Battery voltage supplied to ABS actuator
and electric unit (control unit) Ignition switch ON 10 to 16 V
STOP LAMP SW Brake pedal operation Brake pedal depressed ON
Brake pedal not depressed OFF
OFF SW VDC OFF switch ON/OFF status VDC OFF switch ON
(When VDC OFF indicator lamp is ON)
ON
VDC OFF switch OFF
(When VDC OFF indicator lamp is OFF) OFF
ABS WARN LAMP ABS warning lamp ON condition (Note 2) ABS warning lamp ON ON
ABS warning lamp OFF OFF
MOTOR RELAY Operation status of motor and motor relay Ignition switch ON or engine running
(ABS not operated)
OFF
Ignition switch ON or engine running (ABS
operated) ON
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1040 of 3924
![INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-25
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONS](/img/42/57017/w960_57017-1039.png "INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-25
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONS")
TROUBLE DIAGNOSISBRC-25
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONSULT-III)
ON
When actuator relay is inactive
(in fail-safe mode) OFF
OFF LAMP VDC OFF indicator lamp status
(Note 3) When VDC OFF indicator lamp is ON ON
When VDC OFF indicator lamp is OFF OFF
SLIP LAMP SLIP indicator lamp status
(Note 4) When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL Solenoid valve operation Actuator (solenoid) is active (“ACTIVE
TEST” with CONSULT-III) and actuator re-
lay is active (ignition switch ON)
ON
When actuator (solenoid) is not active or
actuator relay is inactive (in fail-safe
mode) OFF
CV1
CV2
SV1
SV2 VDC/TCS switch-over valve status When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)
and actuator relay is active (ignition switch
ON)
ON
When actuator (switch-over valve) is not
active or actuator relay is inactive (in fail-
safe mode) OFF
DECEL G-SEN Longitudinal acceleration detected by decel
G sensor (Note 5) Vehicle stopped Approx. 0 G
Vehicle running -1.7 to +1.7 G
FLUID LEV SW ON/OFF status of brake fluid level switch When brake fluid level switch ON ON
When brake fluid level switch OFF OFF
VDC FAIL SIG
TCS FAIL SIG
ABS FAIL SIG
EBD FAIL SIG Fail signal status VDC fail
TCS fail
ABS fail
EBD fail
ON
VDC normal
TCS normal
ABS normal
EBD normal OFF
EBD WARN LAMP Brake warning lamp on condition
(Note 6) Brake warning lamp ON ON
Brake warning lamp OFF OFF
EBD SIGNAL EBD operation EBD active ON
EBD not active OFF
ABS SIGNAL ABS operation ABS active ON
ABS not active OFF
TCS SIGNAL TCS operation TCS active ON
TCS not active OFF
VDC SIGNAL VDC operation VDC active ON
VDC not active OFF
CRANKING SIG CRANKING status Cranking ON
Not cranking OFF
4WD FAIL REQ ETS fail status (Note 5) ETS fail ON
ETS normal OFF
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1041 of 3924
![INFINITI FX35 2008 Service Manual
BRC-26
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ignition switch is](/img/42/57017/w960_57017-1040.png "INFINITI FX35 2008 Service Manual
BRC-26
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ignition switch is")
BRC-26
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected.
OFF: Approx. 2 seconds after ignition switch is turned ON (when sy
stem is in normal operation) and VDC/TCS function is not activated.
Note 3: ON/OFF timing of VDC OFF indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is OFF.
Note 4: ON/OFF timing of SLIP indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC/TCS function is activa ted
while driving.
OFF: Approx. 2 seconds after ignition switch is turned ON (when sy stem is in normal operation) and VDC/TCS function is not activated.
Flashing: VDC/TCS function is active during driving
Note 5: Only AWD models.
Note 6: Serves as EBD warning lamp.
CONSULT-III Functions (ABS)INFOID:0000000001327671
CONSULT-III MAIN FUNCTION
CONSULT-III can display each diagnostic item us ing the diagnostic test modes shown following.
Self-DiagnosisINFOID:0000000001327672
OPERATION PROCEDURE
Before performing the self-diagnosis, start engine and driv e vehicle at 30 km/h (19 MPH) or more for approxi-
mately 1 minute.
ERASE MEMORY
After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1
minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp, SLIP indi-
cator lamp and brake warning lamp turn OFF.
CAUTION:
If memory cannot be erased, perform applicably diagnosis.
NOTE:
When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,
VDC OFF indicator lamp, SLIP indicator lamp and br ake waning lamp will not turn OFF even when the sys-
tem is normal unless the vehicle is driving at approxim ately 30 km/h (19 MPH) or more for approximately 1
minute.
Brake warning lamp will turn ON in case of parki ng brake operation (when switch is ON) or of brake fluid
level switch should not stay “ON” position.
VDC OFF switch should not stay “ON” position.
2WD/4WD Drive axle 2WD model 2WD
AWD model AWD
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
Diagnostic test mode Function
WORK SUPPORT This mode enables a technician to adjust some devices faster and more accurately by following the
indications on CONSULT-III.
SELF-DIAG RESULTS Self-diagnostic results can be read and erased quickly.
DATA MONITOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of communication can be read.
ACTIVE TEST Diagnostic Test Mode in which CONSULT-III drives
some actuators apart from the ABS actuator and
electric unit (control unit) and also shifts some parameters in a specified range.
FUNCTION TEST Performed by CONSULT-III inst ead of a technician to determine whether each system is “OK” or “NG”.
ECU PART NUMBER ABS actuator and electric unit (control unit) part number can be read.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1042 of 3924
![INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-27
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DISPLAY ITEM LIST
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR- 1
[C1](/img/42/57017/w960_57017-1041.png "INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-27
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DISPLAY ITEM LIST
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR- 1
[C1")
TROUBLE DIAGNOSISBRC-27
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DISPLAY ITEM LIST
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR- 1
[C1101] (Note 1) Circuit of rear RH wheel sensor is open, shorted or sensor power volt-
age is unusual. BRC-34, "
DTC C1101 RR RH
SENSOR-1"
RR LH SENSOR- 1
[C1102] (Note 1)
Circuit of rear LH wheel sensor is open, shorted or sensor power volt-
age is unusual. BRC-35, "DTC C1102 RR LH
SENSOR-1"
FR RH SENSOR- 1
[C1103] (Note 1)Circuit of front RH wheel sensor is open, shorted or sensor power volt-
age is unusual. BRC-35, "DTC C1103 FR RH
SENSOR-1"
FR LH SENSOR- 1
[C1104] (Note 1)Circuit of front LH wheel sensor is open, shorted or sensor power volt-
age is unusual. BRC-35, "DTC C1104 FR LH
SENSOR-1"
RR RH SENSOR- 2
[C1105] (Note 1)
ABS actuator and electric unit (control unit) can not identify sensor puls-
es, because of large gap between wheel sensor and sensor rotor. BRC-36, "DTC C1105 RR RH
SENSOR-2"
RR LH SENSOR- 2
[C1106] (Note 1)ABS actuator and electric unit (control unit) can not identify sensor puls-
es, because of large gap between wheel sensor and sensor rotor. BRC-36, "DTC C1106 RR LH
SENSOR-2"
FR RH SENSOR- 2
[C1107] (Note 1)ABS actuator and electric unit (control unit) can not identify sensor puls-
es, because of large gap between wheel sensor and sensor rotor. BRC-36, "DTC C1107 FR RH
SENSOR-2"
FR LH SENSOR- 2
[C1108] (Note 1)
ABS actuator and electric unit (control unit) can not identify sensor puls-
es, because of large gap between wheel sensor and sensor rotor. BRC-36, "DTC C1108 FR LH
SENSOR-2"
BATTERY VOLTAGE
[ABNORMAL]
[C1109]ABS actuator and electric unit (control unit) power voltage is too low. BRC-36, "DTC C1109 BAT-
TERY VOLTAGE [ABNOR-
MAL]"
CONTROLLER FAILURE
[ C 111 0 ]
Internal malfunction of ABS actuator and electric unit (control unit) BRC-37, "DTC C1110 CON-
TROLLER FAILURE"
PUMP MOTOR
[ C 1111 ] ( N o t e 3 )During actuator motor operation with ON, when actuator motor turns
OFF or when control line for actuator motor relay is open.
BRC-37, "D T C C 1111 P U M P
MOTOR"During actuator motor operation with OFF, when actuator motor turns
ON or when control line for relay is shorted to ground.
G - SENSOR
[C1113] (Note 4) Decel G sensor is malfunctioning, or signal line of decel G sensor is
open or shorted. BRC-38, "
DTC C1113 G-SEN-
SOR"
ABS SENSOR
[ABNORMAL SIGNAL]
[C1115] (Note 1)Wheel sensor input is malfunction. BRC-39, "DTC C1115 ABS
SENSOR [ABNORMAL SIG-
NAL]"
STOP LAMP SW
[ C 111 6 ]
Stop lamp switch circuit is open or shorted. BRC-39, "DTC C1116 STOP
LAMP SW"
FR LH IN ABS SOL
[C1120]Circuit of front LH IN ABS solenoid is open or shorted, or control line is
open or shorted to power supply or ground. BRC-40, "DTC C1120 FR LH IN
ABS SOL"
FR LH OUT ABS SOL
[C1121]Circuit of front LH OUT ABS solenoid is
open or shorted, or control line
is open or shorted to power supply or ground. BRC-41, "DTC C1121 FR LH
OUT ABS SOL"
FR RH IN ABS SOL
[C1122]Circuit of front RH IN ABS solenoid is op
en or shorted, or control line is
open or shorted to power supply or ground. BRC-41, "DTC C1122 FR RH IN
ABS SOL"
FR RH OUT ABS SOL
[C1123]
Circuit of front RH OUT ABS solenoid is
open or shorted, or control line
is open or shorted to power supply or ground. BRC-42, "DTC C1123 FR RH
OUT ABS SOL"
RR LH IN ABS SOL
[C1124]Circuit of rear LH IN ABS solenoid is open or shorted, or control line is
open or shorted to power supply or ground. BRC-42, "DTC C1124 RR LH IN
ABS SOL"
RR LH OUT ABS SOL
[C1125] Circuit of rear LH OUT ABS solenoid is open or shorted, or control line
is open or shorted to power supply or ground. BRC-42, "DTC C1125 RR LH
OUT ABS SOL"
RR RH IN ABS SOL
[C1126]
Circuit of rear RH IN ABS solenoid is
open or shorted, or control line is
open or shorted to power supply or ground. BRC-42, "DTC C1126 RR RH IN
ABS SOL"
RR RH OUT ABS SOL
[C1127]Circuit of rear RH OUT ABS solenoid is open or shorted, or control line
is open or shorted to power supply or ground. BRC-42, "DTC C1127 RR RH
OUT ABS SOL"
ENGINE SIGNAL 1
[C1130]Based on the signal from ECM, ABS ac
tuator and electric unit (control
unit) judges that engine fuel cut system is malfunctioning. BRC-42, "DTC C1130 ENGINE
SIGNAL 1"
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1043 of 3924
![INFINITI FX35 2008 Service Manual
BRC-28
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. Make t
hat ABS
w](/img/42/57017/w960_57017-1042.png "INFINITI FX35 2008 Service Manual
BRC-28
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. Make t
hat ABS
w")
BRC-28
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. Make t
hat ABS
warning lamp turned off while driving vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute according to self-
diagnosis procedure. In addition, if whee l sensor 2 is displayed for wheels, check wheel sensor circuit and also check ABS actu ator and
electric unit (control unit) power voltage.
Note 2: If multiple malfunctions are detected including CAN communication line [U1000], perform diagnosis for CAN communication line
first.
Note 3: “ACTUATOR RLY” on the CONSULT-III self-diagnostic results indicates the malfunction of actuator relay or circuit. Actua tor relay
is imbedded in ABS actuator and electric unit (control unit).
Note 4:Only AWD models.
Data MonitorINFOID:0000000001327673
DISPLAY ITEM LIST
ENGINE SIGNAL 2
[C1131] Based on the signal from ECM, ABS ac
tuator and electric unit (control
unit) judges that engine ETC system is malfunctioning. BRC-42, "DTC C1131 ENGINE
SIGNAL 2"
ENGINE SIGNAL 3
[C1132]Based on the signal from ECM, ABS ac
tuator and electric unit (control
unit) judges that engine CAN system is malfunctioning. BRC-42, "DTC C1132 ENGINE
SIGNAL 3"
ENGINE SIGNAL 4
[C1133]Based on the signal from ECM, ABS ac
tuator and electric unit (control
unit) judges that engine torque down system is malfunctioning. BRC-42, "DTC C1133 ENGINE
SIGNAL 4"
ENGINE SIGNAL 6
[C1136]
Based on the signal from ECM, ABS ac
tuator and electric unit (control
unit) judges that engine control system is malfunctioning. BRC-42, "DTC C1136 ENGINE
SIGNAL 6"
ACTUATOR RLY
[C1140] (Note 3) Actuator solenoid valve relay is ON, even if control unit sends off sig-
nal.
Actuator solenoid valve relay is OFF, even if control unit sends on sig- nal. BRC-43, "DTC C1140 ACTUA-
TOR RLY"
PRESS SEN CIRCUIT
[C1142]
Pressure sensor signal line is open or shorted, or sensor power voltage
is unusual, or pressure sensor is malfunctioning. BRC-43, "DTC C1142 PRESS
SEN CIRCUIT"
ST ANG SEN CIRCUIT
[C1143]Neutral position of steering angle sensor is dislocated, or steering angle
sensor is malfunctioning. BRC-44, "DTC C1143 ST ANG
SEN CIRCUIT"
ST ANG SEN SIGNAL
[C1144]
Neutral position correction of steering angle sensor is not finished. BRC-45, "DTC C1144 ST ANG
SEN SIGNAL"
YAW RATE SENSOR
[C1145]Yaw rate sensor has generated an error, or yaw rate sensor signal line
is open or shorted. BRC-46, "DTC C1145 YAW
RATE SENSOR"
SIDE G-SEN CIRCUIT
[C1146]Side G sensor is malfunctioning, or signal line of side G sensor is open
or shorted. BRC-46, "DTC C1146 SIDE G-
SEN CIRCUIT"
BR FLUID LEVEL LOW
[C1155]
Brake fluid level drops or
circuit between ABS actuat or and electric unit
(control unit) and brake fluid level switch is open or shorted. BRC-46, "DTC C1155 BR FLU-
ID LEVEL LOW"
ST ANG SEN COM CIR
[C1156]CAN communication line or steering angle sensor has generated an er-
ror. BRC-47, "DTC C1156 ST ANG
SEN COM CIR"
DECEL G SEN SET
[C1160] (Note 4)
Neutral position correction of decel G sensor is not finished.
BRC-47, "DTC C1160 DECEL G
SEN SET"
CV 1
[C1164]Primary side VDC switch-over solenoid valve 1 (cut valve 1) is open or
shorted, or control line is open or shorted to power supply or ground.
BRC-47, "DTC C1164 CV 1"
CV 2
[C1165]Secondary side VDC switch-over solenoid valve 2 (cut valve 2) is open
or shorted, or control line is open or shorted to power supply or ground.
BRC-47, "DTC C1165 CV 2"
SV 1
[C1166]Primary side VDC switch-over solenoid valve 1 (suction valve 1) is open
or shorted, or control line is open or shorted to power supply or ground.
BRC-47, "DTC C1166 SV 1"
SV 2
[C1167]Secondary side VDC switch-over solenoid valve 2 (suction valve 2) is
open or shorted, or control line is open or shorted to power supply or
ground.
BRC-47, "DTC C1167 SV 2"
VARIANT CODING
[C1170]
V coding is not functioning. BRC-48, "DTC C1170 VARIANT
CODING"
CAN COMM CIRCUIT
[U1000] (Note 2)When a ABS actuator and electric unit (control unit) is not transmitting
or receiving CAN communication signal for 2 seconds or more. BRC-48, "DTC U1000 CAN
COMM CIRCUIT"
Self-diagnostic item Malfunction detecting condition Check system
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
