INFINITI G 2010 Owners Manual

To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the en-
gine and push the switch
1on. The indicator
light
2will come on. Push the switch again to
turn the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear win-
dow, be careful not to scratch or damage the
rear window defroster.
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
● When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon headlights
replaced at an INFINITI retailer.
● Xenon headlights provide considerably
more light than conventional headlights. If
they are not correctly aimed, they might
temporarily blind an oncoming driver or the
driver ahead of you and cause a serious acci-
dent. If headlights are not aimed correctly,
immediately take your vehicle to an INFINITI
retailer and have the headlights adjusted
correctly.
Type A
SIC3239
Type B
SIC3278
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH
2-32Instruments and controls
—
—
10/12/09—tbrooks


When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
●The life of xenon headlights will be shortened
by frequent on-off operation. It is generally
desirable not to turn off the headlights for
short intervals (for example, when the ve-
hicle stops at a traffic signal). Even when the
daytime running lights are active (Canada
only), the xenon headlights do not turn on.
This way the life of the xenon headlights is
not reduced.
● If the xenon headlight bulb is close to burn-
ing out, the brightness will drastically de-
crease, the light will start blinking, or the
color of the light will become reddish. If one
or more of the above signs appear, contact an
INFINITI retailer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to theposition:
The front park, side marker, tail, license
plate and instrument lights will come on.
2Turn the switch to theposition:
Headlights will come on and all the other
lights remain on.
Autolight system (if so equipped)
The autolight system allows the headlights to
be set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the
AUTO position
1.
2. Push the ignition switch to the ON posi- tion.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
orposition.
SIC3267SIC3268
Instruments and controls2-33
—
—
10/12/09—tbrooks


The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section.Be sure not to put anything on top of the photo
sensor
Alocated on the top of the instrument
panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.Headlight beam select
1To select the low beam, put the lever in the neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position.
SAA0642ASIC3269
2-34Instruments and controls
—
—
10/12/09—tbrooks


Battery saver system
A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is pushed to the ON posi-
tion.
CAUTION
● When you turn on the headlight switch again
after the lights automatically turn off, the
lights will not turn off automatically. Be sure
to turn the light switch to the OFF position
when you leave the vehicle for extended pe-
riods of time, otherwise the battery will be
discharged. ●
Never leave the light switch on when the
engine is not running for extended periods of
time even if the headlights turn off
automatically.
Daytime running light system
(Canada only)
The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the
headlight switch to the
position for full
illumination when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.
WARNING
For Coupe models, when the daytime running
light system is active, tail lights on your vehicle
are not on. It is necessary at dusk to turn on
your headlights. Failure to do so could cause an
accident injuring yourself and others.
Instruments and controls2-35
—
—
10/12/09—tbrooks


Instrument brightness control
The instrument brightness control switch can be
operated when the ignition switch is in the ON
position. When the switch is operated, the dot
matrix liquid crystal display switches to the
brightness adjustment mode.
Push the upper switch
Ato brighten the
instrument panel lights. The bar
1moves to
the + side. When reaching the maximum bright-
ness, “MAX” appears on the display
2.
Push the lower switch
Bto dim the instrument
panel lights. The bar
1moves to the side.
When reaching the minimum brightness, “MIN”
appears on the display
3. However, “MIN”
does not appear during the nighttime.
The dot matrix liquid crystal display returns to
the normal display under the following condi-
tions:
● when the instrument brightness control
switch is not operated for more than 5
seconds.
● when the side or front of the
switch or
switch on the right side of the com-
bination meter panel is pushed.
SIC3257
SIC3270
2-36Instruments and controls
—
—
10/12/09—tbrooks

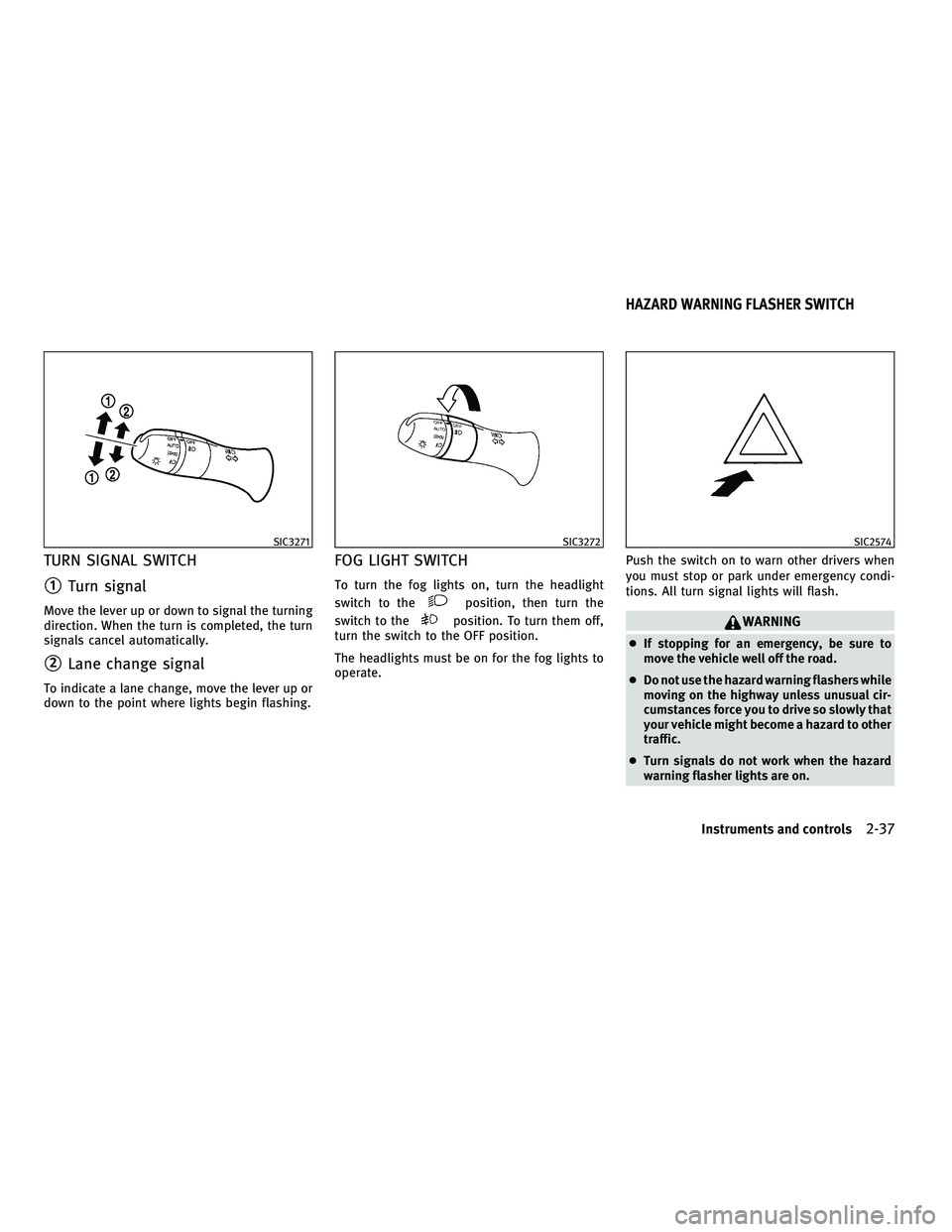

TURN SIGNAL SWITCH
1Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
2Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
FOG LIGHT SWITCH
To turn the fog lights on, turn the headlight
switch to the
position, then turn the
switch to the
position. To turn them off,
turn the switch to the OFF position.
The headlights must be on for the fog lights to
operate. Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.WARNING
●
If stopping for an emergency, be sure to
move the vehicle well off the road.
● Do not use the hazard warning flashers while
moving on the highway unless unusual cir-
cumstances force you to drive so slowly that
your vehicle might become a hazard to other
traffic.
● Turn signals do not work when the hazard
warning flasher lights are on.
SIC3271SIC3272SIC2574
HAZARD WARNING FLASHER SWITCH
Instruments and controls2-37
—
—
10/12/09—tbrooks


The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of the
hazard warning flasher switch while driving.To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in body parts that contact the seat.
Use of the seat heater by such people could
result in serious injury.
CAUTION
●The battery could run down if the seat heater
is operated while the engine is not running.
● Do not use the seat heater for extended pe-
riods or when no one is using the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the heater.
● Any liquid spilled on the heated seat should
be removed immediately with a dry cloth.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.SIC3312
HORN HEATED SEATS (if so equipped)
2-38Instruments and controls
—
—
10/12/09—tbrooks


●If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.
The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
SSS0911
Instruments and controls2-39
—
—
10/12/09—tbrooks


For driving or starting the vehicle on snowy
roads or slippery areas, turn on the SNOW
mode switch. The indicator light
1on the
switch will illuminate. When the SNOW mode is
activated, engine output is controlled to avoid
wheel spin. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.) If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.
SIC3602SIC1881SIC3325
SNOW MODE SWITCH (if so equipped) VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCHCLOCK
2-40Instruments and controls
—
—
04/21/10—debbie


The power outlet is located in the center con-
sole and storage box (if so equipped).
CAUTION
●The outlet and plug may be hot during or
immediately after use.
● Do not use with accessories that exceed a 12
volt, 120W (10A) power draw. Do not use
double adapters or more than one electrical
accessory.
● Use power outlet with the engine running to
avoid discharging the vehicle battery. ●
Avoid using power outlet when the air condi-
tioner, headlights or rear window defroster
is on.
● This power outlet is not designed for use
with a cigarette lighter unit.
● Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
● Before inserting or disconnecting a plug, be
sure the electrical accessory being used is
turned OFF.
● When not in use, be sure to close the cap. Do
not allow water to contact the outlet.
Automatic transmission models
SIC4302
Manual transmission models
SIC4303
Automatic transmission models
SIC4316
POWER OUTLET
Instruments and controls2-41
—
—
10/12/09—tbrooks
