INFINITI G 2010 Owners Manual
Manufacturer: INFINITI, Model Year: 2010, Model line: G, Model: INFINITI G 2010Pages: 466, PDF Size: 4.21 MB
Page 231 of 466

●Recording Quality (for CD)
The larger number (132) will increase the
recorded sound quality while taking up more
space on the Music Box leaving less room for
more songs.
For the details of Music Box, see “MUSIC BOX
HARD-DISK DRIVE” later in this section.
Text (models without navigation system) :
When the “Text” key is selected in the screen
using the INFINITI controller and then the ENTER
button is pushed while the CD is being played,
the music information below will be displayed
on the screen.
CD:
● Disc title
● Track title
CD with compressed audio files:
● Folder title
● File title
● Song title
● Album title
● ArtistNext/Previous Track and
Fast Forward/Rewind :
When the
(fast forward) or(re-
wind) button is pushed for more than 1.5 sec-
onds while the CD is being played, the CD will
play while fast forwarding or rewinding. When
the button is released, the CD will return to
normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the CD is being
played, the next track or the beginning of the
current track on the CD will be played.
REPEAT (RPT), RANDOM (RDM)
(Type A) :
When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
(CD with compressed audio files)
REPEAT (RPT) (Type B) :
When the SCAN·RPT button is pushed while the
CD is played, the play pattern can be changed
as follows:
(CD)
(CD with MP3 or WMA)
CD EJECT :
When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it will be
pulled back into the slot to protect it.
4-58Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
Page 232 of 466

DVD (DIGITAL VERSATILE DISC)
PLAYER OPERATION (models with
navigation system)
Precautions
Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position
(Automatic Transmission models) or apply the
parking brake (Manual Transmission models).
WARNING
●The driver must not attempt to operate the
DVD system or wear the headphones while
the vehicle is in motion so that full attention
may be given to vehicle operation.
● Do not attempt to modify the system to dis-
play a movie on the front screen while the
vehicle is being driven. Doing so may dis-
tract the driver and may cause a collision and
serious personal injury or death.
CAUTION
● Only operate the DVD while the vehicle en-
gine is running. Operating the DVD for ex-
tended periods of time with the engine OFF
can discharge the vehicle battery.
● Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
● While playing VIDEO-CD media, this DVD
player does not guarantee complete func-
tionality of all VIDEO-CD formats.
Display settings
To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the “Others” key and then select the
“Display” key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select each key.
Then you can adjust each item using the
INFINITI controller. After changes have been
made push the BACK button to save the setting.
Playing a DVD
DISC·AUX button :
Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.
Push the DISC·AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,
SAA2497
Monitor, climate, audio, phone and voice recognition systems4-59
—
—
04/21/10—debbie
Page 233 of 466

and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX
button again.
DVD operation keys :
When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the INFINITI controller to
select an item from the displayed video. When
the operation screen is being shown, use the
INFINITI controller or touch screen to select an
item from the displayed menus.
PAUSE:
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
PLAY:
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the “
” key to stop playing the DVD.
/Next/Previous Chapter:
Select the “
”or“” key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the “
”or“” key to skip
forward or backwards by the set amount as
defined in the DVD Settings menu.
/Next/Previous Image:
This function is only for DVD-AUDIO. Select the
“
”or“” key to advance or rewind
the still image. The still image will advance or
rewind the number of times this key is selected.
Top Menu :
When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.DVD settings
Select the “Settings” key to adjust the following
settings.
Key (DVD-VIDEO, DVD-AUDIO) :
Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD
menu.
Enter: Enter the selected menu.
Move: Change the display location by moving the operation key.
Back: Return to the previous screen.
Example
SAA2498
4-60Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
Page 234 of 466

Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :
Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR) :
The scene with the specified title will be dis-
played each time the “+” side or “” side is
selected.
Group Search (DVD-AUDIO, VIDEO CD) :
A scene in the specified group will be displayed
each time the “+” side or “” side is selected.
10 Key Search (DVD-VIDEO, VIDEO-CD,CD-DA,
DVD-VR) :
Select the “10 Key Search” key to open the
number entry screen. Input the number to be
searched and select the “OK” key. The specified
Title/Chapter or Group/Track will be played.
Select No. (VIDEO-CD) :
Select the “Select No.” key to open the number
entry screen. Input the number to be searched
and select the “OK” key. The specified scene
will be played. Angle (DVD-VIDEO) :
If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one. Select the “Angle”
key. The angle will change each time the “+”
side or “” side is selected.
Angle Mark (DVD-VIDEO) :
When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO) :
DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this
item is turned on.
CM Skip (DVD-VIDEO) :
Select the “CM Skip” key. Choose the setting
time from 15, 30 or 60 seconds by selecting the
“+” side or “” side. DRC (DVD-VIDEO, DVD-VR) :
DRC (Dynamic Range Compression) automati-
cally adjusts the soundtrack volume level to
maintain a more even sound to the speakers.
DVD Language (DVD-VIDEO, VIDEO-CD) :
Select the “DVD Language” key to open the
number entry screen. Input the number corre-
sponding to the preferred language and select
the “OK” key. The DVD top menu language will
be changed to the one specified.
Display :
To adjust the image quality of the screen, select
the preferred adjustment items.
Audio :
Select the preferred language for audio.
Subtitle (DVD-VIDEO, DVD-VR) :
Select the preferred language for subtitles.
Display Mode (DVD-VIDEO, VIDEO-CD, DVD-VR) :
Select from the “Full”, “Wide”, “Normal” or
“Cinema” modes.
Title List (DVD-VR) :
Select the preferred title from the list.
Monitor, climate, audio, phone and voice recognition systems4-61
—
—
04/21/10—debbie
Page 235 of 466

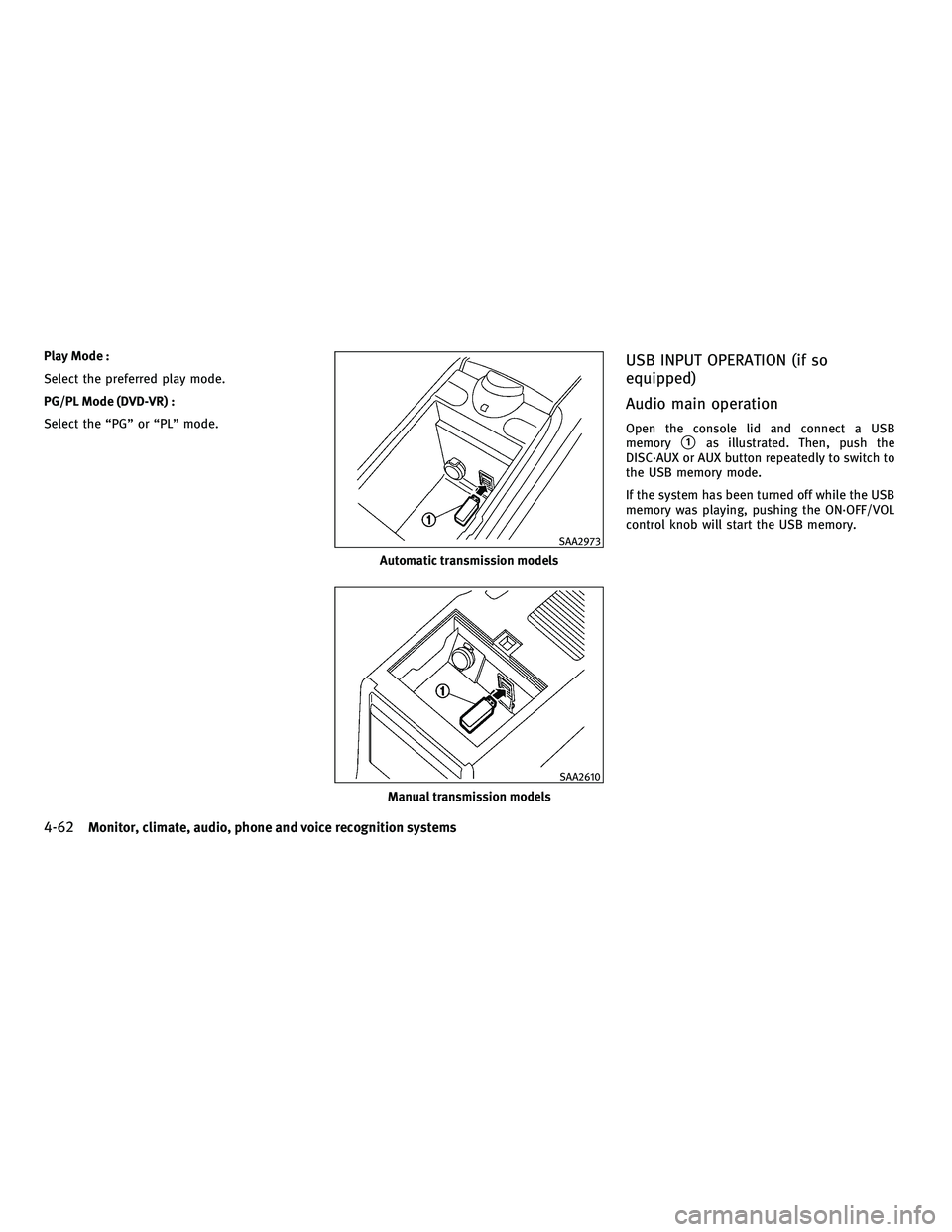

Play Mode :
Select the preferred play mode.
PG/PL Mode (DVD-VR) :
Select the “PG” or “PL” mode.USB INPUT OPERATION (if so
equipped)
Audio main operation
Open the console lid and connect a USB
memory
1as illustrated. Then, push the
DISC·AUX or AUX button repeatedly to switch to
the USB memory mode.
If the system has been turned off while the USB
memory was playing, pushing the ON·OFF/VOL
control knob will start the USB memory.
Automatic transmission models
SAA2973
Manual transmission models
SAA2610
4-62Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
Page 236 of 466

File selection (models with navigation
system)
When there are both audio and movie files in
the USB memory, the mode select screen is
displayed. Select the preferred contents to play.
When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.
If a video file restricts the number of playbacks,
a pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.
Audio file operation
orPLAY :
When the DISC·AUX or AUX button is pushed
with the system off and the USB memory in-
serted, the system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX or AUX
button repeatedly until the center display
changes to the USB memory mode.
Next/Previous File and Fast
Forward/Rewind :
When the
(Rewind) or(Fast For-
ward) button is pushed for more than 1.5 sec-
onds while a USB memory is being played, the
USB memory will play while forwarding or re-
winding. When the button is released, the USB
memory will return to normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
The INFINITI controller can also be used to
select tracks when the USB memory is being
played.
SAA2500
Models with navigation system
SAA2501
Models without navigation system
SAA2611
Monitor, climate, audio, phone and voice recognition systems4-63
—
—
04/21/10—debbie
Page 237 of 466

Folder selection :
To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the INFINITI
controller.
REPEAT (RPT), RANDOM (RDM) :
When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal →1 Folder Repeat →1 Track Repeat →
All Random →1 Folder Random →Normal
Text (models without navigation system) :
When the “Text” key is selected on the screen
using the INFINITI controller and then the ENTER
button is pushed while a USB memory is being
played, the music information listed below will
be displayed on the screen.
● Folder title
● File title
● Song title
● Album Title
● Artist Menu (models with navigation system) :
There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
●
Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
● Folder List/Track List
Displays the folder or track list. The “Movie
Playback” key is also displayed in this list
screen, and enables switching to the movie
playback mode. ●
Play Mode
Select the preferred play mode.
SAA2502
4-64Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
Page 238 of 466

Movie file operation (models with
navigation system)
Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is se-
lected.
List :
Select the “List” key on the movie file operation
screen to display the file list.
SAA2503
Monitor, climate, audio, phone and voice recognition systems4-65
—
—
04/21/10—debbie
Page 239 of 466

Settings :
Select the “Settings” key to adjust the following
settings.
●Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode. ●
10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.
BLUETOOTH STREAMING AUDIO
(models with navigation system)
Your INFINITI is equipped with Bluetooth Stream-
ing Audio. If you have a compatible Bluetooth
device with streaming audio (A2DP profile), you
can set up the wireless connection between your
Bluetooth device and the in-vehicle audio sys-
tem. This connection allows you to listen to the
audio from the Bluetooth device using your
vehicle speakers. It also may allow basic control
of the device for playing and skipping audio files
using the AVRCP Bluetooth profile. All
Bluetooth Devices do not have the same level of
controls for AVRCP. Please consult the manual for
your Bluetooth Device for more details.
Once your Bluetooth device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information
FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
Example
SAA2504
4-66Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
Page 240 of 466

– Operation is subject to the following twoconditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory information :
– Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
– This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:
Bluetooth is a trademark
owned by Bluetooth SIG,
Inc. and licensed to
Clarion Co., Ltd.
Connecting procedure
1. Push the SETTING button and select the “Bluetooth” key. 2. Select the “Connect Bluetooth” key.
SAA2505SAA2506
Monitor, climate, audio, phone and voice recognition systems4-67
—
—
04/21/10—debbie
