buttons INFINITI G 2010 Owner's Manual

2.A list of commands appears on the screen,
and the system announces, “Please say a
command after the beep. Available com-
mands are: Call, Phonebook, Recent Calls,
Connect Phone or Help”.
3.After the tone sounds and the icon on the
screen changes from
to, speak
a command. See the “List of voice com-
mands” later in this section for the voice
command list. Speak “Call” for example.
INFO
Voice commands cannot be recognized as
long as the screen icon is not in the com-
mand recognition mode
.
4. The system acknowledges the command and announces the next set of available
commands.
5. After the tone sounds, speak the phone number.
6. When you have finished speaking the phone number, the system repeats it back
and announces the available commands.
7. After system responds, speak “Dial” and the system dials the spoken numbers.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the
switch or the BACKbutton
once to return to the previous screen.
● If you want to cancel the command, push the
switch. The message “Voice input is
canceled” will be announced. If you want to
adjust the volume of the system feedback,
push the volume control buttons [+] or []
on the steering wheel or use the audio
system volume knob while the system is
making an announcement. How to speak commands :
The Voice Recognition System requires a certain
way to speak voice commands. Speak normally
and clearly in the direction of the microphone
(located in front of the rearview mirror). Every
digit of the number must be spoken individually
and in a normal manner. The hands-free mode
will work best when the telephone number is
spoken in blocks of three to five digits. After
each spoken block is terminated, the system
will repeat the three to five digits and wait for
you to speak the next digit or block of digits
required for the telephone number.
See “List of voice commands” later in this
section for the appropriate commands that can
be spoken for the hands-free mode system.
Example:
In order to initiate a call, speak “Phonebook”.
INFO
●
If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command, speak
“Help”. The system announces the available
commands.
● When you speak numbers, you can speak
both “zero” or “oh” for “0”.
SAA2574
Monitor, climate, audio, phone and voice recognition systems4-99
—
—
04/21/10—debbie

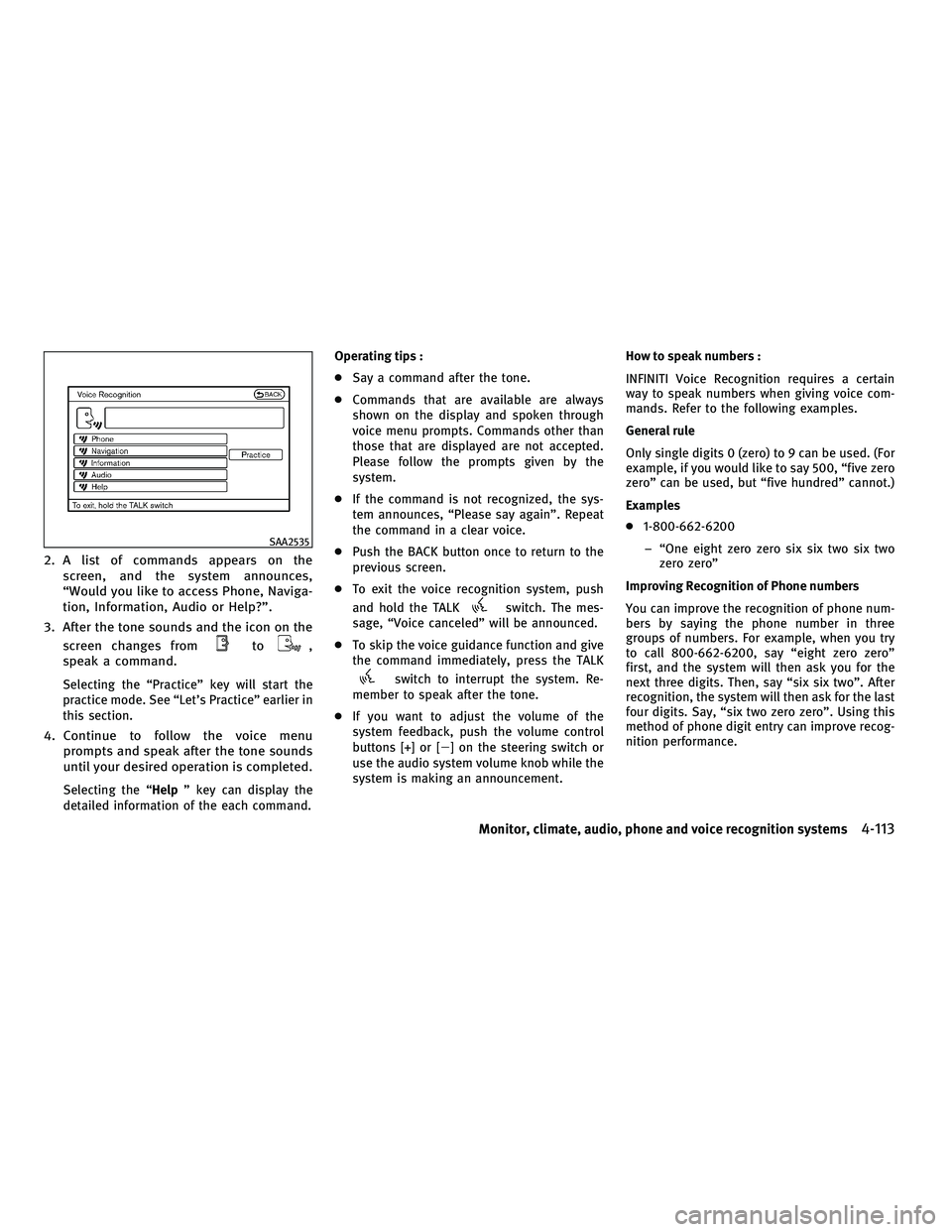

2. A list of commands appears on thescreen, and the system announces,
“Would you like to access Phone, Naviga-
tion, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Selecting the “Practice” key will start the
practice mode. See “Let’s Practice” earlier in
this section.
4. Continue to follow the voice menu prompts and speak after the tone sounds
until your desired operation is completed.
Selecting the “Help ” key can display the
detailed information of the each command. Operating tips :
●
Say a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the BACK button once to return to the
previous screen.
● To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, “Voice canceled” will be announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [] on the steering switch or
use the audio system volume knob while the
system is making an announcement. How to speak numbers :
INFINITI Voice Recognition requires a certain
way to speak numbers when giving voice com-
mands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot.)
Examples
●
1-800-662-6200
– “One eight zero zero six six two six two zero zero”
Improving Recognition of Phone numbers
You can improve the recognition of phone num-
bers by saying the phone number in three
groups of numbers. For example, when you try
to call 800-662-6200, say “eight zero zero”
first, and the system will then ask you for the
next three digits. Then, say “six six two”. After
recognition, the system will then ask for the last
four digits. Say, “six two zero zero”. Using this
method of phone digit entry can improve recog-
nition performance.
SAA2535
Monitor, climate, audio, phone and voice recognition systems4-113
—
—
04/21/10—debbie


Replace the battery as follows:
1. Release the lock knob at the back of theIntelligent Key and remove the mechanical
key.
2. Insert a flat-blade screwdriver
A
wrapped with a cloth into the slitBof
the corner and twist it to separate the
upper part from the lower part. 3. Replace the battery with a new one.
Recommended battery: CR2032 or equivalent.
●
Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower parts, and then push them together until
it is securely closed.
5. Push the buttons two or three times to check its operation.
See an INFINITI retailer if you need any assis-
tance for replacement.
FCC Notice:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential in-
stallation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the in-
structions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
–Reorient or relocate the receiving antenna
– Increase the separation between the equip-
ment and the receiver
– Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver is connected.
– Consult the retailer or an experienced
radio/TV technician for help.
SDI1834SDI2042
INTELLIGENT KEY BATTERY REPLACEMENT
8-22Maintenance and do-it-yourself
—
—
04/21/10—debbie
