Display settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment :
To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings
are available.
●Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
Color Theme :
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
Display settings (models without
navigation system)
The “Display” screen will appear when pushing
the SETTING button, selecting “Display” key
with the INFINITI controller and pushing the
ENTER button.
Display :
To turn off the screen, push the ENTERbutton
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
SAA2486SAA2115
Monitor, climate, audio, phone and voice recognition systems4-15
—
—
04/21/10—debbie


To turn on the screen, set this item to the “ON”
position or push the “
” button.
Brightness/Contrast/Background Colour :
To adjust the brightness, contrast and back-
ground colour of the screen, select the appro-
priate “Brightness”, “Contrast” or “Background
Colour” key and push the ENTERbutton.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller. Switch
the background colour to the daytime mode or
the nighttime mode by pushing the ENTER
button.
Clock settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem. Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) :
Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following
●
Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
SAA2487
4-16Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Others settings (models with
navigation system)
The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
●Comfort
● Language & Units
● Voice Recognition
● Camera (if so equipped)
● Sonar
● Image Viewer
Comfort settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display
until the ignition switch is pushed to the ON
position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
SAA3019
Models with navigation system
SAA2488
Models without navigation system
SAA2739
Monitor, climate, audio, phone and voice recognition systems4-17
—
—
04/21/10—debbie


and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “En-
glish”, “Français” or “Español” for your favorite
display appearance.
SAA2490
4-18Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section.
Camera settings (if so equipped)
The “CAMERA” screen will appear when select-
ing the “Camera” key with the INFINITI control-
ler and pushing theENTERbutton.
For the details about the camera system opera-
tion, see “REARVIEW MONITOR” later in this
section.
Predictive Course Lines :
When this item is turned to ON, the predicted
course lines will be displayed on the monitor
when the selector/shift lever is in the “R”
(Reverse) position.
Models with navigation system
SAA2404
Models without navigation system
SAA2606
Monitor, climate, audio, phone and voice recognition systems4-19
—
—
04/21/10—debbie


Sonar settings (if so equipped)
The “Sonar” screen will appear when selecting
the “Sonar” key with the INFINITI controller and
pushing theENTERbutton.
For the details of the sonar system operation,
see “SONAR SYSTEM” in the “5. Starting and
driving” section.
Sonar Display :
When this item is turned ON, the corner/center
sonar indicator will appear when the parking
sensors detect front or rear obstacles near the
bumper.
Corner Sonar Sensitivity :
Adjust the sensitivity level of the corner sonar
higher (right) or lower (left).
Centre Sonar Sensitivity :
Adjust the sensitivity level of the center sonar
higher (right) or lower (left).
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while the
vehicle is in any drive position to reduce driver
distraction. To view images, stop the vehicle in a
safe location and apply the parking brake.
Models with navigation system
SAA2971
Models without navigation system
SAA2920
SAA2491
4-20Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Open or close, and adjust the air flow direction
of ventilators.
: This symbol indicates that the vents areclosed.
: This symbol indicates that the vents areopen.
WARNING
● The air conditioner cooling function oper-
ates only when the engine is running.
● Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. On hot, sunny days, temperatures in
a closed vehicle could quickly become high
enough to cause severe or possibly fatal in-
juries to people or animals.
● Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.
Start the engine and operate the automatic
climate control system.
When the “STATUS” button is pushed, the
automatic climate control status screen will
appear. (See “HOW TO USE STATUS BUTTON”
earlier in this section.)
Rear (if so equipped)
SAA0564B
Models with navigation system
SAA2723
Models without navigation system
SAA1520
AUTOMATIC CLIMATE CONTROL
4-28Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Ion control :
This unit generates highly concentrated Plas-
macluster ions into the air blown from the
ventilators and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster ions automati-
cally.
The amount of Plasmacluster ions increases
according to the amount of air flow. When the
air flow is high, “
” is displayed on the
screen and when the air flow is low, the indica-
tion in the screen changes to “
”.
Exhaust gas detection sensor :
This vehicle is equipped with an exhaust gas
detection sensor. When the automatic intake air
control is ON, the sensor detects pollutants
such as CO and NO
2outside and the system
automatically changes from the outside air cir-
culation mode to the recirculation mode.
When the intake air control button is pushed
under the following conditions, the indicator
light on the “
” side will illuminate and the
exhaust gas detection sensor will turn on.
● The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off). ●
The outside temperature is about 32°F (0°C)
or more.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasmacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects exhaust gas
and automatically alternates between the recir-
culation mode and outside air circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets.Models with navigation system
SAA2734
Models without navigation system
SAA2735
Monitor, climate, audio, phone and voice recognition systems4-37
—
—
04/21/10—debbie


●During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” logo on the disc or packaging.
● Do not expose the CD to direct sunlight.
● CDs that are of poor quality, dirty, scratched,
covered with fingerprints, or that have pin
holes may not work properly.
● The following CDs may not work properly:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
● Do not use the following CDs as they may
cause the CD player to malfunction.
– 3.1 in (8 cm) discs
– CDs that are not round – CDs with a paper label
– CDs that are warped, scratched, or have
abnormal edges
● This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
● If the CD cannot be played, one of the
following messages will be displayed.
CHECK DISC: – Confirm that the CD is inserted correctly (the label side is facing up, etc.).
– Confirm that the CD is not bent or warped and it is free of scratches.
PUSH EJECT:
This is an error due to the temperature inside
the player is too high. Remove the CD by
pushing the EJECT button, and after a short
time reinsert the CD. The CD can be played
when the temperature of the player returns to
normal.
UNPLAYABLE:
The file is unplayable in this audio system
(only MP3 or WMA CD).
DVD (Digital Versatile Disc) player
(models with navigation system)
● Do not force a compact disc into the CD/DVD
insert slot. This could damage the CD/DVD
player.
LHA0484
Monitor, climate, audio, phone and voice recognition systems4-41
—
—
04/21/10—debbie

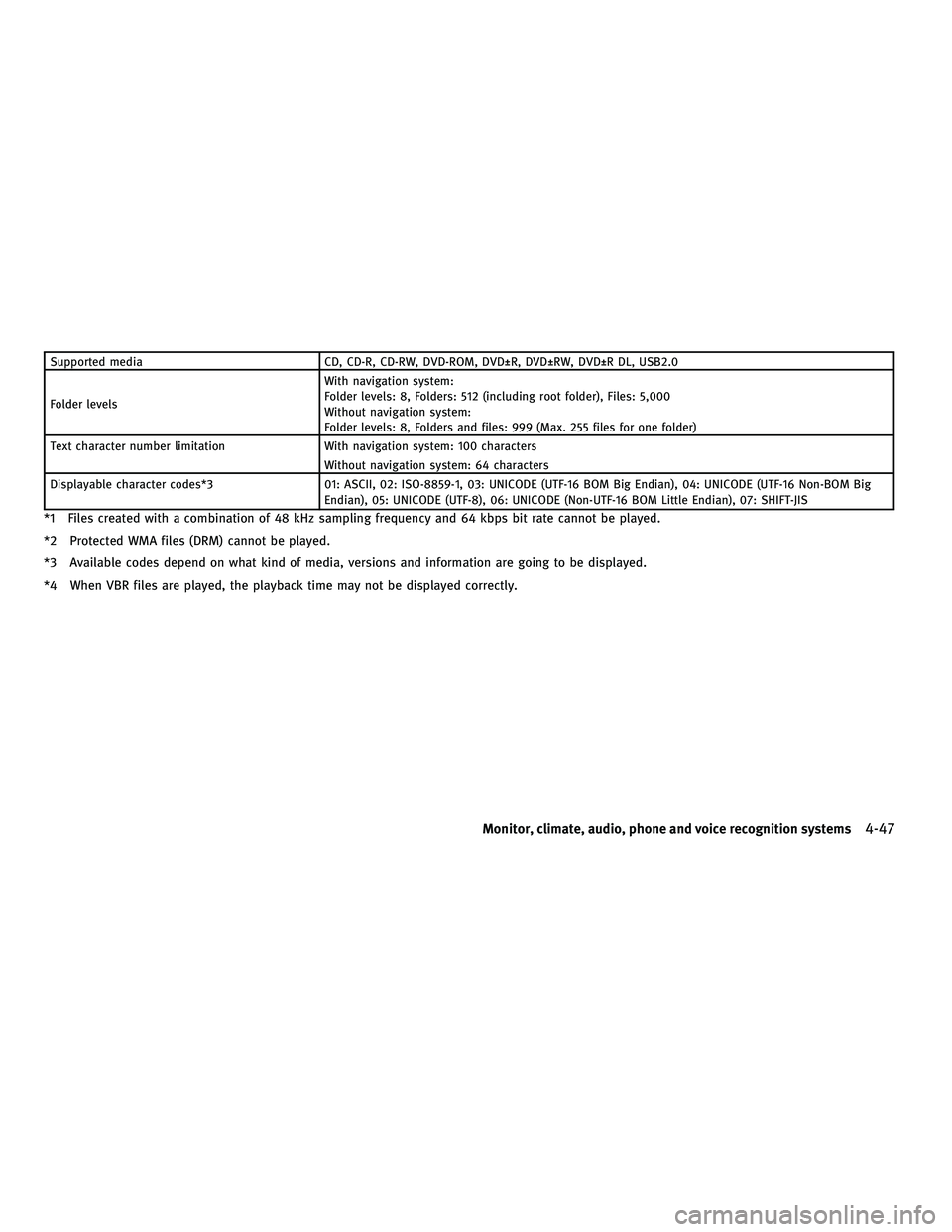

Supported mediaCD, CD-R, CD-RW, DVD-ROM, DVD±R, DVD±RW, DVD±R DL, USB2.0
Folder levels With navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5,000
Without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Text character number limitation With navigation system: 100 characters
Without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
Monitor, climate, audio, phone and voice recognition systems4-47
—
—
04/21/10—debbie
