Additional information
●The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
● The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
● Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to illumi-
nate. If the warning light illuminates in low
ambient temperature, check the tire pres-
sure for all four tires. For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.
WARNING
●
If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible. (See “FLAT TIRE” in the “6. In case
of emergency” section for changing a flat
tire.) ●
When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
● The TPMS may not function properly when
the wheels are equipped with tire chains or
the wheels are buried in snow.
● Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals from
the tire pressure sensors, and the TPMS will
not function properly.
5-4Starting and driving
—
—
04/21/10—debbie


Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
– Facilities or electric devices using similarradio frequencies are near the vehicle.
– If a transmitter set to similar frequencies is being used in or near the vehicle.
– If a computer (or similar equipment) or a DC/AC converter is being used in or near the
vehicle.
FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC
Rules and RSS-210 of Industry Canada.
Operation is subject to the following two condi-
tions: (1) This device may not cause harmful in-
terference, and (2) this device must accept any
interference received, including interference
that may cause undesired operation of the de-
vice.AVOIDING COLLISION AND ROLLOVER
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of control or
an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle. As
with any vehicle, a loss of control could result in
a collision with other vehicles or objects, or
cause the vehicle to rollover, particularly if the
loss of control causes the vehicle to slide side-
ways. Be attentive at all times, and avoid
driving when tired. Never drive when under the
influence of alcohol or drugs (including pre-
scription or over-the-counter drugs which may
cause drowsiness). Always wear your seat belt
as outlined in the “SEAT BELTS” in the “1. Safety
— Seats, seat belts and supplemental restraint
system” section of this manual, and also in-
struct your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is signifi- cantly more likely to be injured or killed than a
person properly wearing a seat belt.OFF-ROAD RECOVERY
While driving, the right side or left side wheels
may unintentionally leave the road surface. If
this occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheel
with both hands and try to hold a straight
course.
4. When appropriate, slowly release the ac- celerator pedal to gradually slow the ve-
hicle.
5. If there is nothing in the way, steer the vehicle to follow the road while the ve-
hicle speed is reduced. Do not attempt to
drive the vehicle back onto the road sur-
face until vehicle speed is reduced.
6. When it is safe to do so, gradually turn the steering wheel until both tires return
to the road surface. When all tires are on
the road surface, steer the vehicle to stay
in the appropriate driving lane.
Starting and driving5-5
—
—
04/21/10—debbie


●If you decide that it is not safe to return the
vehicle to the road surface based on vehicle,
road or traffic conditions, gradually slow the
vehicle to a stop in a safe place off the road.
RAPID AIR PRESSURE LOSS
Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at high-
way speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. See
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section of this manual.
If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
WARNING
The following actions can increase the chance
of losing control of the vehicle if there is a
sudden loss of tire air pressure. Losing control
of the vehicle may cause a collision and result
in personal injury.
● The vehicle generally moves or pulls in the
direction of the flat tire.
● Do not rapidly apply the brakes.
● Do not rapidly release the accelerator pedal.
● Do not rapidly turn the steering wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel
with both hands and try to hold a straight
course.
3. When appropriate, slowly release the ac- celerator pedal to gradually slow the ve-
hicle.
4. Gradually steer the vehicle to a safe loca- tion off the road and away from traffic if
possible.
5. Lightly apply the brake pedal to gradually stop the vehicle. 6. Turn on the hazard warning flashers and
either contact a roadside emergency ser-
vice to change the tire or see “CHANGING
A FLAT TIRE” in the “6. In case of emer-
gency” section of this Owner’s Manual.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces co-
ordination, delays reaction time and impairs
judgement. Driving after drinking alcohol in-
creases the likelihood of being involved in an
accident injuring yourself and others. Addition-
ally, if you are injured in an accident, alcohol
can increase the severity of the injury.
INFINITI is committed to safe driving. However,
you must choose not to drive under the influ-
ence of alcohol. Every year thousands of people
are injured or killed in alcohol-related acci-
dents. Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of alco-
hol.
5-6Starting and driving
—
—
04/21/10—debbie


Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired
by alcohol, drugs, or some other physical con-
dition.
ALL-WHEEL DRIVE (AWD) DRIVING
SAFETY PRECAUTIONS
WARNING
●Do not drive beyond the performance capa-
bility of the tires, even with AWD engaged.
Accelerating quickly, sharp steering maneu-
vers or sudden braking may cause loss of
control.
● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Install tire chains on the rear wheels when
driving on slippery roads and drive carefully.
● This vehicle is not designed for offroad
(rough road) use. Do not drive on sandy or
muddy roads that tires may get stuck in. ●
For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any D (Drive) or R (Re-
verse) position with the engine running. Do-
ing so may result in drivetrain damage or
unexpected vehicle movement which could
result in serious vehicle damage or personal
injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer, (such as
the dynamometers used by some states for
emissions testing), or similar equipment
even if the other two wheels are raised off
the ground. Make sure you inform test facil-
ity personnel that your vehicle is equipped
with AWD before it is placed on a dynamom-
eter. Using the wrong test equipment may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.

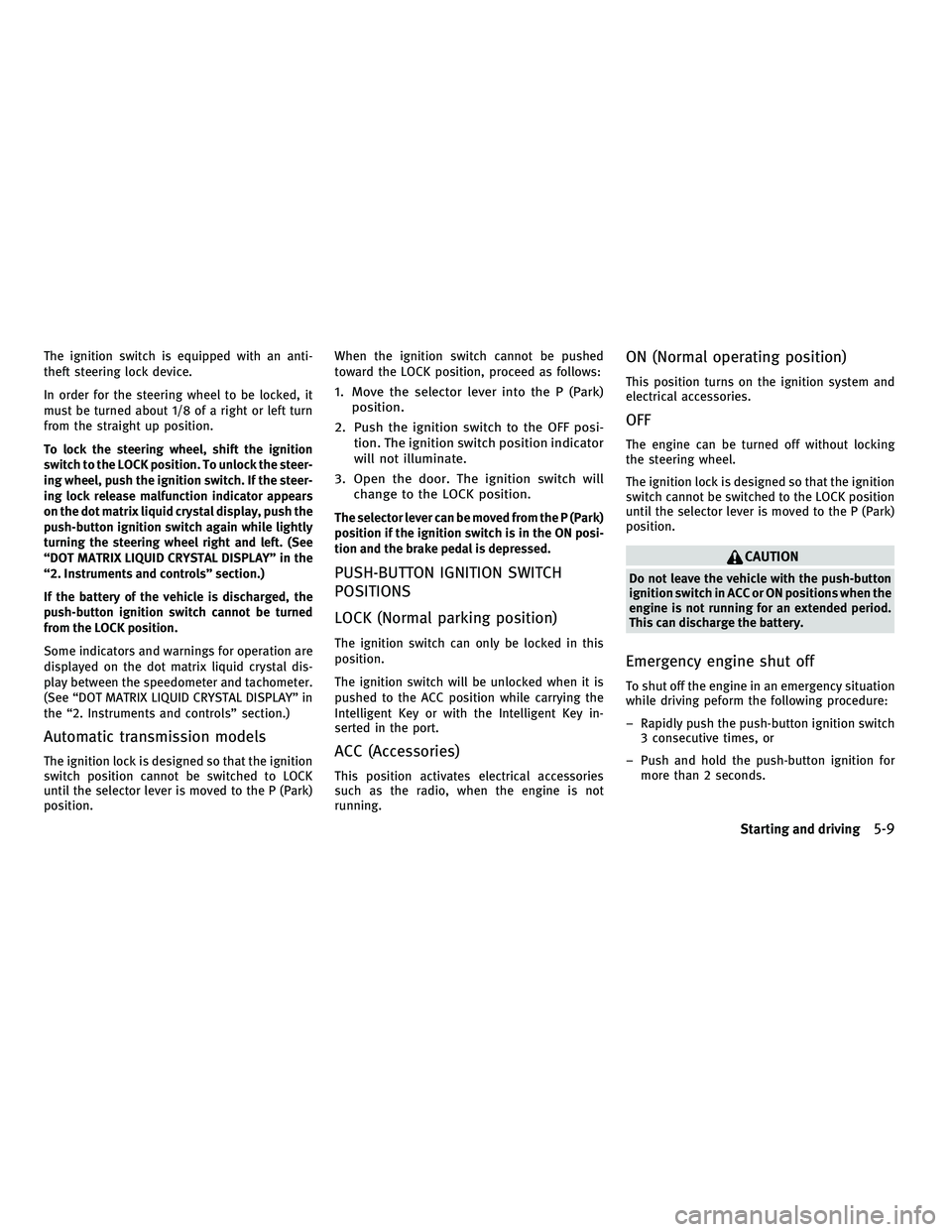

WARNING
Do not operate the push-button ignition switch
while driving the vehicle except in an emer-
gency. (The engine will stop when the ignition
switch is pushed 3 consecutive times or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while the
vehicle is being driven, this could lead to a
crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever to the
P (Park) position (for automatic transmission
model) or the shift lever to the N (Neutral)
position (for manual transmission model).
PUSH-BUTTON IGNITION SWITCH
Starting and driving5-7
—
—
04/21/10—debbie


OPERATING RANGE FOR ENGINE
START FUNCTION
The Intelligent Key can only be used for starting
the engine when the Intelligent Key is within the
specified operating range
1.
When the Intelligent Key battery is almost dis-
charged or strong radio waves are present near
the operating location, the Intelligent Key sys-
tem’s operating range becomes narrower and
may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push
the ignition switch to start the engine. ●
The trunk area is not included in the operat-
ing range but the Intelligent Key may func-
tion.
● If the Intelligent Key is placed on the instru-
ment panel, rear parcel shelf, inside the
glove box or door pocket, the Intelligent Key
may not function.
● If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelli-
gent Key may function.
PUSH-BUTTON IGNITION SWITCH
OPERATION
When the ignition switch is pushed without
depressing the brake pedal (automatic trans-
mission model) or the clutch pedal (manual
transmission model), the ignition switch posi-
tion will change as follows:
● Push center once to change to ACC.
● Push center two times to change to ON.
● Push center three times to change to OFF.
(No position illuminates.)
● Push center four times to return to ACC.
● Open or close any door to return to LOCK
during the OFF position.
SSD0824SSD1021
5-8Starting and driving
—
—
04/21/10—debbie


The ignition switch is equipped with an anti-
theft steering lock device.
In order for the steering wheel to be locked, it
must be turned about 1/8 of a right or left turn
from the straight up position.
To lock the steering wheel, shift the ignition
switch to the LOCK position. To unlock the steer-
ing wheel, push the ignition switch. If the steer-
ing lock release malfunction indicator appears
on the dot matrix liquid crystal display, push the
push-button ignition switch again while lightly
turning the steering wheel right and left. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” in the
“2. Instruments and controls” section.)
If the battery of the vehicle is discharged, the
push-button ignition switch cannot be turned
from the LOCK position.
Some indicators and warnings for operation are
displayed on the dot matrix liquid crystal dis-
play between the speedometer and tachometer.
(See “DOT MATRIX LIQUID CRYSTAL DISPLAY” in
the “2. Instruments and controls” section.)
Automatic transmission models
The ignition lock is designed so that the ignition
switch position cannot be switched to LOCK
until the selector lever is moved to the P (Park)
position.When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1. Move the selector lever into the P (Park)
position.
2. Push the ignition switch to the OFF posi- tion. The ignition switch position indicator
will not illuminate.
3. Open the door. The ignition switch will change to the LOCK position.
The selector lever can be moved from the P (Park)
position if the ignition switch is in the ON posi-
tion and the brake pedal is depressed.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
LOCK (Normal parking position)
The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key in-
serted in the port.
ACC (Accessories)
This position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)
This position turns on the ignition system and
electrical accessories.
OFF
The engine can be turned off without locking
the steering wheel.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the selector lever is moved to the P (Park)
position.
CAUTION
Do not leave the vehicle with the push-button
ignition switch in ACC or ON positions when the
engine is not running for an extended period.
This can discharge the battery.
Emergency engine shut off
To shut off the engine in an emergency situation
while driving peform the following procedure:
− Rapidly push the push-button ignition switch3 consecutive times, or
− Push and hold the push-button ignition for more than 2 seconds.
Starting and driving5-9
—
—
04/21/10—debbie


INTELLIGENT KEY BATTERY DISCHARGE
If the battery of the Intelligent Key is almost
discharged, the guide light
Bof the Intelligent
Key port
Ablinks and the indicator appears on
the dot matrix liquid crystal display. (See “DOT
MATRIX LIQUID CRYSTAL DISPLAY” in the “2.
Instruments and controls” section.)
In this case, inserting the Intelligent Key into
the port
1allows you to start the engine. Make
sure that the key ring side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.
To remove the Intelligent Key from the port,
push the ignition switch to the OFF position and
pull the Intelligent Key out of the port. NOTE:
The Intelligent Key port does not charge the In-
telligent Key battery. If you see the low battery
indicator in the dot matrix liquid crystal display,
replace the battery as soon as possible. (See
“INTELLIGENT KEY BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
●
Never place anything except the Intelligent
Key in the Intelligent Key port. Doing so may
cause damage to the equipment.
● Make sure the Intelligent Key is in the cor-
rect direction when inserting it to the Intelli-
gent Key port. The engine may not start if it is
in the incorrect direction.
● Remove the Intelligent Key from the Intelli-
gent Key port after the ignition switch is
pushed to the OFF position. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)
SSD0768
BEFORE STARTING THE ENGINE
5-10Starting and driving
—
—
04/21/10—debbie


1. Apply the parking brake.
2.Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
3. Push the ignition switch to the ON posi-
tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or clutch pedal (MT model)
with the ignition switch in any position. ●
If the engine is very hard to start in ex-
tremely cold weather or when restarting,
depress the accelerator pedal a little (ap-
proximately 1/3 to the floor) and while hold-
ing, crank the engine. Release the accelera-
tor pedal when the engine starts.
● If the engine is very hard to start because it
is flooded, depress the accelerator pedal all
the way to the floor and hold it. Push the
ignition switch to the ON position to start
cranking the engine. After 5 or 6 seconds,
stop cranking by pushing the ignition switch
to OFF. After cranking the engine, release the
accelerator pedal. Crank the engine with
your foot off the accelerator pedal by de-
pressing the brake pedal and pushing the
push-button ignition switch to start the en-
gine. If the engine starts, but fails to run,
repeat the above procedure.
CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
push the ignition switch to OFF and wait 10
seconds before cranking again, otherwise the
starter could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather. In cold weather, keep the
engine running for a minimum of 2 - 3
minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
When racing the engine up to 4,000 rpm or
more under no load condition, the engine
will enter the fuel cut mode.
5. To stop the engine, shift the selector lever
to the P (Park) position (AT model) or
move the shift lever to the N (Neutral)
position (MT model), and push the igni-
tion switch to the OFF position.
STARTING THE ENGINE
Starting and driving5-11
—
—
04/21/10—debbie


AUTOMATIC TRANSMISSION
7 speed automatic transmission
The automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum
vehicle performance and driving enjoyment.
Starting the vehicle
After starting the engine, fully depress the foot
brake pedal and push the selector lever button
before shifting the selector lever to the R (Re-
verse), N (Neutral), D (Drive), DS (Drive Sport) or
Manual shift mode position. Be sure the vehicle
is fully stopped before attempting to shift the
selector lever.
This automatic transmission model is designed
so that the foot brake pedal must be depressed
before shifting from P (Park) to any drive posi-
tion while the ignition switch position is ON.
The selector lever cannot be moved out of the P
(Park) position and into any of the other gear
positions if the ignition switch is pushed to the
LOCK, OFF or ACC position.
1. Keep the foot brake pedal depressed andpush the selector lever button to shift into
a driving gear.
2. Release the parking brake and foot brake, then gradually start the vehicle in motion.
WARNING
●Do not depress the accelerator pedal while
shifting from P (Park) or N (Neutral) to R (Re-
verse), D (Drive), DS (Drive Sport) or manual
shift mode. Always depress the brake pedal
until shifting is completed. Failure to do so
could cause you to lose control and have an
accident.
● Cold engine idle speed is high, so use cau-
tion when shifting into a forward or reverse
gear before the engine has warmed up.
● Never shift to P (Park) or R (Reverse) while
vehicle is moving forward. Never shift to P
(Park), D (Drive) or DS (Drive Sport) while
vehicle is moving rearward. Failure to do so
could cause you to lose control and have an
accident.
CAUTION
● When stopping the vehicle on an uphill
grade, do not hold the vehicle by depressing
the accelerator pedal. The foot brake should
be used for this purpose.
● Do not downshift abruptly on slippery roads.
This may cause a loss of control.
DRIVING THE VEHICLE
5-12Starting and driving
—
—
04/21/10—debbie


Shifting
To move the selector lever,
: Push the button while depressing thebrake pedal,
: Push the button,
: Just move the selector lever.
After starting the engine, fully depress the
brake pedal and shift the selector lever from P
(Park) to R (Reverse), N (Neutral), D (Drive), DS
(Drive Sport) or Manual shift mode position. Push the button to shift into P (Park) or R
(Reverse). All other positions can be selected
without pushing the button.
WARNING
Apply the parking brake if the selector lever is
in any position while the engine is not running.
Failure to do so could cause the vehicle to move
unexpectedly or roll away and result in serious
personal injury or property damage.
CAUTION
Make sure the vehicle is completely stopped
and the transmission is in the P (Park) position.
P (Park) position :
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. The brake
pedal must be depressed and the selector lever
button pushed in to move the selector lever from
the N (Neutral) position or any drive position to
the P (Park) position. Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the selector lever to the P (Park)
position.
CAUTION
Use this position only when the vehicle is com-
pletely stopped.
R (Reverse) :
Use this position to back up. Always be sure the
vehicle is completely stopped before selecting
the R (Reverse) position. The brake pedal must
be depressed and the selector lever button
pushed in to move the selector lever from the P
(Park) position, the N (Neutral) position or any
drive position to the R (Reverse) position.
N (Neutral) :
Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to the N (Neutral) position and restart
a stalled engine while the vehicle is moving.
D (Drive) :
Use this position for all normal forward driving.
Selector lever
SSD0596
Starting and driving5-13
—
—
04/21/10—debbie
