This system will not automatically brake the ve-
hicle to a stop.
WARNING
●As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control system. This
system does not correct careless, inatten-
tive or absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
● Although the brake operation is controlled
by the system, the system does not auto-
matically stop the vehicle. If the vehicle
speed falls below approximately 20 MPH (32
km/h), the Intelligent Cruise Control system
is automatically canceled and a warning
chime sounds. (The brake control is also
canceled.)
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. To avoid accidents, never use the In-
telligent Cruise Control system under the
following conditions: – On roads where the traffic is heavy or
there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.) When the windshield wiper is operated at
the low speed (LO) or high speed (HI) po-
sition, the Intelligent Cruise Control sys-
tem is automatically canceled.
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– When rain, snow or dirt adhere to the sys- tem sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed and fre-
quent braking may result in overheating
the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it difficult to keep a proper distance between vehicles
because of frequent acceleration or
deceleration ●
In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic
braking. You may need to control the dis-
tance from other vehicles using the accelera-
tor pedal. Always stay alert and avoid using
the ICC system when it is not recommended
in this section.
5-24Starting and driving
—
—
04/29/10—pattie


VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE OPERATION
Always pay attention to the operation of the
vehicle and be ready to manually control the
proper following distance. The vehicle-to-
vehicle distance control mode of the Intelligent
Cruise Control (ICC) system may not be able to
maintain the selected distance between ve-
hicles (following distance) or selected vehicle
speed under some circumstances.The vehicle-to-vehicle distance control mode
uses a sensor
Alocated on the front of the
vehicle to detect vehicles traveling ahead. The
sensor generally detects the signals returned
from the reflectors on a vehicle ahead. There-
fore, if the sensor cannot detect the reflector on
the vehicle ahead, the ICC system may not
maintain the selected distance.
The following are some conditions in which the
sensor cannot detect the signals:
● When the reflector of the vehicle ahead is
positioned high on the vehicle (trailer, etc.)
● When the reflector on the vehicle ahead is
missing, damaged or covered
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
visibility
● When excessively heavy baggage is loaded
in the rear seat or the trunk of your vehicle
Sedan
SSD0926
Coupe — Type A
SSD0662
Coupe — Type B
SSD0663
Starting and driving5-25
—
—
04/29/10—pattie


The ICC system is designed to automatically
check the sensor’s operation within the limita-
tions of the system. When the sensor is covered
with dirt or obstructs, the system will automati-
cally be canceled. If the sensor is covered with
ice, a transparent or translucent vinyl bag, etc.,
the ICC system may not detect them. In these
instances, the vehicle-to-vehicle distance con-
trol mode may not cancel and may not be able
to maintain the selected following distance
from the vehicle ahead. Be sure to check and
clean the sensor regularly.
The vehicle-to-vehicle distance control mode is
designed to maintain a selected distance and
reduce the speed to match the slower vehicle
ahead; the system will decelerate the vehicle as
necessary. However, the ICC system can only
apply up to 25% of the vehicles total braking
power. This system should only be used when
traffic conditions allow vehicle speeds to re-
main fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and blink the
system display to notify the driver to take
necessary action.The system will cancel and a warning chime will
sound if the speed falls below approximately 20
MPH (32 km/h). The system will also disengage
below the 20 MPH (32 km/h) cut-off speed or
over the maximum set speed.
See “Approach warning” later in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
●
When there are no vehicles traveling ahead,
the vehicle-to-vehicle distance control mode
maintains the speed set by the driver. The
set speed range is between approximately
25 and 90 MPH (40 and 144 km/h).
● When there is a vehicle traveling ahead, the
vehicle-to-vehicle distance control mode ad-
justs the speed to maintain the distance,
selected by driver, from the vehicle ahead.
The adjusting speed range is between ap-
proximately 20 MPH (32 km/h) and up to the
set speed.
● When the vehicle traveling ahead has moved
out from its lane of travel, the vehicle-to-
vehicle distance control mode accelerates
and maintains vehicle speed up to the set
speed. The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll
gates or traffic congestion.
5-26Starting and driving
—
—
04/29/10—pattie


The detection zone of the ICC sensor is limited.
A vehicle ahead must be in the detection zone
for the vehicle-to-vehicle distance detection
mode to maintain the selected distance from
the vehicle ahead.
A vehicle ahead may move outside of the de-
tection zone due to its position within the same
lane of travel. Motorcycles may not be detected
in the same lane ahead if they are traveling
offset from the centerline of the lane. A vehicle
that is entering the lane ahead may not be
detected until the vehicle has completely
moved into the lane.If this occurs, the ICC
system may warn you by blinking the system
indicator and sounding the chime. The driver may have to manually control the proper dis-
tance away from vehicle traveling ahead.
SSD0252
Starting and driving5-27
—
—
04/29/10—pattie


When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the ICC sensor may detect
vehicles in a different lane, or may temporarily
not detect a vehicle traveling ahead. This may
cause the ICC system to decelerate or acceler-
ate the vehicle.
The detection of vehicles may also be affected
by vehicle operation (steering maneuver or trav-
eling position in the lane, etc.) or vehicle con-
dition.If this occurs, the ICC system may warn
you by blinking the system indicator and sound-
ing the chime unexpectedly. You will have to
manually control the proper distance away from
the vehicle traveling ahead. When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead,
the ICC will adjust the speed to maintain the
distance, selected by the driver, from the ve-
hicle ahead. If the vehicle ahead changes lanes
or exits the freeway, the ICC system will accel-
erate and maintain the speed up to the set
speed. Pay attention to the driving operation to
maintain control of the vehicle as it accelerates
to the set speed.
The vehicle may not maintain the set speed on
winding or hilly roads. If this occurs, you will
have to manually control the vehicle speed.
SSD0253
SSD0254
5-28Starting and driving
—
—
04/29/10—pattie

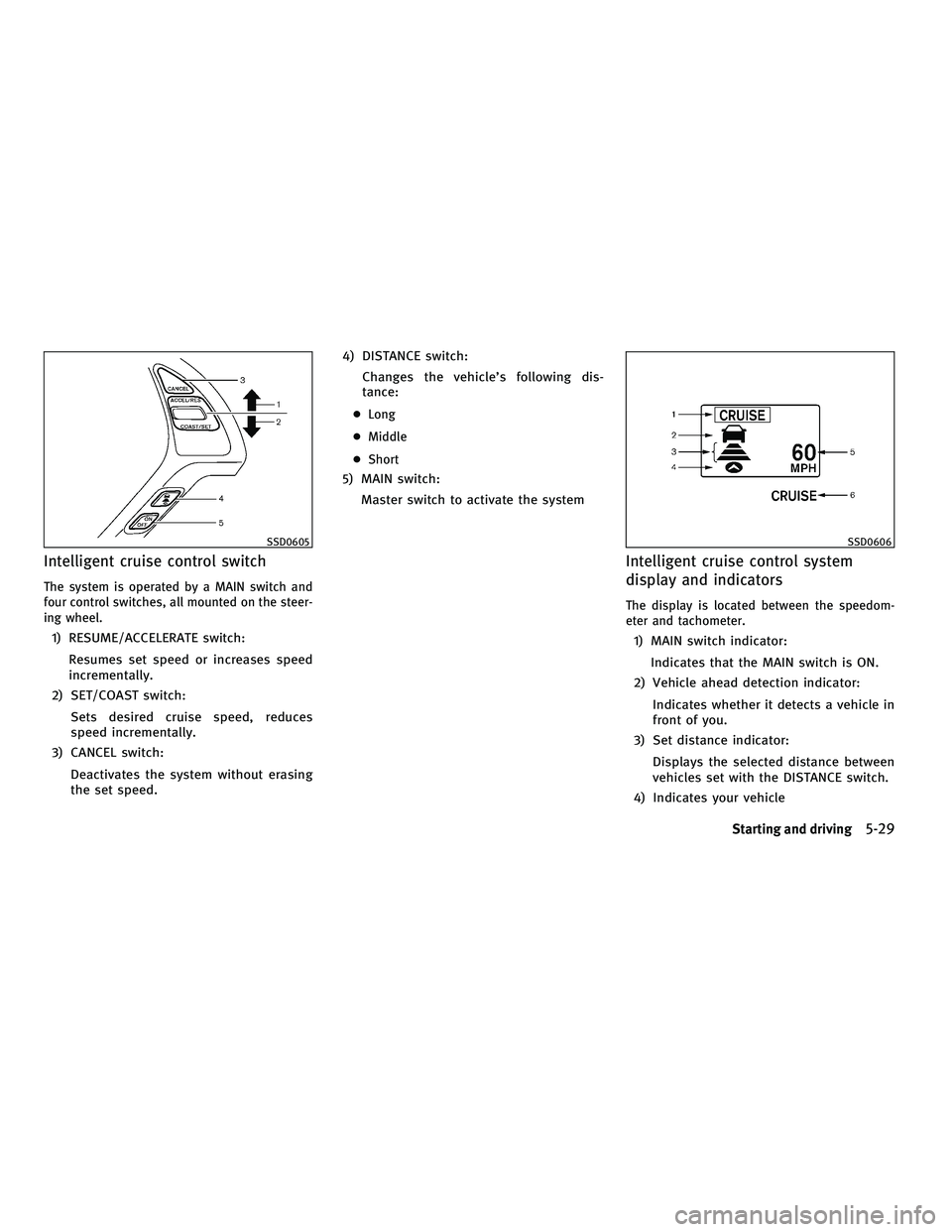

Intelligent cruise control switch
The system is operated by a MAIN switch and
four control switches, all mounted on the steer-
ing wheel.
1) RESUME/ACCELERATE switch:Resumes set speed or increases speed
incrementally.
2) SET/COAST switch:
Sets desired cruise speed, reduces
speed incrementally.
3) CANCEL switch:
Deactivates the system without erasing
the set speed. 4) DISTANCE switch:
Changes the vehicle’s following dis-
tance:
●Long
● Middle
● Short
5) MAIN switch:
Master switch to activate the system
Intelligent cruise control system
display and indicators
The display is located between the speedom-
eter and tachometer.
1) MAIN switch indicator:
Indicates that the MAIN switch is ON.
2) Vehicle ahead detection indicator:
Indicates whether it detects a vehicle in
front of you.
3) Set distance indicator:
Displays the selected distance between
vehicles set with the DISTANCE switch.
4) Indicates your vehicle
SSD0605SSD0606
Starting and driving5-29
—
—
04/29/10—pattie

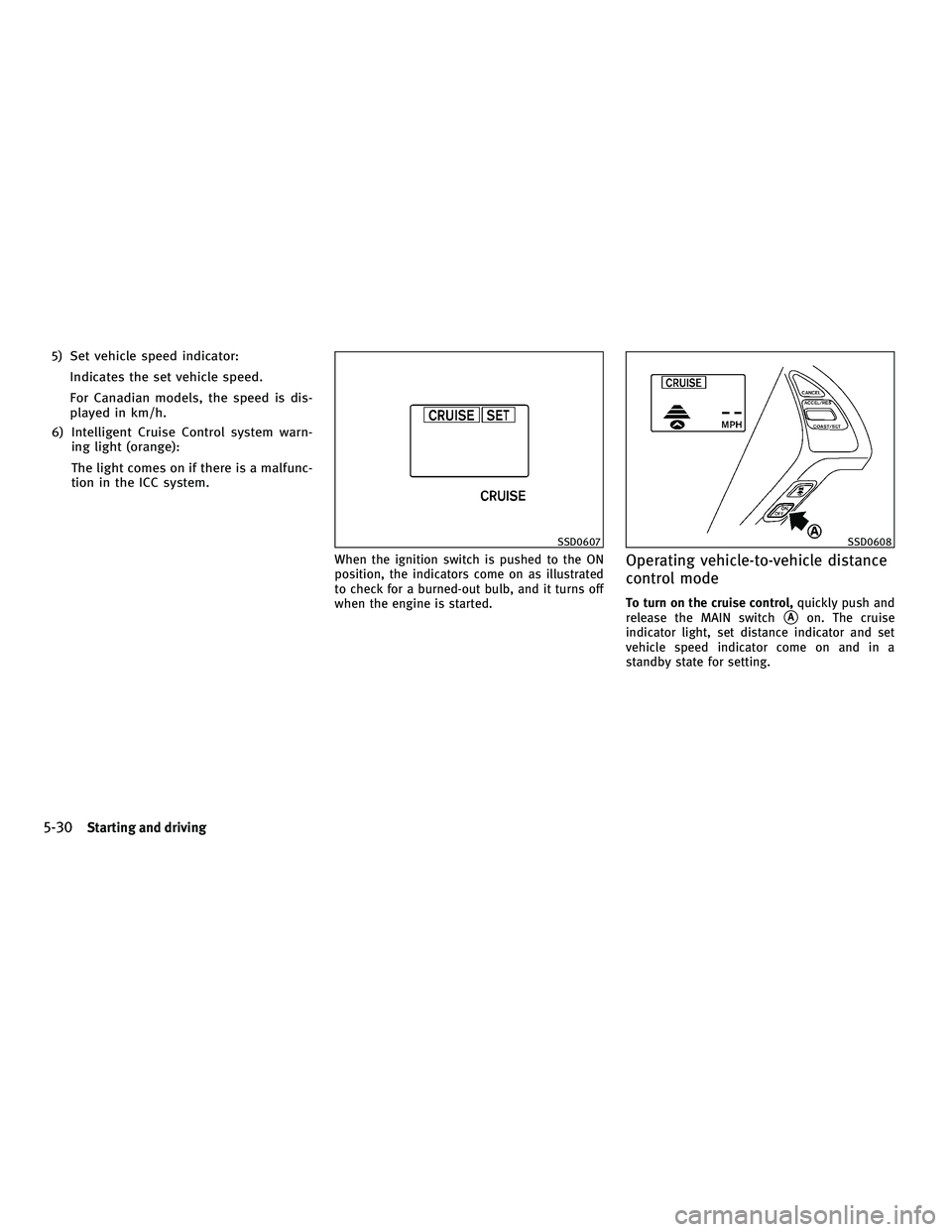

5) Set vehicle speed indicator:Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
6) Intelligent Cruise Control system warn- ing light (orange):
The light comes on if there is a malfunc-
tion in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control, quickly push and
release the MAIN switch
Aon. The cruise
indicator light, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0607SSD0608
5-30Starting and driving
—
—
04/29/10—pattie

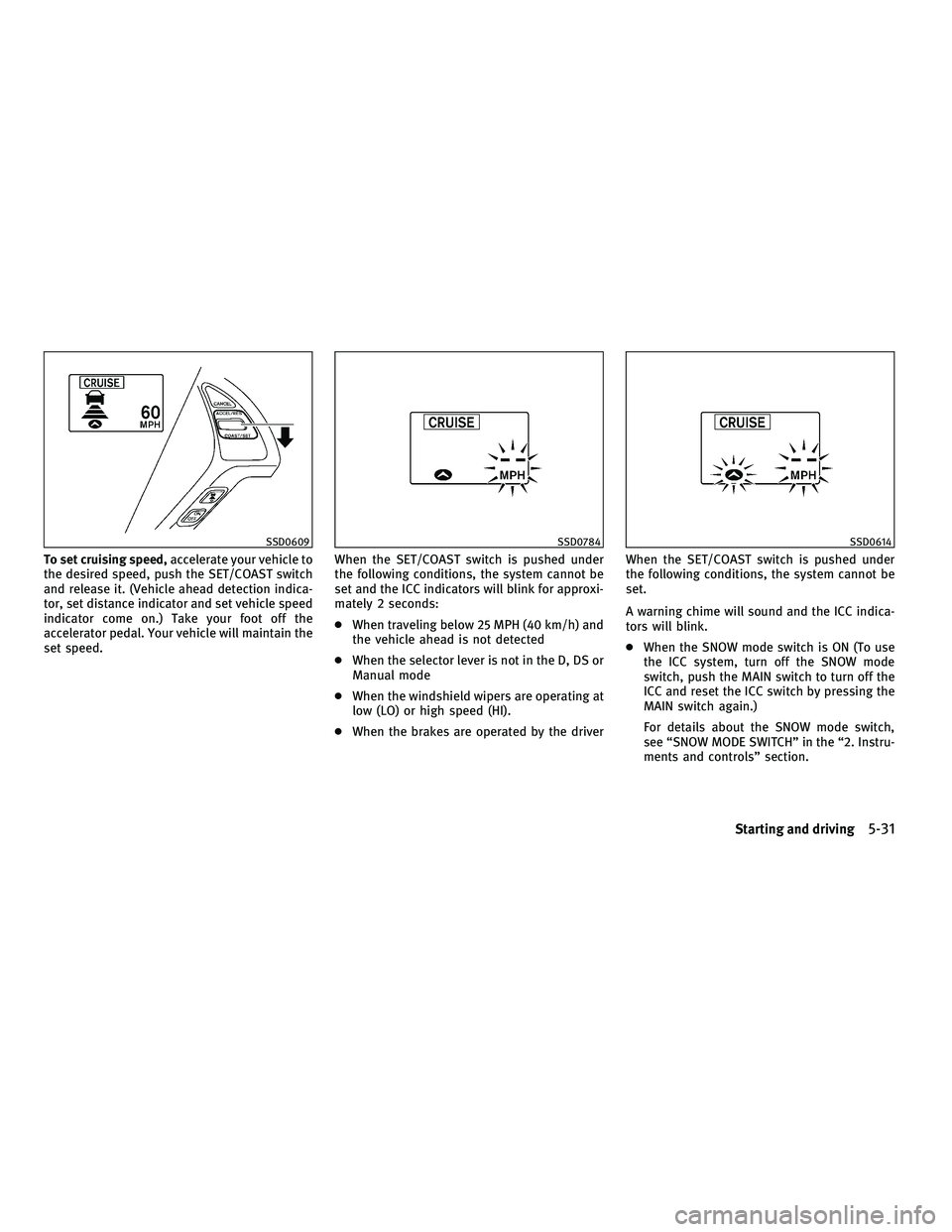

To set cruising speed,accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. (Vehicle ahead detection indica-
tor, set distance indicator and set vehicle speed
indicator come on.) Take your foot off the
accelerator pedal. Your vehicle will maintain the
set speed. When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set and the ICC indicators will blink for approxi-
mately 2 seconds:
●
When traveling below 25 MPH (40 km/h) and
the vehicle ahead is not detected
● When the selector lever is not in the D, DS or
Manual mode
● When the windshield wipers are operating at
low (LO) or high speed (HI).
● When the brakes are operated by the driver When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set.
A warning chime will sound and the ICC indica-
tors will blink.
●
When the SNOW mode switch is ON (To use
the ICC system, turn off the SNOW mode
switch, push the MAIN switch to turn off the
ICC and reset the ICC switch by pressing the
MAIN switch again.)
For details about the SNOW mode switch,
see “SNOW MODE SWITCH” in the “2. Instru-
ments and controls” section.
SSD0609SSD0784SSD0614
Starting and driving5-31
—
—
04/29/10—pattie


1. System set display with vehicle ahead
2. System set display without vehicle ahead
System operation
WARNING
Normally when controlling the distance to a
vehicle ahead, this system automatically accel-
erates or decelerates your vehicle according to
the speed of the vehicle ahead. Depress the
accelerator to properly accelerate your vehicle-
when acceleration is required for a lane
change. Depress the brake pedal when decel-
eration is required to maintain a safe distanceto the vehicle ahead due to its sudden braking
or if a vehicle cuts in. Always stay alert when
using the ICC system.
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected
in the lane ahead.
The ICC system displays the set speed. Vehicle detected ahead :
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by con-
trolling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
system then controls the vehicle speed based
on the speed of the vehicle ahead to maintain
the driver selected distance.
The stoplights of the vehicle come on when brak-
ing is performed by the ICC system.
When the brake operates, a noise may be heard.
This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected :
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The
ICC system then maintains the set speed.
When a vehicle is no longer detected the vehicle
ahead detection indicator turns off.
SSD0610
5-32Starting and driving
—
—
04/29/10—pattie

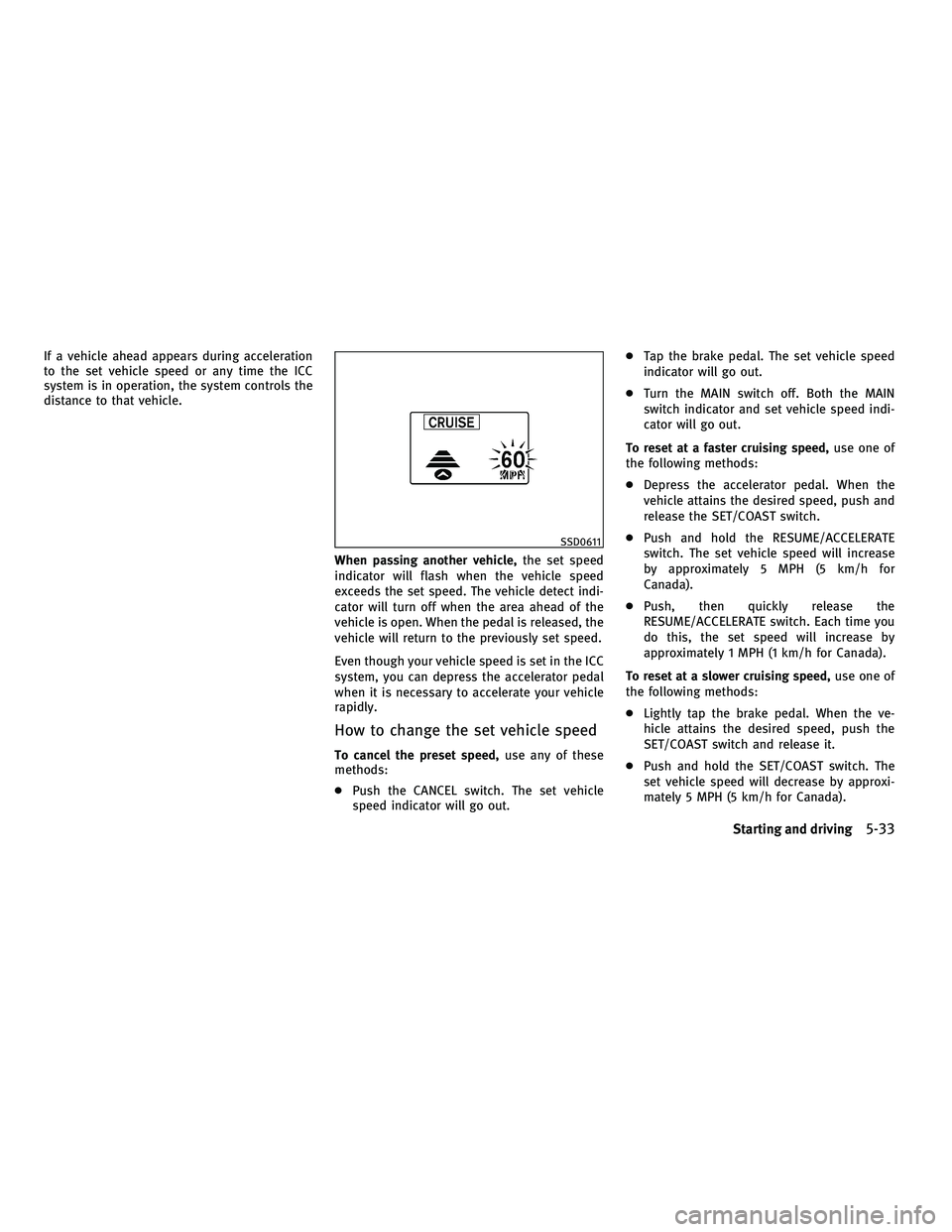

If a vehicle ahead appears during acceleration
to the set vehicle speed or any time the ICC
system is in operation, the system controls the
distance to that vehicle.When passing another vehicle,the set speed
indicator will flash when the vehicle speed
exceeds the set speed. The vehicle detect indi-
cator will turn off when the area ahead of the
vehicle is open. When the pedal is released, the
vehicle will return to the previously set speed.
Even though your vehicle speed is set in the ICC
system, you can depress the accelerator pedal
when it is necessary to accelerate your vehicle
rapidly.
How to change the set vehicle speed
To cancel the preset speed, use any of these
methods:
● Push the CANCEL switch. The set vehicle
speed indicator will go out. ●
Tap the brake pedal. The set vehicle speed
indicator will go out.
● Turn the MAIN switch off. Both the MAIN
switch indicator and set vehicle speed indi-
cator will go out.
To reset at a faster cruising speed, use one of
the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
● Push and hold the RESUME/ACCELERATE
switch. The set vehicle speed will increase
by approximately 5 MPH (5 km/h for
Canada).
● Push, then quickly release the
RESUME/ACCELERATE switch. Each time you
do this, the set speed will increase by
approximately 1 MPH (1 km/h for Canada).
To reset at a slower cruising speed, use one of
the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
SET/COAST switch and release it.
● Push and hold the SET/COAST switch. The
set vehicle speed will decrease by approxi-
mately 5 MPH (5 km/h for Canada).
SSD0611
Starting and driving5-33
—
—
04/29/10—pattie
