To back up, depress the shift lever and then
move it to the R (Reverse) gear after stopping
the vehicle completely.
The shift lever returns to its original position
when the shift lever is moved to the N (Neutral)
position.
If it is difficult to move the shift lever into the R
(Reverse) or 1st gear, shift to the N (Neutral)
position, and then release the clutch pedal
once. Fully depress the clutch pedal again and
shift into the R (Reverse) or 1st gear.
Suggested upshift speeds
The following are suggested vehicle speeds for
shifting into a higher gear. These suggestions
relate to fuel economy and vehicle performance.
Actual upshift speeds will vary according to
road conditions, the weather and individual
driving habits.
For normal acceleration in low altitude areas
[less than 4,000 ft (1,219 m)]:
Gear changeMPH (km/h)
1st to 2nd 8 (13)
2nd to 3rd 16 (25)
3rd to 4th 25 (40)
4th to 5th 28 (45)
5th to 6th 33 (53)
For quick acceleration in low altitude areas or in
high altitude areas [over 4,000 ft (1,219 m)]:
Gear changeMPH (km/h)
1st to 2nd 15 (24)
2nd to 3rd 25 (40)
3rd to 4th 40 (64)
4th to 5th 45 (72)
5th to 6th 50 (80)
Suggested maximum speed in each
gear
Downshift to a lower gear if the engine is not
running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed
(shown below) in any gear. For level road driv-
ing, use the highest gear suggested for that
speed. Always observe posted speed limits, and
drive according to the road conditions, which
will ensure safe operation. Do not over-rev the
engine when shifting to a lower gear as it may
cause engine damage or loss of vehicle control. Sedan:
Gear
MPH (km/h)
1st 39 (63)
2nd 64 (103)
3rd 92 (148)
4th —
5th —
6th —
Coupe:
GearMPH (km/h)
1st 39 (63)
2nd 65 (104)
3rd 93 (149)
4th —
5th —
6th —
Starting and driving5-17
—
—
04/21/10—debbie


This system will not automatically brake the ve-
hicle to a stop.
WARNING
●As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control system. This
system does not correct careless, inatten-
tive or absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
● Although the brake operation is controlled
by the system, the system does not auto-
matically stop the vehicle. If the vehicle
speed falls below approximately 20 MPH (32
km/h), the Intelligent Cruise Control system
is automatically canceled and a warning
chime sounds. (The brake control is also
canceled.)
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. To avoid accidents, never use the In-
telligent Cruise Control system under the
following conditions: – On roads where the traffic is heavy or
there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.) When the windshield wiper is operated at
the low speed (LO) or high speed (HI) po-
sition, the Intelligent Cruise Control sys-
tem is automatically canceled.
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– When rain, snow or dirt adhere to the sys- tem sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed and fre-
quent braking may result in overheating
the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it difficult to keep a proper distance between vehicles
because of frequent acceleration or
deceleration ●
In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic
braking. You may need to control the dis-
tance from other vehicles using the accelera-
tor pedal. Always stay alert and avoid using
the ICC system when it is not recommended
in this section.
5-24Starting and driving
—
—
04/29/10—pattie


1. System set display with vehicle ahead
2. System set display without vehicle ahead
System operation
WARNING
Normally when controlling the distance to a
vehicle ahead, this system automatically accel-
erates or decelerates your vehicle according to
the speed of the vehicle ahead. Depress the
accelerator to properly accelerate your vehicle-
when acceleration is required for a lane
change. Depress the brake pedal when decel-
eration is required to maintain a safe distanceto the vehicle ahead due to its sudden braking
or if a vehicle cuts in. Always stay alert when
using the ICC system.
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected
in the lane ahead.
The ICC system displays the set speed. Vehicle detected ahead :
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by con-
trolling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
system then controls the vehicle speed based
on the speed of the vehicle ahead to maintain
the driver selected distance.
The stoplights of the vehicle come on when brak-
ing is performed by the ICC system.
When the brake operates, a noise may be heard.
This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected :
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The
ICC system then maintains the set speed.
When a vehicle is no longer detected the vehicle
ahead detection indicator turns off.
SSD0610
5-32Starting and driving
—
—
04/29/10—pattie


●The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the
distance. ●
If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and ICC system dis-
play. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection and set dis-
tance indicator blink.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when:
● Your vehicle approaches other vehicles that
are parked or moving slowly.
● The accelerator pedal is depressed, overrid-
ing the system.
SSD0613D
Starting and driving5-35
—
—
04/29/10—pattie


PREVIEW FUNCTION (for Intelligent
Cruise Control system equipped
models)
The ICC system with the preview function iden-
tifies the need to apply emergency braking by
sensing the vehicle ahead in the same lane and
the distance to the vehicle ahead and relative
speed from it, it applies the brake pre-pressure
before the driver depresses the brake pedal and
helps improve brake response by reducing
pedal free play.
For more details, see “BRAKE ASSIST” later in
this section.
CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible. ●
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
5-42Starting and driving
—
—
04/29/10—pattie


The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started.If any malfunction occurs in the AWD system
while the engine is running, the warning light
will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
WARNING
●
For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing) or similar equipment
even if the other two wheels are raised off
the ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed on a
dynamometer. Using the wrong test equip-
ment may result in drivetrain damage or un-
expected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
SSD0336
ALL-WHEEL DRIVE (AWD) (if so equipped)
Starting and driving5-43
—
—
04/29/10—pattie


CAUTION
●Do not operate the engine on a free roller
when any of the wheels are raised.
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the warning light remains on after the
above operation, have your vehicle checked
by an INFINITI retailer as soon as possible.
● The power train may be damaged if you con-
tinue driving with the warning light blinking.
WARNING
● Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission placed into P (Park) for Automatic
Transmission (AT) model or in an appropri-
ate gear for Manual Transmission (MT)
model. Failure to do so could cause the ve-
hicle to move unexpectedly or roll away and
result in an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
SD1006MA
PARKING/PARKING ON HILLS
5-44Starting and driving
—
—
04/29/10—pattie

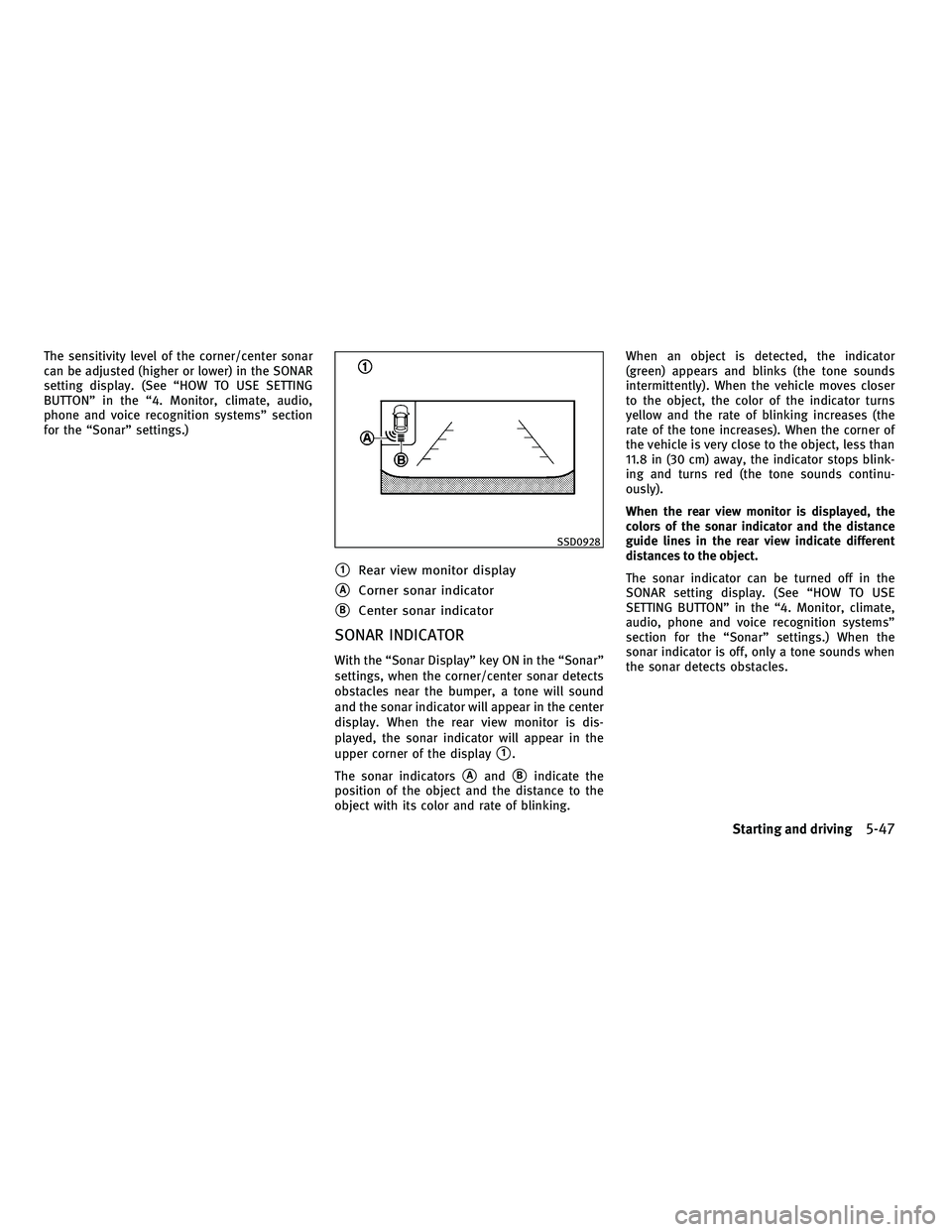

The sensitivity level of the corner/center sonar
can be adjusted (higher or lower) in the SONAR
setting display. (See “HOW TO USE SETTING
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section
for the “Sonar” settings.)
1Rear view monitor display
ACorner sonar indicator
BCenter sonar indicator
SONAR INDICATOR
With the “Sonar Display” key ON in the “Sonar”
settings, when the corner/center sonar detects
obstacles near the bumper, a tone will sound
and the sonar indicator will appear in the center
display. When the rear view monitor is dis-
played, the sonar indicator will appear in the
upper corner of the display
1.
The sonar indicators
AandBindicate the
position of the object and the distance to the
object with its color and rate of blinking. When an object is detected, the indicator
(green) appears and blinks (the tone sounds
intermittently). When the vehicle moves closer
to the object, the color of the indicator turns
yellow and the rate of blinking increases (the
rate of the tone increases). When the corner of
the vehicle is very close to the object, less than
11.8 in (30 cm) away, the indicator stops blink-
ing and turns red (the tone sounds continu-
ously).
When the rear view monitor is displayed, the
colors of the sonar indicator and the distance
guide lines in the rear view indicate different
distances to the object.
The sonar indicator can be turned off in the
SONAR setting display. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section for the “Sonar” settings.) When the
sonar indicator is off, only a tone sounds when
the sonar detects obstacles.
SSD0928
Starting and driving5-47
—
—
04/29/10—pattie


SONAR SYSTEM OFF SWITCH
The sonar system OFF switch on the instrument
panel allows the driver to turn the sonar system
on and off. To turn the sonar system on and off,
the ignition switch must be in the “ON” posi-
tion. The indicator light
1on the switch will
illuminate when the system is turned off. If the
indicator light flashes when the sonar system is
not turned off, it may indicate a malfunction in
the sonar system.
WARNING
If the engine is not running or is turned off while
driving, the power assist for the steering will
not work. Steering will be harder to operate.
The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steering.
If the engine stops or the drive belt breaks, you
will still have control of the vehicle. However,
much greater steering effort is needed, espe-
cially in sharp turns and at low speeds.
BRAKING PRECAUTIONS
The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
Vacuum assisted brakes
The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. How-
ever, greater foot pressure on the brake pedal
will be required to stop the vehicle and the
stopping distance will be longer.
When the brake pedal is depressed slowly and
firmly, you may hear a clicking noise and feel a
slight pulsation. This is normal and indicates
that the Brake Assist System is operating.
Wet brakes
When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
SSD0929
POWER STEERING BRAKE SYSTEM
5-48Starting and driving
—
—
04/29/10—pattie


PARKING BRAKE BREAK-IN
Break in the parking brake shoes whenever the
stopping effect of the parking brake is weak-
ened or whenever the parking brake shoes
and/or drums/rotors are replaced, in order to
assure the best braking performance.
This procedure is described in the vehicle ser-
vice manual and can be performed by an
INFINITI retailer.
Using the brakes
Avoid resting your foot on the brake pedal while
driving. This will cause overheating of the
brakes, wearing out the brake and pads faster
and reduce gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
WARNING
●While driving on a slippery surface, be care-
ful when braking, accelerating or downshift-
ing. Abrupt braking or accelerating could
cause the wheels to skid and result in an
accident.
● If the engine is not running or is turned off
while driving, the power assist for the
brakes will not work. Braking will be harder.
BRAKE ASSIST
When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force than
a conventional brake booster even with light
pedal force.
WARNING
The Brake Assist is only an aid to assist braking
operation and is not a collision warning or
avoidance device. It is the driver’s responsibil-
ity to stay alert, drive safely and be in control of
the vehicle at all times.
PREVIEW FUNCTION (Intelligent Cruise
Control system equipped models)
When the Preview Function identifies the need
to apply emergency braking by sensing a ve-
hicle ahead in the same lane and the distance
and relative speed from it, it applies the brake
pre-pressure before the driver depresses the
brake pedal and helps improve brake response
by reducing pedal free play.
● This system will not operate when the ve-
hicle is moving at approximately 20 MPH (32
km/h) or less.
BRAKE ASSIST
Starting and driving5-49
—
—
04/29/10—pattie
