6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Vehicle set-up
1. Park the vehicle on a level surface andapply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack stands.
●Place the safety jack stands under the
vehicle jack-up points.
● A suitable adapter should be attached to
the jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the center point of the undercover.
b. Then remove the other bolts that hold the undercover in place.
CAUTION
Make sure the correct lifting and support
points are used to avoid vehicle damage.
Engine oil and filter
1. Place a large drain pan under the drainplug.
2. Remove the oil filler cap.
3. Remove the drain plug
1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the engine oil
is hot.
Two-wheel drive (2WD) models
SDI2335
Maintenance and do-it-yourself8-9
—
—
04/21/10—debbie


●Waste oil must be disposed of properly.
● Check your local regulations.
4. (Perform steps 4 to 7 only when the
engine oil filter change is needed.)
Loosen the oil filter2with an oil filter
wrench. Remove the oil filter by turning it by
hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old rubber gasket re-
maining on the mounting surface of the engine.
Failure to do so could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for drain and
refill capacity. The drain and refill capacity depends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the other bolts that hold the un- dercover in place. Be careful not to strip
the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
All-wheel drive (AWD) models
SDI2047
8-10Maintenance and do-it-yourself
—
—
04/21/10—debbie


WARNING
●Prolonged and repeated contact with used
engine oil may cause skin cancer.
● Try to avoid direct skin contact with used oil.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep used engine oil out of reach of children. When checking or replacement is required, we
recommend an INFINITI retailer for servicing.
CAUTION
●
Use only Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
● Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will cause
deterioration in driveability and automatic
transmission durability, and may damage
the automatic transmission, which is not
covered by the INFINITI new vehicle limited
warranty. Check the fluid level in the reservoir.
The fluid level should be checked using the HOT
range (
1: HOT MAX.,2: HOT MIN.) at fluid
temperatures of 122 to 176°F (50 to 80°C) or
using the COLD range (
3: COLD MAX.,4:
COLD MIN.) at fluid temperatures of 32 to 86°F
(0 to 30°C).
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap and
fill through the opening.
CAUTION
● Do not overfill.
● Use Genuine NISSAN PSF or equivalent.
SDI1765A
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID
Maintenance and do-it-yourself8-11
—
—
04/21/10—debbie


1. Remove the cell plugsA.
2. Add distilled water up to the UPPER LEVEL
1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
1indicates
OK and the conditions
2needs more to be
added.
3. Tighten cell plugsA.
Vehicles operated in high temperatures or un-
der severe conditions require frequent checks
of the battery fluid level.
JUMP STARTING
If jump starting is necessary, see “JUMP START-
ING” in the “6. In case of emergency” section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact an
INFINITI retailer.
CAUTION
● Do not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the ve-
hicle battery may not charge completely.
● Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
SDI1480C
VARIABLE VOLTAGE CONTROL SYSTEM
Maintenance and do-it-yourself8-15
—
—
04/21/10—debbie


1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF or LOCK
position before servicing drive belts. The en-
gine could rotate unexpectedly.
1. Visually inspect each belt for signs ofunusual wear, cuts, fraying or looseness.
If the belt is in poor condition or loose,
have it replaced or adjusted by an INFINITI
retailer.
2. Have the belts checked regularly for con- dition and tension in accordance with the
maintenance schedule in your “INFINITI
Service and Maintenance Guide”.WARNING
Be sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
VQ37VHR engine
SDI2119
DRIVE BELTS SPARK PLUGS
8-16Maintenance and do-it-yourself
—
—
04/21/10—debbie


ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
SDI1479ASDI1754
FUSES
8-20Maintenance and do-it-yourself
—
—
04/21/10—debbie


enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refueling.
Gasoline containing oxygenates can cause paint
damage.
E-85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispens-
ing pumps to be identified by a small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel injec-
tor cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for
gum, varnish or deposit removal may contain
active solvent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rating
lower than recommended above can cause per-
sistent, heavy spark knock. (Spark knock is a
metallic rapping noise.) If severe, this can lead
to engine damage. If you detect a persistent
heavy spark knock even when using gasoline of
the stated octane rating, or if you hear steady
spark knock while holding a steady speed on
level roads, have an INFINITI retailer correct the
condition. Failure to correct the condition is mis-
use of the vehicle, for which INFINITI is not re-
sponsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at an
INFINITI retailer or other competent service fa-
cility.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
CAUTION
●Your vehicle is not designed to run on E-85
fuel. Using E-85 fuel in a vehicle not specifi-
cally designed for E-85 fuel can damage fuel
system components and is not covered by
the INFINITI new vehicle limited warranty.
● E-85 is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline.
● U.S. government regulations require ethanol
dispensing pumps to be identified by a
small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
Technical and consumer information9-5
—
—
04/21/10—debbie

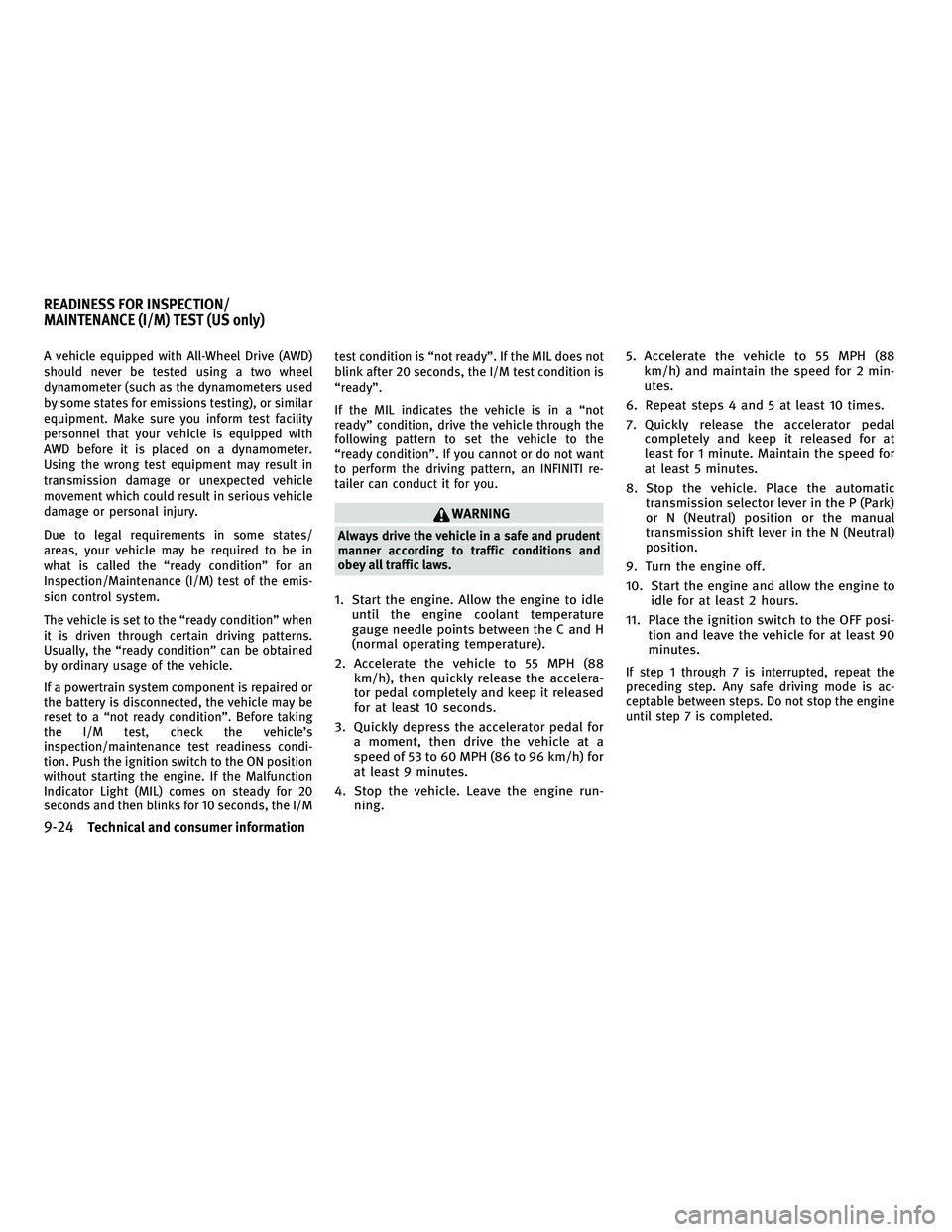

A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing), or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Push the ignition switch to the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/Mtest condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
If the MIL indicates the vehicle is in a “not
ready” condition, drive the vehicle through the
following pattern to set the vehicle to the
“ready condition”. If you cannot or do not want
to perform the driving pattern, an INFINITI re-
tailer can conduct it for you.
WARNING
Always drive the vehicle in a safe and prudent
manner according to traffic conditions and
obey all traffic laws.
1. Start the engine. Allow the engine to idle
until the engine coolant temperature
gauge needle points between the C and H
(normal operating temperature).
2. Accelerate the vehicle to 55 MPH (88 km/h), then quickly release the accelera-
tor pedal completely and keep it released
for at least 10 seconds.
3. Quickly depress the accelerator pedal for a moment, then drive the vehicle at a
speed of 53 to 60 MPH (86 to 96 km/h) for
at least 9 minutes.
4. Stop the vehicle. Leave the engine run- ning. 5. Accelerate the vehicle to 55 MPH (88
km/h) and maintain the speed for 2 min-
utes.
6. Repeat steps 4 and 5 at least 10 times.
7. Quickly release the accelerator pedal completely and keep it released for at
least for 1 minute. Maintain the speed for
at least 5 minutes.
8. Stop the vehicle. Place the automatic transmission selector lever in the P (Park)
or N (Neutral) position or the manual
transmission shift lever in the N (Neutral)
position.
9. Turn the engine off.
10. Start the engine and allow the engine to idle for at least 2 hours.
11. Place the ignition switch to the OFF posi- tion and leave the vehicle for at least 90
minutes.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)
9-24Technical and consumer information
—
—
04/21/10—debbie


10 Index
4 Wheel Active Steer (4WAS) system.....5-544 Wheel Active Steer (4WAS) warning light . .2-13
A
ABS (Anti-lock Braking System) ........5-52
Advanced air bag system ...........1-45
Air bag system Advanced air bag system .........1-45
Front passenger air bag and status
light ..................... 1-47
Front-seat mounted side-impact
supplemental air bag system .......1-50
Roof-mounted curtain side-impact
supplemental air bag system .......1-50
Air bag warning labels .............1-53
Air bag warning light ..........1-53 , 2-16
Air cleaner housing filter ...........8-17
Air conditioner Air conditioner service ...........4-38
Air conditioner specification label ....9-14
Air conditioning system refrigerant and
lubricant recommendations .......4-38
Automatic climate control ........4-28
In-cabin microfilter ............4-38
Operation (See automatic climate
control) ................... 4-28
Alarm, How to stop alarm
(see vehicle security system) .........2-28
Alcohol, drugs and driving ...........5-6
All-wheel drive (AWD) .............5-43 All-wheel drive (AWD) driving safety
precautions
................... .5-7
All-wheel drive (AWD) warning light .....2-12
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-52
Anti-lock braking system (ABS) warning
light ...................... .2-12
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-12
Ashtrays (See cigarette lighter
and ashtrays) ................. .2-42
Audible reminders .............. .2-18
Audio operation precautions .........4-39
Audio system ................. .4-39
Audio system, Steering wheel
audio controls ................ .4-83
Autolight system ............... .2-33
Automatic Automatic adjusting function (front
windows) ................. .2-52
Automatic

climate control ........4-30
Automatic transmission fluid (ATF) ....8-11
Climate control .............. 4-28
Driving with automatic transmission . . . 5-12
Automatic door locks ..............3-6
Automatic drive positioner ..........3-28
Automatic seat positioner...........3-28
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-13
Battery Battery saver system ............2-35
Intelligent Key ............... 8-22
Variable voltage control system .....8-15
Before starting the engine ...........5-10
Belts (See drive belts) .............8-16
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Booster seats ................. .1-35
Brake Anti-lock Braking System (ABS) ......5-52
Brake and clutch fluid ...........8-12
Brake system ............... 5-48
Parking brake operation . . . ......5-18
Brake warning light ............. .2-12
Break-in schedule .............. .5-42
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel . . . ......2-11
Bulb replacement .............. .8-23
C
Cabin air filter ................ .4-38
Capacities and recommended
fuel/lubricants ................. .9-2
—
—
04/30/10—diane


Car phone or CB radio.............4-85
Card holder .................. .2-47
Cargo net retainers ............. .2-49
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-20
Child restraints Booster seats ............... .1-35
Installation using LATCH .........1-25
Installation using the seat belts .....1-29
LATCH system ............... 1-22
Precautions on child restraints ......1-21
Top tether strap .............. 1-24
Child safety .................. .1-15
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-16
Cigarette lighter and ashtrays ........2-42
Circuit breaker, Fusible link ..........8-21
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic
climate control ................ .4-28
Clock ..................... .2-40
Clutch fluid .................. .8-12
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-55
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-57
Compact spare tire .............. .8-39
Compass .................... .2-8
Console box ................. .2-45Controller, Center multi-function control
panel
...................... .4-4
Controls Control panel button (display) .......4-2
Heater

and air conditioner controls
(See automatic climate control) .....4-28
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant .........8-8
Checking engine coolant level .......8-7
Corrosion protection ..............7-6
Cruise control ................. .5-19
Cruise control Fixed speed cruise control (on ICC
system) .................. .5-38
Intelligent cruise control (ICC) system . . 5-21
Cruise indicator ............... .2-22
Cup holders .................. .2-43
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-11
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance to empty .............. .2-25
Door/trunk open warning ...........2-22
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-16
Drive positioner ............... .3-28Driving
All-wheel drive (AWD) ...........5-43
Cold weather driving ...........5-55
Driving with automatic transmission . . . 5-12
Driving with manual transmission ....5-16
Precautions when starting and driving . . 5-2
DS (Drive Sport) mode .............5-14
E
Economy, Fuel ................ .5-42
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label . . . . . .9-13
Emission control system warranty ......9-23
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-42
Capacities and recommended fuel/
lubricants ..................
9-2
Changing engine coolant . . . . . . . . . 8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-7
Checking engine oil level . . . . . . . . . 8-8
Engine block heater ............5-56
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ..................8-8
Engine oil and oil filter recommendation . 9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator
(Automatic Transmission models) ....2-21
10-2
—
—
04/30/10—diane
