8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
WARNING SYSTEM (TPMS)” in the “5. Starting
and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
2-22Instruments and controls
—
—
05/10/10—tbrooks


Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.
See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
19. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
the indicator disappears. While the main switch
indicator is displayed, the ICC system is
operational.
INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator
This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator
This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator
This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator
This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
More maintenance reminders are also available
on the center display. (See “HOW TO USE INFO
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section.)
SIC3281
Instruments and controls2-23
—
—
04/21/10—debbie


5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of22 to 131°F (30 to 55°C).
The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in front
of the radiator. The sensor may be affected by
road or engine heat, wind directions and other
driving conditions. The display may differ from
the actual outside temperature or the tempera-
ture displayed on various signs or billboards.
6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode. Push the
switchBto select other
menus.
ALERT :
There are 3 submenus under the alert menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● TIME TO REST
Select this submenu to specify when the
“time to rest” indicator activates.
● ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil. ●
OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
● TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
DISPLAY :
There are 3 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
2-26Instruments and controls
—
—
10/12/09—tbrooks


●If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.
The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
SSS0911
Instruments and controls2-39
—
—
10/12/09—tbrooks

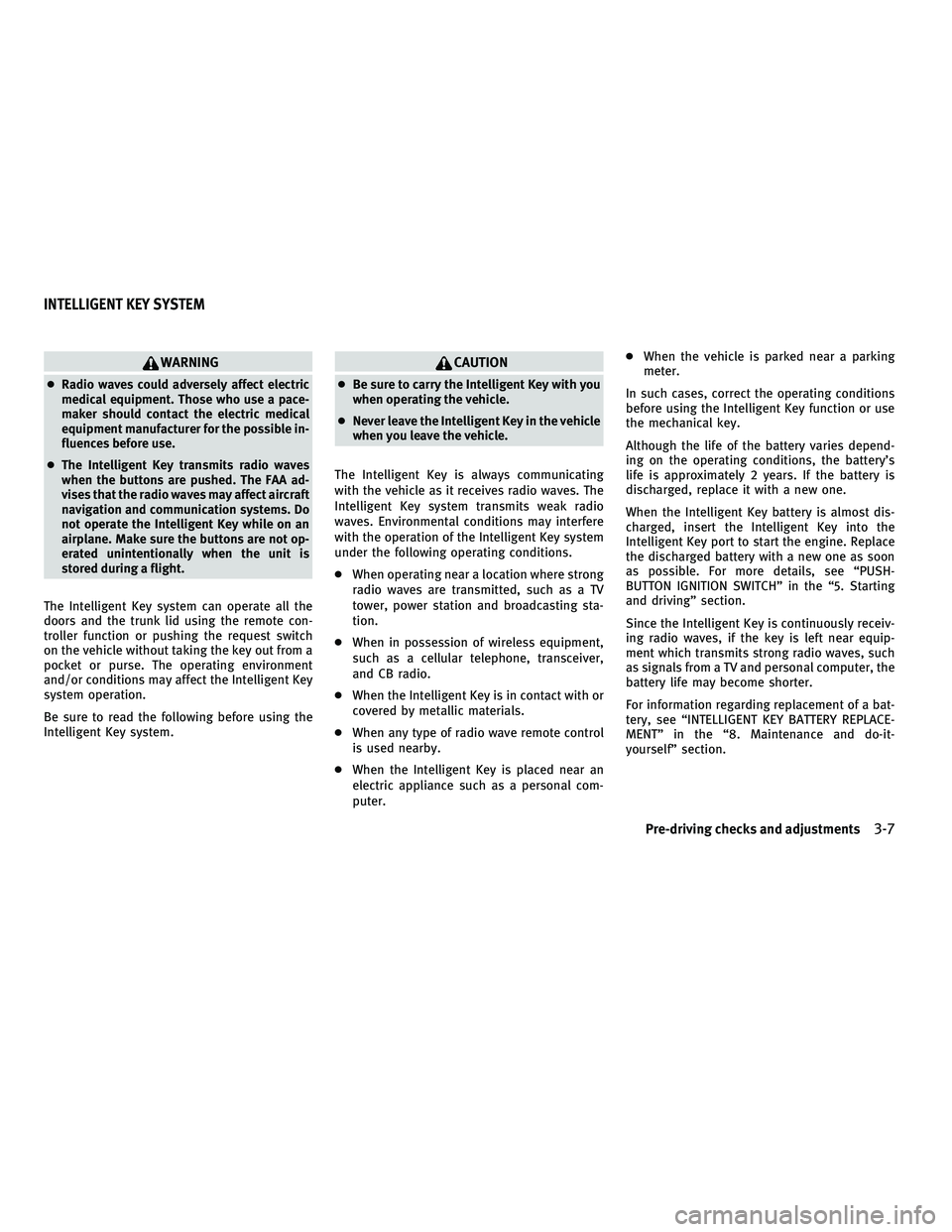

WARNING
●Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
doors and the trunk lid using the remote con-
troller function or pushing the request switch
on the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
● Be sure to carry the Intelligent Key with you
when operating the vehicle.
● Never leave the Intelligent Key in the vehicle
when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
● When operating near a location where strong
radio waves are transmitted, such as a TV
tower, power station and broadcasting sta-
tion.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter. ●
When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. Replace
the discharged battery with a new one as soon
as possible. For more details, see “PUSH-
BUTTON IGNITION SWITCH” in the “5. Starting
and driving” section.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section.
INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7
—
—
10/12/09—tbrooks


TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When pushing the ignition switch to
stop the engine The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously (Automatic
Transmission models). The selector lever is not in the P
(Park) position.
Shift the selector lever to the P
(Park) position.
When opening the driver’s door to
get out of the vehicle The inside warning chime sounds
continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF
position.
The Intelligent Key is in the Intelli-
gent Key port. Remove the Intelligent Key from the
Intelligent Key port.
When closing the door after getting
out of the vehicle The NO KEY warning appears on the
display, the outside chime sounds 3
times and the inside warning chime
sounds for a few seconds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime
sounds continuously (Automatic
Transmission models). The ignition switch is in the ACC or
OFF position and the selector lever is
not in the P (Park) position.
Move the selector lever to the P
(Park) position and push the ignition
switch to the OFF position.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for a few
seconds and all the doors unlock. The Intelligent Key is inside the ve-
hicle or trunk.Carry the Intelligent Key with you.
When pushing the request switch or
LOCK button on the Intelligent Key
to lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the ve-
hicle or trunk.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid The outside chime sounds for ap-
proximately 10 seconds and the
trunk lid opens. The Intelligent Key is inside the
trunk.
Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-13
—
—
10/12/09—tbrooks


Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17
—
—
10/12/09—tbrooks

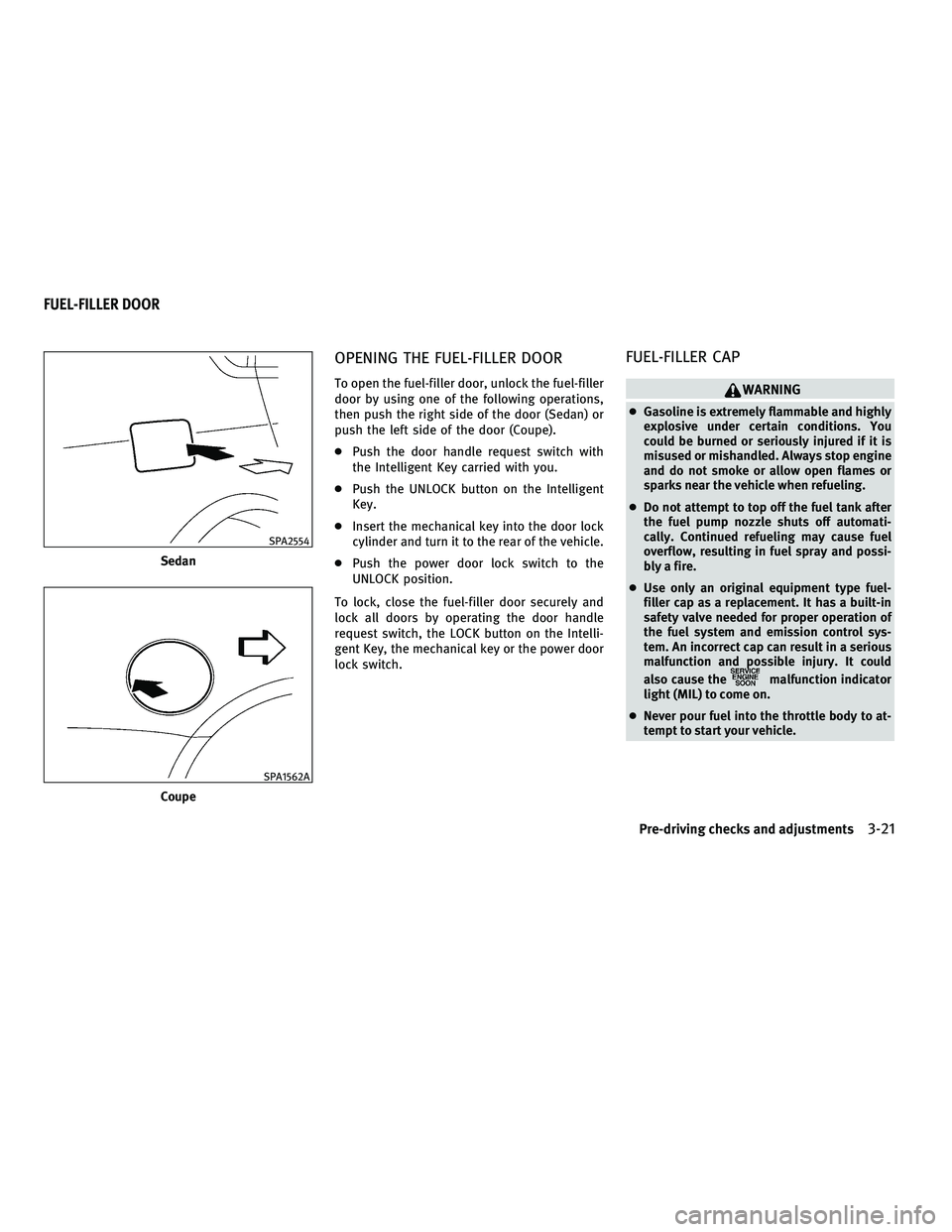

OPENING THE FUEL-FILLER DOOR
To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the right side of the door (Sedan) or
push the left side of the door (Coupe).
●Push the door handle request switch with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
● Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
● Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
malfunction indicator
light (MIL) to come on.
● Never pour fuel into the throttle body to at-
tempt to start your vehicle.
Sedan
SPA2554
Coupe
SPA1562A
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-21
—
—
04/21/10—debbie


Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe). 3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h). ●
When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
Pre-driving checks and adjustments3-31
—
—
04/21/10—debbie


CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure, even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Starting and driving5-3
—
—
04/21/10—debbie
