4. Speak “Dial Number”.5. Speak “8 0 0”.
Selecting the “Manual Controls” key
switches the screen to the keypad to input
the phone number manually.
6. The system announces, “Please say the
next three digits or dial, or say change
number.”
7. Speak “6 6 2”.
SAA2536SAA2537SAA2538
Monitor, climate, audio, phone and voice recognition systems4-119
—
—
04/21/10—debbie


Activating Alternate Command Mode
When the Standard Mode is active, perform the
following steps to switch to the Alternate Com-
mand Mode.
1. Push the SETTING button on the instru-ment panel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key. 4. Highlight the “Alternate Command Mode”
key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command list
If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the fol-
lowing procedure for displaying the voice com-
mand list (available only in Alternate Command
Mode).
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
SAA2529SAA2543SAA2544
Monitor, climate, audio, phone and voice recognition systems4-123
—
—
04/21/10—debbie


5. Select a category from the list.6. Select an item.
7. If necessary, scroll the screen using the INFINITI controller to view the entire list.
8. Press the BACK button to return to the previous screen.
SAA2545SAA2546
4-124Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie

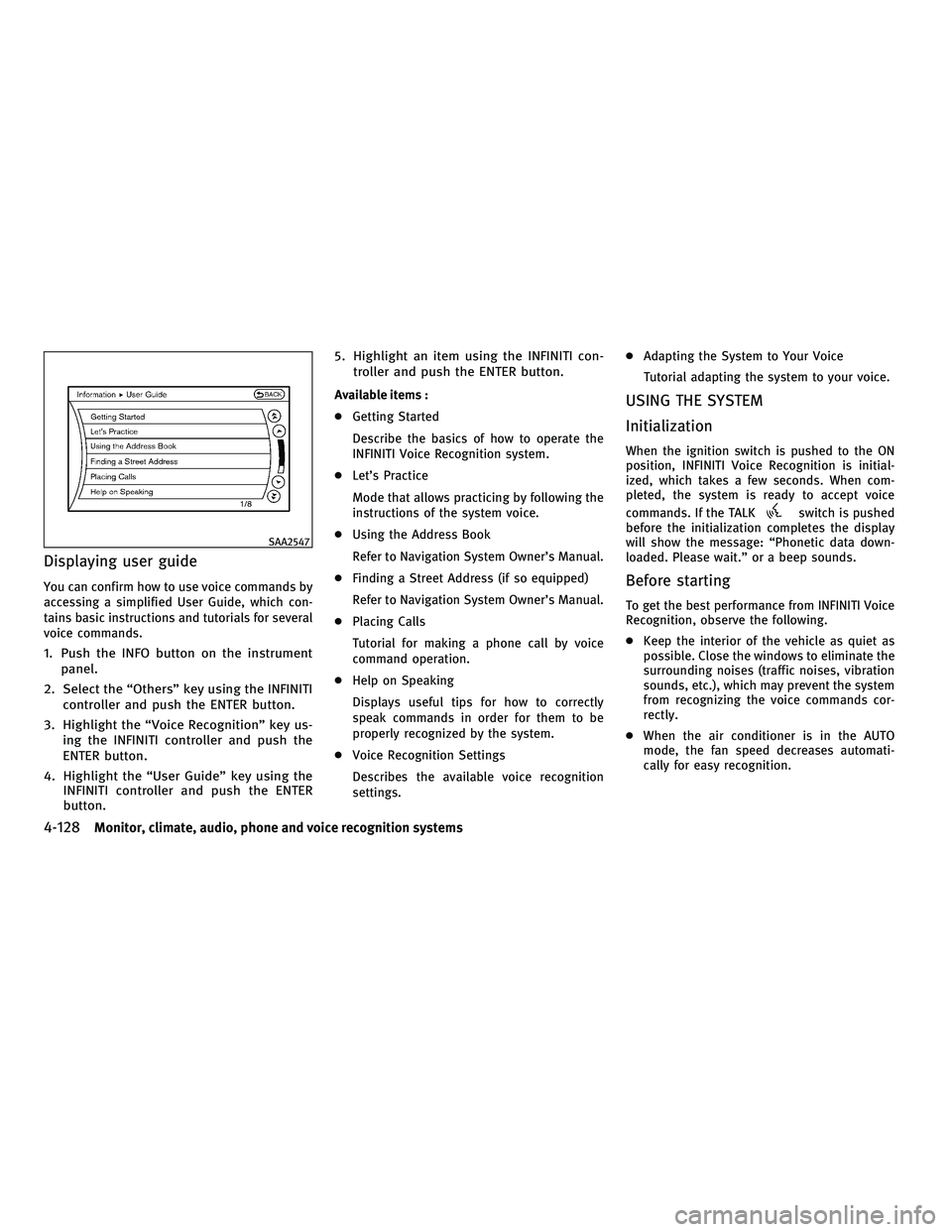

Displaying user guide
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key using the INFINITI controller and push the ENTER button.
3. Highlight the “Voice Recognition” key us- ing the INFINITI controller and push the
ENTER button.
4. Highlight the “User Guide” key using the INFINITI controller and push the ENTER
button. 5. Highlight an item using the INFINITI con-
troller and push the ENTER button.
Available items :
● Getting Started
Describe the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Refer to Navigation System Owner’s Manual.
● Finding a Street Address (if so equipped)
Refer to Navigation System Owner’s Manual.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system.
● Voice Recognition Settings
Describes the available voice recognition
settings. ●
Adapting the System to Your Voice
Tutorial adapting the system to your voice.USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, INFINITI Voice Recognition is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display
will show the message: “Phonetic data down-
loaded. Please wait.” or a beep sounds.
Before starting
To get the best performance from INFINITI Voice
Recognition, observe the following.
● Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
SAA2547
4-128Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


●Wait until a tone sounds before speaking a
command.
● Speak in a natural voice without pausing
between words.

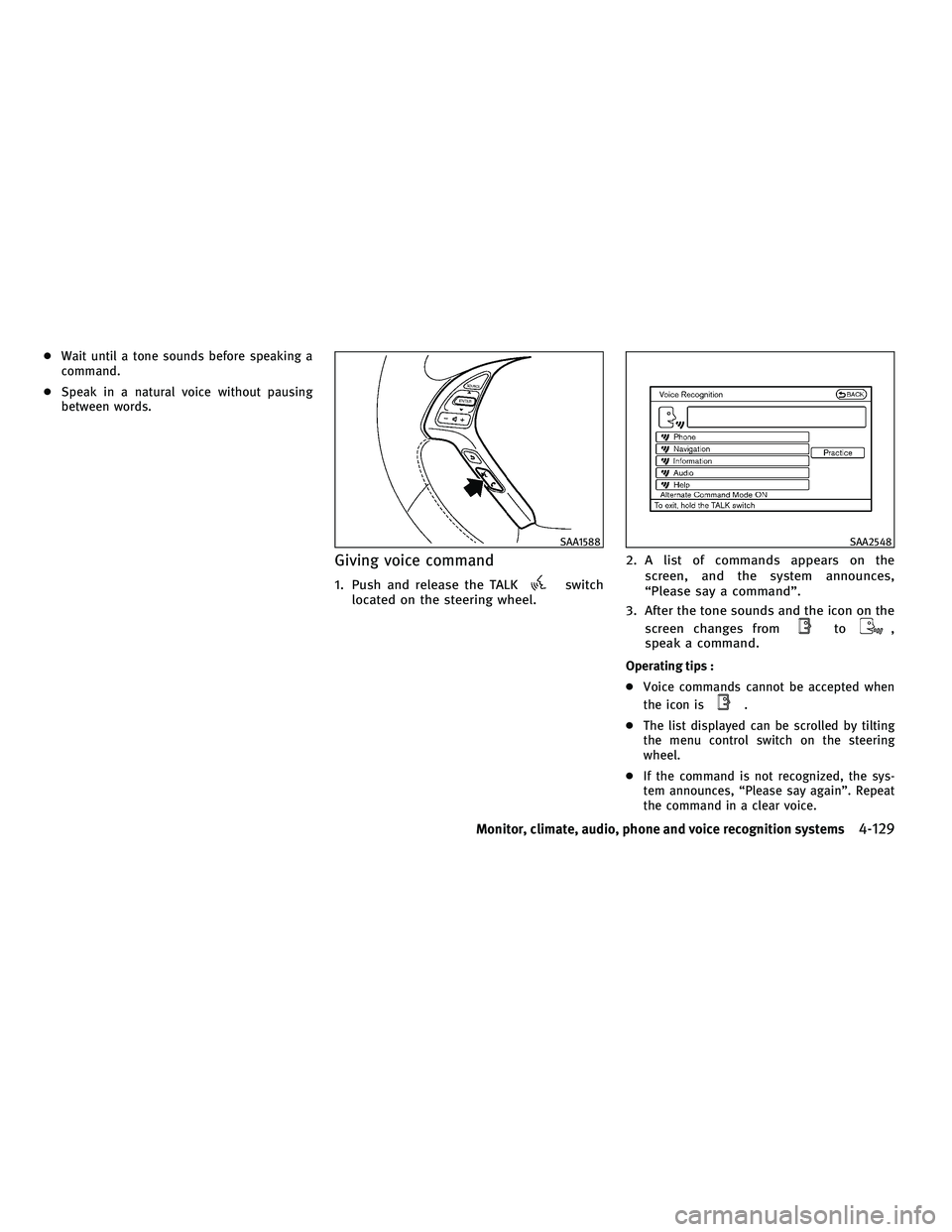

Giving voice command
1. Push and release the TALKswitch
located on the steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Please say a command”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
SAA1588SAA2548
Monitor, climate, audio, phone and voice recognition systems4-129
—
—
04/21/10—debbie


●Push the BACK button once to return to the
previous screen.
● If you want to cancel the command, push
and hold the TALK
switch for 1 sec-
ond. The message “Voice canceled” will be
announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
switch (+ or ) on the steering wheel or use
the audio system volume knob while the
system is making an announcement.

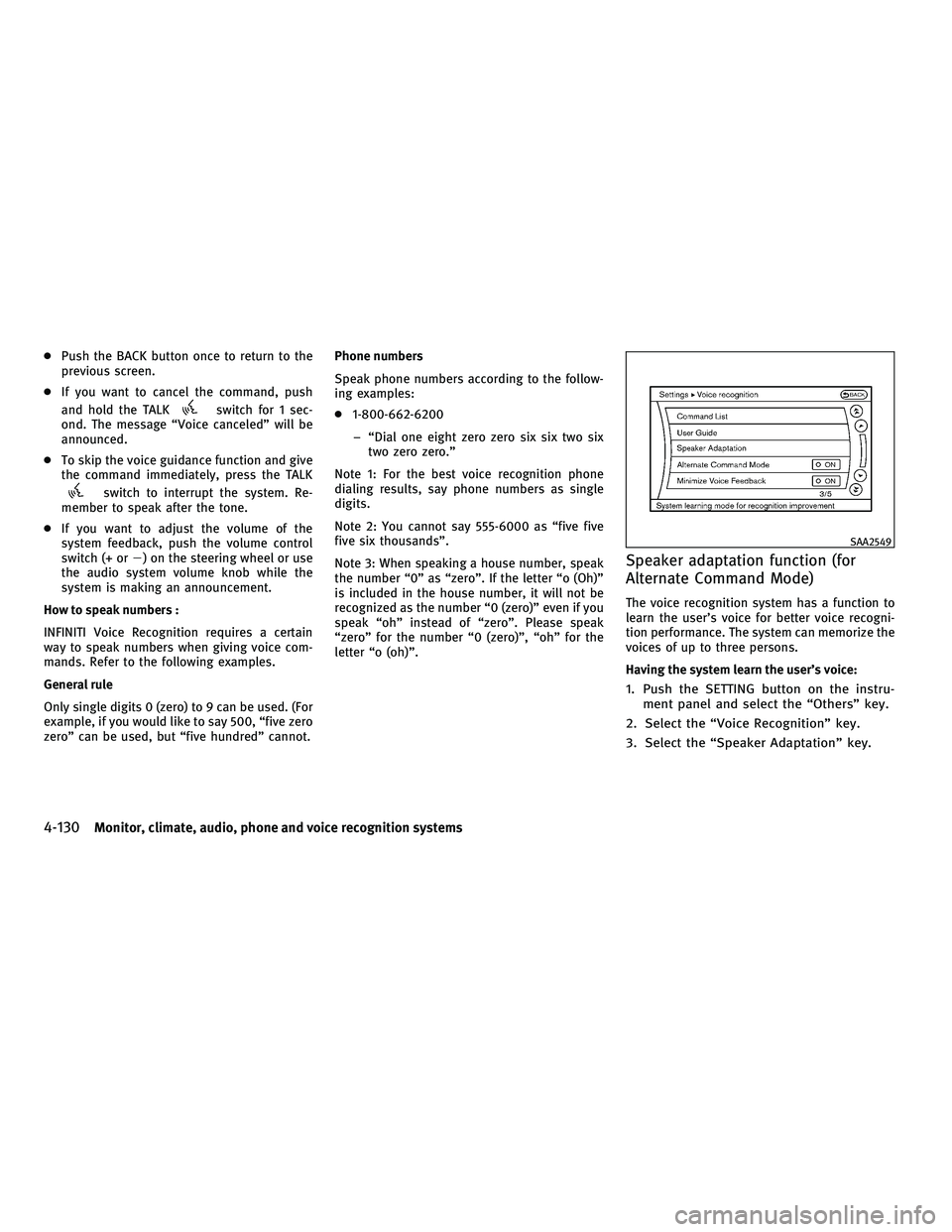

How to speak numbers :
INFINITI Voice Recognition requires a certain
way to speak numbers when giving voice com-
mands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot. Phone numbers
Speak phone numbers according to the follow-
ing examples:
●
1-800-662-6200
– “Dial one eight zero zero six six two six two zero zero.”
Note 1: For the best voice recognition phone
dialing results, say phone numbers as single
digits.
Note 2: You cannot say 555-6000 as “five five
five six thousands”.
Note 3: When speaking a house number, speak
the number “0” as “zero”. If the letter “o (Oh)”
is included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”. Please speak
“zero” for the number “0 (zero)”, “oh” for the
letter “o (oh)”.
Speaker adaptation function (for
Alternate Command Mode)
The voice recognition system has a function to
learn the user’s voice for better voice recogni-
tion performance. The system can memorize the
voices of up to three persons.
Having the system learn the user’s voice:
1. Push the SETTING button on the instru- ment panel and select the “Others” key.
2. Select the “Voice Recognition” key.
3. Select the “Speaker Adaptation” key.
SAA2549
4-130Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


PREVIEW FUNCTION (for Intelligent
Cruise Control system equipped
models)
The ICC system with the preview function iden-
tifies the need to apply emergency braking by
sensing the vehicle ahead in the same lane and
the distance to the vehicle ahead and relative
speed from it, it applies the brake pre-pressure
before the driver depresses the brake pedal and
helps improve brake response by reducing
pedal free play.
For more details, see “BRAKE ASSIST” later in
this section.
CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible. ●
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
5-42Starting and driving
—
—
04/29/10—pattie


CAUTION
●Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the selector
lever to the P (Park) position (Automatic
transmission models). Move the shift lever
to the N (Neutral) position (Manual trans-
mission models).
Do not stop the engine.
2. Turn off the climate control. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing or the cooling fan does not run, stop
the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
IF YOUR VEHICLE OVERHEATS
6-10In case of emergency
—
—
04/21/10—debbie


DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire
graded 100. The relative performance of tires
depends upon actual conditions of their use,
however, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specifiedgovernment test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is based
on straight-ahead braking traction tests, and
does not include acceleration, cornering, hy-
droplaning, or peak traction characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the ma-
terial of the tire to degenerate and reduce tire
life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to
a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A rep-
resent higher levels of performance on the
laboratory test wheel than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and not
overloaded. Excessive speed, under-inflation,
or excessive loading, either separately or in
combination, can cause heat build-up and pos-
sible tire failure.
UNIFORM TIRE QUALITY GRADING
9-22Technical and consumer information
—
—
04/21/10—debbie


10 Index
4 Wheel Active Steer (4WAS) system.....5-544 Wheel Active Steer (4WAS) warning light . .2-13
A
ABS (Anti-lock Braking System) ........5-52
Advanced air bag system ...........1-45
Air bag system Advanced air bag system .........1-45
Front passenger air bag and status
light ..................... 1-47
Front-seat mounted side-impact
supplemental air bag system .......1-50
Roof-mounted curtain side-impact
supplemental air bag system .......1-50
Air bag warning labels .............1-53
Air bag warning light ..........1-53 , 2-16
Air cleaner housing filter ...........8-17
Air conditioner Air conditioner service ...........4-38
Air conditioner specification label ....9-14
Air conditioning system refrigerant and
lubricant recommendations .......4-38
Automatic climate control ........4-28
In-cabin microfilter ............4-38
Operation (See automatic climate
control) ................... 4-28
Alarm, How to stop alarm
(see vehicle security system) .........2-28
Alcohol, drugs and driving ...........5-6
All-wheel drive (AWD) .............5-43 All-wheel drive (AWD) driving safety
precautions
................... .5-7
All-wheel drive (AWD) warning light .....2-12
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-52
Anti-lock braking system (ABS) warning
light ...................... .2-12
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-12
Ashtrays (See cigarette lighter
and ashtrays) ................. .2-42
Audible reminders .............. .2-18
Audio operation precautions .........4-39
Audio system ................. .4-39
Audio system, Steering wheel
audio controls ................ .4-83
Autolight system ............... .2-33
Automatic Automatic adjusting function (front
windows) ................. .2-52
Automatic

climate control ........4-30
Automatic transmission fluid (ATF) ....8-11
Climate control .............. 4-28
Driving with automatic transmission . . . 5-12
Automatic door locks ..............3-6
Automatic drive positioner ..........3-28
Automatic seat positioner...........3-28
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-13
Battery Battery saver system ............2-35
Intelligent Key ............... 8-22
Variable voltage control system .....8-15
Before starting the engine ...........5-10
Belts (See drive belts) .............8-16
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Booster seats ................. .1-35
Brake Anti-lock Braking System (ABS) ......5-52
Brake and clutch fluid ...........8-12
Brake system ............... 5-48
Parking brake operation . . . ......5-18
Brake warning light ............. .2-12
Break-in schedule .............. .5-42
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel . . . ......2-11
Bulb replacement .............. .8-23
C
Cabin air filter ................ .4-38
Capacities and recommended
fuel/lubricants ................. .9-2
—
—
04/30/10—diane
