1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-38)
17. SNOW mode switch (if so equipped) (P. 2-40)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45)
SSI0671
INSTRUMENT PANEL
0-10Illustrated table of contents
—
—
10/12/09—tbrooks


Warn-ing
light Name Page
All-Wheel Drive (AWD)
warning light (AWD
models)* 2-12
Anti-lock Braking Sys-
tem (ABS) warning light
2-12
Automatic Transmission
check warning light2-12
Brake warning light 2-12
Charge warning light 2-13
Engine oil pressure
warning light 2-13
4 Wheel Active Steer
(4WAS) warning light*2-13
Warn-
ing
light Name Page
Intelligent Cruise Con-
trol (ICC) system warn-
ing light (orange)* 2-14
Intelligent Key system
warning light
2-14
Low tire pressure warn-
ing light2-14
Master warning light 2-15
Preview Function warn-
ing light (orange)* 2-15
Seat belt warning light 2-16
Supplemental air bag
warning light2-16
Indica-
tor
light Name Page
Automatic Transmission
position indicator light*
2-16
Front fog light indicator
light 2-17
Front passenger air bag
status light2-17
High beam indicator
light2-17
Malfunction Indicator
Light (MIL)2-17
Security indicator light 2-18
Slip indicator light 2-18
Low Beam indicator
light (green)2-18
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-13
—
—
12/08/09—debbie


(142.5 cm) tall and weighs between 40 lb (18 kg)
and 80 lb (36 kg). A booster seat should be
used to obtain proper seat belt fit.
INFINITI recommends that a child be placed in a
commercially available booster seat if the
shoulder belt in the child’s seating position fits
close to the face or neck or if the lap portion of
the seat belt goes across the abdomen. The
booster seat should raise the child so that the
shoulder belt is properly positioned across the
top, middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can only
be used in seating positions that have a three-
point type seat belt. The booster seat should fit
the vehicle seat and have a label certifying that
it complies with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. Once the child has grown so the
shoulder belt is no longer on or near the face
and neck, use the shoulder belt without the
booster seat.
WARNING
Never let a child stand or kneel on any seat and
do not allow a child in the cargo area. The child
could be seriously injured or killed in a sudden
stop or collision.
PREGNANT WOMEN
INFINITI recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist, and
place the shoulder belt over your shoulder and
across your chest. Never run the lap/shoulder
belt over your abdominal area. Contact your
doctor for specific recommendations.
INJURED PERSONS
INFINITI recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
PRE-CRASH SEAT BELTS (front seats)
(if so equipped)
The pre-crash seat belt tightens the seat belt to
help restrain front seat occupants under emer-
gency braking. This can help reduce the risk of
injury when a collision occurs.
Pre-crash seat belt will not be activated when:
●the brake pedal is not depressed
● the seat belt is not fastened
● the selector lever is in the reverse position
● the vehicle speed is under 10 MPH (15 km/h) Always wear your seat belt correctly and sit
upright and well back.
If the seat belt warning light blinks even if the
driver’s and front passenger’s seat belts are
fastened, it may indicate the pre-crash seat belt
system has a malfunction. Have your INFINITI
retailer check and repair the system.
THREE-POINT TYPE SEAT BELT
WARNING
●
Every person who drives or rides in this ve-
hicle should use a seat belt at all times.
● Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly.
1-16Safety — Seats, seat belts and supplemental restraint system
—
—
10/12/09—tbrooks


1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag (P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-38)
17. SNOW mode switch (if so equipped) (P. 2-40)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45)
SSI0671
INSTRUMENT PANEL
Instruments and controls2-3
—
—
10/12/09—tbrooks


All-Wheel Drive (AWD) warning light
(AWD models)*Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Front passenger air bag status light
Anti-lock Braking System (ABS) warn-
ing light
Intelligent Key warning lightHigh beam indicator light
Low tire pressure warning lightMalfunction Indicator Light (MIL)
Automatic transmission check warn-
ing lightMaster warning lightSecurity indicator light
Brake warning light
Preview Function warning light (or-
ange)*Slip indicator light
Seat belt warning lightLow Beam indicator light (green)
Charge warning lightSupplemental air bag warning lightTurn signal/hazard indicator lights
Engine oil pressure warning lightAutomatic transmission position indi-
cator light*Vehicle Dynamic Control (VDC) off
indicator light
4 Wheel Active Steer (4WAS) warning
light*Front fog light indicator light *: if so equipped
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,
,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-11
—
—
12/08/09—debbie


WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again. – blinks slowly (about once every 2 sec-
onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
Automatic transmission
check warning light (if so
equipped)
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
2-12Instruments and controls
—
—
10/12/09—tbrooks


1. Check the brake fluid level. If brake fluid isnecessary, add fluid and have the system
checked by your INFINITI retailer. (See
“BRAKE AND CLUTCH FLUID” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the warning system checked by an INFINITI
retailer.
Anti-lock Braking System (ABS) warning indica-
tor :
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by an INFINITI retailer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
●Your brake system may not be working prop-
erly if the warning light is on. Driving could
be dangerous. If you judge it to be safe, drive
carefully to the nearest service station for
repairs. Otherwise, have your vehicle towed
because driving it could be dangerous. ●
Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and braking
will require greater pedal effort as well as
pedal travel.
● If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked at an INFINITI retailer.
Charge warning light
If the light comes on while the engine is run-
ning, it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
an INFINITI retailer immediately.
CAUTION
Do not continue driving if the alternator belt is
loose, broken or missing.
4 Wheel Active Steer (4WAS)
warning light (if so equipped)
If the light comes on while the engine is run-
ning, it may indicate that there is a malfunction
with the 4 Wheel Active Steer (4WAS) portion of the steering system. Push the ignition switch to
the OFF position and then to the ON position. If
the light does not turn off after cycling the
engine, have the system checked by an INFINITI
retailer.
For further information about the 4 Wheel Active
Steer system, see “4 WHEEL ACTIVE STEER
(4WAS) SYSTEM” in the “5. Starting and driv-
ing” section.
If a malfunction occurs in the system, the 4
Wheel Active Steer (4WAS) function will cease
but driving can be continued. However, the
steering wheel is slightly turned even when
driving on a straight road. Drive carefully to the
nearest INFINITI retailer.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop the
engine
immediately and call an INFINITI retailer
or other authorized repair shop.
The engine oil pressure warning light is not de-
signed to indicate a low oil level. Use the dip-
stick to check the oil level. (See “ENGINE OIL” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
Instruments and controls2-13
—
—
10/12/09—tbrooks


WARNING
●If the light does not illuminate with the ignition
switch pushed ON, have the vehicle checked
by an INFINITI retailer as soon as possible.
● If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting. ●
Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.CAUTION
● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning ●
Loose fuel cap warning (if so equipped)
● Check tire pressure warning (if so equipped)
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in the
Brake Assist (with Preview Function) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Instruments and controls2-15
—
—
04/21/10—debbie


Security indicator light
The light blinks when the ignition switch is in
the ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this
light will remain on while the ignition switch is
in the ON position. For additional information,
see “SECURITY SYSTEMS” later in this section.
Slip indicator light
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver that the vehicle is nearing its
traction limits. The road surface may be slip-
pery.
Low Beam indicator light
(green)
The small light indicator light illuminates when
the front clearance lights, instrument panel
lights, rear combination lights and license plate
lights are on. The indicator light turns off when
the
is turned off.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light
The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This indi-
cates that the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
dynamic control system’s fail-safe mode is op-
erating, for example the vehicle dynamic con-
trol system may not be functioning properly.
Have the system checked by an INFINITI retailer.
If an abnormality occurs in the system, the
vehicle dynamic control system function will be
canceled but the vehicle is still driveable. For
additional information, see “VEHICLE DYNAMIC
CONTROL (VDC) SYSTEM” in the “5. Starting and
driving” section of this manual.
AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or LOCK
position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chime
A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the
ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
The parking brake reminder chime will sound if
the vehicle is driven at more than 4 MPH (7
km/h) with the parking brake applied. Stop the
vehicle and release the parking brake.
2-18Instruments and controls
—
—
12/08/09—debbie


Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning

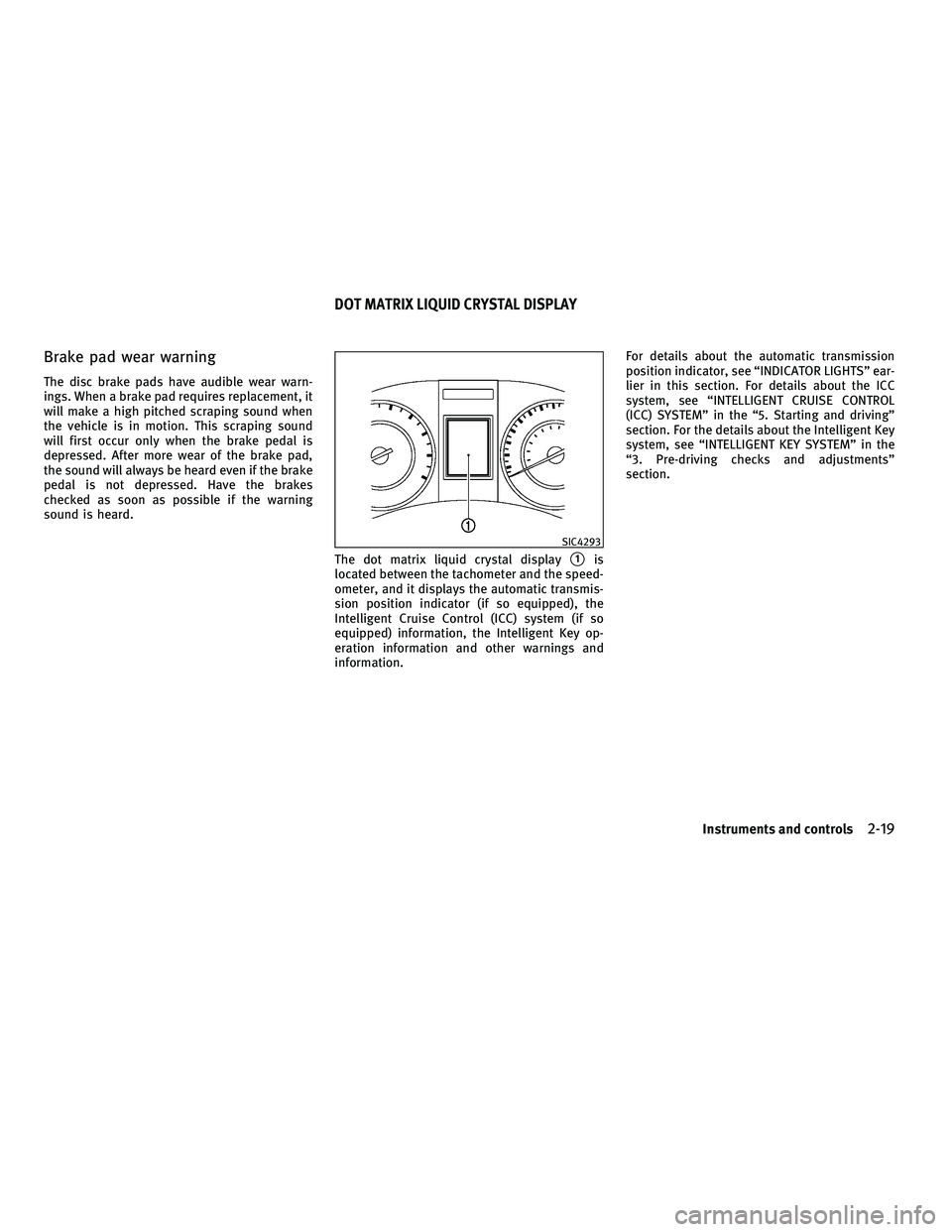

sound is heard.The dot matrix liquid crystal display
1is
located between the tachometer and the speed-
ometer, and it displays the automatic transmis-
sion position indicator (if so equipped), the
Intelligent Cruise Control (ICC) system (if so
equipped) information, the Intelligent Key op-
eration information and other warnings and
information. For details about the automatic transmission
position indicator, see “INDICATOR LIGHTS” ear-
lier in this section. For details about the ICC
system, see “INTELLIGENT CRUISE CONTROL
(ICC) SYSTEM” in the “5. Starting and driving”
section. For the details about the Intelligent Key
system, see “INTELLIGENT KEY SYSTEM” in the
“3. Pre-driving checks and adjustments”
section.
SIC4293
DOT MATRIX LIQUID CRYSTAL DISPLAY
Instruments and controls2-19
—
—
10/12/09—tbrooks
