jack points INFINITI G 2011 Owners Manual

Jacking up the vehicle and removing
the damaged tire
WARNING
●Never get under the vehicle while it is sup-
ported only by the jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack.
Carefully read the caution label attached to the
jack body and the following instructions.
1. Place the jack directly under the jack-up point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head be-
tween the notches as shown.
The jack should be used on level firm ground.
Jack-up point
CE1089-A
In case of emergency6-5

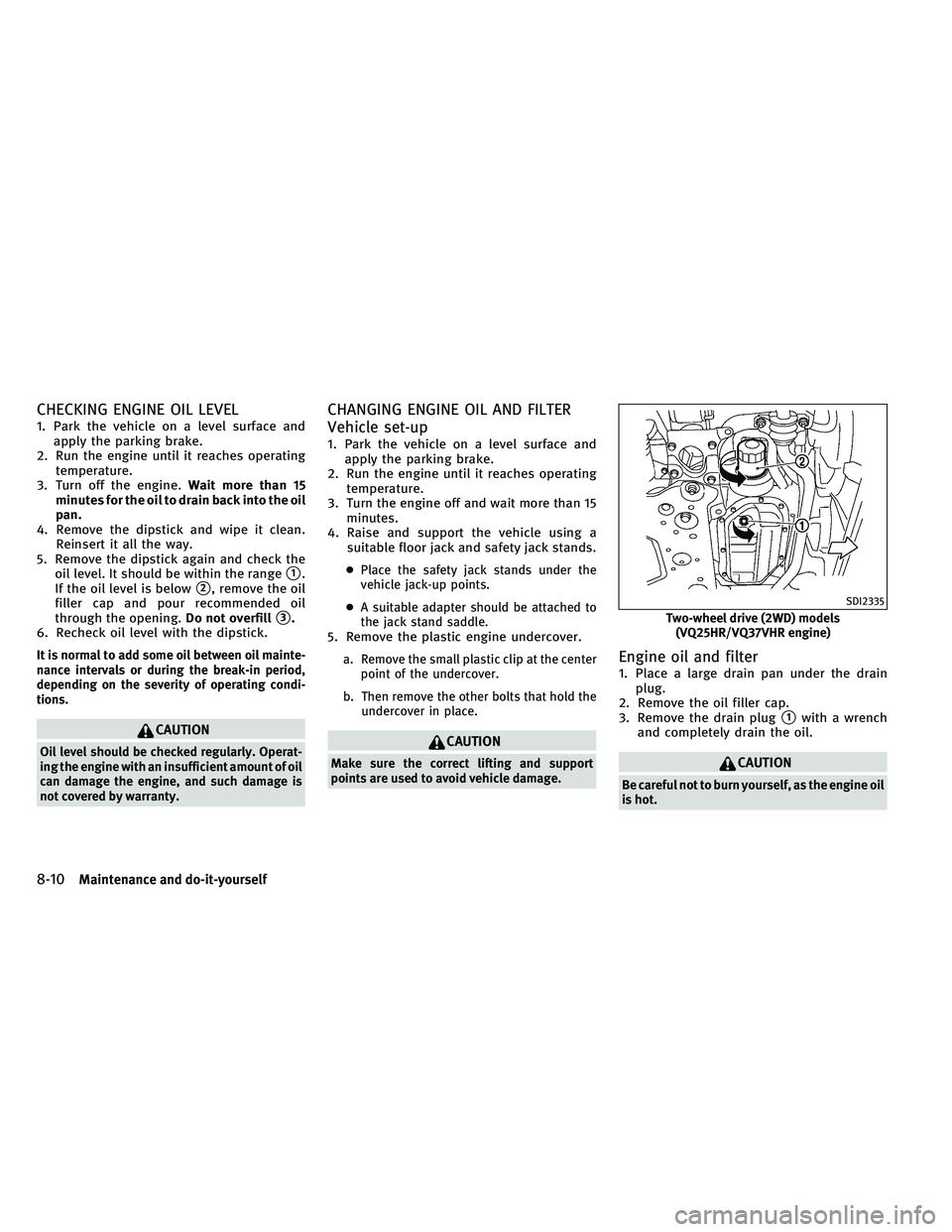

CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
1.
If the oil level is below
2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Vehicle set-up
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack stands.
●Place the safety jack stands under the
vehicle jack-up points.
● A suitable adapter should be attached to
the jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the center
point of the undercover.
b. Then remove the other bolts that hold the undercover in place.
CAUTION
Make sure the correct lifting and support
points are used to avoid vehicle damage.
Engine oil and filter
1. Place a large drain pan under the drainplug.
2. Remove the oil filler cap.
3. Remove the drain plug
1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the engine oil
is hot.
Two-wheel drive (2WD) models (VQ25HR/VQ37VHR engine)
SDI2335
8-10Maintenance and do-it-yourself
